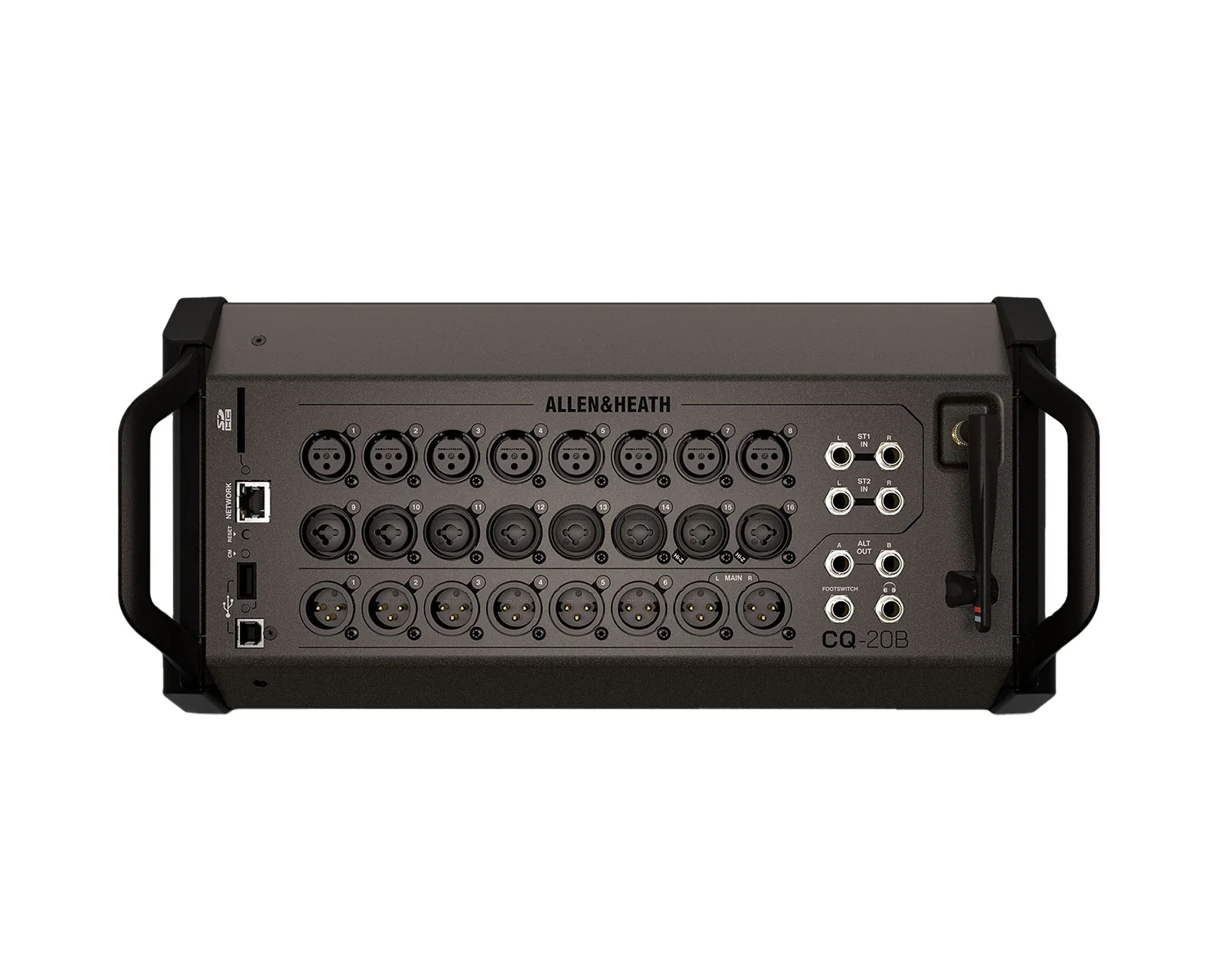

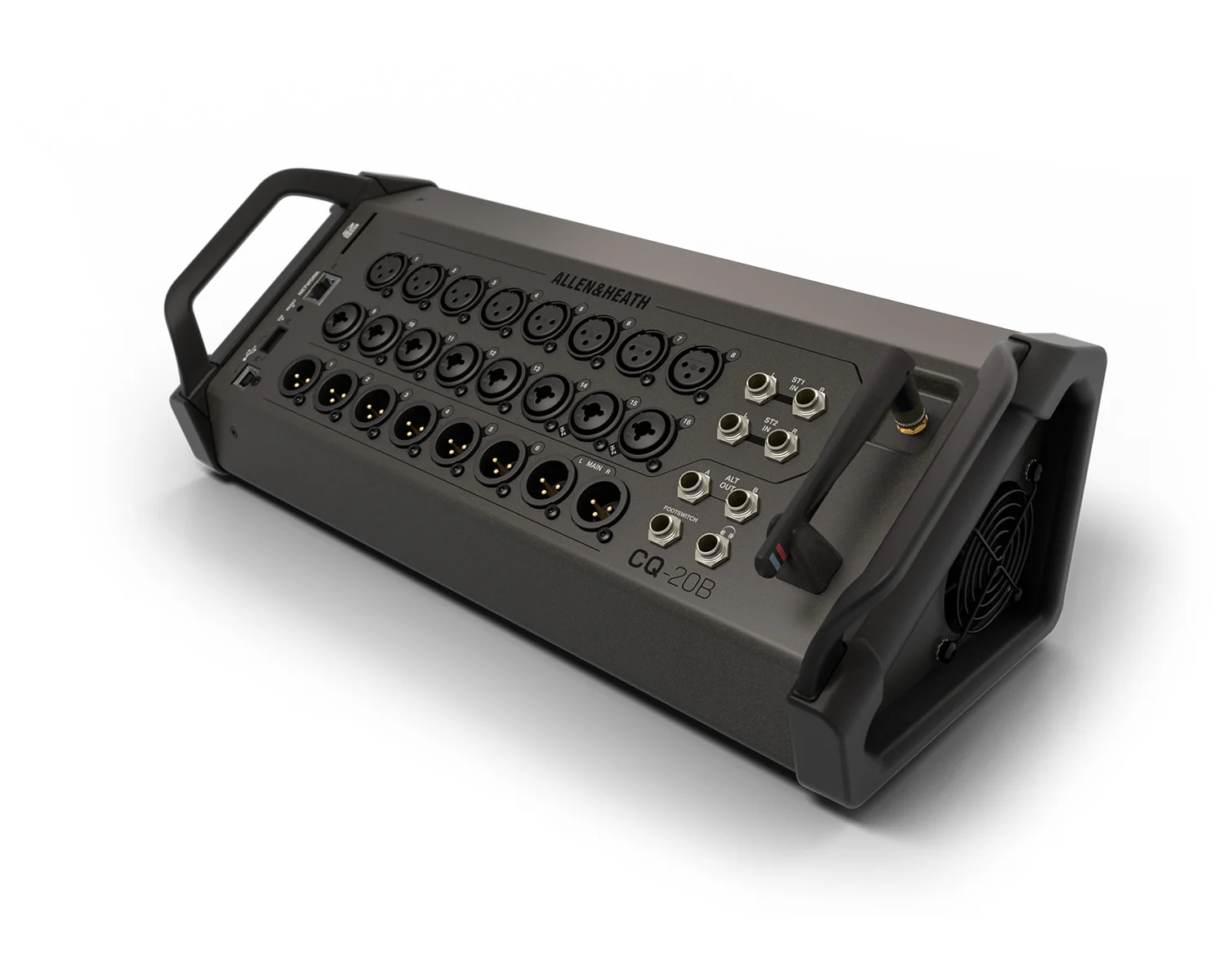

Allen & Heath CQ-20B Ultra-Compact Digital Mixer with Wi-Fi 20in / 8out
£718.74£598.95 Incl. VATExcl. VAT
Designed for life on the stage, CQ-20B is the highest channel-count mixer in the range and is controlled via the free CQ MixPad app.
Although the CQ-20B is designed for life on the stage, you’re free to mix from anywhere in the venue via the free CQ MixPad app and the integrated dual-band Wi-Fi. CQ MixPad gives you control over all parameters of the mixer so you can soundcheck, mix and record from your mobile device or computer.
The CQ-20B is designed to be controlled via the intuitive CQ MixPad app and features powerful integrated dual-band Wi-Fi so you don’t need to connect an access point or router to use apps for control of the mixer. Just connect your devices to the CQ’s secure Wi-Fi network and you’re ready to go.
- 20x Inputs to Mix
- (16x Mono/Linkable, 4x Stereo)
- Stereo MainLR Output
- 6x Aux Outputs
- (Linkable up to 3x Stereo)
- 8x XLR Mic/Line Input Sockets
- 8x XLR/Jack ‘Combi’ Mic/Line Input Sockets
- (2 with Hi-Z option)
- 2x Stereo Line Input Sockets
- (each 2x TRS)
- 8x XLR Output Sockets
- 2x TRS Alt Out Sockets
- Stereo Headphone Output
- Dedicated Stereo USB Input to Mix
- Dedicated Stereo Bluetooth Input to Mix
- 96kHz Input/Output Processing
- 4x Multi-FX Engines
- Built-In Dual Band WiFi (CQ as Host)
- RJ45 Network Socket (CQ as Client)
- USB-A For Stereo Audio Record/Playback and Data
- USB-B For Multichannel Audio Record/Playback (24×24)
- SD Card Slot for Multichannel Audio Record/Playback (24×24)
- Configurable Single/Dual Footswitch Connection
- Configurable Chromatic Channel Meter LED
- Rack Mountable (Optional Kit Available)
- IEC Mains Connection with Worldwide PSU
- Control Via Free Apps – Windows/MacOS/iOS/Android
Inputs
- Mic/Line Inputs: Balanced XLR, Balanced XLR/TRS Combi, fully recallable preamp
- Phantom Power: +48V (+3V / -2V)
- Input Sensitivity: -60 to +0dBu
- Line Inputs (Combi Sockets): -20dB Pad (Fixed)
- Analogue Gain: 0dB to +60dB, 1dB steps
- Maximum Input Level: +17dBu (XLR), +30dBu (TRS)
- Input Impedance: >1.5kΩ (XLR), >10kΩ (TRS)
- THD+N, Unity gain 0dB: 0.002% -92dBu (20Hz-20kHz, USB soundcard, @0dBu 1kHz)
- THD+N, Mid gain +30dB: 0.004% -88dBu (20Hz-20kHz, USB soundcard, @-30dBu 1kHz)
- Stereo Line Inputs
- Stereo Line Input Connection: Balanced, 1/4" TRS Jack, Normalled (Left/Mono)
- Input Sensitivity Nominal: +4dBu
- Trim: +/-24dB
- Maximum Input Level: +21dBu
- Input Impedance: >10kΩ
- Hi-Z Inputs: 1MΩ, JFET input stage, 0dB to +40dB gain
