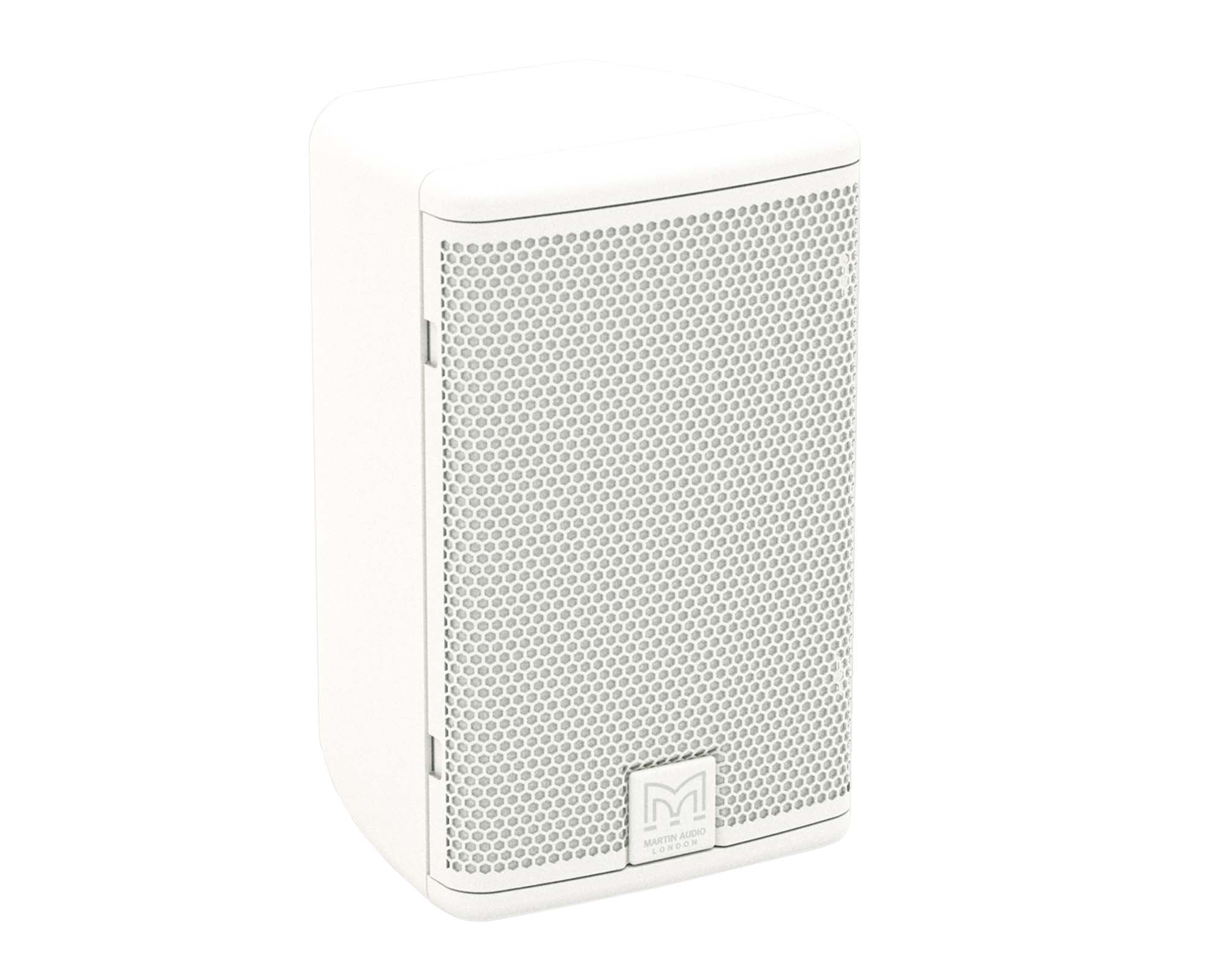

Name: Martin Audio ADORN A40TW 4" 2-Way Speaker Inc Bracket 110x80¬∞ 100V White
Brand: Martin Audio
SKU: A40T-W
Availability: InStock

Martin Audio ADORN A40TW 4″ 2-Way Speaker Inc Bracket 110×80¬∞ 100V White

£142.56£118.80 Incl. VATExcl. VAT

SKU: A40T-W Category: Point Source

Description

The ADORN A40T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high-fidelity sound from an unobtrusive, ultra-compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications ‚Äî from retail outlets, bars and restaurants to corporate offices and convention centres.Comprising a 4″ (100mm) LF driver and a 0.75″ (19mm) silk-dome HF driver on a 110¬∞ x 80¬∞ horn, it handles 40W AES, 160W peak and can produce 109dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 70Hz.

Features

Contemporary, unobtrusive design
High output capability
High fidelity sound
Low and high-frequency overload protection
70V/100V line transformer
Vertical or horizontal orientation
Wide 110¬∞ x 80¬∞ coverage

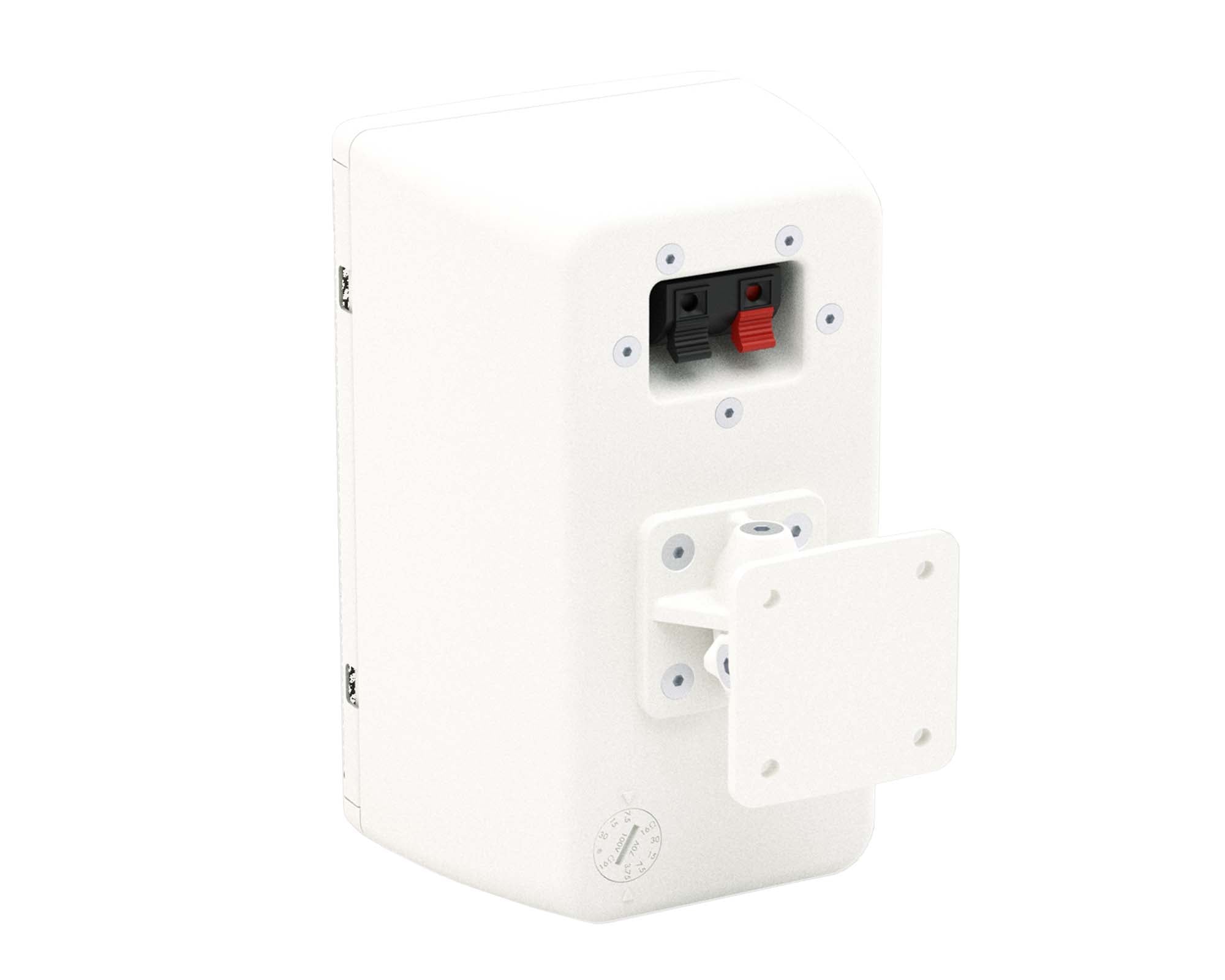

Wall bracket included
5-year warranty

Specs

General

Type: Ultra-Compact passive two-way system, front ported bass reflex
Frequency Response (4):
- 98Hz-17kHz ¬± 3dB
- -10dB @ 70Hz
Drivers:
- LF: 4‚Äù /1‚Äù high-temp voice coil, coated paper cone, rubber surround ferrite motor, pressed steel chassis
- HF: 0.75‚Äù silk dome, neodymium motor
Rated Power: 40W AES, 160W peak
Recommended Amplifier: VIA5002 [In conjunction with suitable line transformer]
Sensitivity(4): 87dB/1W/1m
Maximum SPL (9): 109dB peak
Dispersion (-6DB): 110¬∞ H x 80¬∞ V
Crossover: 3kHz passive (LF and HF auto-resetting fuses)
Transformer Taps:
- 70V: 20w / 10w / 5w / 2.5w
- 100V: 20w / 10w / 5w
Recommended High-Pass Filter: 60Hz 24dB/oct
Enclosure: ABS, UL 94V-0 rated
Finish: White
Grille: Perforated steel
Connectors: Push Terminals
Fittings: Wall bracket included
