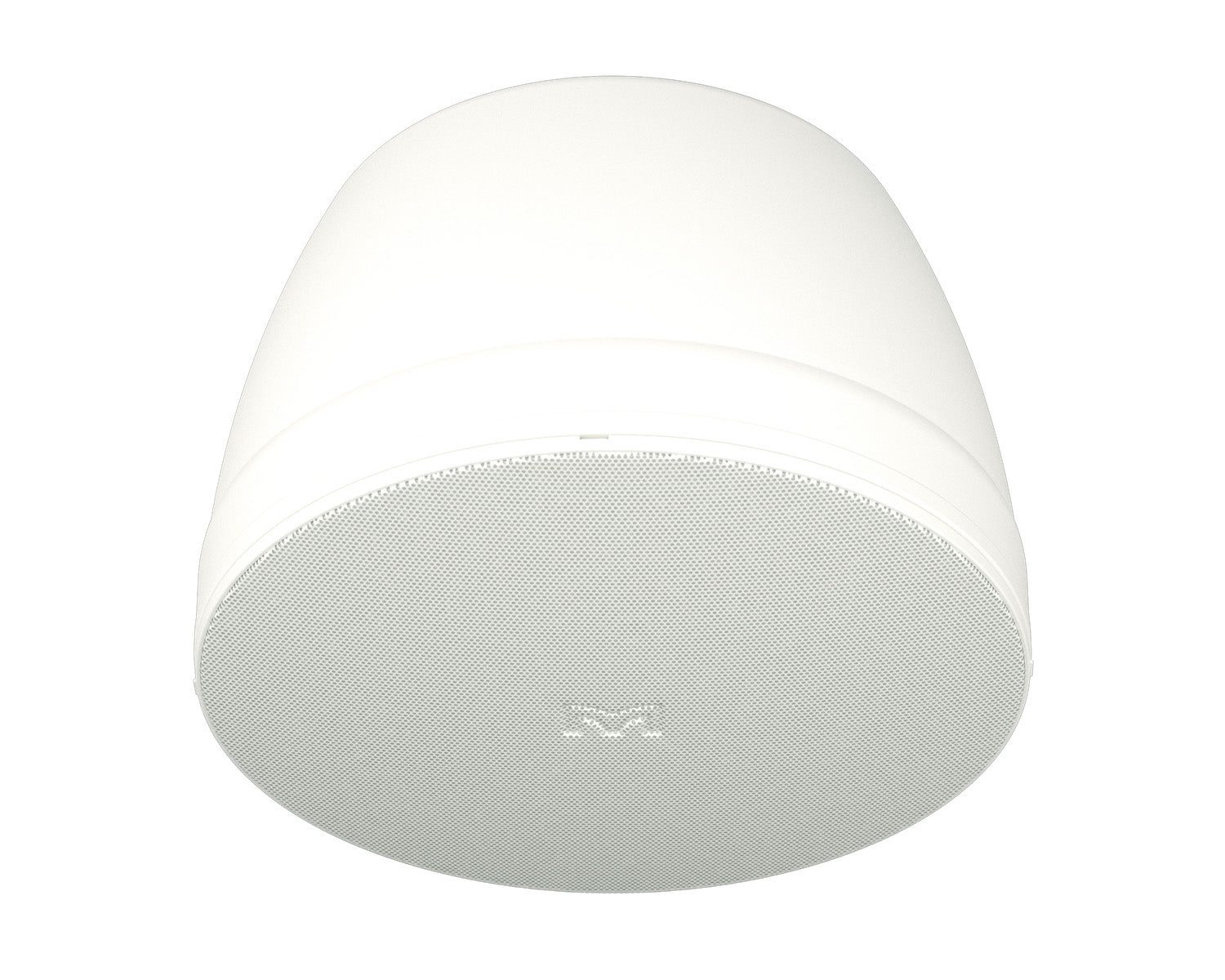

Martin Audio ADORN ACP55TW 5.25″ 2-Way Pendant Speaker 150¬∞ 100V White
£242.55£202.13 Incl. VATExcl. VAT
The ACP-55T brings full-frequency response, consistent coverage and intelligibility to a wide range of architectural environments ‚Äî from hotel atriums and exhibition spaces to retail outlets, bars and restaurants. Comprising a 5.25″ (100mm) LF driver and a 0.75″ (19mm) silk-dome tweeter, the ACP-55T produces 109dB peak output at 1 metre and delivers superb sound quality for both music and speech reproduction. Its stylish pendant enclosure is equipped with a single-point mounting system plus provision for attaching a safety cable. The consistent and wide 150¬∞ conical coverage of the ACP-55T reduces the number of speakers required for even coverage ‚Äî leading to a reduction in installation cost. It incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch at the top of the pendant enclosure. The switch also provides for 16-ohm low impedance operation ‚Äî enabling four or more speakers to be driven in parallel from a single amplifier channel. For full-bandwidth protection, the low and high- frequency sections are individually protected against overload by auto-resetting thermal fuses.
- High performance two-way pendant speaker
- 5.25” (100mm) LF driver and 0.75” (19mm) HF dome tweeter
- Wide 150° conical coverage pattern reduces speaker count required for even coverage
- 70V/100V multi-tap line transformer or 16-ohm low-impedance operation
- Low and high-frequency overload protection
- Quick release, bezel-less grille
- UL94V-0 rated baffle and enclosure
- 5-year warranty
- White
- Does not include the catenary cable, see CK3 Suspension Kit
Applications
- Retail outlets
- Cafes, bars and restaurants
- Museums and Houses of Worship
- Hotels, casinos and concourses
- Exhibition spaces and convention centres
- Transportation facilities
- TYPE: Passive two-way pendant speaker, ported bass reflex
- FREQUENCY RESPONSE (1):
- 98Hz-20kHz ± 3dB
- -10dB @ 56Hz
- DRIVERS:
- LF: 5.25” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis
- HF: 0.75” silk dome, neodymium motor
- RATED POWER (2): 50W AES, 200W peak
- RECOMMENDED AMPLIFIER: VIA2004 (for low-impedance operation)
- SENSITIVITY(4): 86dB / 1W(4V) / 1m (full space)
- MAXIMUM SPL (9): 109dB peak
- NOMINAL IMPEDANCE: 16Ω
- DISPERSION (-6DB): 150° conical up to 7kHz
- CROSSOVER: 3kHz passive (LF and HF auto-resetting fuses
- TRANSFORMER TAPS:
- 70V: 30w / 15w / 7.5w / 3.75w
- 100V: 30w / 15w / 7.5w
- RECOMMENDED HIGH-PASS FILTER: 60Hz 24dB/oct
- ENCLOSURE: UL 94V-0 rated ABS baffle and enclosure
- FINISH: Black or White
- GRILLE: Perforated steel, powder-coated, bayonet fitting
- CONNECTORS: Ceramic connector (in and link)
- DIMENSIONS:
- (OD) 246mm x (D) 238mm
- (OD) 9.7in x (D) 9.35in
- WEIGHT: 3.46kg (7.62lbs)
