Martin Audio Blackline Q118 18″ Passive Subwoofer with 4″ Voice Coil Black
£1,188.00£990.00 Incl. VATExcl. VAT

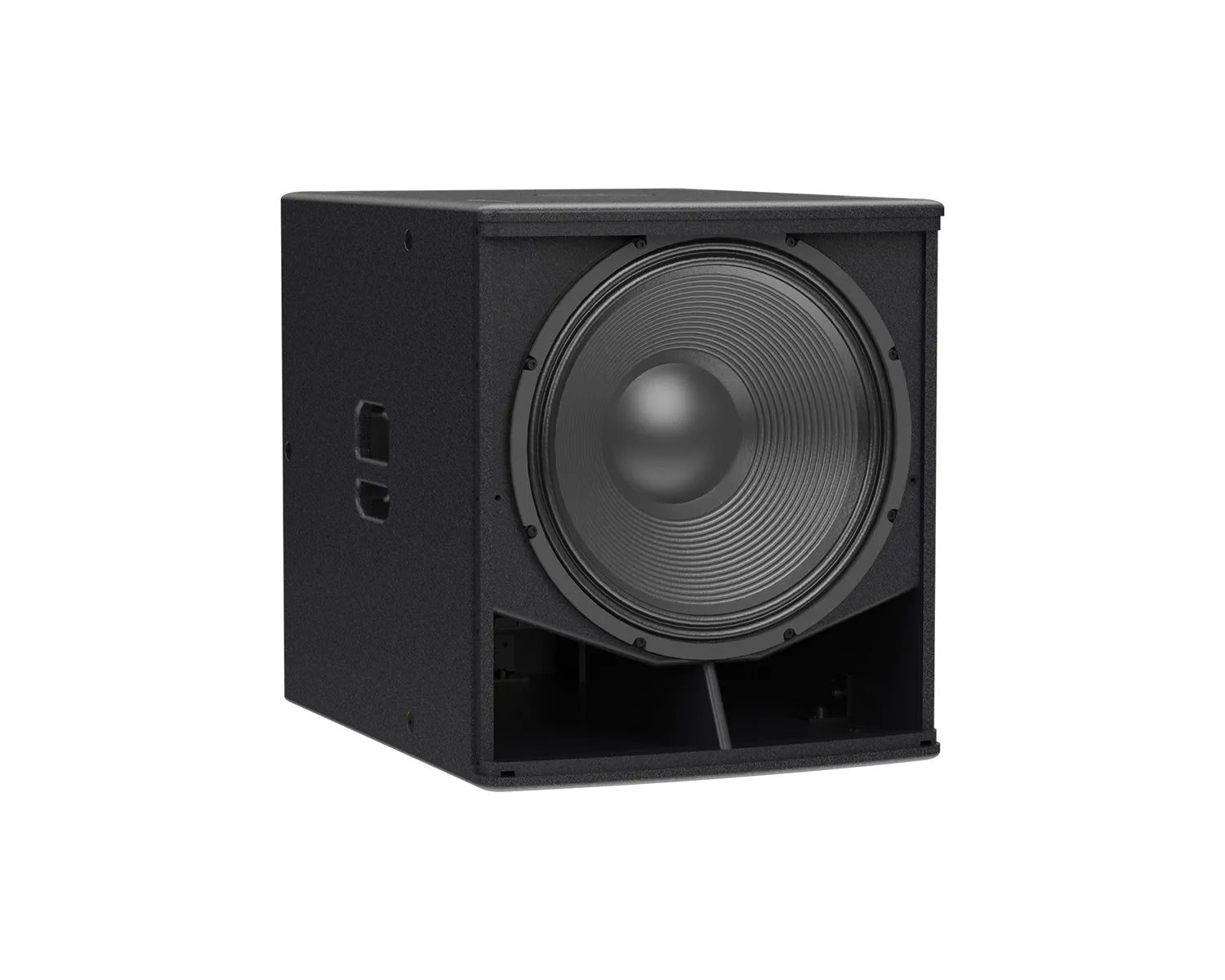

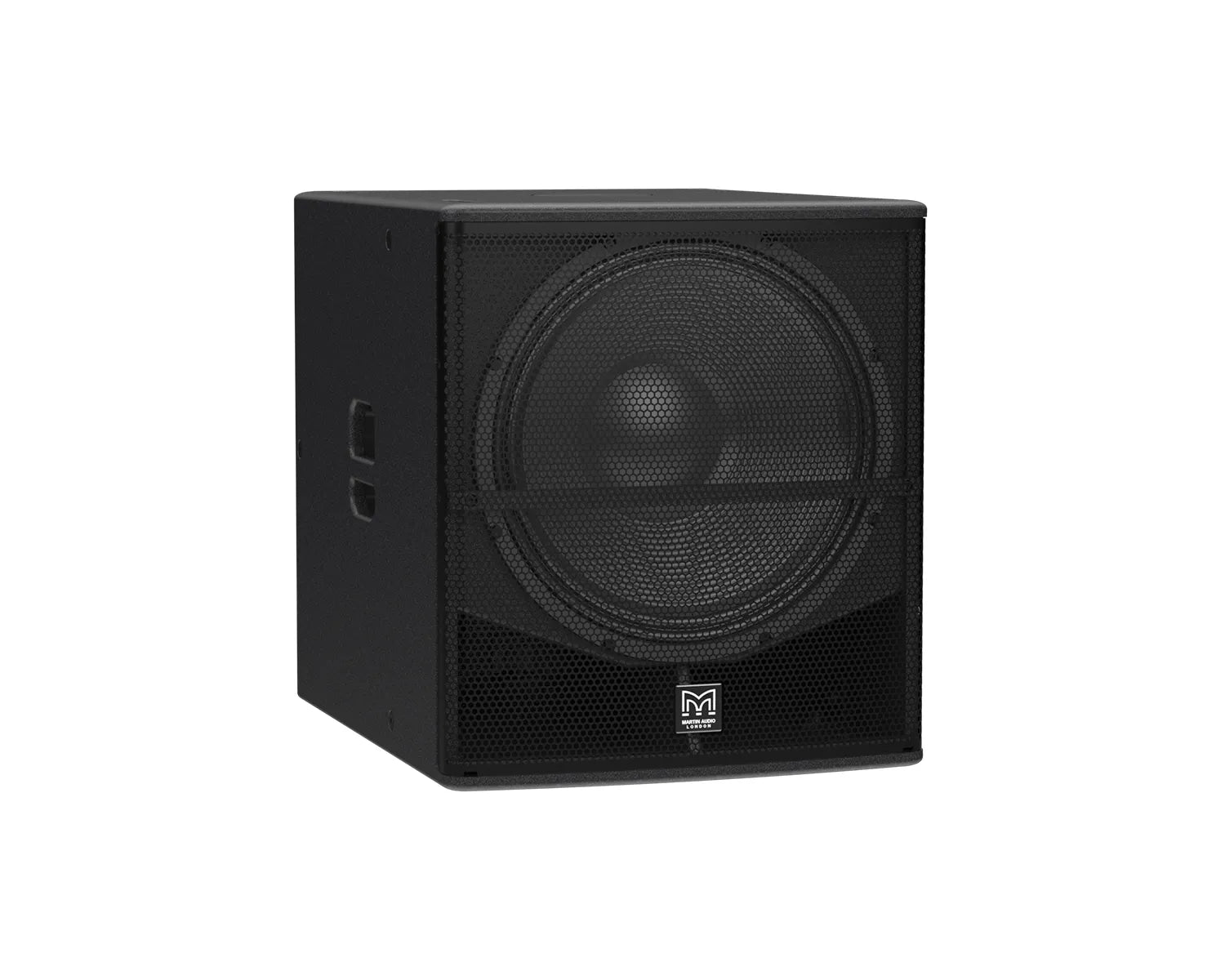

Blackline Q118 is a compact, high-performance subwoofer designed for use with Blackline Q Series full-range loudspeakers. It extends the system’s low-frequency response down to 38Hz and delivers exceptional impact, with a peak SPL of 130dB (136dB with crest factor 4). Q118 features an 18″ (460 mm) driver with a 4″ (100 mm) voice coil, housed in a durable plywood enclosure finished in tough black paint. A perforated, impact-resistant steel grille protects the driver, while slot ports enhance efficiency and minimize noise turbulence. Designed for versatile deployment, Q118 can be used individually, stacked or flown using integral M10 inserts. It also includes an M20 1.4″ (35 mm) pole-mount fitting for seamless integration with other loudspeakers in BlacklineQ series. There are two signal link outputs‚Äîone positioned at the top and one at the bottom of the enclosure when oriented vertically. This allows for flexible, discreet and tidy signal connections to other BlacklineQ loudspeakers, regardless of setup. Ergonomic side handles ensure easy handling and rubber feet on the base align with top-surface recesses to provide secure and stable stacking. A castor kit is available as an optional accessory. When paired with BlacklineQ Series full-range systems, crossover and EQ functions can be managed via the DX0.4, DX0.6 or DX4.0 system controllers, or the onboard DSP of an iKON amplifier.
- Compact, direct-radiator subwoofer
- 1 x 18” (460mm) driver with 4” (102mm) voice coil
- Peak SPL of 130dB (136dB with crest factor 4)
- Durable plywood enclosure
- Slot ports for reduced air noise
- Perforated steel grille
- M20 / 1.4” (35mm) pole-mount socket
- 8Ω nominal impedance
- Integral ergonomic handles
- Rebate recesses for stable vertical stacking
- M10 flying inserts
- Fittings for optional castors
- Three NL4 connectors
- 85% Post Consumer Recycled ABS Plastic
- FSC Certified Cardboard Packaging
- Biodegradable Box Sealing tape
- Type: Compact, high-performance 18" subwoofer
- Frequency Response: 38 Hz – 100 Hz ± 3 dB, -10 db @ 31 Hz
- Driver: 18” (460 mm) with 4” (100 mm) long excursion voice coil, ferrite motor system
- Rated Power: 800 W AES, 3200 W peak
- Required Electronics: Processor and amplifier, or a combined amplifier-processor unit
- Recommended Electronics: DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
- Sensitivity: 95 dB
- Maximum SPL: 124 dB continuous, 130 dB peak, 136 dB peak with crest factor 4
- Nominal Impedance: 8 ohm
- Dispersion: Omnidirectional
- Crossover: N/A
- Enclosure: Durable plywood
- Finish: Black textured paint
- Protective Grille: Black perforated steel grille with scrim cloth backing

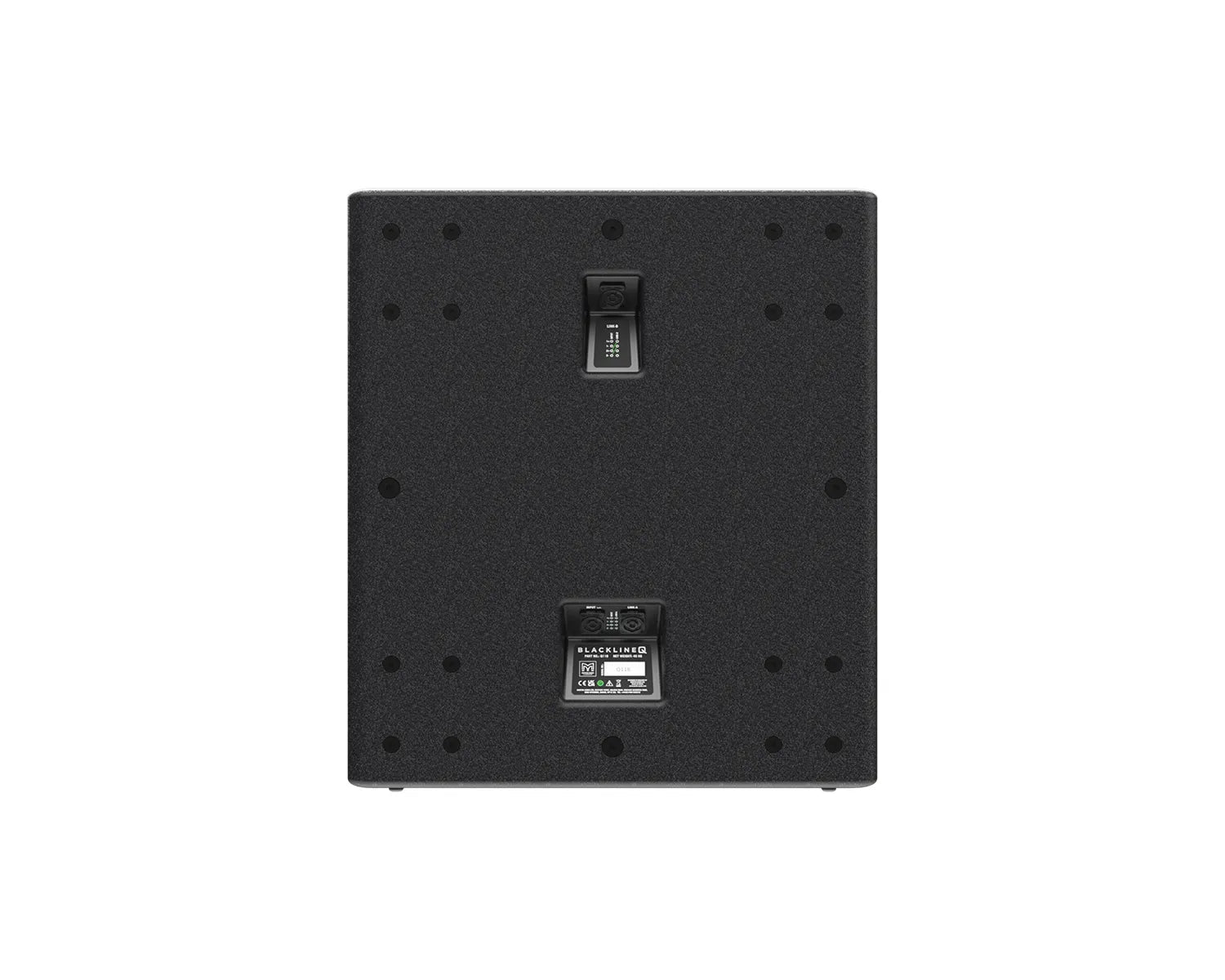

- Connectors: 3 x NL4 connectors: 2 at bottom rear (input and link A), 1 at top rear (link B)
- Pin Connections (Input): 1+/1–
- Pin Connections (Link A): 1+/1– to 1+/1– and 2+/2– to 2+/2–
- Pin Connections (Link B): 1+/1– on input to 2+/2– on link B
- Fittings:
- 16 x M10 inserts: 2 on top, 2 on bottom, 4 on left, 4 on right, 4 on rear
- 16 x M8 inserts on rear for optional castors

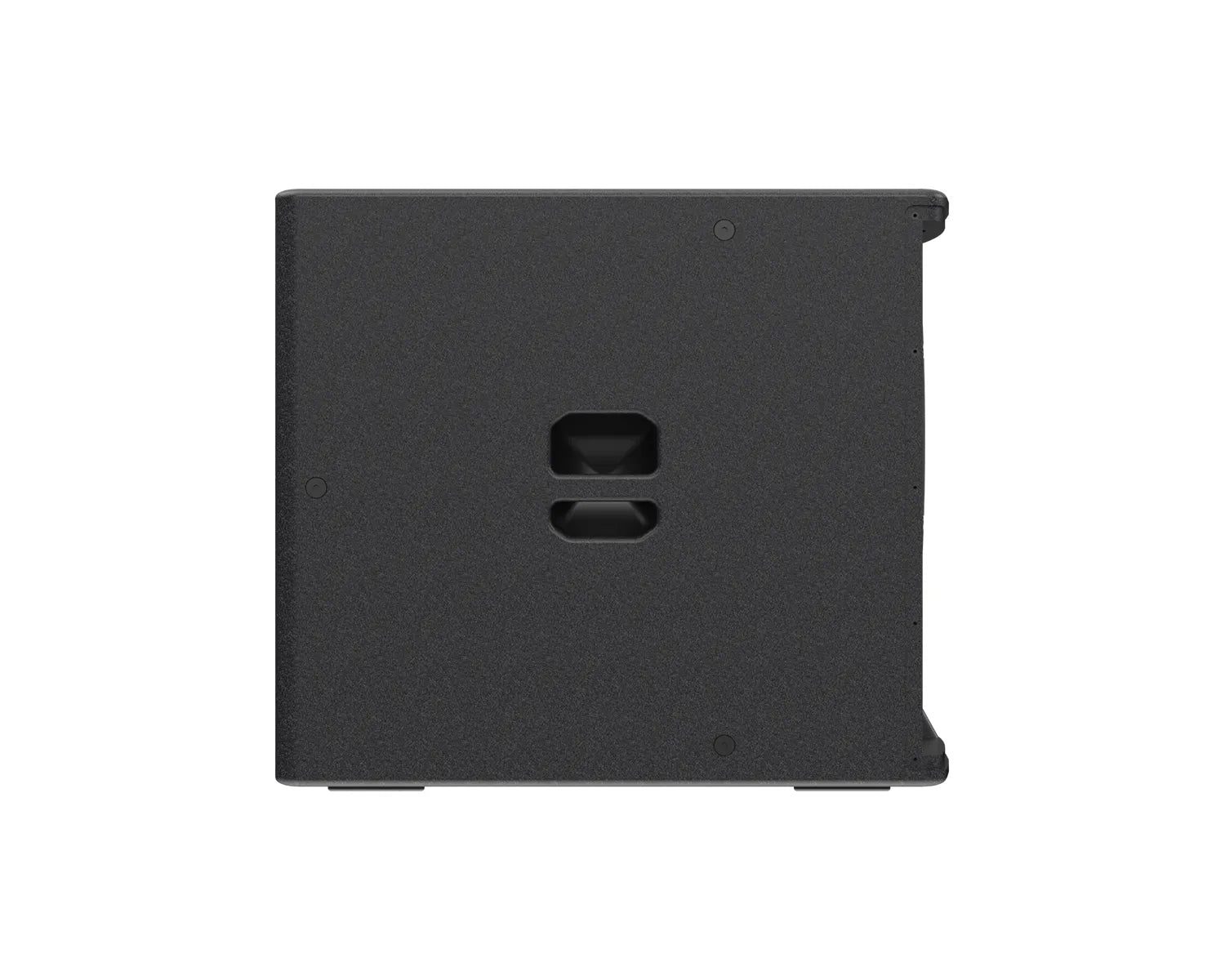

- 2 x bar handles with recycled ABS pockets: 1 on each side
- M20 top-mounted thread plate for pole mounting
- 4 x skids on base, 4 x recesses on top: for stacking vertically
- Dimensions (WxHxD): 530 mm x 606 mm x 690 mm (20.9 in x 23.9 in x 27.2 in)
- Weight: 45.5 kg (100.3 lbs)
- Accessories (Optional):
- M10 eye bolt HTKCT06
- Wind-up telescopic pole ASF20071
- Set of four castors WHEELKIT
- Transit cover
