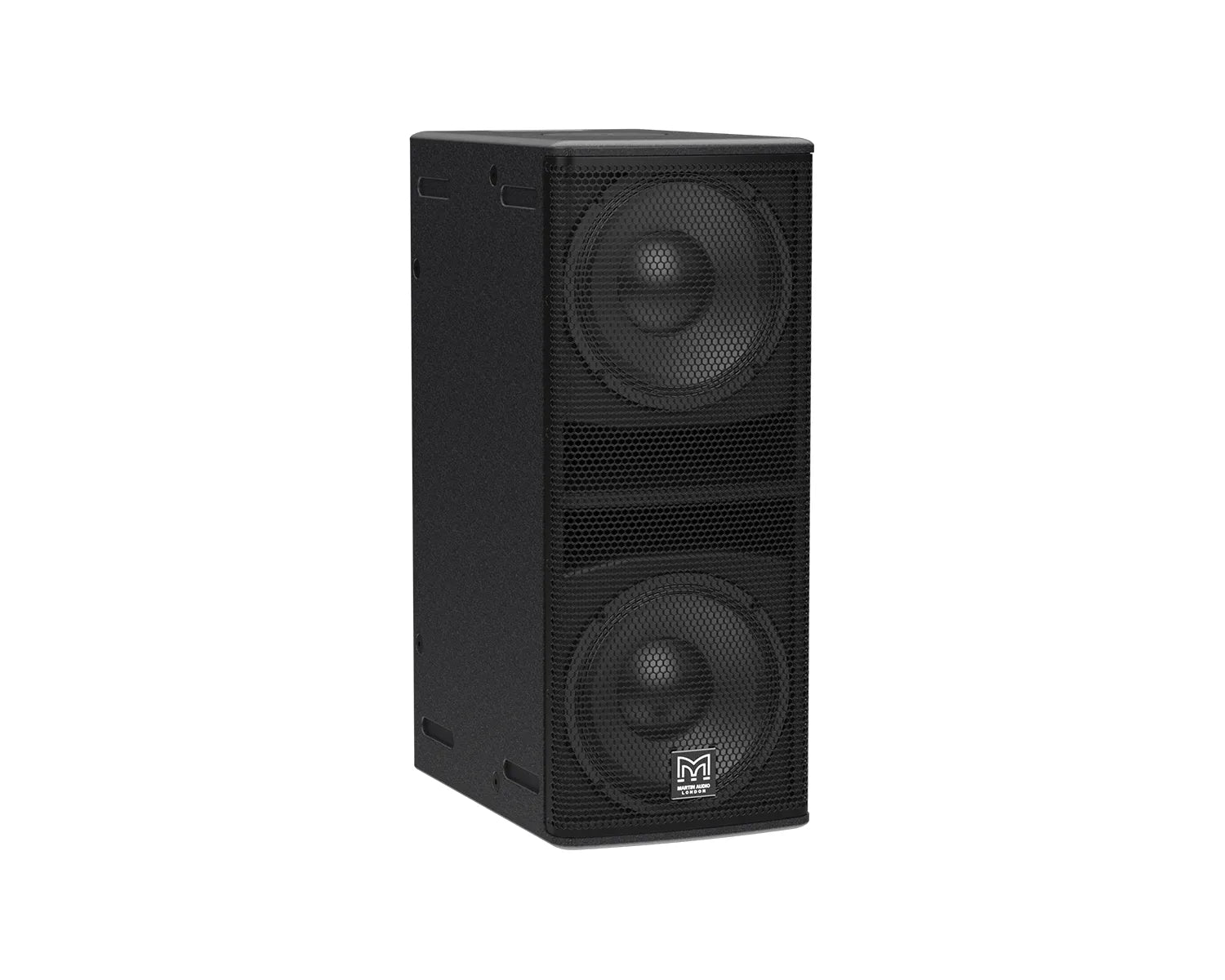

Martin Audio Blackline Q210 2×10″ Passive Subwoofer with 2″ Voice Coil Black

£891.00£742.50 Incl. VATExcl. VAT

SKU: Q210-B Category:
Description

Blackline Q210 is a slimline, dual-driver subwoofer engineered for applications where a visually discreet solution is required. Designed to complement BlacklineQ Series full-range loudspeakers, it extends the system’s low-frequency response down to 49 Hz, delivering tight, punchy low frequency impact with a peak SPL of 124dB (130dB for crest factor 4).Blackline Q210 features dual 10″ (250mm) drivers with 2″ (50mm) voice coils, housed in a robust plywood enclosure. A perforated, impact-resistant steel grille protects the drivers, while slot ports ensure efficient airflow and reduced turbulence for clean, controlled bass performance. Finished in durable black paint as standard, Q210 is also available in white to support visually sensitive installations, particularly when paired with BlacklineQ column loudspeakers in white. Q210 can be deployed singly, stacked or flown using integral M8 inserts. It includes an M20 1.4″ (35 mm) pole-mount fitting for seamless integration with other loudspeakers in BlacklineQ series. There are two signal link outputs‚Äîone positioned at the top and one at the bottom of the enclosure when oriented vertically. This allows for flexible, discreet and tidy signal connections to other BlacklineQ loudspeakers, regardless of setup. Two ergonomic side handles provide ease of handling, while rubber feet on the base align with top-surface recesses to ensure stable stacking. Q210 is ideal for applications requiring compact, high-performance low-frequency reinforcement. When used with BlacklineQ Series full-range systems, crossover and EQ functions can be managed via the DX0.4, DX0.6, or DX4.0 system controllers, or the onboard DSP of an iKON amplifier.

Features
  • Slimline direct-radiator subwoofer
  • 2 x 10‚Äù (250mm) drivers with 2‚Äù (50mm) voice coils
  • Peak SPL of 124dB (130dB for crest factor 4)
  • Durable plywood enclosure
  • Slot ports for reduced air noise
  • Perforated steel grille
  • M20 / 1.4‚Äù (35mm) pole-mount socket
  • 4Œ© nominal impedance
  • Integral ergonomic handles
  • Feet for vertical or horizontal operation
  • Rebate recesses for stable horizontal stacking
  • M8 flying inserts
  • Three NL4 connectors
  • 85% Post Consumer Recycled ABS Plastic
  • FSC Certified Cardboard Packaging
  • Biodegradable Box Sealing tape
Specs
  • Type:  Slimline, dual 10" driver subwoofer
  • Frequency Response:  49 Hz ‚Äì 100 Hz ¬± 3 dB, -10 db @ 41 Hz
  • Driver:  10‚Äù (250 mm) with 2‚Äù (50 mm) long excursion voice coil, ferrite motor system
  • Rated Power:  400 W AES, 1600 W peak
  • Required Electronics:  Processor and amplifier, or a combined amplifier-processor unit
  • Recommended Electronics:  DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
  • Sensitivity:  98 dB
  • Maximum SPL:  118 dB continuous, 124 dB peak, 130 dB peak with crest factor 4
  • Nominal Impedance:  8 ohm
  • Dispersion:  Omnidirectional
  • Crossover:  N/A
  • Enclosure:  Durable plywood
  • Finish:  Black or white textured paint
  • Protective Grille:  Black or white perforated steel grille with scrim cloth backing
  • Connectors:  3 x NL4 connectors: 2 at bottom rear (input and link A), 1 at top rear (link B)
  • Pin Connections (Input):  1+/1‚Äì
  • Pin Connections (Link A):  1+/1‚Äì to 1+/1‚Äì and 2+/2‚Äì to 2+/2‚Äì
  • Pin Connections (Link B):  1+/1‚Äì on input to 2+/2‚Äì on link B
  • Fittings:
    • 16 x M8 inserts: 2 on top, 2 on bottom, 4 on left, 4 on right, 4 on rear
    • 2 x bar handles with recycled ABS pockets: 1 at rear top, 1 at rear bottom

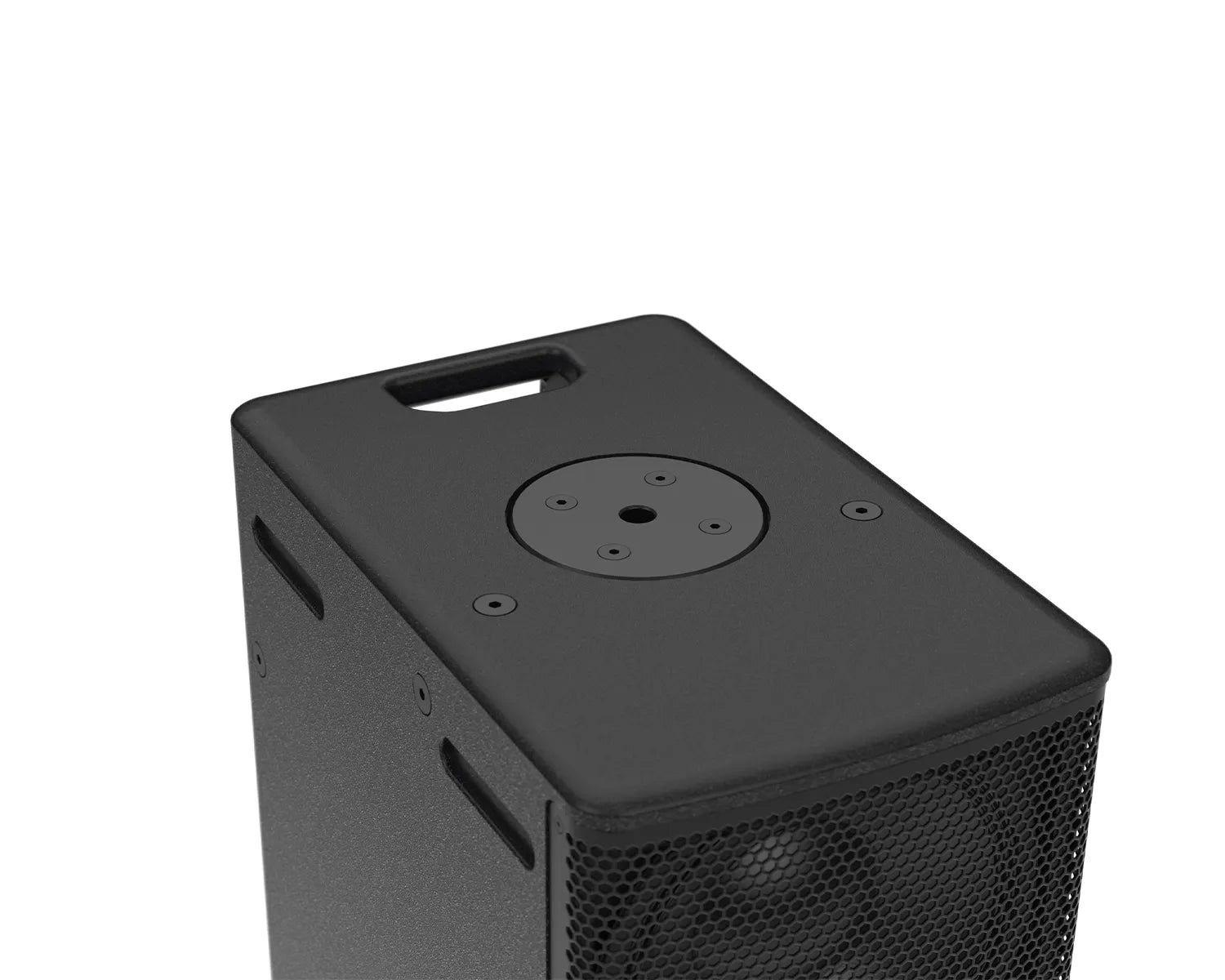

    • M20 top-mounted thread plate for pole mounting
    • 4 x skids on base
    • 4 x skids on right side, 4 x recesses on left side: for stacking horizontally
  • Dimensions (WxHxD):  296 mm x 718 mm x 462 mm (11.7 in x 28.3 in x 18.2 in)
  • Weight:  22.4 kg (49.4 lbs)
  • Accessories (Optional):
    • M8 eye bolt HTKCT05
    • Wind-up telescopic pole ASF20071
    • Transit cover
