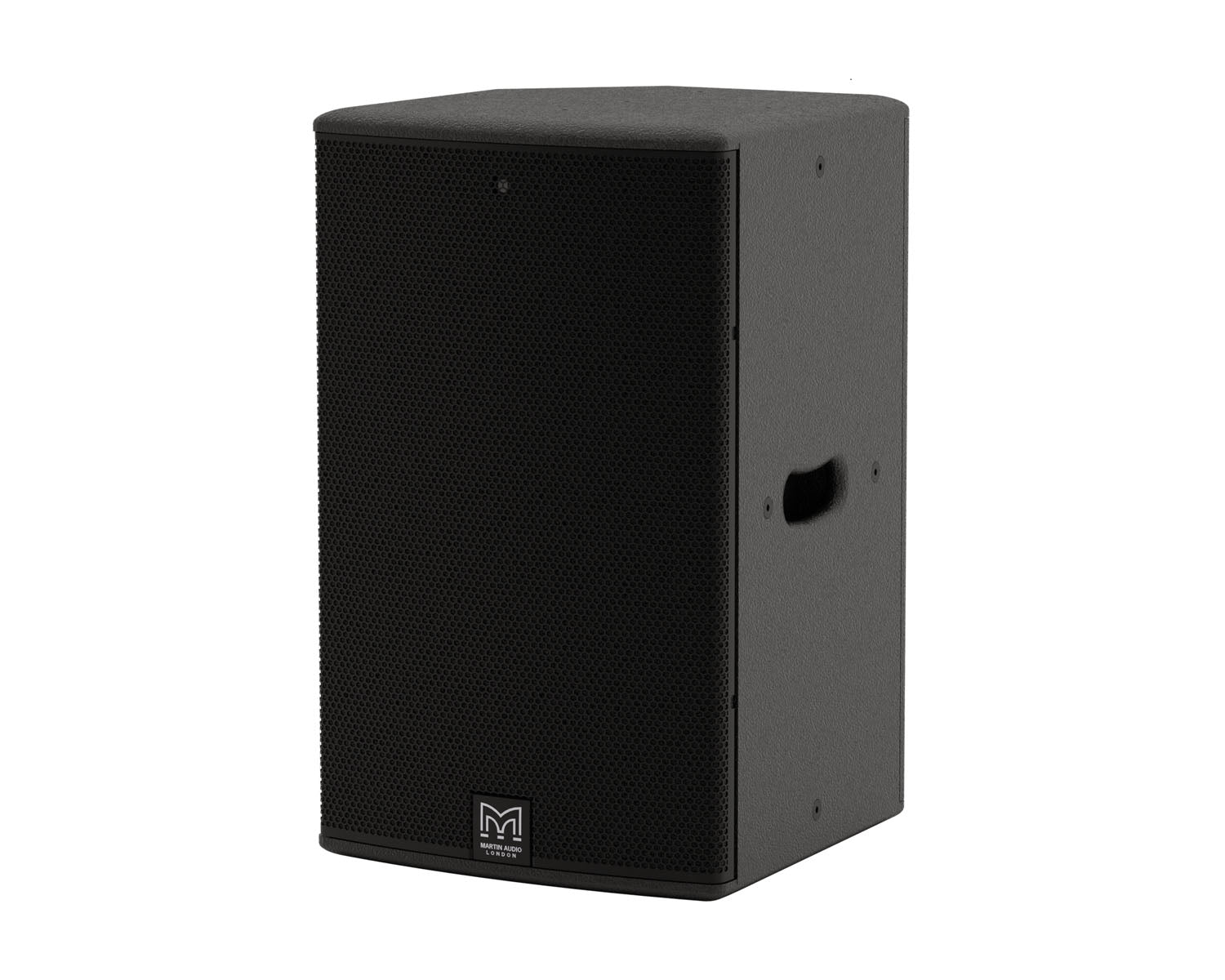

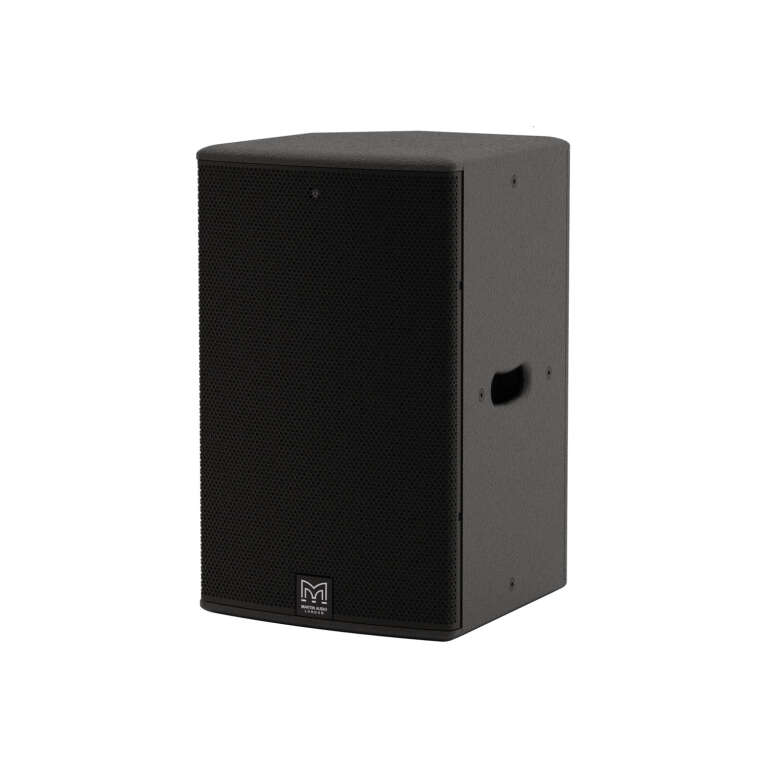

Martin Audio CDDLIVE12 12″ 2-Way Active Speaker with 1″ HF Unit Black
£3,068.01£2,556.68 Incl. VATExcl. VAT
The CDD-LIVE 12 is a high-performance, self-powered system designed for professional applications that require high output levels and exceptional fidelity from a very compact enclosure. With a peak output capability of 128dB at 1 metre, it is the ideal solution for a multitude of premium stand-alone and distributed sound reinforcement requirements ‚Äî from touring, theatre and portable live sound, to concert hall and HoW installations, AV events and stage monitor use.Featuring a high-specification 12″ (300mm) LF/1″ (25mm) exit HF Coaxial Differential Dispersion driver, it delivers more consistent audience coverage than a conventional system with a fixed X¬∞ x Y¬∞ coverage pattern and has wide 110¬∞ horizontal coverage close-up. The innovative CDD technology also achieves ‘point source’ summation of the LF and HF sections ‚Äî eliminating off-axis variations in frequency response associated with non-coaxial designs.A self-powered system, the CDD-LIVE 12 incorporates a two-channel Class D amplifier, DSP and Dante‚Ñ¢ digital audio networking ‚Äî simplifying set-up, enhancing control and eliminating amplifier racks. The onboard amplifier delivers 2000W LF + 500W HF peak output to the drivers, and its switched-mode power supply auto-ranges to global mains voltages from 100 to 240V 50/60Hz.DSP functions ‚Äî including parametric EQ, delay, muting, gain and preset selection ‚Äî can be controlled over Ethernet from a PC or Windows¬Æ tablet via intuitive VU-NET‚Ñ¢ proprietary software.For simple set-ups, ‘plug-and-play’ presets ‚Äî as well as a user-defined preset ‚Äî can be selected on the rear panel, instead of using computer control. As an alternative to its analogue inputs, the CDD- LIVE 12 is Dante enabled for digital audio distribution and control over a single CAT5 cable to maintain audio quality however long the cable run.The CDD-LIVE 12 is incredibly versatile. Its multi-angle enclosure can be used in either horizontal or vertical orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The tour-grade enclosure is constructed from multi-laminate plywood and finished in a hard-wearing polyurea coating. Integral fittings include a top-hat for pole mounting and multiple M8 inserts for attachment to a wall-bracket, yoke or universal bracket with a wide range of up and down tilt angles.
- Compact, self-powered two-way system
- Coaxial Differential Dispersion‚Ñ¢ technology
- Onboard Class D amplification and DSP
- Dante‚Ñ¢ Digital Audio networking
- Global mains operation with Power Factor Correction
- User-rotatable CDD‚Ñ¢ driver
- Vertical and horizontal mounting options
- Tour-grade, multi-angle plywood enclosure
- IP24 rating option with rain cowl
- Comprehensive mounting accessories
Applications
- Live sound reinforcement
- Theatre sound
- Corporate AV events
- Fixed installations in concert halls, ballrooms and HoW
- Stage monitor and infill
- Bars and clubs
General
- TYPE: Compact, Coaxial Differential Dispersion powered two-way system
- FREQUENCY RESPONSE (3): 62Hz – 20kHz ±3dB, -10dB @ 50Hz
- INPUT SENSITIVITY: - 30dBu for 100dB SPL
- MAXIMUM SPL (2): 122dB continuous / 128dB peak
- DISPERSION: 110Àö-80Àö horizontal, 60Àö vertical (user-rotatable)
- CROSSOVER: 1.5kHz Active LR8 with low latency HF FIR equalisation. Balance presets for pole mount/ pole mount with sub/ stage monitor
Module Audio input
- CONNECTORS: Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
- ANALOGUE INPUT IMPEDANCE: 20 kΩ balanced to ground
- MAXIMUM ANALOGUE INPUT LEVEL: 24.6 Vpp (+21dBu), over voltage protected
Internal Processing
- Multi-channel DSP, programmable via TCP/IP using VU-Net software
- PEQ/shelving filters
- Up to 48dB/Oct HPF
- Low latency HF FIR filters
- Up to 200ms input delay
- Pre-set selection via rear panel switch
Driver
- LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF
- HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
Network
- CONNECTORS: 2x Neutrik ® Ethercon RJ45
- PROTOCOL: TCP/IP and UDP/IP
Amplifier
- TYPE: 2 channel switch-mode, class D
- PEAK OUTPUT POWER: 2500W total | 2000W LF, 500W HF
- AVERAGE EFFICIENCY: 89%
- COOLING: External convection cooled, with internal fan
- MAXIMUM AMBIENT TEMPERATURE: 40°C (104°F) for full output
Power Supply
- TYPE: Switch mode, fixed frequency with PFC
- AC INPUT OPERATING RANGE: 85 – 265V ~ AC, 50 - 60Hz
- POWER FACTOR: > 0.98
- NOMINAL POWER CONSUMPTION: 160W
- MAINS CONNECTOR: Neutrik® Powercon True1
Mechanical
- ENCLOSURE: Extensively braced multi-laminate plywood
- FINISH: Textured black PU coating
- PROTECTIVE GRILLE: HEX perforated mild steel with protective zinc plating and black powder coat finish. Backed with black grille cloth

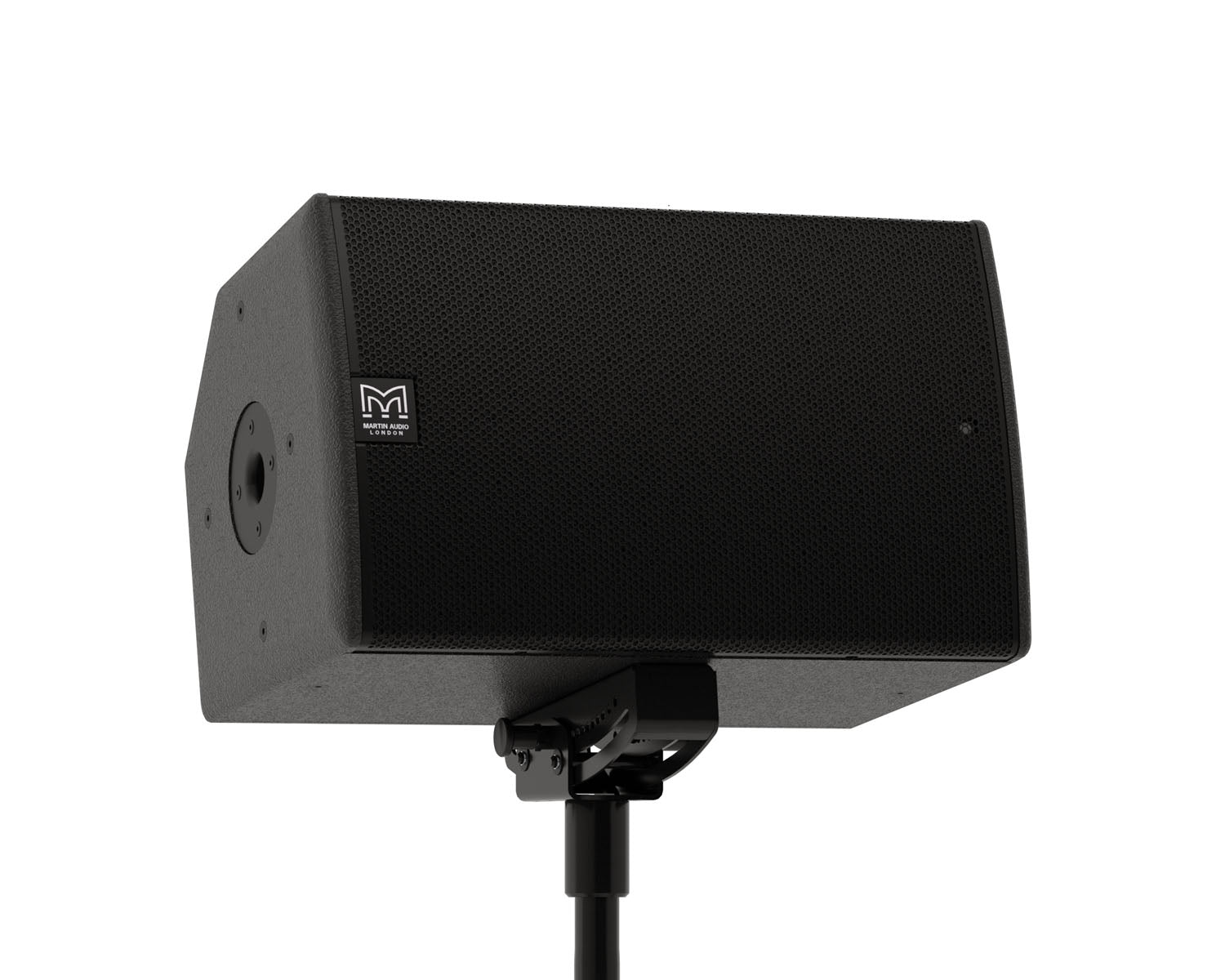

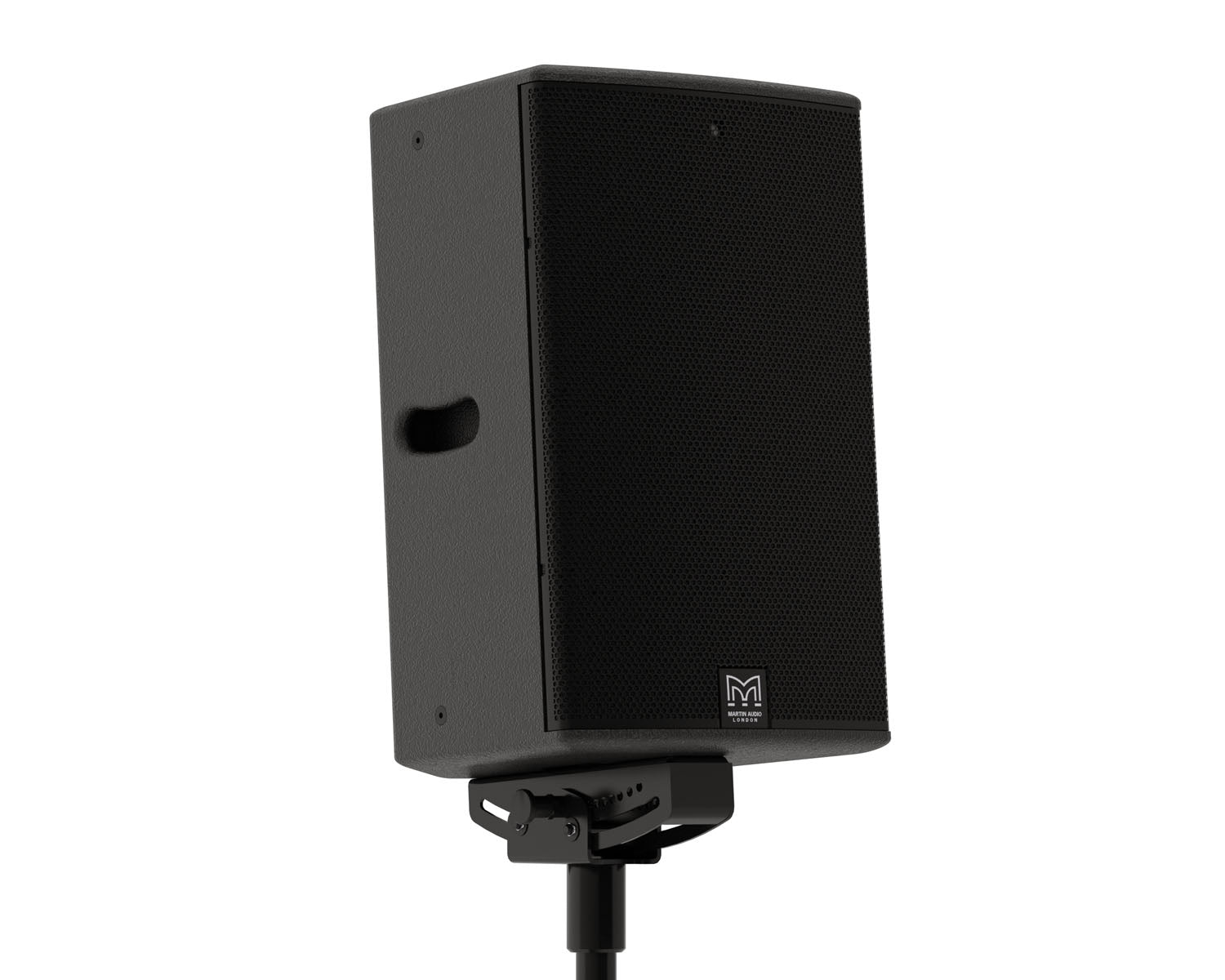

- FITTINGS: Top hat for pole mounting | 15 x M8 mounting points | Single pocket handle | Optional weather protection cowl
- IP RATING: IP24 factory option available
- DIMENSIONS: (W) 359mm x (H) 580mm x (D) 373mm | (W) 14.13in x (H) 22.83in x (D) 14.69in
- WEIGHT: 28kg (61.6lbs) excluding Transit cover

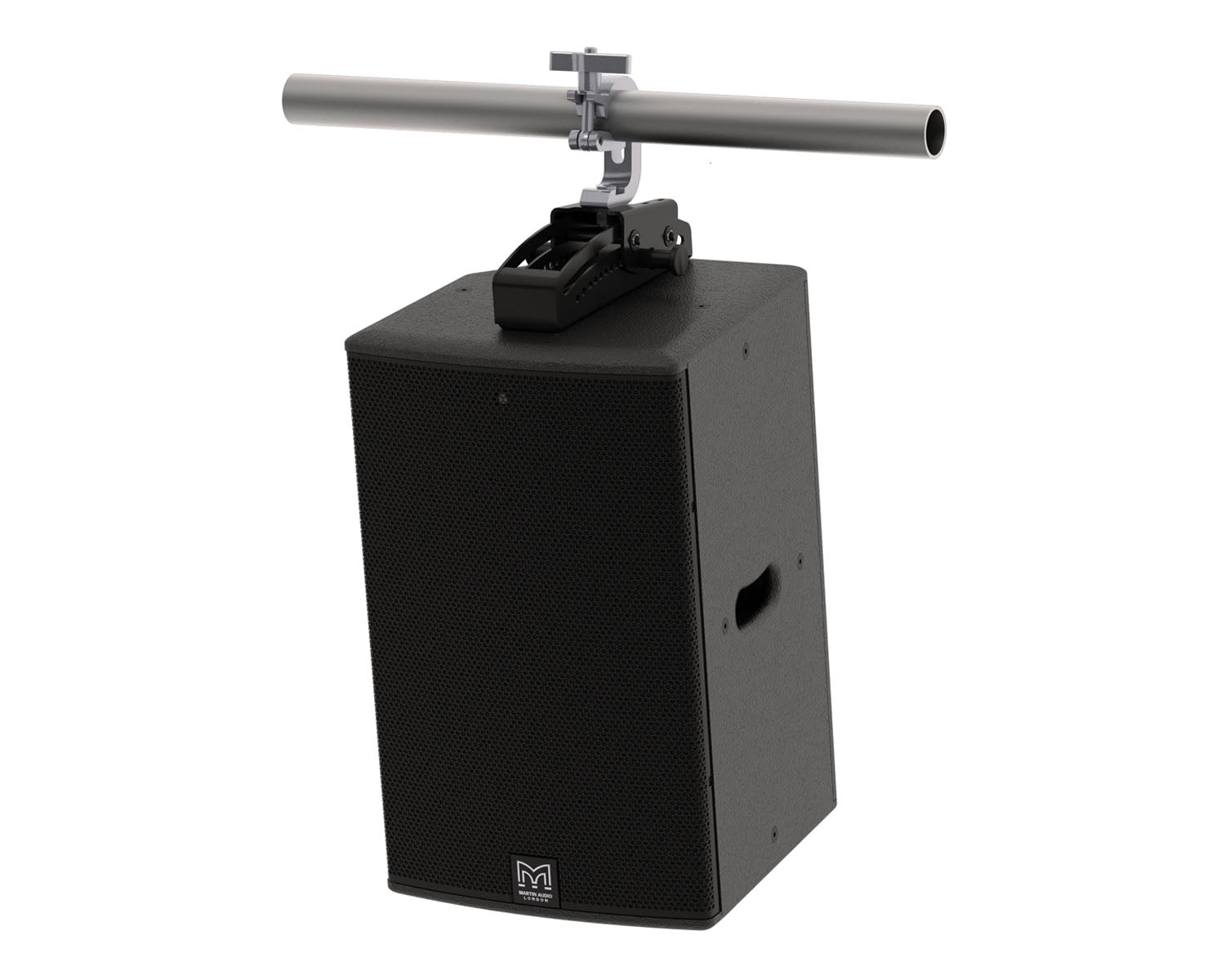

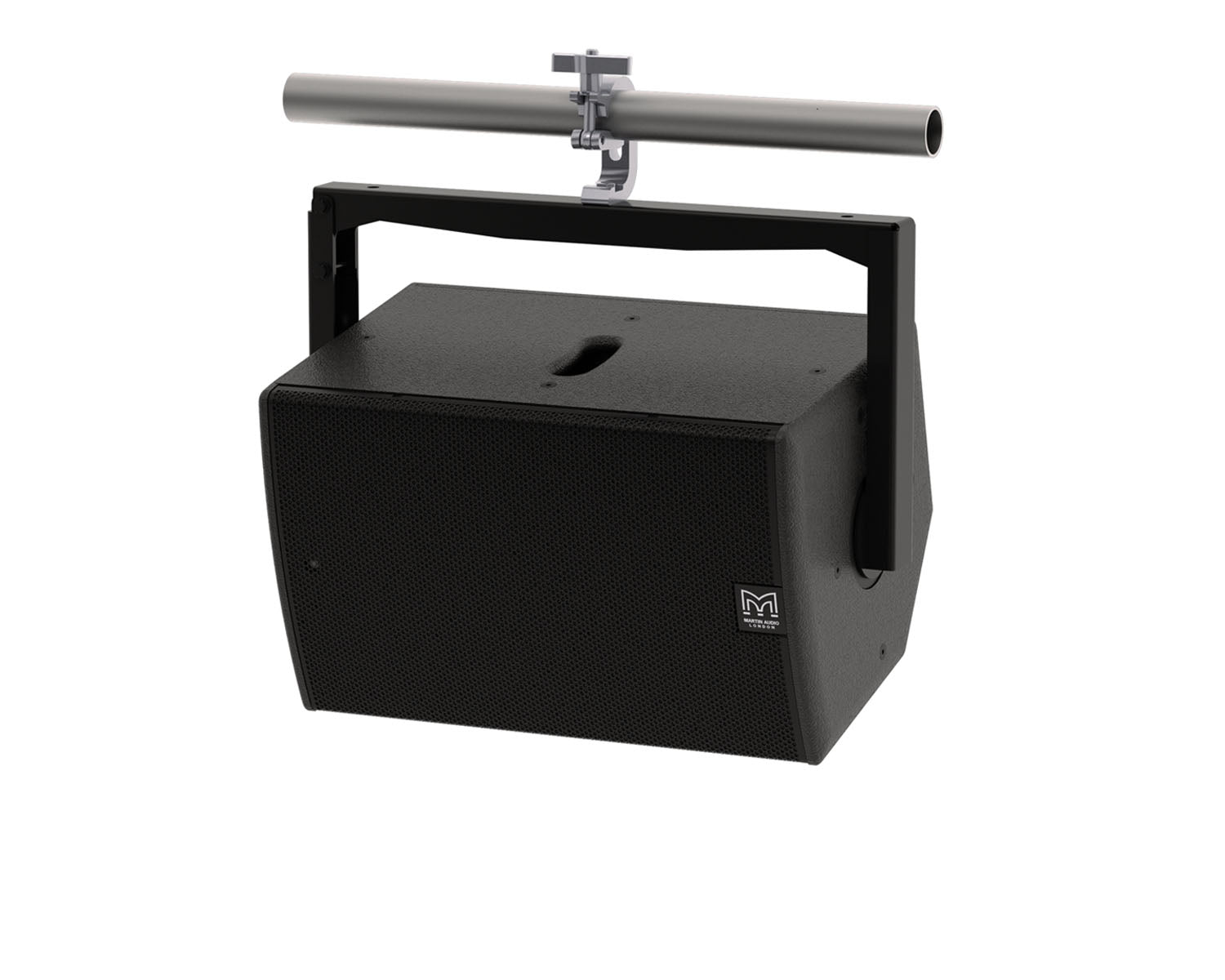

- ACCESSORIES: Transit Cover | Optional wall, yoke and universal brackets
Notes
(1) Measured on-axis in free space (4π space) at 2 metres, then referred to 1 metre
(2) Measured in free space at 1 metre with a tone burst signal
(3) Measured on-axis on ground plane (2π space) at 2 metres, then referred to 1 metre
(4) Measured in half-space at 1 metre with a tone burst signal
