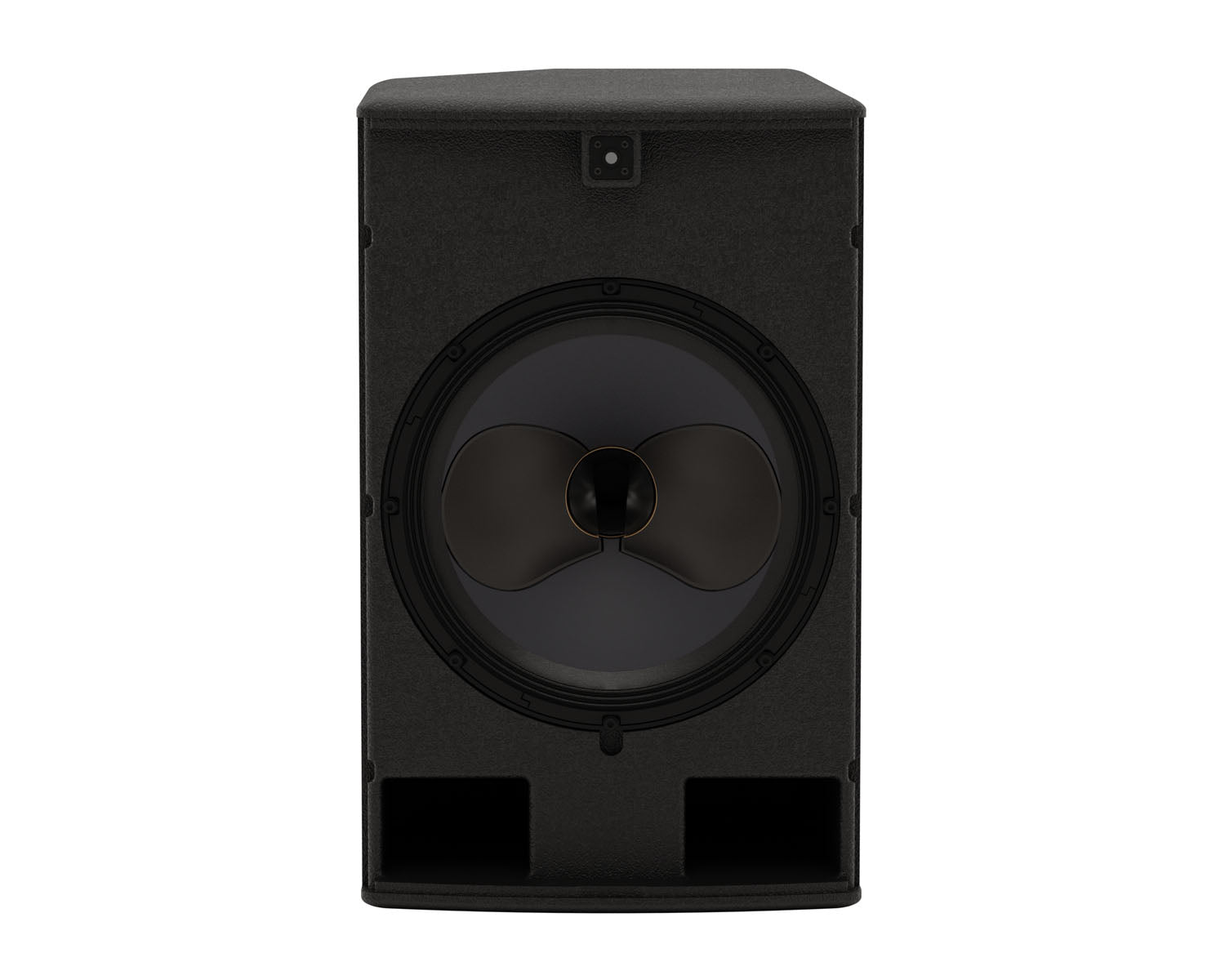

Martin Audio CDDLIVE15 15″ 2-Way Active Speaker with 1.4″ HF Unit Black
£3,464.01£2,886.68 Incl. VATExcl. VAT
The CDD-LIVE 15 is a self-powered two-way system designed for professional live applications and installations that demand the ultimate in sonic performance from a single enclosure. Its powerful Coaxial Differential Dispersion driver comprises a 15″ (380mm)/3″ (75mm) voice coil LF driver and a 1.4″ (35mm) exit HF compression driver with a 3″ (75mm) pure titanium diaphragm. With a maximum SPL of 132dB peak at 1 metre, it is the ideal solution for medium-scale touring, theatre and portable live sound applications, as well as premium installations and stage monitor use.With wide coverage close-up, the Coaxial Differential Dispersion technology employed in the CDD-LIVE 15 delivers more consistent audience coverage than systems with fixed X¬∞ x Y¬∞ coverage patterns, and its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections ‚Äî eliminating off-axis variations in frequency response associated with non-coaxial designs.A self-powered system, the CDD-LIVE 15 incorporates a two-channel Class D amplifier, DSP and Dante‚Ñ¢ digital audio networking ‚Äî simplifying set-up, enhancing control and eliminating amplifier racks. The onboard amplifier delivers 2000W LF + 500W HF peak output to the drivers, and its switched-mode power supply auto-ranges to global mains voltages from 100 to 240V 50/60Hz.DSP functions ‚Äî including parametric EQ, delay, muting, gain and preset selection ‚Äî can be controlled over Ethernet from a PC or Windows¬Æ tablet via intuitive VU-NET‚Ñ¢ proprietary software.For simple set-ups, ‘plug-and-play’ presets ‚Äî as well as a user-defined preset ‚Äî can be selected on the rear panel, instead of using computer control. As an alternative to its analogue inputs, the CDD- LIVE 15 is Dante enabled for digital audio distribution and control over a single CAT5 cable to maintain audio quality however long the cable run.The CDD-LIVE 15 is incredibly versatile. Its multi-angle enclosure can be used in either horizontal or vertical orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The tour-grade enclosure is constructed from multi-laminate plywood and finished in a hard-wearing polyurea coating. Integral fittings include a top-hat for pole mounting and multiple M8 inserts for attachment to a yoke or universal bracket with a wide range of up and down tilt angles.
- High-power, self-powered two-way system
- Coaxial Differential Dispersion‚Ñ¢ technology
- Onboard Class D amplification and DSP
- Dante‚Ñ¢ Digital Audio networking
- Global mains operation with Power Factor Correction
- User-rotatable CDD‚Ñ¢ driver
- Vertical and horizontal mounting options
- Tour-grade, multi-angle plywood enclosure
- IP24 rating option with rain cowl
- Comprehensive mounting accessories
Applications
- Live sound reinforcement
- Theatre sound
- Corporate AV events
- Fixed installations in concert halls, ballrooms and HoW
- Stage monitor and sidefill
- Bars and clubs
General
- TYPE: High-output, Coaxial Differential Dispersion powered two-way system
- FREQUENCY RESPONSE (3): 55Hz – 20kHz ±3dB, -10dB @ 45Hz
- INPUT SENSITIVITY: - 30dBu for 100dB SPL
- MAXIMUM SPL (2): 126dB continuous / 132dB peak
- DISPERSION: 110Àö-80Àö horizontal, 60Àö vertical (user-rotatable)
- CROSSOVER: 1.5kHz Active LR8 with low latency HF FIR equalisation. Balance presets for pole mount/ pole mount with sub/ stage monitor
Module Audio input

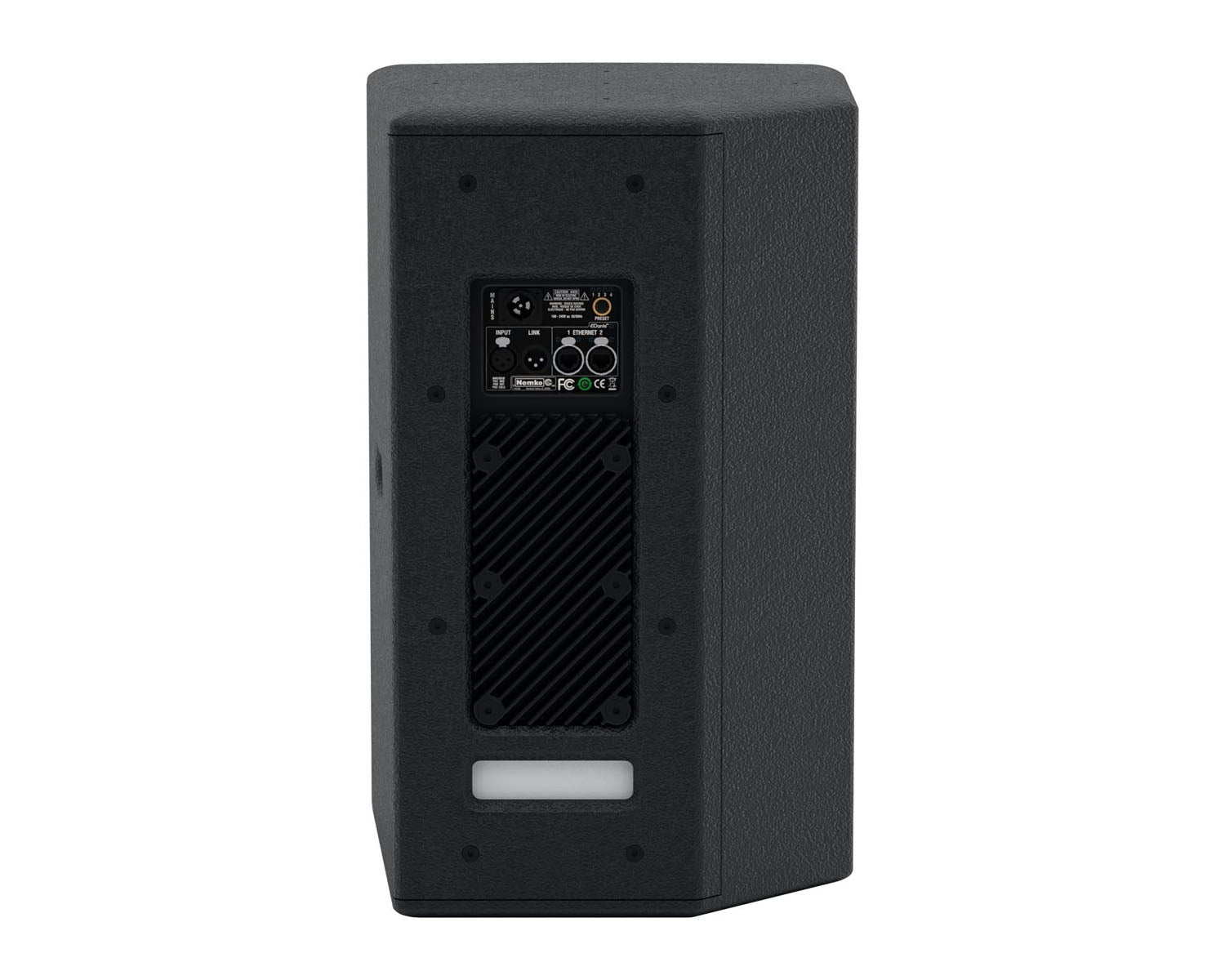

- CONNECTORS: Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
- ANALOGUE INPUT IMPEDANCE: 20 kΩ balanced to ground
- MAXIMUM ANALOGUE INPUT LEVEL: 24.6 Vpp (+21dBu), over voltage protected
Internal Processing
- Multi-channel DSP, programmable via TCP/IP using VU-Net software
- PEQ/shelving filters
- Up to 48dB/Oct HPF
- Low latency HF FIR filters
- Up to 200ms input delay
- Pre-set selection via rear panel switch
Driver
- LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF
- HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome compression driver
Network
- CONNECTORS: 2x Neutrik ® Ethercon RJ45
- PROTOCOL: TCP/IP and UDP/IP
Amplifier
- TYPE: 2 channel switch-mode, class D
- PEAK OUTPUT POWER: 2500W total | 2000W LF, 500W HF
- AVERAGE EFFICIENCY: 89%
- COOLING: External convection cooled, with internal fan
- MAXIMUM AMBIENT TEMPERATURE: 40°C (104°F) for full output
Power Supply
- TYPE: Switch mode, fixed frequency with PFC
- AC INPUT OPERATING RANGE: 85 – 265V ~ AC, 50 - 60Hz
- POWER FACTOR: > 0.98
- NOMINAL POWER CONSUMPTION: 160W
- MAINS CONNECTOR: Neutrik® Powercon True1
Mechanical
- ENCLOSURE: Extensively braced multi-laminate plywood
- FINISH: Textured black PU coating
- PROTECTIVE GRILLE: HEX perforated mild steel with protective zinc plating and black powder coat finish. Backed with black grille cloth
- FITTINGS: Top hat for pole mounting | 15 x M8 mounting points | Single pocket handle | Optional weather protection cowl
- IP RATING: IP24 factory option available
- DIMENSIONS: (W) 427mm x (H) 696mm x (D) 422mm | (W) 16.81in x (H) x 27.42in (D) 16.61in
- WEIGHT: 37kg (81.4lbs) excluding Transit cover
- ACCESSORIES: Transit Cover | Optional wall, yoke and universal brackets
Notes
(1) Measured on-axis in free space (4π space) at 2 metres, then referred to 1 metre
(2) Measured in free space at 1 metre with a tone burst signal
(3) Measured on-axis on ground plane (2π space) at 2 metres, then referred to 1 metre
(4) Measured in half-space at 1 metre with a tone burst signal
