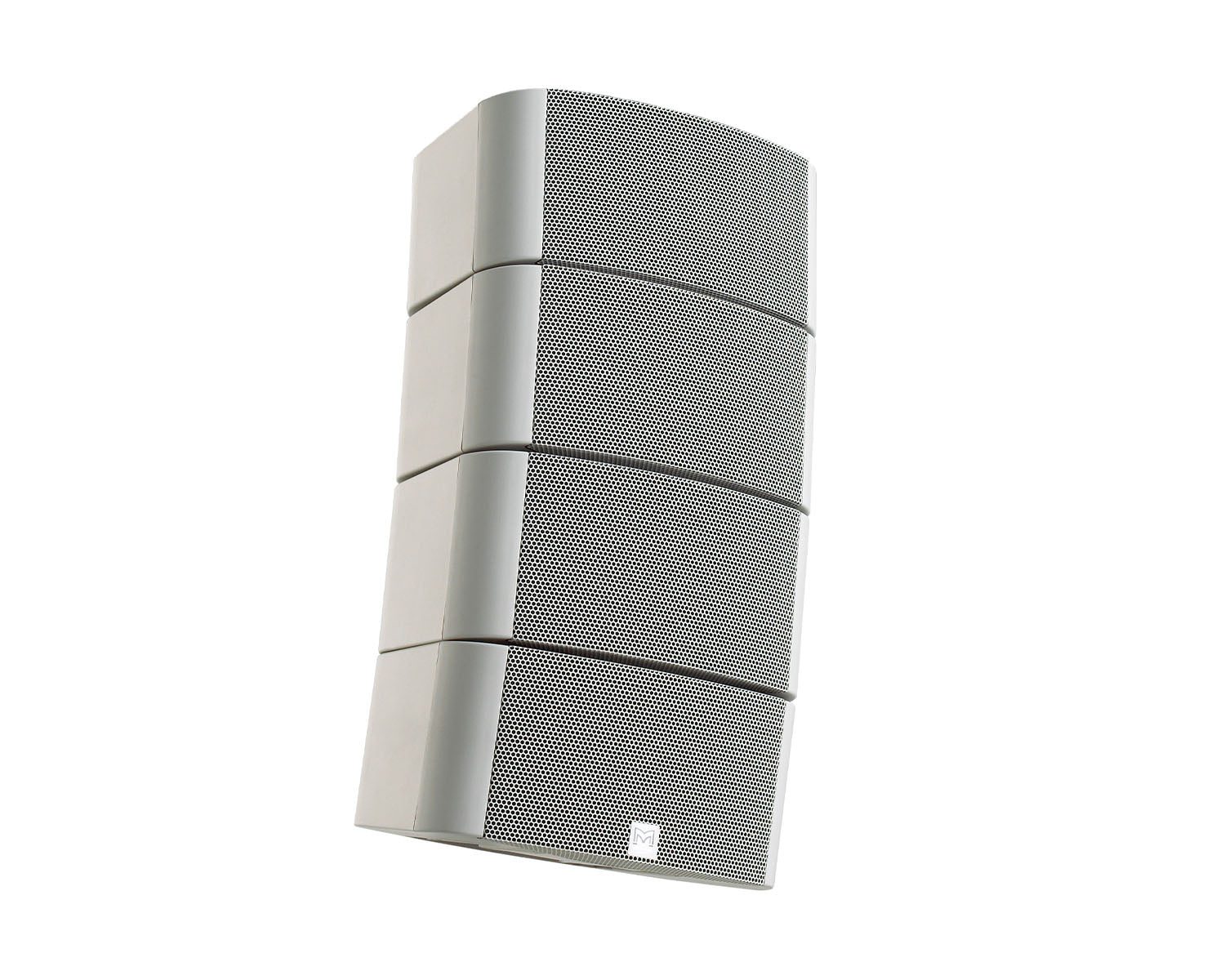

Martin Audio O-Line 4-Pack 2×3.5″ Micro-line 4-Cabinet Array (White)
£2,732.40£2,277.00 Incl. VATExcl. VAT
Description
O-Line® delivers consistent audio coverage with unprecedented accuracy in a wide variety of architectural environments, using only one amplifier channel per array in many applications. By utilising a complement of unique, Martin Audio designed drivers, and mechanical alignment techniques, simple EQ and Limiting is the only processing required. A powerful software application provides extremely accurate intercabinet and array angles, in order to achieve optimum coverage over a predefined area. O-Line aesthetically pleasing cabinet is finished in neutral light grey.
Features
- Modular micro line array for maximum deployment flexibility
- Software optimised array configuration for focussed sound energy
- Additional DSP optimised functionality for increased coverage, consistency and control
- Sidelobe-free vertical dispersion from the high frequency section
- Ideal for high-quality music reproduction as well as speech
- Architecturally sympathetic design for discreet deployment
Applications
- Houses of worship
- Museums
- Conference centres, auditoria and lecture theatres
- Transport terminals, shopping malls and sports venues
- Bars and Restaurants
Specs
- Type: Two-way micro-line array module
- Frequency response: 85Hz-20kHz ± 3dB-10dB @ 76Hz
- Drivers: 2 x 3.5" (87mm)/1" (25mm) voice coil LF drivers, 5 x 0.55" (14mm) soft dome tweeters
- Rated power: 50W AES, 200W peak
- Recommended amplifier: 100W-200W in to 16 ohms
- Sensitivity: 84dB at LF rising to 92dB at HF
- Maximum SPL: 104dB continuous, 110dB peak
- Nominal impedance: 16 ohms
- Dispersion: (-6dB) 100º horizontal, 5º vertical
- Crossover: 2.5 kHz passive
- Enclosure: 4 litre ported cabinet, moulded in ABS
- Finish: Light grey
- Protective grille: Light grey perforated steel
- Connectors: 4 pole socket
- Pin connections: +/- in, +/- link out
- Fittings: Captive inter-connecting bracket assembly, 6 x M8 fixings for wall and flying brackets
- Dimensions:(W) 246mm x (H) 115mm x (D) 198mm, (W) 9.7ins x (H) 4.5ins x (D) 7.8ins
- Weight: 3.6kg (7.9lbs)
