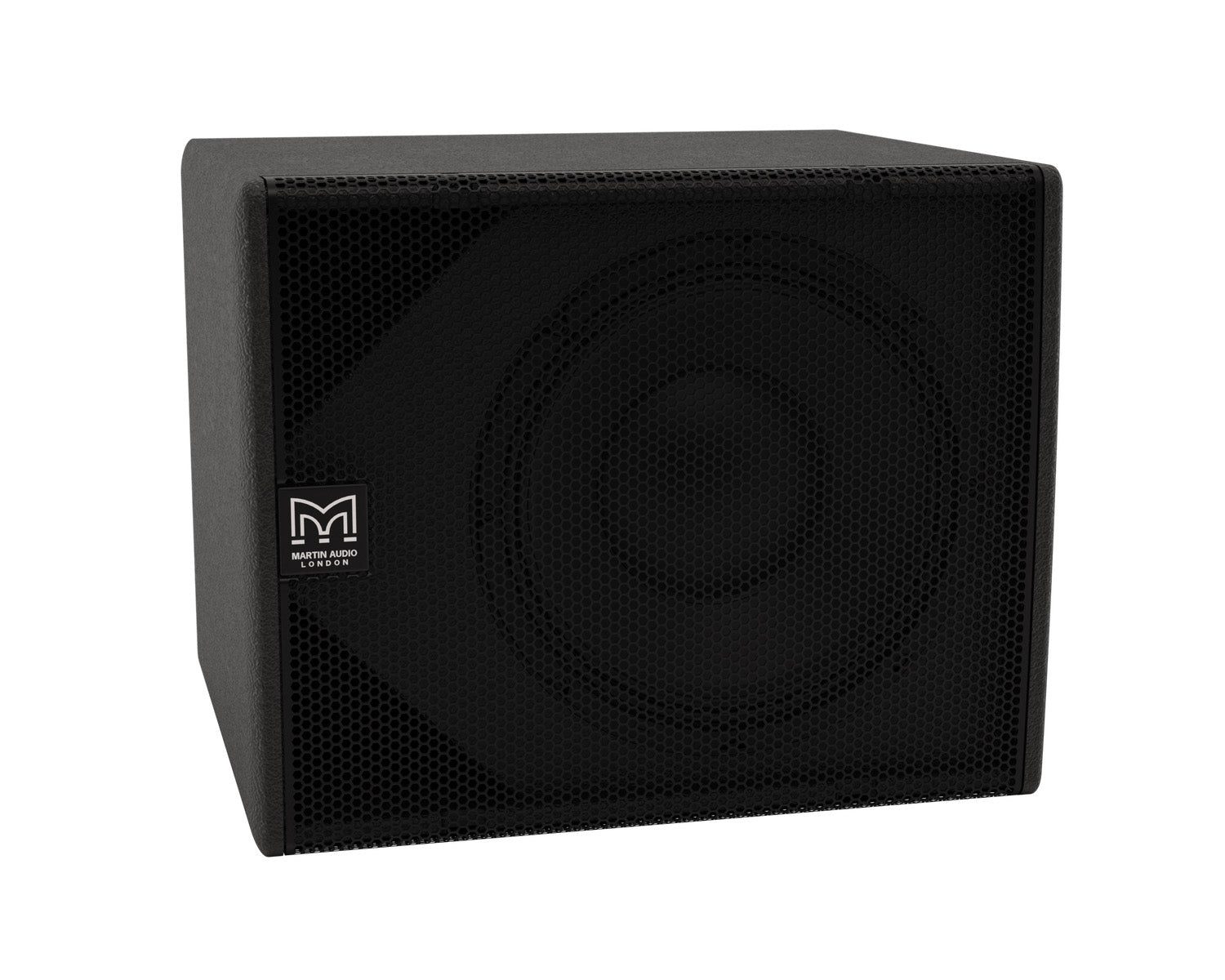

Martin Audio SX112 1×12″ Direct Radiating Ultra-Compact Subwoofer 400W Black
£860.31£716.93 Incl. VATExcl. VAT
The SX112 is an ultra-compact direct radiating sub-bass system designed to extend the bandwidth and increase the headroom of full-range loudspeaker models. It features a very efficient 12″ (300mm) long-throw bass driver with a high power 3″ (75mm) voice coil and generously-sized reflex ports for low noise, high power operation.With a response of 48Hz-150Hz ¬± 3dB, the ultra-compact size of the SX112 makes it an ideal partner for ADORN or CDD Series systems where space is at a premium or where the subwoofers need to be hidden. The enclosure is constructed from plywood and has an impact-resistant finish, while the driver is protected by a rigid perforated steel grille, which is pre-curved to withstand physical damage.
- Ultra-Compact, single driver, direct radiating subwoofer
- 12” (300mm) driver with 3” (75mm) voice coil
- Water resistant cone
- Large ports for reduced air noise
- Perforated steel grille
- White or black standard colour options
- Integrated flying points
Practical Applications
- Live Music Clubs and Bars
- Nightclubs
- Bars and Restaurants
- Museums and AV Spaces
- Convention Centres
- Hotels
- Retail Outlets
- Leisure Centres
- Houses of Worship
- TYPE: Compact, single driver, direct radiating subwoofer
- FREQUENCY RESPONSE: 48Hz-150Hz ± 3dB -10dB @ 35Hz
- DRIVER: 12” (300mm)/3” (75mm) voice coil, long excursion, ferrite magnet, waterproof cone
- RATED POWER: 400W AES, 1600W peak
- SENSITIVITY: 100dB
- MAXIMUM SPL: 126dB continuous, 132dB peak (half space)
- NOMINAL IMPEDANCE: 8Ω
- DISPERSION (-6DB): Omnidirectional
- CROSSOVER: 80-120Hz active (with DSP)
- ENCLOSURE: 52 litre, Plywood
- FINISH: Black or white textured paint
- PROTECTIVE GRILLE: Black or white perforated steel
- CONNECTORS: 2 x NL4
- PIN CONNECTIONS: Left to right: Input+, Input -, Link -, Link+
- FITTINGS: 12 x M10 inserts
-
DIMENSIONS:
- (W) 487mm x (H) 390mm x (D) 410mm
- (W) 19.2ins x (H) 15.4ins x (D) 16.1ins
- WEIGHT: 21.5kg (47.3lbs)
