Description

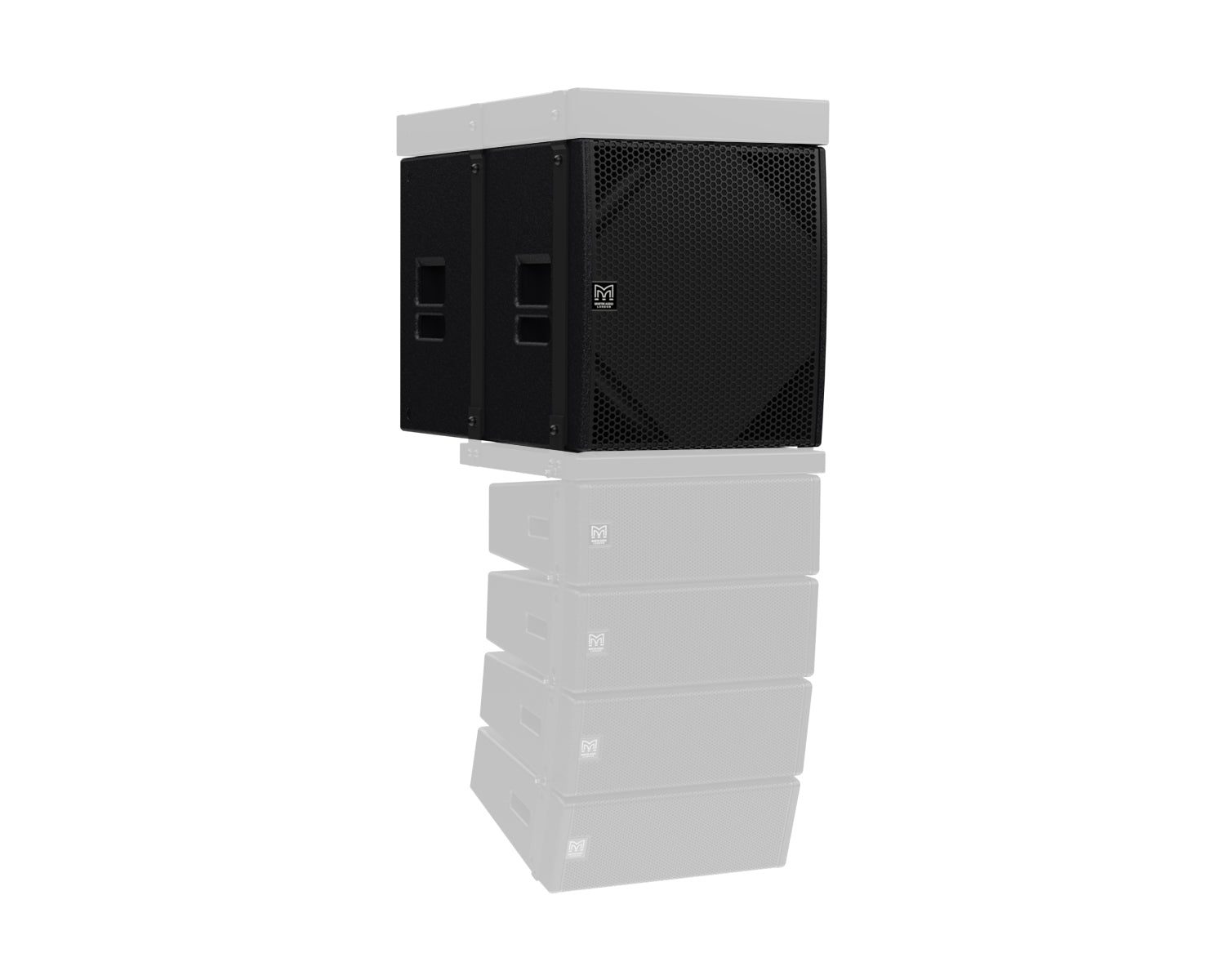

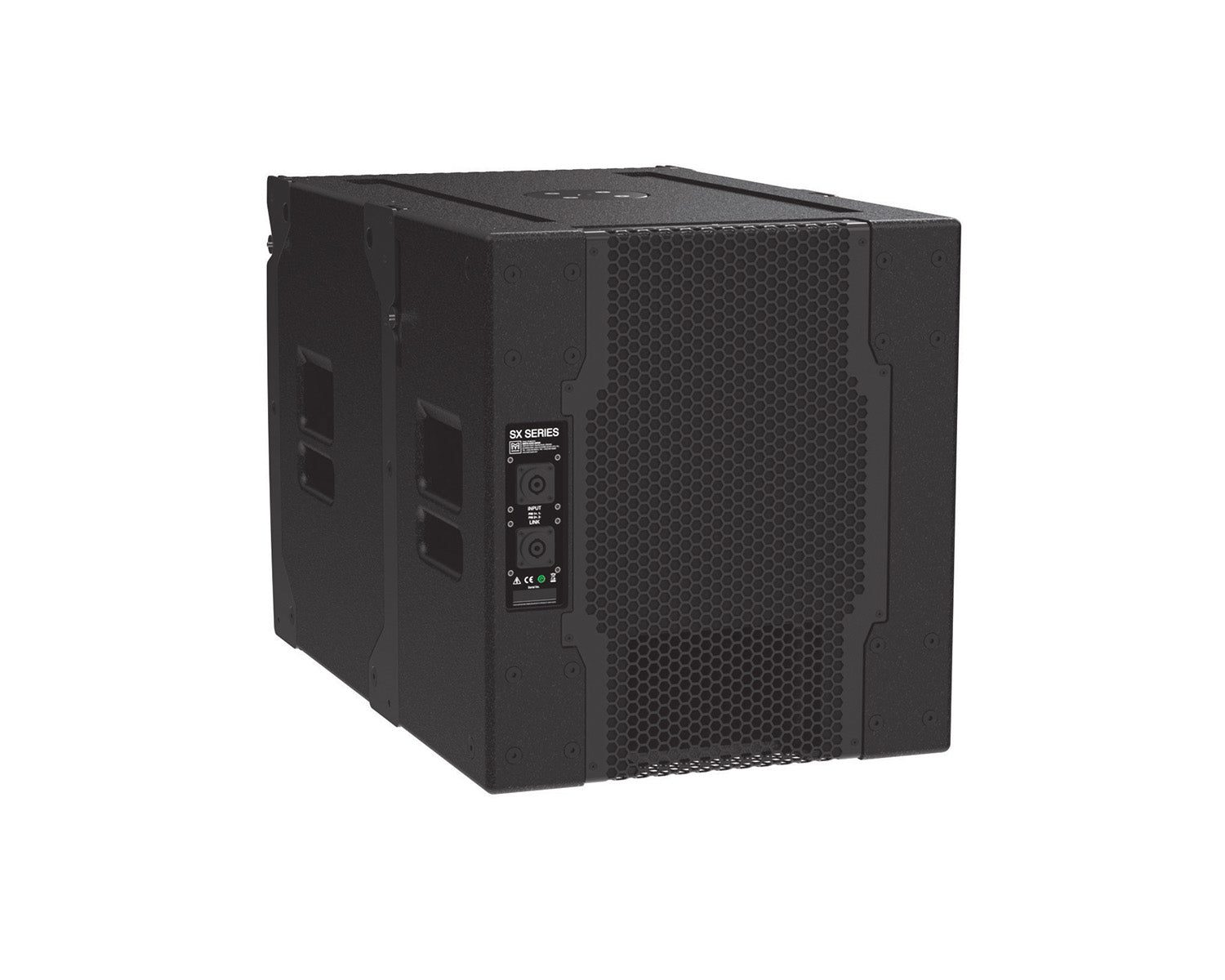

Designed for touring sound and installations, the SXCF115 is a compact, high performance cardioid subwoofer which be flown as part of a WPM or TORUS 8 array, or ground-stacked separately. SXCF115 features a 15″ (380mm) forward facing driver and a 12″ (300mm) rear facing driver, each driven independently by separate amplifier channels and DSP. Each driver has its own chamber with optimised bass reflex porting. This arrangement produces a cardioid dispersion pattern which maximises the front radiation and reduces unwanted radiation behind the subwoofer.
Features
- Compact, cardioid subwoofer
- Front facing 15” (380mm)/4” (100mm) voice coil driver
- Rear facing 12” (300mm)/4” (100mm) voice coil driver
- Cardioid dispersion pattern
- 28dB rear rejection at 75Hz
- High output capability
- Tour-grade plywood enclosure
Specs
- Type: Compact, cardioid subwoofer
- Frequency Response: 44Hz – 150Hz ±3dB, -10dB @ 36Hz
- Drivers:
- 15” (380mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
- 12” (300mm)/4” (100mm) voice coil, long excursion, neodymium magnet, waterproof cone
- Rated Power:
- 15”: 1000W AES, 4000W peak
- 12”: 800W AES, 3200W peak
- Sensitivity: 101dB
- Maximum SPL: 137dB peak
- Nominal Impedance:
- 15”: 8 ohms
- 12”: 8 ohms
- Dispersion: (-6dB) Cardioid
- Enclosure: Multi-laminate birch ply
- Finish: Textured black paint
- Protective Grille: Black HEX perforated steel
- Connectors: 2 x NL4
- Pin Connections (INPUT): 15”: +1, -1; 12”: +2, -2
- Pins Connections (LINK): 15”: +1, -1; 12”: +2, -2
- Fittings:
- Two skids on base, with mating channels on top
- M20 top-mounted thread plate for pole mounting
- Two bar handles on each side
- 16 x M8 inserts for optional castors
- Dimensions (INCL SKIDS) (W) 500mm x (H) 552mm x (D) 810mm (938mm incl castors) (W) 19.69in x (H) 21.71in x (D) 31.90in (36.94in incl castors)
- Weight: 61.5Kg (136lbs), 65Kg (143lbs) incl castors
