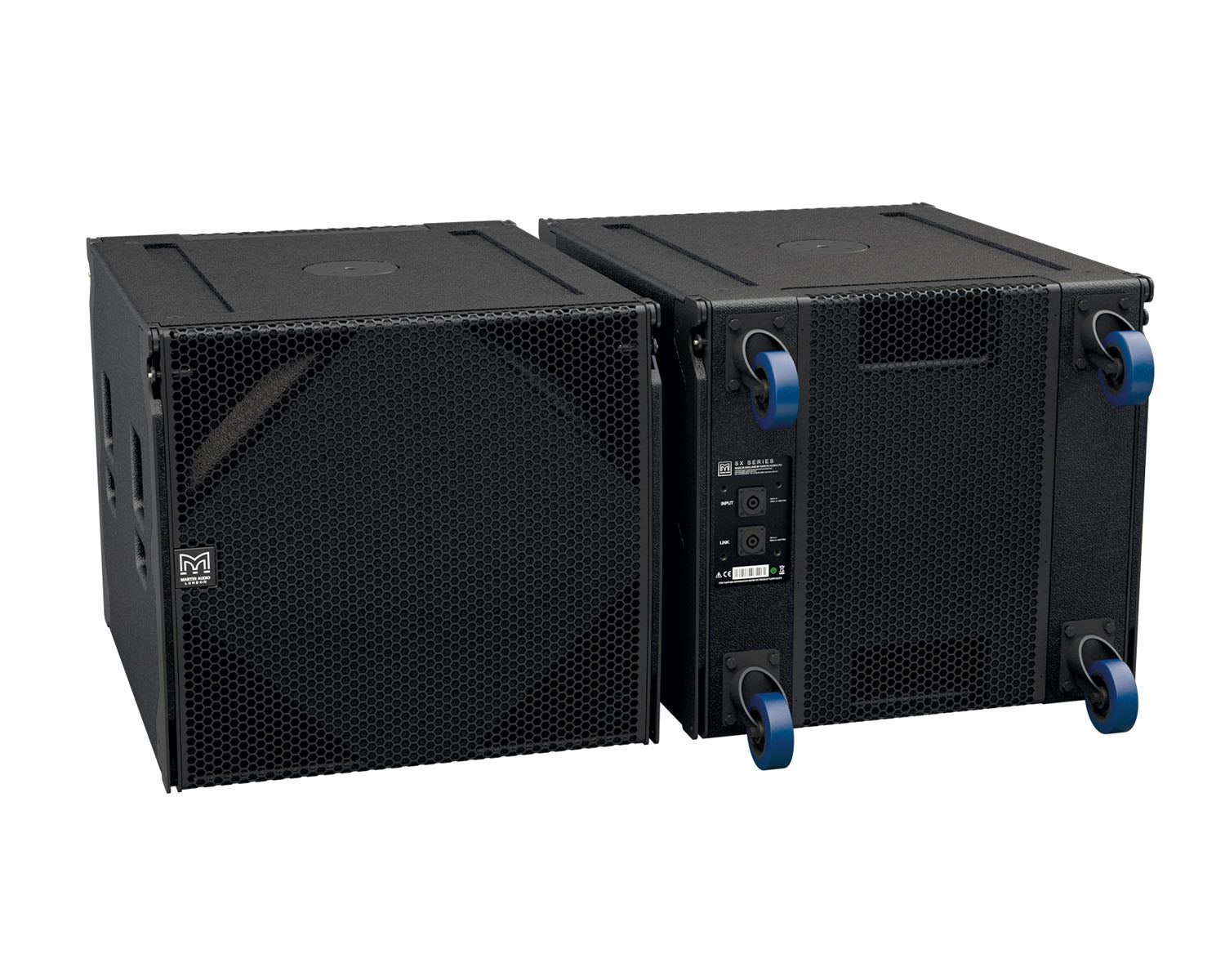

Martin Audio SXCF118 1×18″ Compact Flown CARDIOID Subwoofer 1000W Black
£6,534.00£5,445.00 Incl. VATExcl. VAT
Description
The SXCF118 is a compact, high performance cardioid subwoofer. The flown version of the SXC118, it is the ideal partner for flown WPS arrays ‚Äî combining maximum low frequency output with pattern control. It features an 18″ (460mm) forward facing driver and a 14″ (356mm) rear facing driver, each driven independently by separate amplifier channels and DSP. Each driver has its own chamber with optimised bass reflex porting.White option also available on request, please call one of our sales team for details.
Features
- Compact, cardioid flown subwoofer
- Front facing 18” (460mm)/4” (100mm) voice coil driver
- Rear facing 14” (356mm)/3.5” (88mm) voice coil driver
- Cardioid dispersion pattern
- 28dB rear rejection at 75Hz
- High output capability
- Tour-grade plywood enclosure
- Finish Black (White option also available on request, please call one of our sales team for details.)
Applications
- Live sound reinforcement
- Fixed installations including live event venues and nightclubs
- Theatre sound
- Corporate AV events
Specs
- TYPE: Compact, cardioid subwoofer
- FREQUENCY RESPONSE: 43Hz – 150Hz ±3dB, -10dB @ 34Hz
- DRIVERS:
- 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
- 14” (356mm)/3.5” (88mm) voice coil, long excursion, neodymium magnet, waterproof cone
- RATED POWER:
- 18”: 1000W AES, 4000W peak
- 14”: 800W AES, 3200W peak
- SENSITIVITY: 104dB
- MAXIMUM SPL: 140dB peak
- NOMINAL IMPEDANCE:
- 18”: 8Ω
- 14”: 8Ω
- DISPERSION (-6DB): Cardioid
- ENCLOSURE: Multi-laminate birch ply
- FINISH: Textured black polyurea
- PROTECTIVE GRILLE: Black HEX perforated steel
- CONNECTORS: 2 x NL4
- PIN CONNECTIONS (INPUT): 18”: +1, -1; 14”: +2, -2
- PINS CONNECTIONS (LINK): 18”: +1, -1; 14”: +2, -2
- FITTINGS:
- Two skids on base, with mating channels on top
- M20 top-mounted thread plate for pole mounting
- Two bar handles on each side
- Four fittings for optional transit cover
- DIMENSIONS (INCL SKIDS):
- (W) 650mm x (H) 611mm x (D) 812mm (940mm incl castors)
- (W) 25.6in x (H) 24.1in x (D) 32.0in (37.0in incl castors)
- WEIGHT: 75kg (165lbs), 78kg (172 lbs) incl castors
