Description

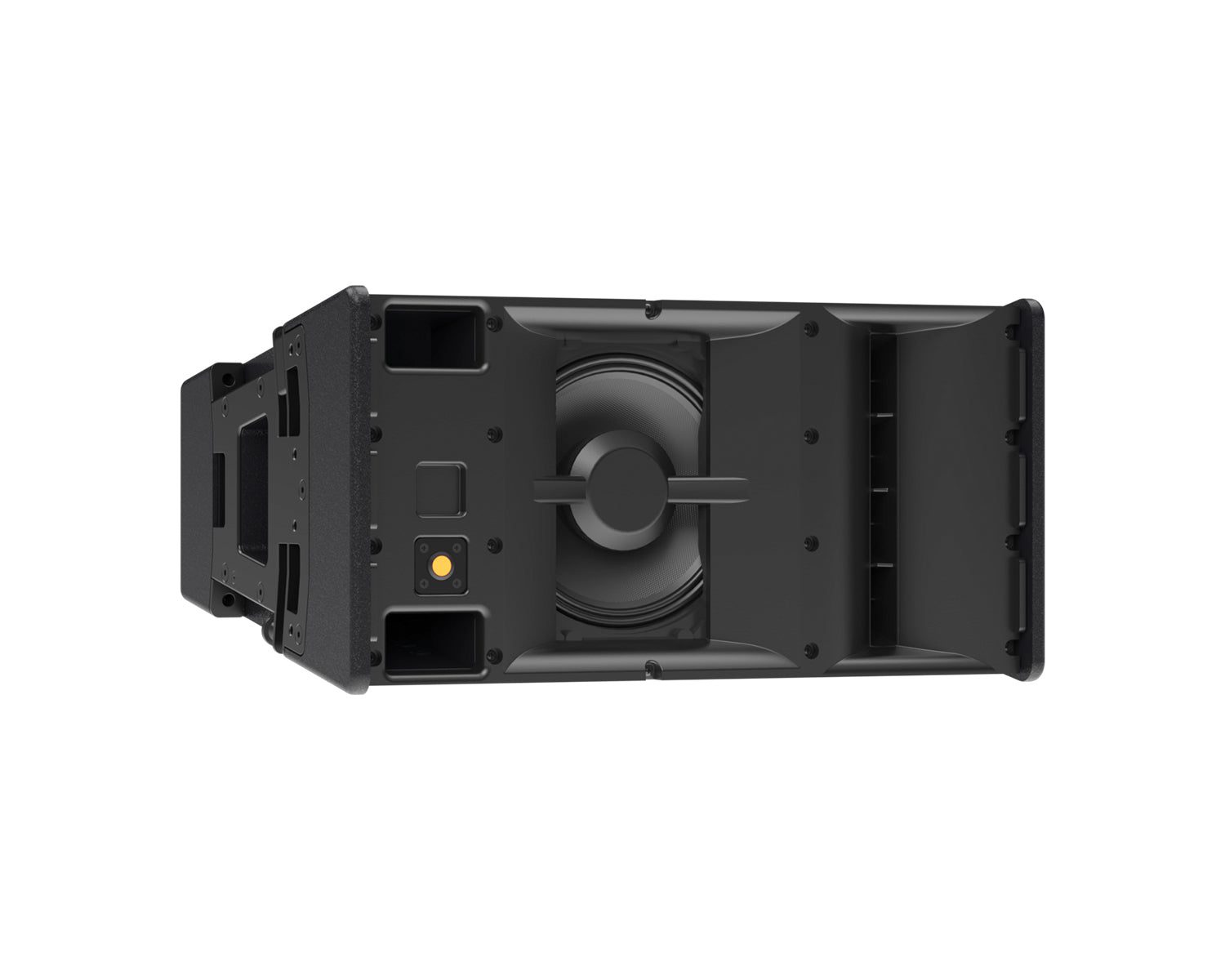

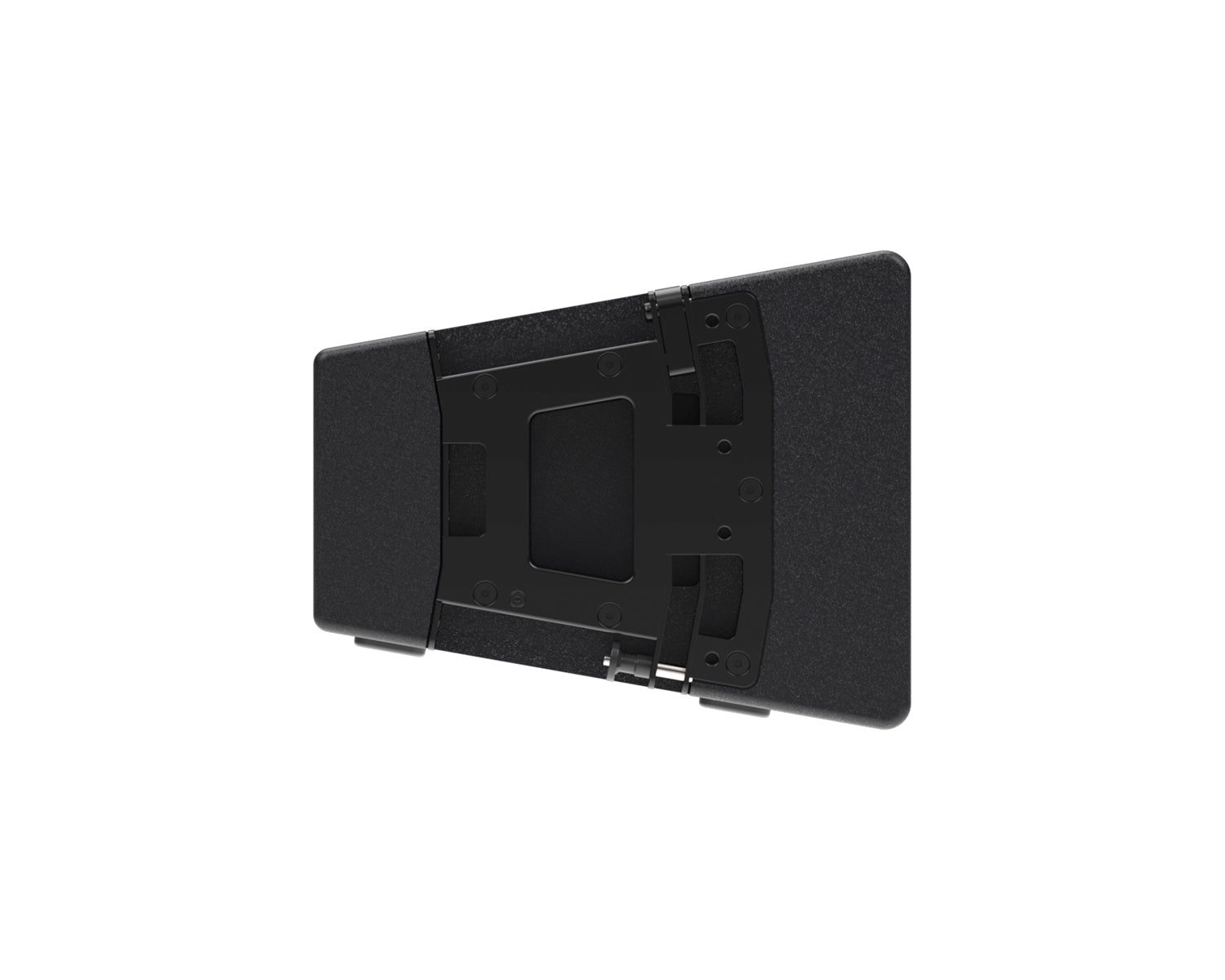

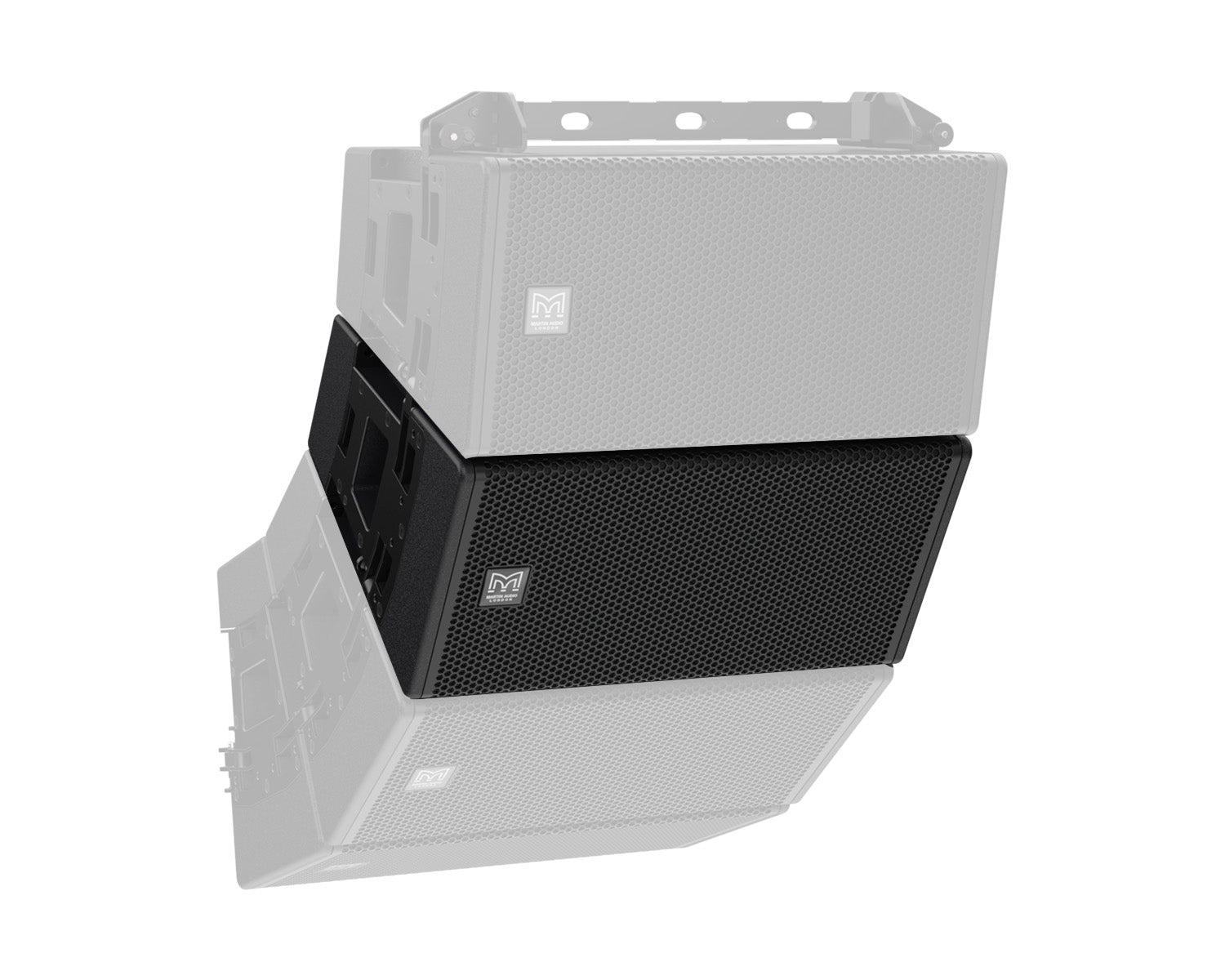

TORUS T820 is a passive, two-way loudspeaker engineered for small to medium-scale applications which do not call for the longer throw capabilities of a line array. With exceptional ease-of-use, scalability and deployment flexibility, it is primarily used as an array element in vertical constant curvature arrays as well as being used singly as a point-source loudspeaker. In venues with short throws, yet high ceilings like some theatres, a horizontal centre cluster may also be a practical solution.
Features
- Two-way, constant curvature array element
- Compact enclosure with high output capability
- 1 x 8” (200mm) LF driver plus 2 x 1.4” (35mm)/1” (25mm) exit HF drivers
- 100° horizontal dispersion x 20° vertical dispersion
- Easy-to-use integral rigging for quick set-up
- Integral fittings to facilitate pole-mounting
- Optimised coverage via DISPLAY 3
- Powered by iKON amplifiers
Specs
- Type: Passive 2-way, 8” Constant Curvature 20° enclosure
- Frequency Response (with iKON settings): 70Hz – 18kHz ± 3dB, -10dB @ 56Hz
- Drivers:
- LF: 8” with 2” Voice coil, Neodymium
- HF: 2 x 1” exit, 1.4” Voice coil, HT Polymer dome neodymium compression driver
- Sensitivity: (2.83V 1m free-field) 97dB
- Nominal Impedance: 8 ohms
- Rated Power: AES 200W, PEAK 800W
- Maximum SPL (SYSTEM): 124dB continuous, 130dB peak*
- Dispersion: 100° horizontal, 20° vertical
- Pin Connections (INPUT): 1+/- or 2+/-
- Pin Connections (LINK): 1+/- and 2+/-
- Dimensions: (W) 500mm, (H) 257mm, (D) 320mm ((W) 19.69ins, (H) 10.12ins, (D) 12.60ins)
- Weight: 14kg (31 lbs)
