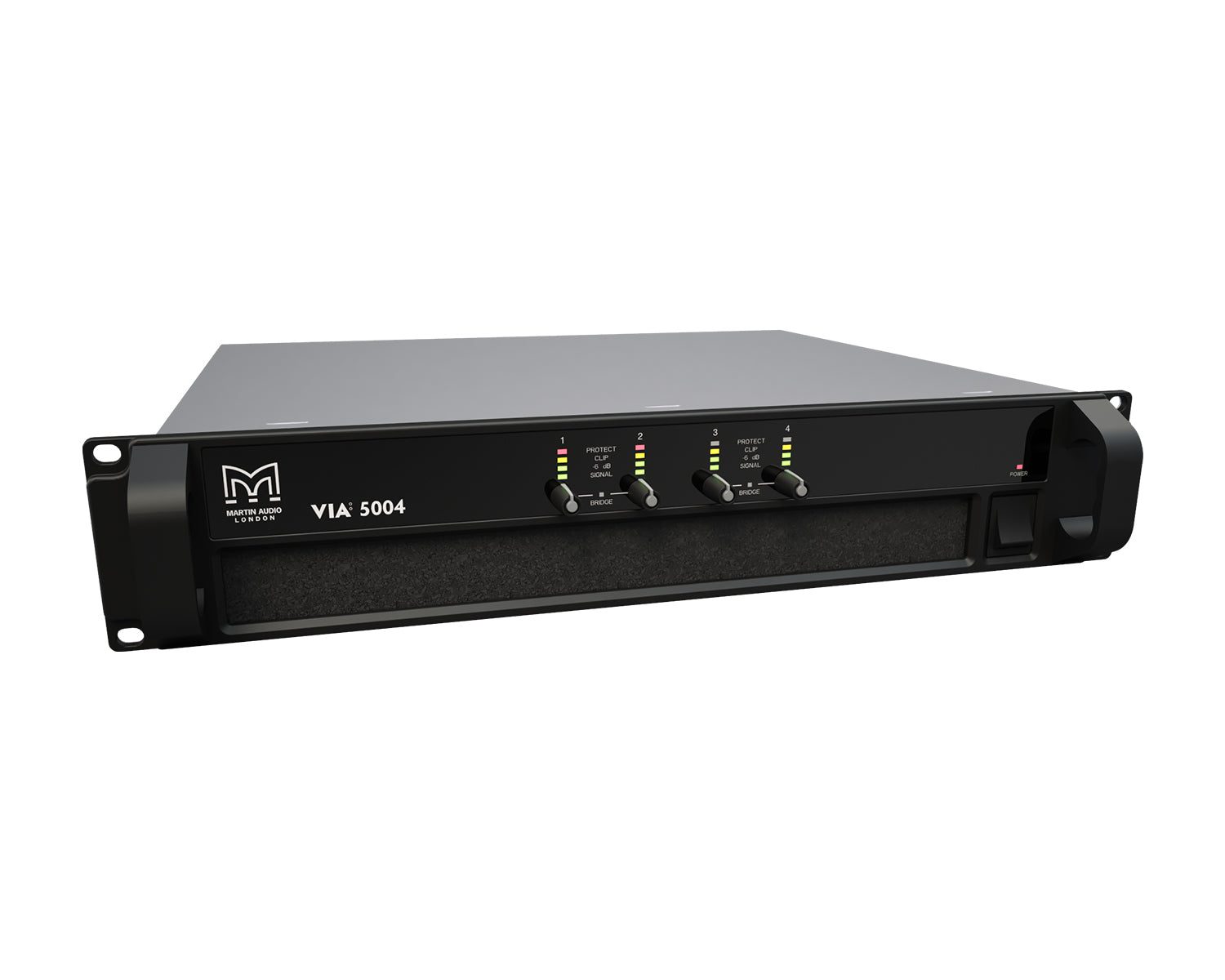

Martin Audio VIA5004 4 Channel Class D 4x1250W @ 2Ω Power Amp 2U
£2,673.00£2,227.50 Incl. VATExcl. VAT
The VIA5004 is an advanced 4-channel power amplifier which combines high power density with superb audio performance in a lightweight, cost-effective package. Delivering 4 x 1250 watts into 2 ohms, or 2 x 2500 watts into 4 ohms bridged, it is ideal for powering Blackline X, CDD and V.Series systems in small to medium-scale installations and portable sound applications. It can also be configured for 3-channel operation, for perfect compatibility with TH Series 3-way systems.Its high efficiency design reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound in demanding environments with reliability and ease.Comprehensive protection functions continuously monitor its performance to maintain safe operating conditions and full output capability in ambient temperatures up to 40°C.
- Four channels of efficient Class D amplification
- 5000 Watts total power output
- 2U rack height
- Exceptionally lightweight
- Switch mode power supply
- Variable speed cooling fan with front-to-back airflow
- Global mains operation, 115V to 230V auto-sensing
- Comprehensive protection systems
- Signal and clip limiter LEDs
General
- TYPE: Four-channel Class D amplifier
- POWER OUTPUT:
- 4 x 1250W into 2 ohms
- 4 x 800W into 4 ohms
- 4 x 450W into 8 ohms
- 2 x 2500W bridged into 4 ohms
- COOLING: Vari-speed fans, front-to-back airflow
- MAXIMUM AMBIENT TEMPERATURE: 40°C (105°F)
- ANALOGUE IN/LINK (4 CHANNELS): 4 x female, 4 x male Neutrik‚Ñ¢ XLR
- ANALOGUE INPUT IMPEDANCE: 10KΩ balanced
- MAXIMUM ANALOGUE INPUT LEVEL: +20dBu
- AMPLIFIER OUTPUTS: 4 x Neutrik Speakon‚Ñ¢ NL4
- OUTPUT NOISE: -113dBA, referenced to max output (22kHz bandwidth)
- FREQUENCY RESPONSE: <10Hz ->20kHz +/- 0.25dB
- TOTAL HARMONIC DISTORTION: <0.05% typical @ 1kHz, -3dB output (22kHz bandwidth)
- SLEW RATE: > 80V per microsecond
- DAMPING FACTOR: 120 ref 8 ohms
- POWER SUPPLY: 2 x high current, high frequency switch-mode
- AC OPERATING RANGE:
- 100-240V +/-10%
- 45 - 65Hz
- TOTAL SYSTEM EFFICIENCY: > 90% typical
- MAINS CONNECTOR: 1 x Neutrik Powercon‚Ñ¢
Physical & Dimensions
- Height: 88mm
- Width: 482mm
- Depth: 441mm
- Weight: 10kg
