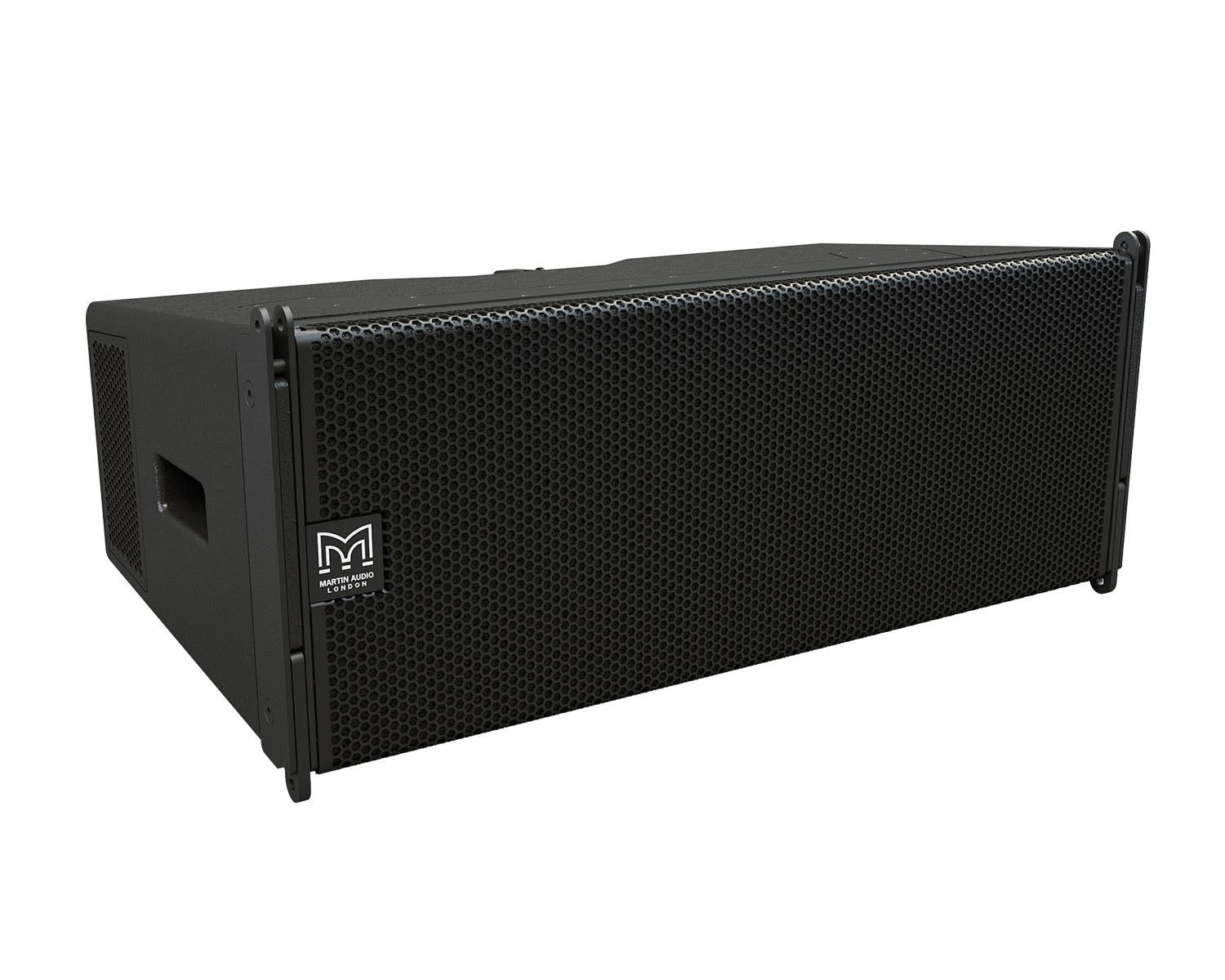

Martin Audio WPC 3-Way Bi-amp 2×10″ LF Drivers Line Array Element Black
£5,445.00£4,537.50 Incl. VATExcl. VAT

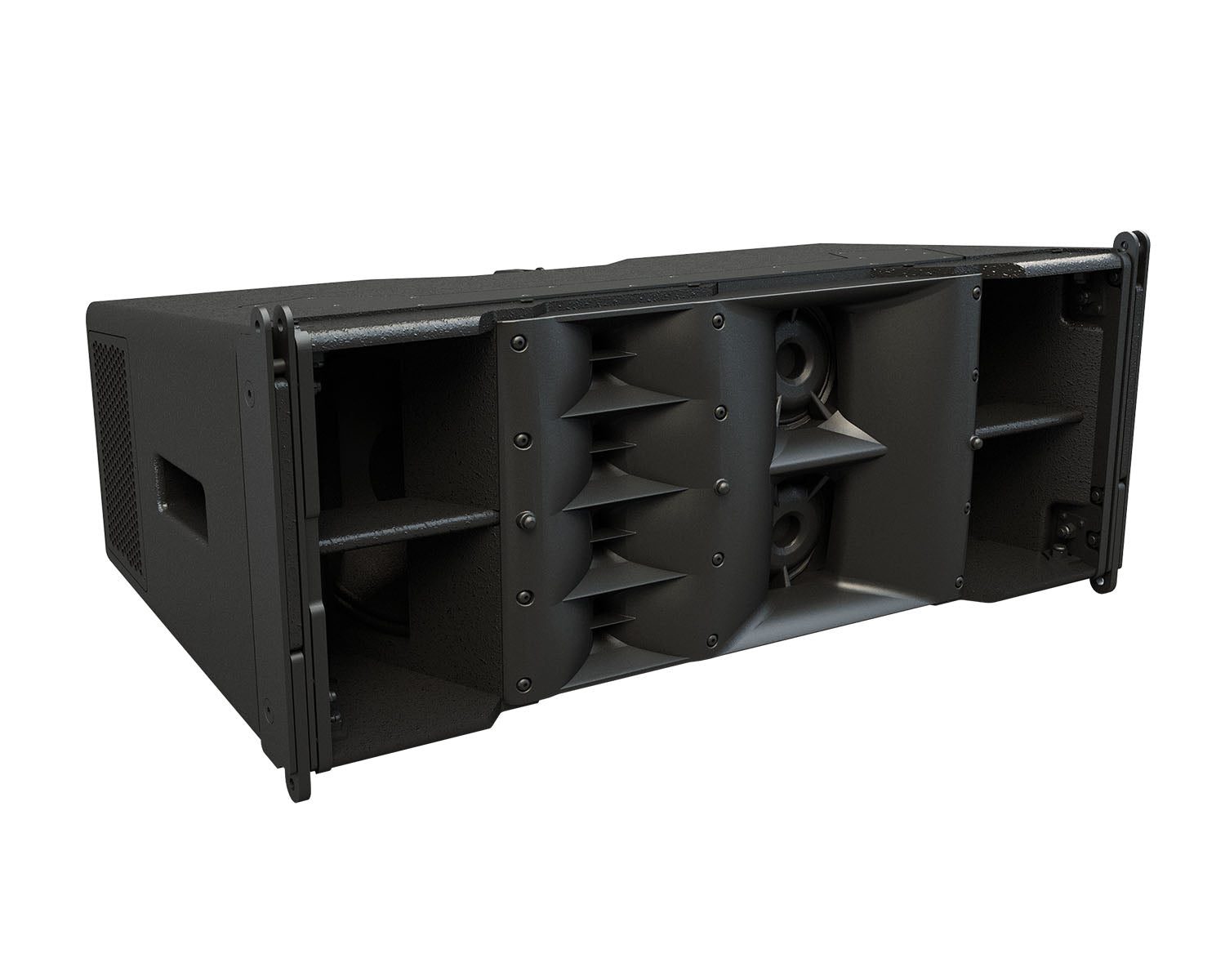

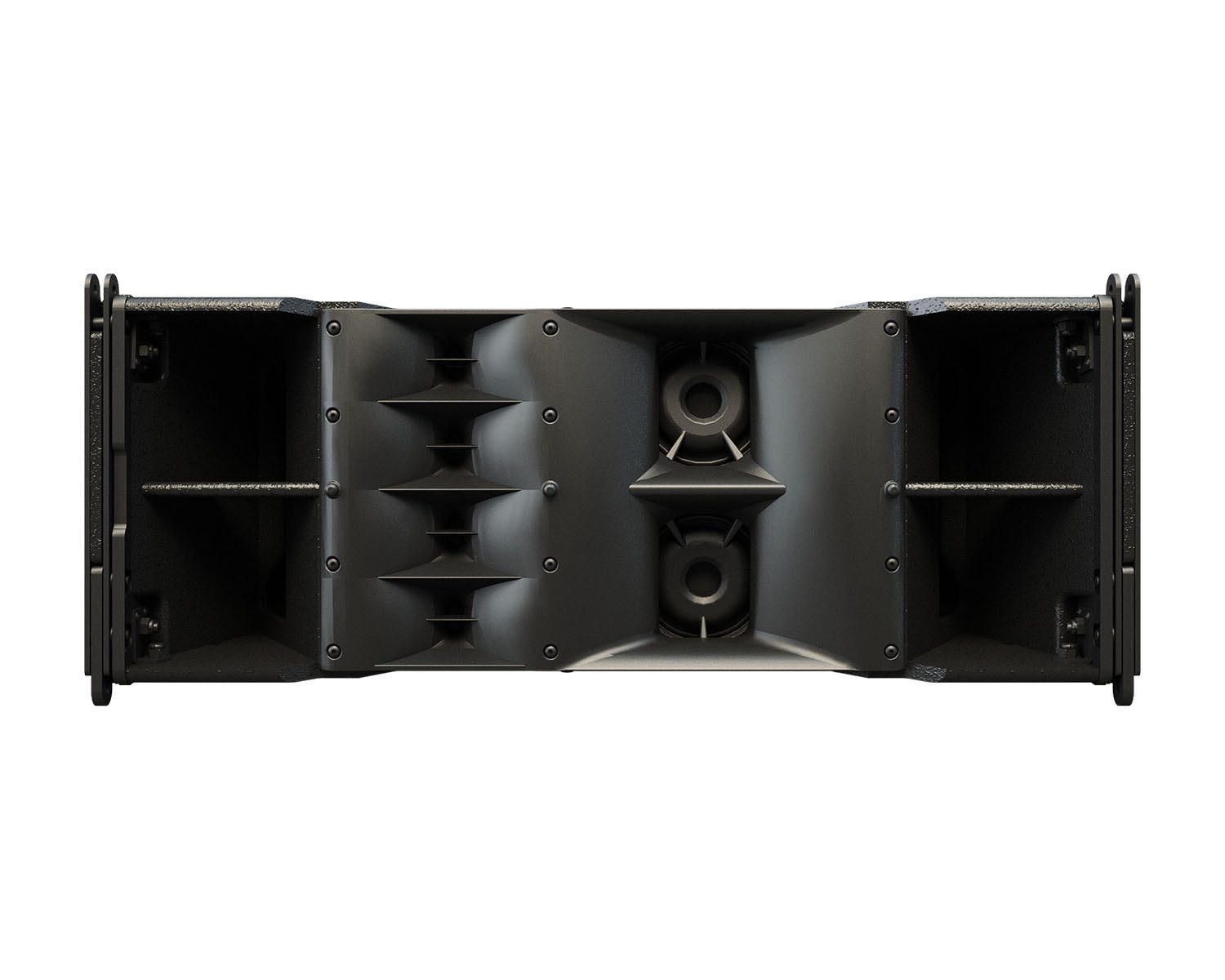

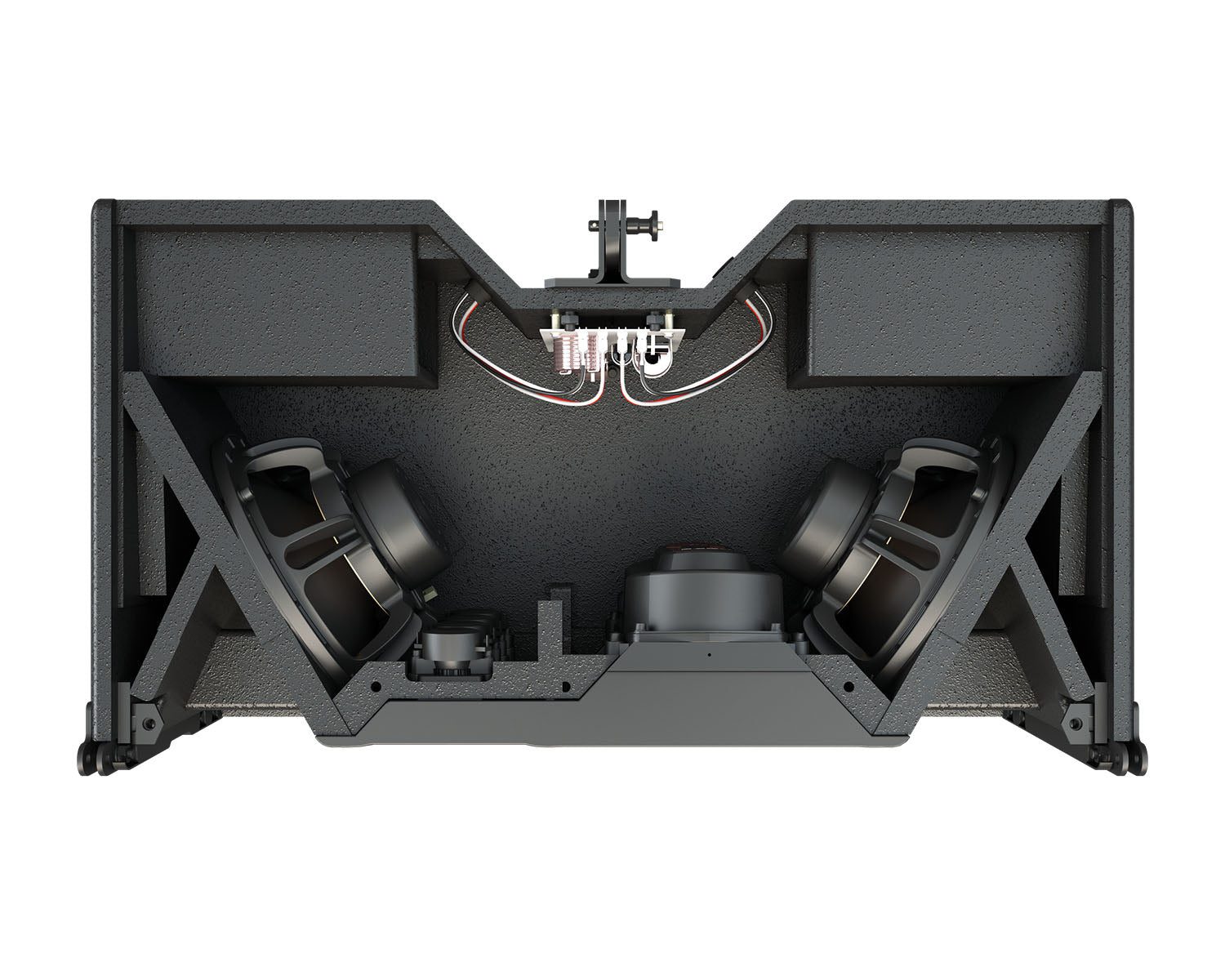

WPC is a new breed of medium-format optimised line array which brings innovative acoustic design, ultra-high performance and coverage consistency to a wider range of users, applications and budgets than previously possible. A three-way, bi-amp system, it features horn-loaded low frequency, mid and HF sections to raise efficiency and increase output. With a peak SPL of 135dB its high efficiency acoustic design can equal or outperform larger, direct radiator systems ‚Äî a 12-box array will throw beyond 60 metres (200ft) and deliver impressive rock levels to a 5000-seat venue, saving on truck space and weight.WPC’s low frequency section consists of 2 x 10″ (250mm) neodymium drivers in a Hybrid¬Æ configuration which marries the benefits of horn and reflex loading. Each driver is slot-loaded into a short horn to give a high sensitivity, while the rear of the driver is reflex-loaded to extend the LF output. The punch and low-frequency extension produced from such a small enclosure volume are remarkable.Mid and HF horns are physically separate ‚Äî a key factor in the WPC’s exemplary 100¬∞ horizontal constant directivity dispersion pattern. The midrange horn design utilises 2 x 5″ (125mm) neodymium drivers to produce a high output while the HF section employs 4 x 0.7″ (19mm) exit neodymium compression drivers which feed 4 individual horns. Use of multiple small HF drivers instead of a more traditionally-used large format compression driver results in less distortion and a more extended HF response.
- Compact line array
- Scalable resolution for advanced array control
- External, dedicated, multi-channel Class D amplification
- Industry-leading DISPLAY software interacts with DSP for highly-accurate results
- Fast, integral 3-point flying systems for up to 16 enclosures
- Side and rear handles for ease of handling and setting splay angles
- 100° horizontal constant directivity pattern control
Benefits
- Consistent coverage achieved ‘straight-out-of-the-box’
- DISPLAY intelligent software reduces set-up time and eliminates trial-and-error
- Improved audience coverage with reduced sound-spill
Applications
- Touring sound reinforcement for small and medium-size venues
- Fixed installations in concert halls, theatres, ballrooms and HoW
- Sports stadium, arena installations & corporate AV events
- TYPE: Three-way, bi-amp line array element
- FREQUENCY RESPONSE: 65Hz-18kHz ± 3dB
- DRIVERS
- LF 2 x10” (250mm)/2.5” (63mm) voice coil, long excursion, vented pole, neodymium magnet drivers, Hybrid® slot-horn loaded
- MF 2 x 5” (125mm)/1.5” (38mm) coil, neodymium magnet drivers, horn loaded
- HF 4 x 0.7” (19mm) exit neodymium magnet compression drivers, horn loaded
- SYSTEM AMPLIFIER: iKON iK42
- SYSTEM RESOLUTION: 1 to 3 enclosures per pair of amplifier channels (Bi-amp)
- MAXIMUM SPL: 135dB peak
- NOMINAL IMPEDANCE: LF: 8 ohms, MF + HF: 8 ohms
- DISPERSION
- 100º horizontal (-6dB), 130º horizontal (-10dB)
- 10° vertical
- CROSSOVER: 440Hz active, 4.4kHz internal passive
- ENCLOSURE: Vertical trapezoid with 5º wall angle, multi-laminate birch and poplar-ply construction
- FINISH: Black textured paint

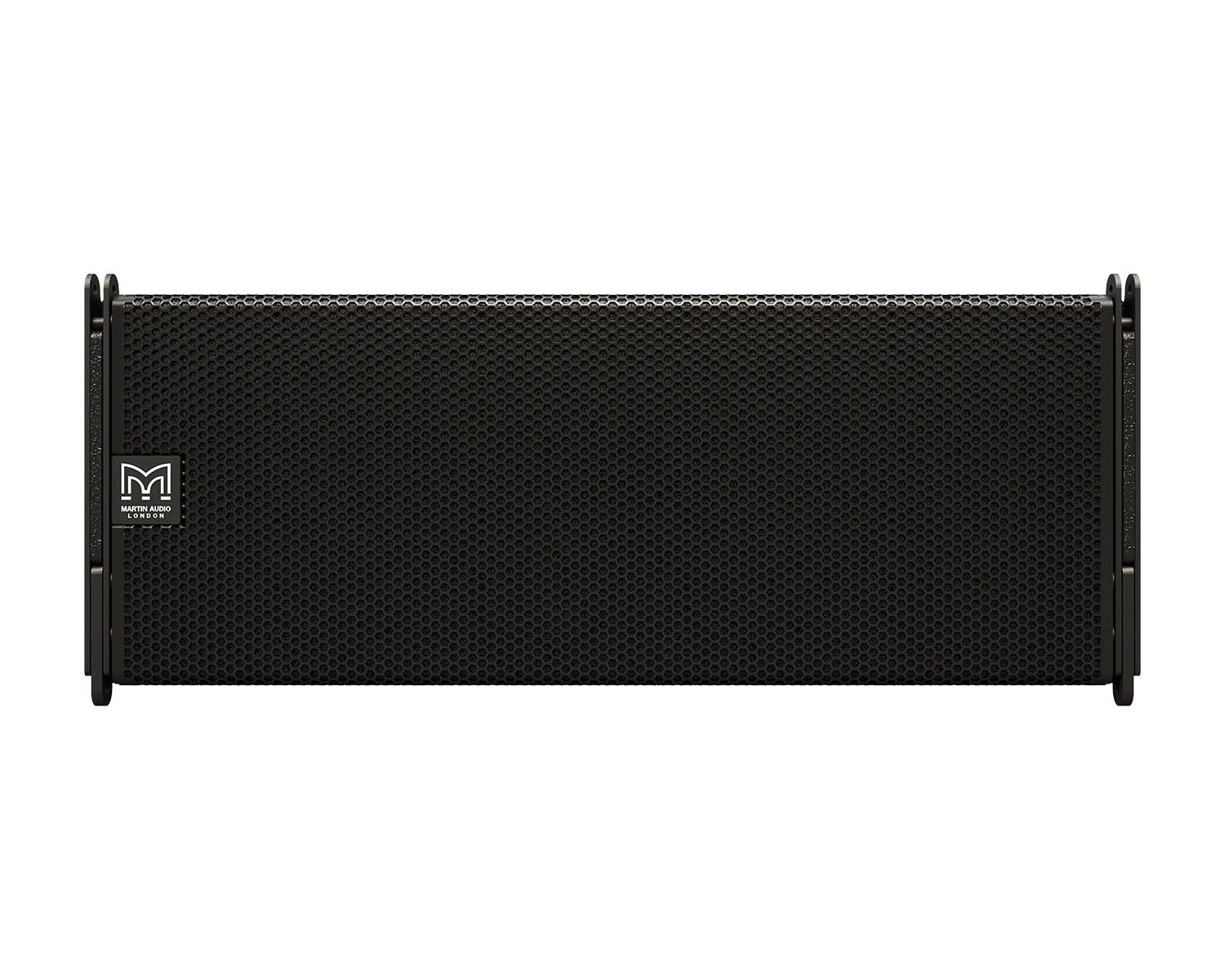

- PROTECTIVE GRILLE: Black HEX perforated steel
- CONECTORS: 2 x NL4 type
- PIN CONNECTIONS: LF: 1+/1-, MF + HF: 2+/2-
- FITTINGS
- 3-point rigging system
- 2 x side pocket handles
- 2 x rear grip handles

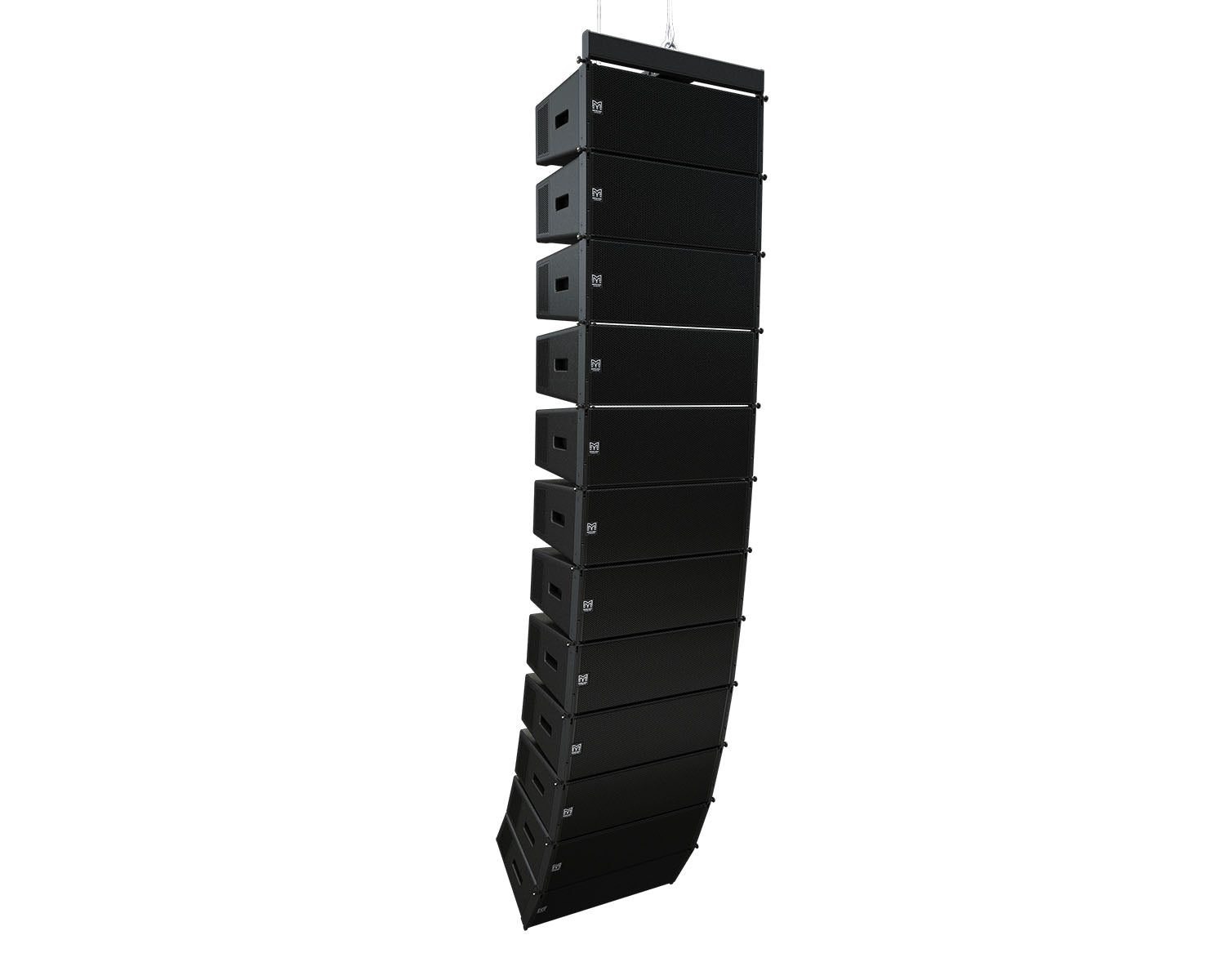

- FLOWN ARRAY MAXIMUM: 16 enclosures in single array
- DIMENSIONS
- (W) 772mm x (H) 319mm x (D) 421mm
- (W) 30.4in x (H) 12.6in x (D) 16.6in
- WEIGHT: 35kg (77.1lbs)
