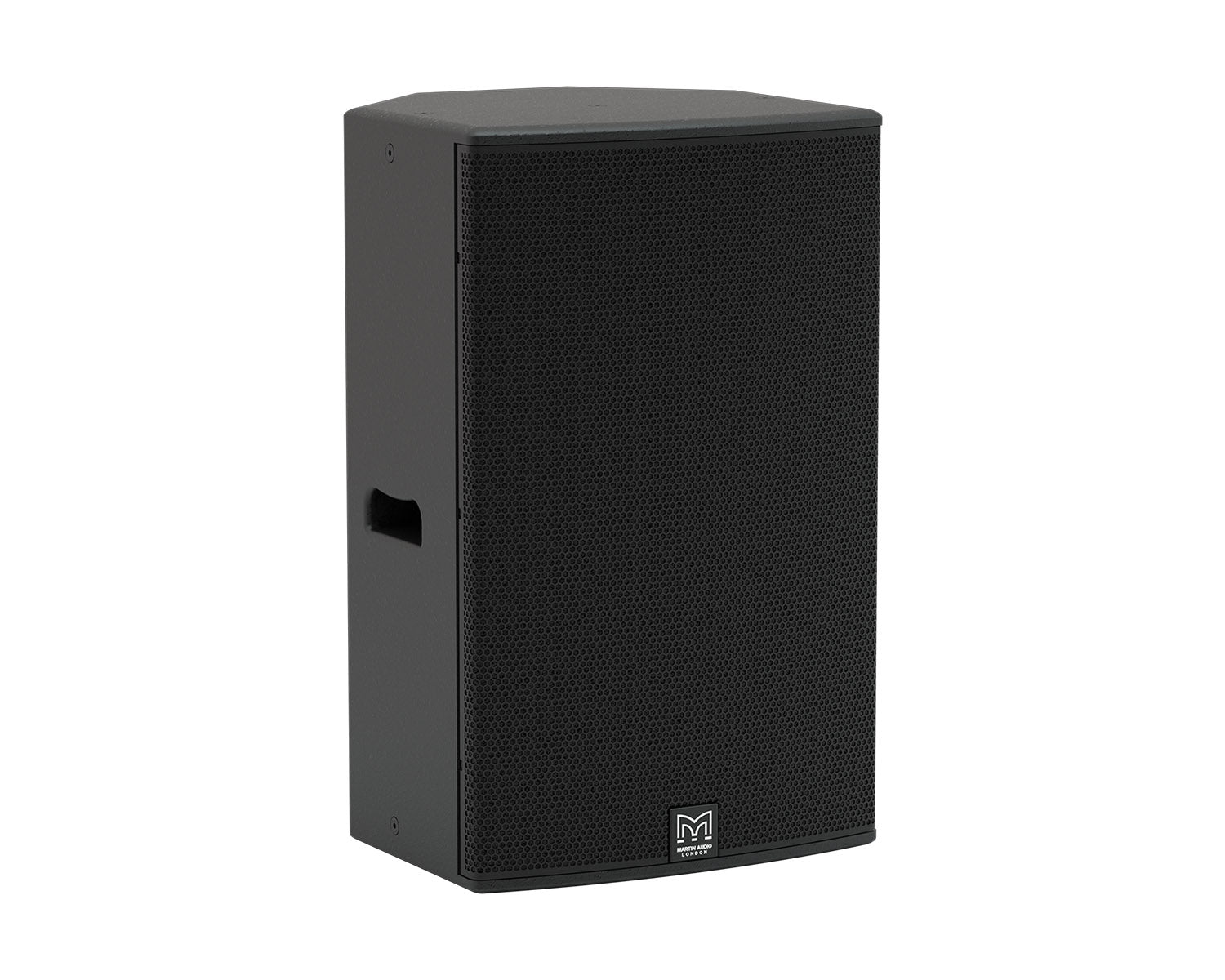

Martin Audio XP15 Blackline XP 15″ 2-Way Powered Loudspeaker 1300W Black
£1,533.51£1,277.93 Incl. VATExcl. VAT

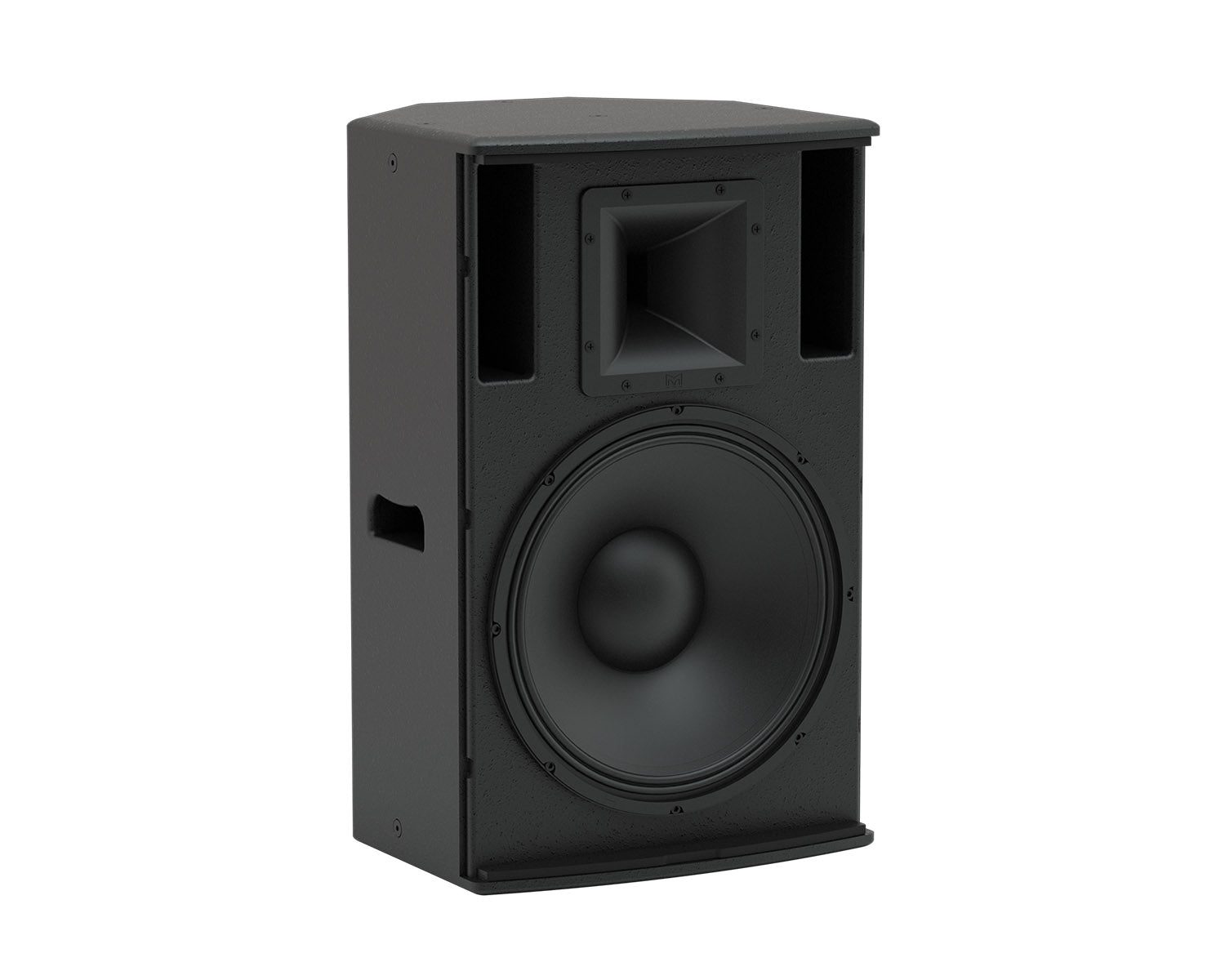

The XP15 is a self-powered two-way system designed by leading acoustic engineers for indoor portable applications and installations that require powerful performance from a single portable loudspeaker. It features a 15″ (380mm)/3″ (75mm)voice coil LF drive unit, and a 1″ (25mm) exit HF compression driver with a 1.75″ (44mm) polyimide diaphragm. With an accurately-defined 80¬∞ x 50¬∞ coverage pattern, it combines very high output capability with exceptional sonic performance and low frequency impact.Its Class D amplifier module delivers 1000W LF + 300W HF peak output to the drivers, which are independently protected by RMS and peak limiters. On-board DSP functions are controlled by a rotary encoder interface and multi-function, easy-to-use colour display on the rear panel. DSP features include crossover function, a three-channel mixer with three band EQ on each input channel and a choice of three voicing resets and operating modes for flexible operation without external processing.The symmetrical, multi-angle enclosure is manufactured from birch and poplar plywood and finished in textured black paint. It is fitted with M8 inserts for eyebolt suspension plus a pole-mount socket with a removable cap. Its cloth-backed protective steel grille is a spring-fit into the sides of the enclosure for easy access to rotate the HF horn.
- High output, self-powered, portable two-way system
- 1300W of Class D amplification
- Global power supply with PFC (Power Factor Correction)

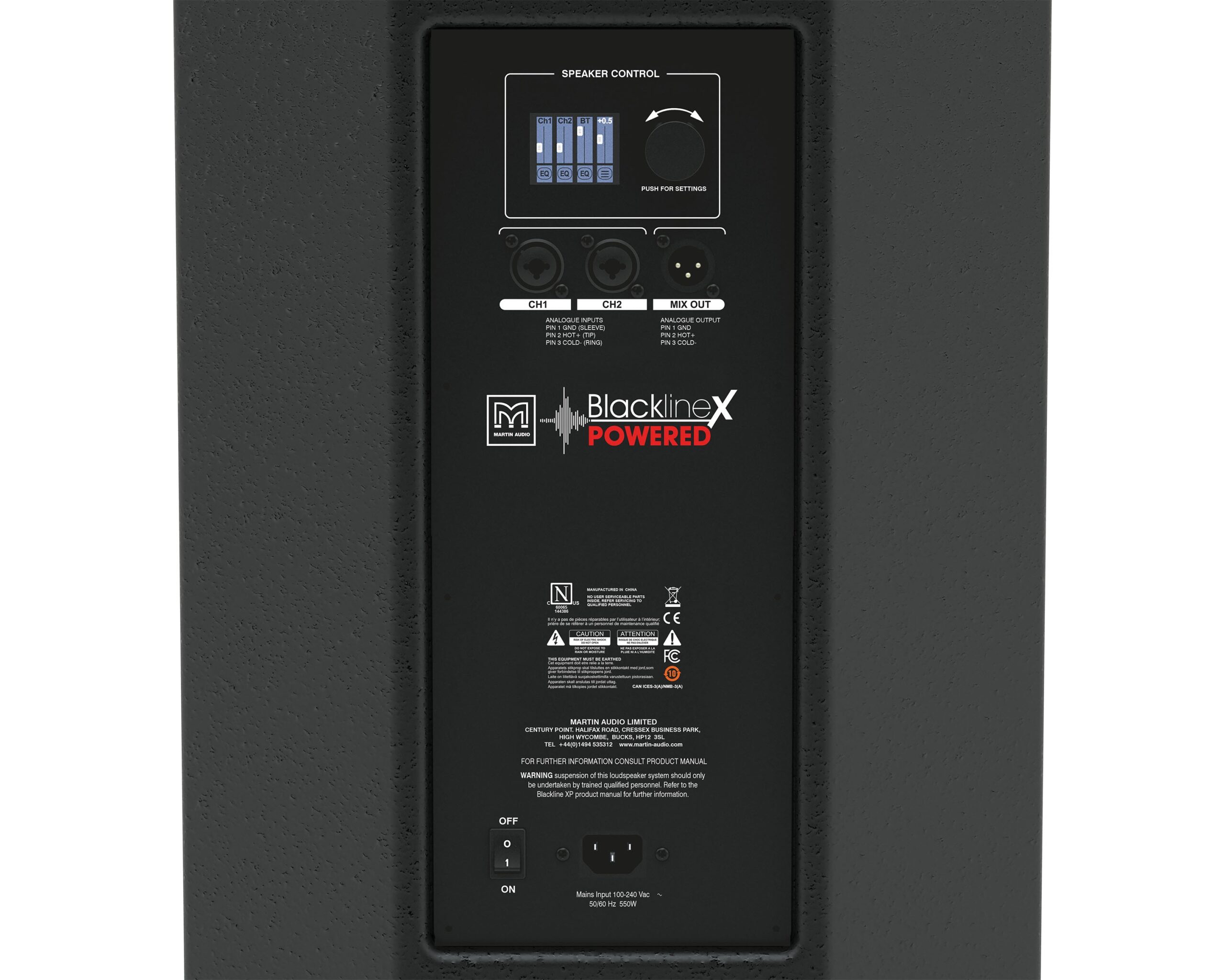

- Onboard DSP with rotary control interface
- Multi-function display for metering, control and function selection
- Three-channel mixer
- Three-band channel EQ, plus HPF (Ch1/2)
- Independent LF and HF peak and RMS limiters
- Three speaker mode and voicing presets
- Bluetooth® control and streaming option
- Durable plywood enclosure
- User-rotatable 80° x 50° HF horn
- Vertical and horizontal mounting options
- Symmetrical multi-angle enclosure for PA or stage monitor use
- Screw-free, cloth-backed steel grille
- Integral ergonomic handles

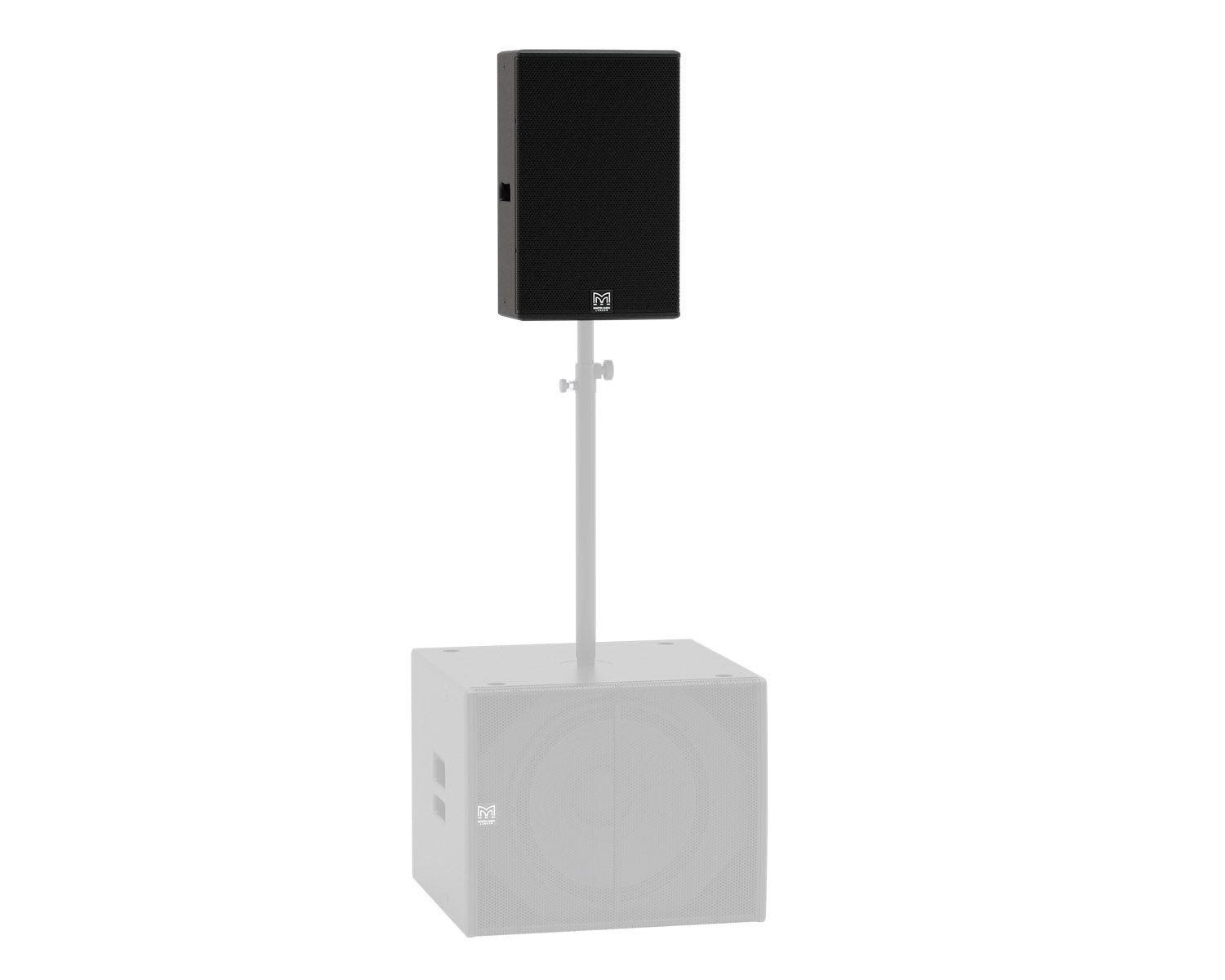

- Mounting options include pole-mount, wall bracket and flying inserts
Acoustics
- Type: High output, self-powered two-way system
- Frequency response
- 55Hz – 20kHz ±3dB
- -10dB @ 45Hz
- Drivers
- LF: 15” (380mm)/3” (75mm) voice coil ferrite motor system
- HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
- Maximum SPL: 125dB continuous / 131dB peak
- Dispersion: 80° H x 50° V (user-rotatable)
- Crossover: 2kHz active, 24dB/octave
Audio In/Out
- Input connectors: 2 x female XLR/ ¼” jack combo
- Mic/line input impedance: 8 kΩ balanced
- ¼” Jack ts input impedance: 1 MΩ unbalanced
- Mix output connector: 1 x male XLR
- Mix output impedance: 600Ω balanced
Internal Processing
- Input channel EQ: 3-band on each channel plus HPF (Ch1/2)
- Speaker EQ: 3 speaker mode/voicing presets
- Protection: LF and HF Peak and RMS limiting, amplifier thermal protection
Amplifier Module
- Type: 2 channel switch-mode, Class D
- Peak output power
- 1300W total
- 1000W LF, 300W HF
- Average efficiency: 89%
- Cooling: External convection cooled
- Maximum ambient temperature: 35°C (95°F) for full output
Power Supply
- TYPE: Switch-mode, fixed frequency with PFC
- AC input operating range: 100-240V ~ AC, 50 - 60Hz
- Power factor: > 0.98
- Nominal power consumption: 550W Max
- Mains connector: 3-pin IEC
Physical & Dimensions
- Enclosure: Multi-angle birch/poplar ply
- Finish: Black textured paint
- Protective grille: Black perforated steel with scrim cloth backing
- Fittings: 13 x M8 inserts, pole-mount socket, 2 x pocket handles
- Dimensions
- (W) 427mm x (H) 690mm x (D) 407mm
- (W) 16.8in x (H) 27.2 x (D) 16.0in
- Weight: 26kg (57lbs)
