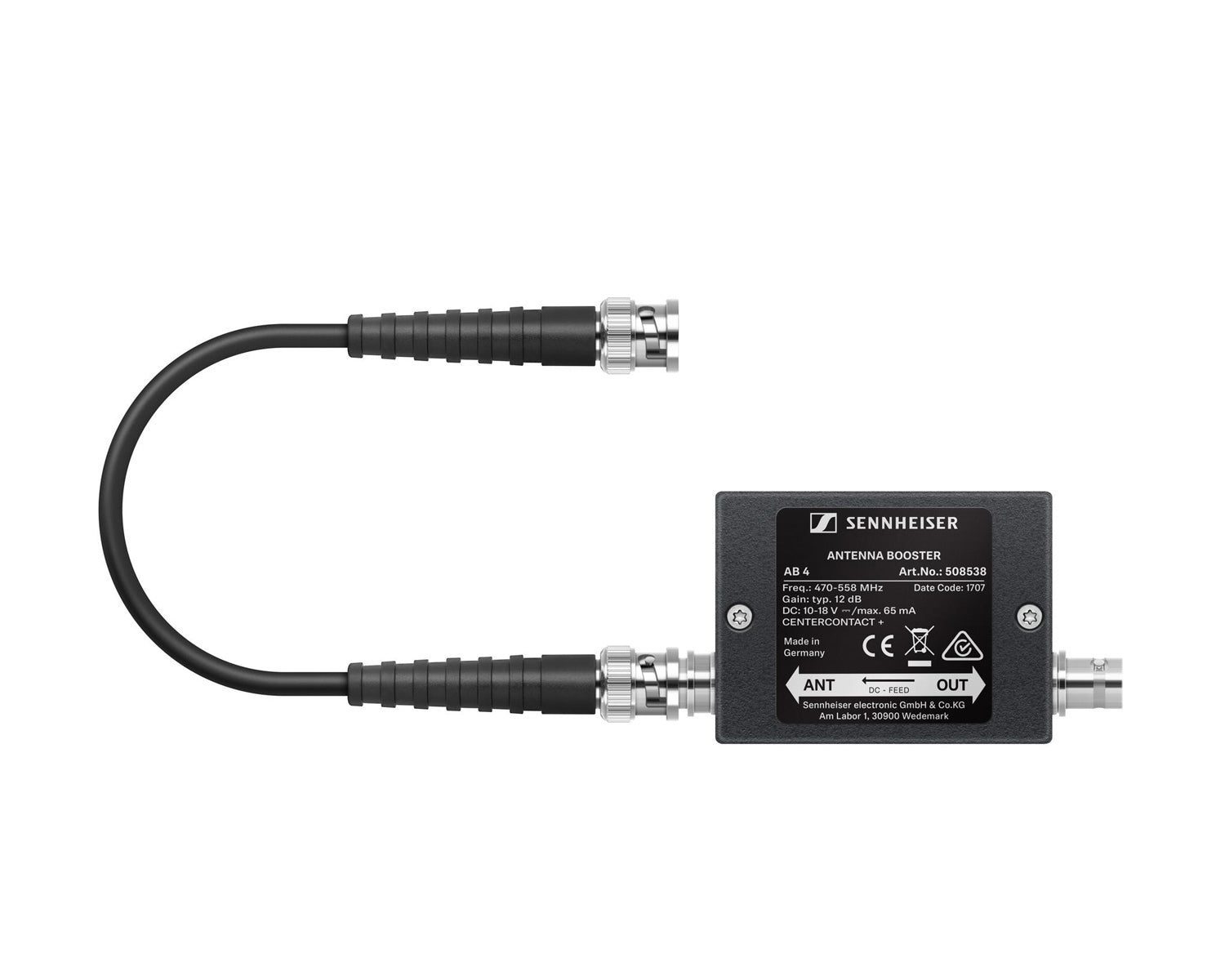

Sennheiser AB4-GBW In-line +12dB Antenna Booster 606-678MHz CH38-CH46

• AB 4 is fully compatible with all legacy evolution wireless systems
• Boosts filtered signal by typ. 12dB
• No power supply necessary
• Compact full metal housing

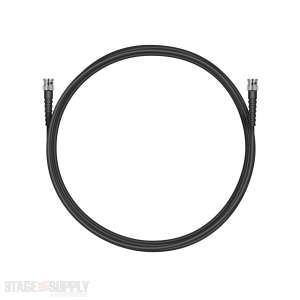

• Includes BNC cable
• Power supply via antenna cable from ASA 214 or EM 2050

General

• Power supply (DC-coupled): 10‚Äì18 V DC/50 mA, powered via antenna cable (max. 200 mA); centre contact +
• Frequency ranges:
  • AB 4-DW: 790-865
  • AB 4-CW: 718-790 MHz
  • AB 4-BW: 626-698 MHz
  • AB 4-GBW: 606-678 MHz
  • AB 4-GW: 558-626 MHz
  • AB4-AW+: 470-558 MHz
• Gain: approx. 12 dB
• Power supply: via antenna cable from ASA 214 or EM 2050
• Connections: BNC

Physical

• Dimensions: 12.5 x 8.2 x 2.6 cm
• Weight approx.: 184 g
