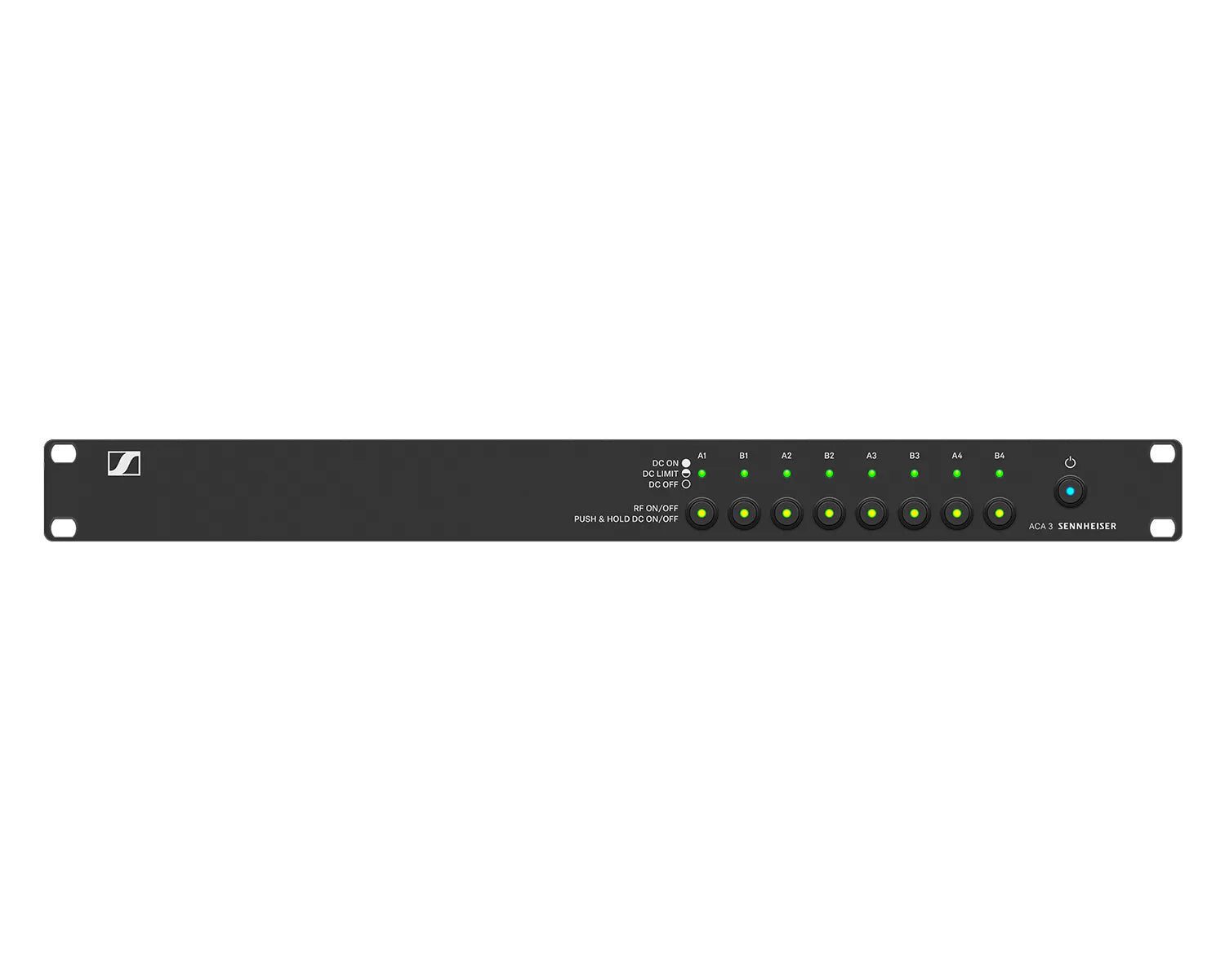

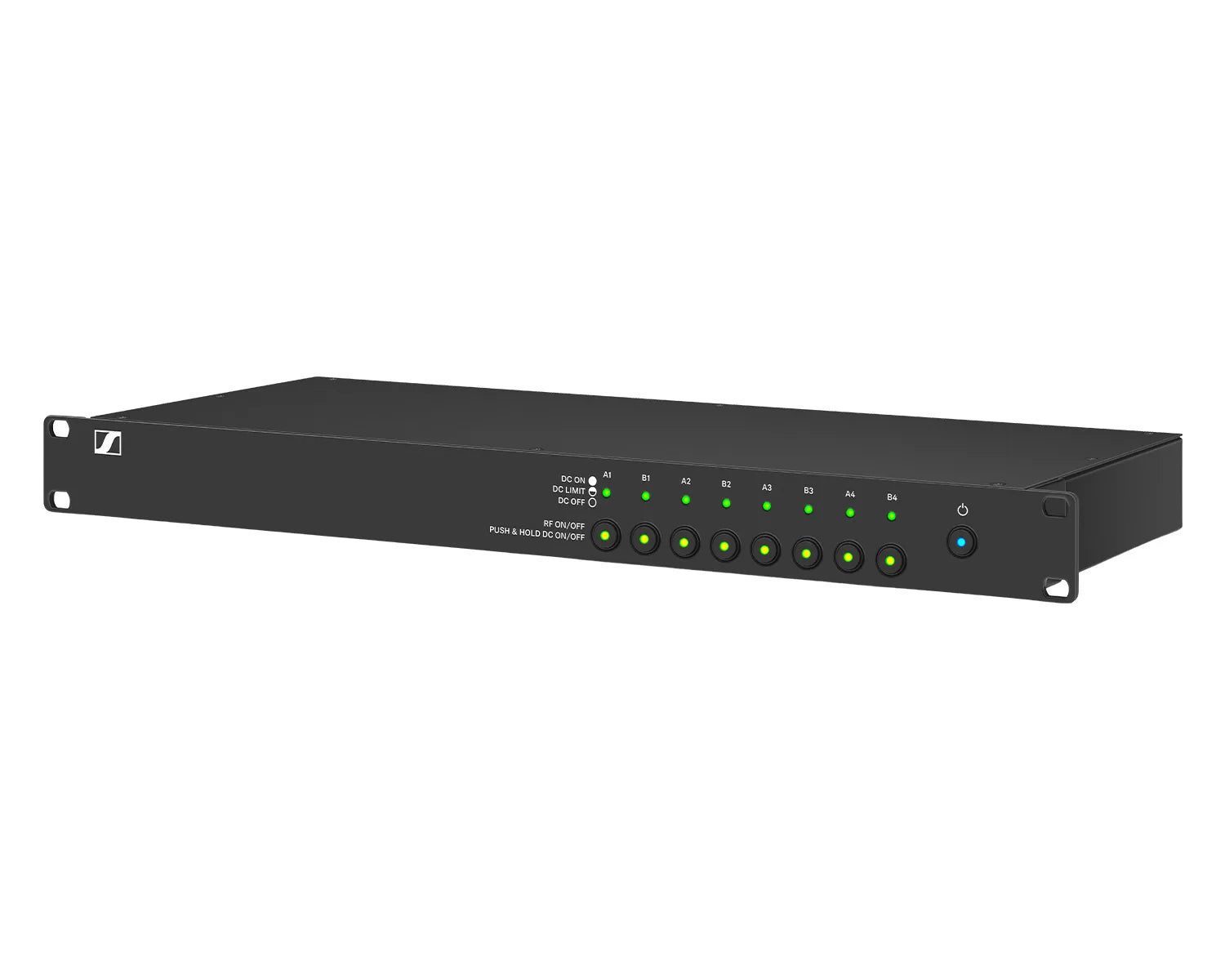

Sennheiser ACA 3 Active 8:2 (2×4:1) Hi Spec Antenna Combiner 470-798MHz 1U
£3,519.00£2,932.50 Incl. VATExcl. VAT
Sennheiser’s application engineers have used their expertise to develop the ACA 3, a compact and easy to deploy 2 x 4:1 antenna combiner compatible with all analogue and digital Sennheiser wireless stationary receivers operating in the supported frequency range of 470 to 798 MHz. Sennheiser supports the use of distributed antenna systems with a range of high-specification antenna combiners to allow wireless microphone coverage over multiple rooms and large or complex sites. With the increasing demand for “zone” systems in various situations including large churches, broadcast installations, outdoor sporting events and reality TV shows, Sennheiser’s engineers have used this expertise to develop the ACA 3, a compact and easy to deploy 2 x 4:1 antenna combiner compatible with all analogue and digital Sennheiser wireless stationary receivers operating in the supported frequency range of 470 to 798 MHz.
- 2 x 4:1 combiner at unity gain
- Switchable DC supplied on each antenna input for head amps or active antennas, e.g. AB 3, AB 3700, A12AD, AB 9000
- RF from each of the eight antenna inputs is switchable to isolate unused antennas
- LEDs indicate input state; RF on, DC on and DC current overload (e.g. faulty ‘short circuit‘ antenna cable)
- Frequency range: 470 - 798 MHz
- Gain: 0 dB (±3 dB) @ 470-790 MHz
- Output voltage: 12 V, 250 mA max (overload protected)
- Connector: BNC female, 50 Ω
- Power supply: 100-240 V~ / 50-60 Hz / 1A
- RF input: +10 dBm max 10 mW / channel
- RF output: IP3: >37 dBM (typ.); 1 dB cp: > 20 dBm
- Specials: Channel isolation (when switched OFF): 69 dB (typ.)
- Operation relative humidity: 5 to 95 %
- Operation temperature range: -10 °C to +40 °C
- Storage temperature range: -20 °C to +70 °C
- Dimensions (incl. rack mount ears): 483 x 205 x 43 mm
- Format: 19 inch, 1U
- Weight: (incl. plug, cable) approx. 2750 g
