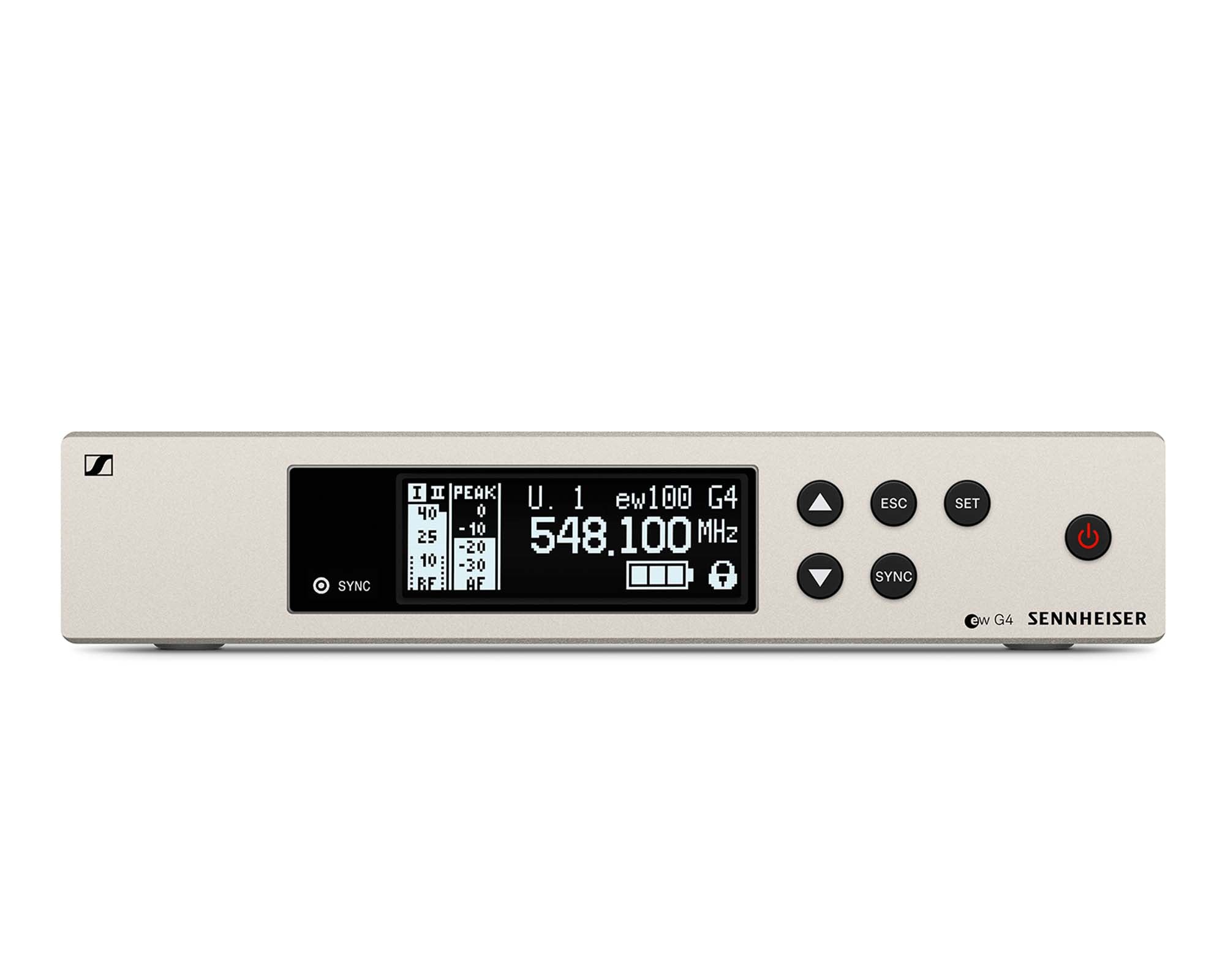

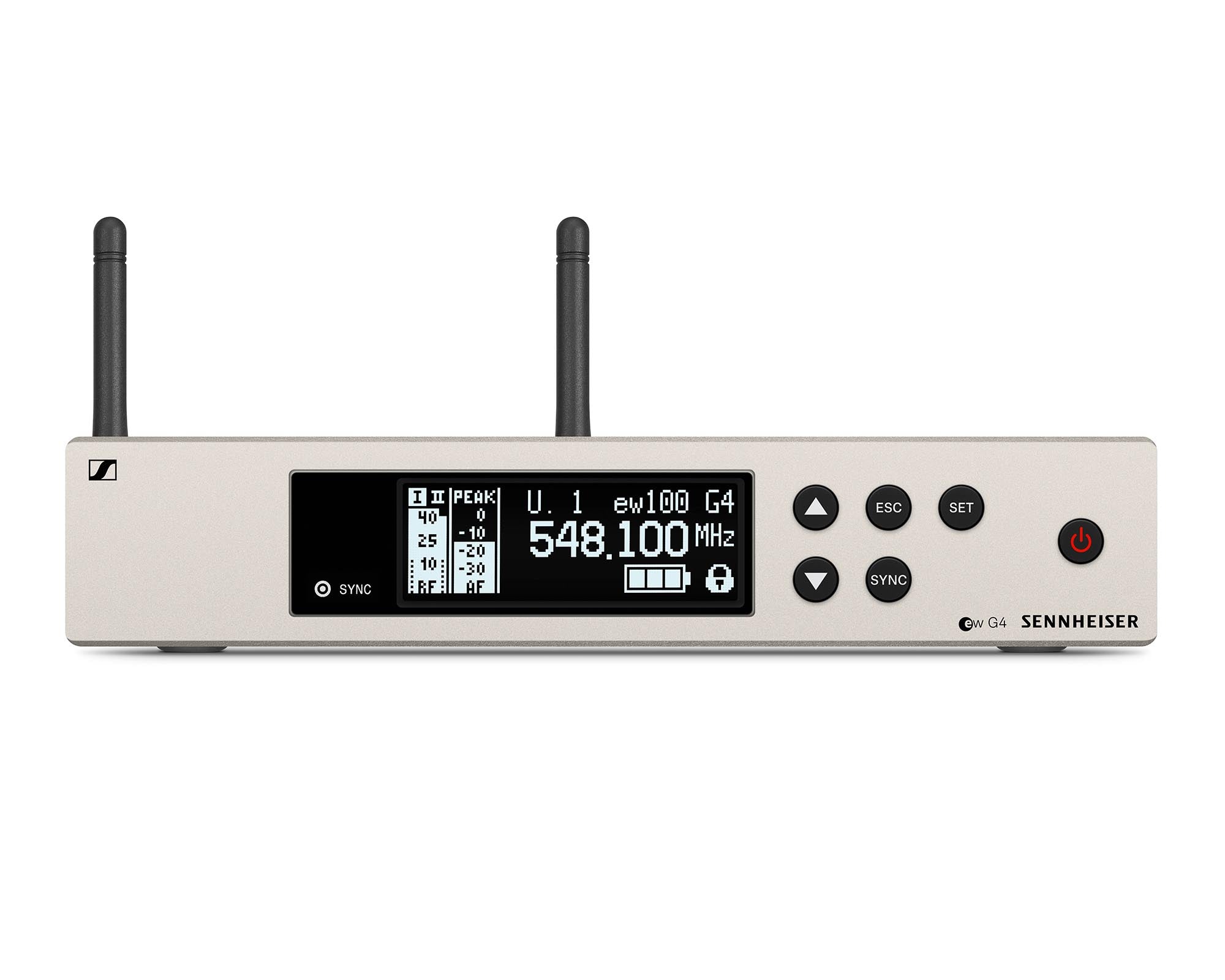

Sennheiser EM100 G4-GB 100-Series Receiver Inc GA3 Rack Kit CH38

• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

General

• Modulation: Wideband FM
• Frequency ranges:
  • A1: 470 - 516 MHz
  • A: 516 - 558 MHz
  • AS: 520 - 558 MHz
  • G: 566 - 608 MHz
  • GB: 606 - 648 MHz
  • B: 626 - 668 MHz
  • C: 734 - 776 MHz
  • D: 780 - 822 MHz
  • E: 823 - 865 MHz
  • JB: 806 - 810 MHz
  • K+: 925 - 937.5 MHz
  • 1G8: 1785 - 1800 MHz
• Receiving frequencies:
  • Max. 1680 receiving frequencies, adjustable in 25 kHz steps
  • 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
  • 1 frequency bank with up to 12 programmable channels
• Switching bandwidth: up to 42 MHz
• Nominal/peak deviation: ¬±24 kHz / ¬±48 kHz
• Receiver principle: True diversity
• Sensitivity (with HDX, peak deviation): < 2.5 ŒºV for 52 dBA eff S/N
• Adjacent channel selection: Typically ‚â• 65 dB
• Intermodulation attenuation: Typically ‚â• 65 dB
• Blocking: ‚â• 70 dB
• Squelch
  • low: 5 dBŒºV
  • middle: 15 dBŒºV
  • high: 25 dBŒºV
• Pilot tone squelch: Can be switched off
• Antenna inputs: 2 BNC sockets
• Compander system: Sennheiser HDX
• EQ presets (switchable, act on line and monitor outputs)
  • Preset 1: Flat
  • Preset 2: Low Cut (-3 dB at 180 Hz)
  • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
  • Preset 4: High Boost (+6 dB at 10 kHz)
• Signal-to-noise ratio (1 mV, peak deviation): ‚â• 110 dBA
• Total harmonic distortion (THD): ‚⧠0.9 %
• AF output voltage (at peak deviation, 1 kHz AF): 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
• Setting range ‚ÄúAF Out: 48 dB (3 dB steps)
• Temperature range: -10 ¬∞C to +55 ¬∞C
• Power supply: 12 V DC
• Current consumption: 300 mA

Physical & Dimensions

• Height: 43mm
• Width: 212mm
• Depth: 190mm
• Weight: 980g
