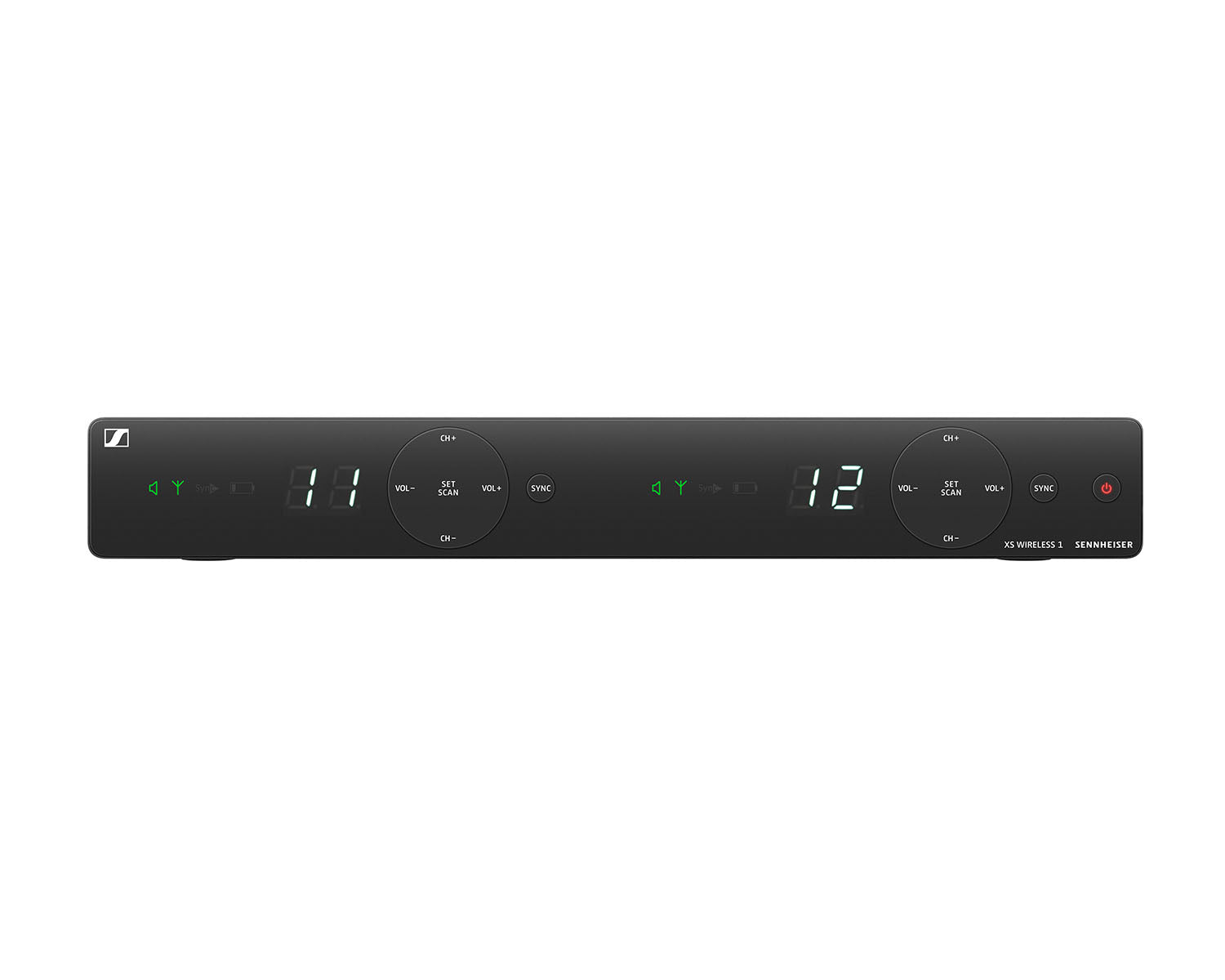

Sennheiser EMXSW1-GB DUAL 2-Ch Receiver Only for XSW1 Systems CH38

• Excellent live sound featuring Sennheiser renowned evolution microphone capsules
• Antenna-switching 2-channel diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

General

• Power supply: 12 V DC nom. / 300 mA
• Output voltage: (at peak deviation, 1 kHz AF) 1/4‚Äú (6.3 mm) socket (unbalanced): +6 dBu
• Housing: Rugged ABS housing
• Sensitivity: < 3 ŒºV at 52 dB(A) rms S/N (at peak deviation)
• Squelch: Adjustable from 3 dBŒºV to 28 dBŒºV
• AF frequency response: 50 to 16,000 Hz (‚Äì3 dB)
• Audio adjustment range: 45 dB, adjustable in 5 dB steps
• Line / Mic level: 20 dB, switchable
• Receiver Principle: Double superheterodyne
• Diversity principle: Antenna switching diversity via internal antennas

Physical & Dimensions

• Dimensions: Approx. 320 x 126.5 x 42 mm
• Weight: Approx. 620 g
