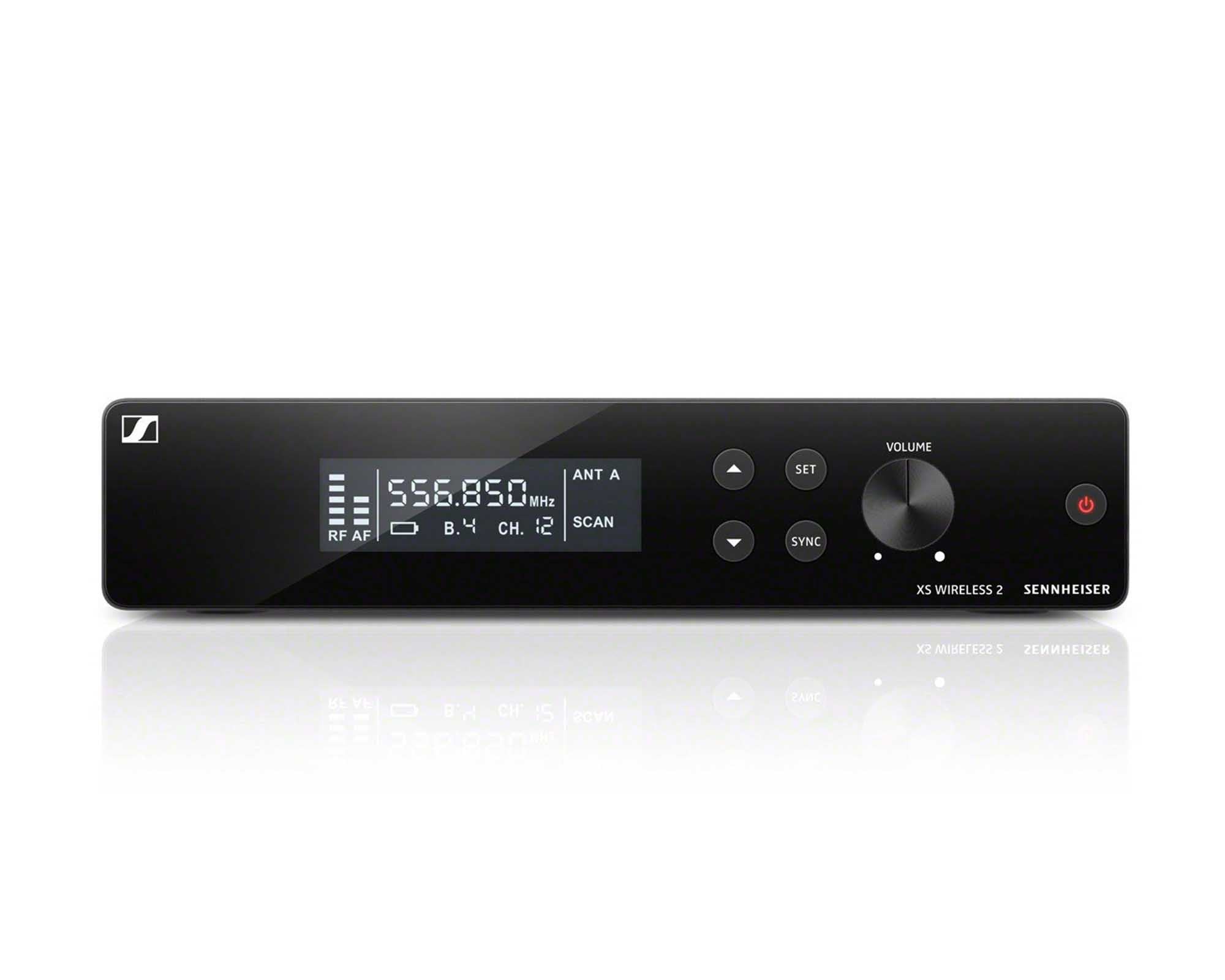

Sennheiser EMXSW2-E UHF 1-Ch Receiver Only for XSW2 Systems CH70

• EMX SW Receiver
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

General

• Receiver principle: double superheterodyne
• Diversity principle: True Diversity
• Sensitivity (at peak deviation): < 3 ŒºV at 52 dB(A)rms S/N
• AF frequency response: 50 to 16,000 Hz (‚Äì3 dB)
• Max. AF output voltage (at peak deviation, 1 kHz AF): 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu XLR socket (balanced): +12 dBu
• Audio adjustment range: 40 dB, adjustable via jog dial
• Power supply: 12 V ‚éì nom. / 300 mA
• Squelch: adjustable from 3 dBŒºV to 28 dBŒºV (combined with pilot tone)
• Line/Mic level: 20 dB, switchable
• Housing material: rugged metal housing

Physical & Dimensions

• Height: 42mm
• Width: 200mm
• Depth: 127mm
• Weight: 680g
