Name: Sennheiser EW-D EM Half-Rack Receiver inc GA3 Rack Kit 1U (S1-7) CH38
Brand: Sennheiser
SKU: 508803
Availability: InStock

Sennheiser EW-D EM Half-Rack Receiver inc GA3 Rack Kit 1U (S1-7) CH38

£295.02£245.85 Incl. VATExcl. VAT

SKU: 508803 Category: Receivers

Description

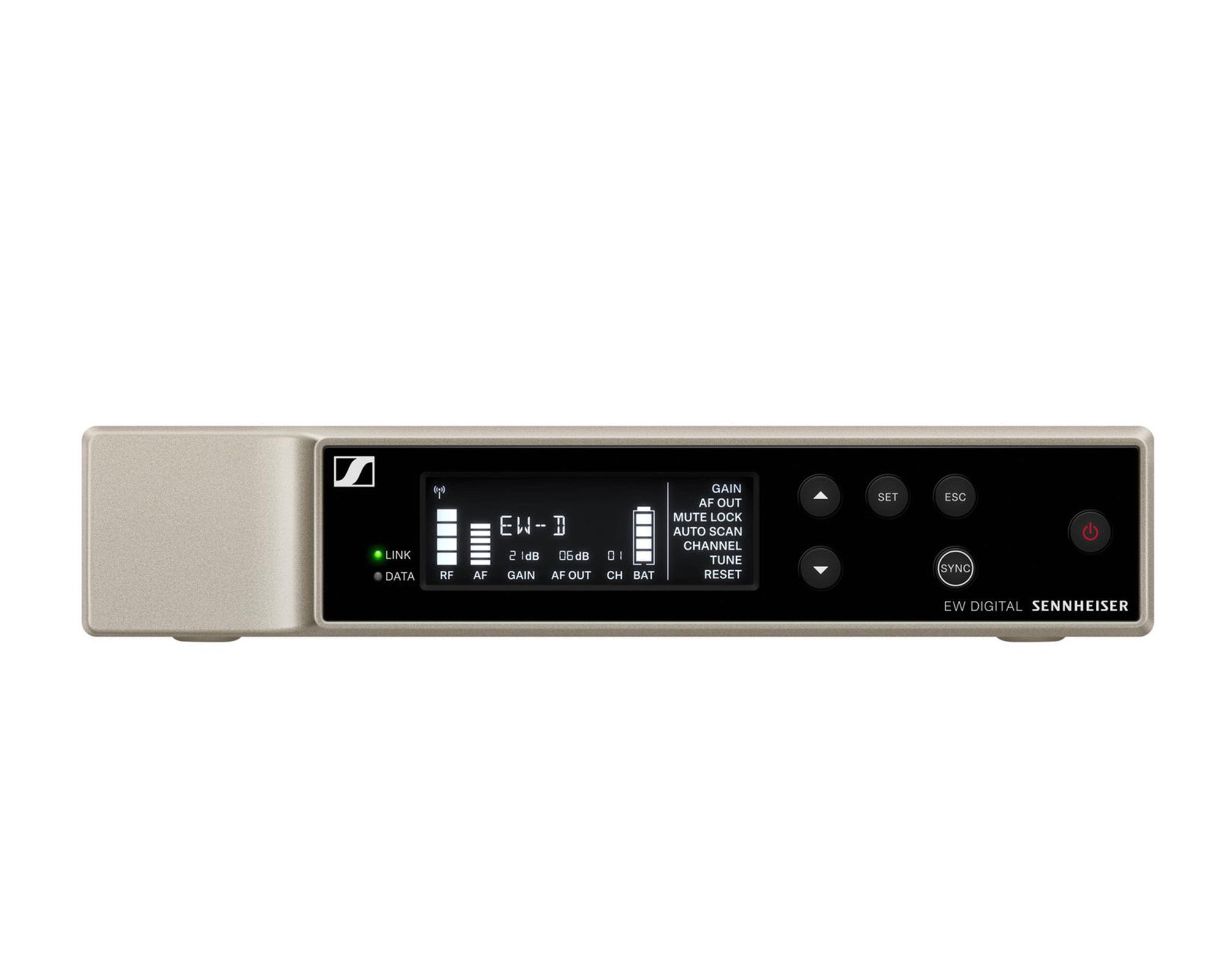

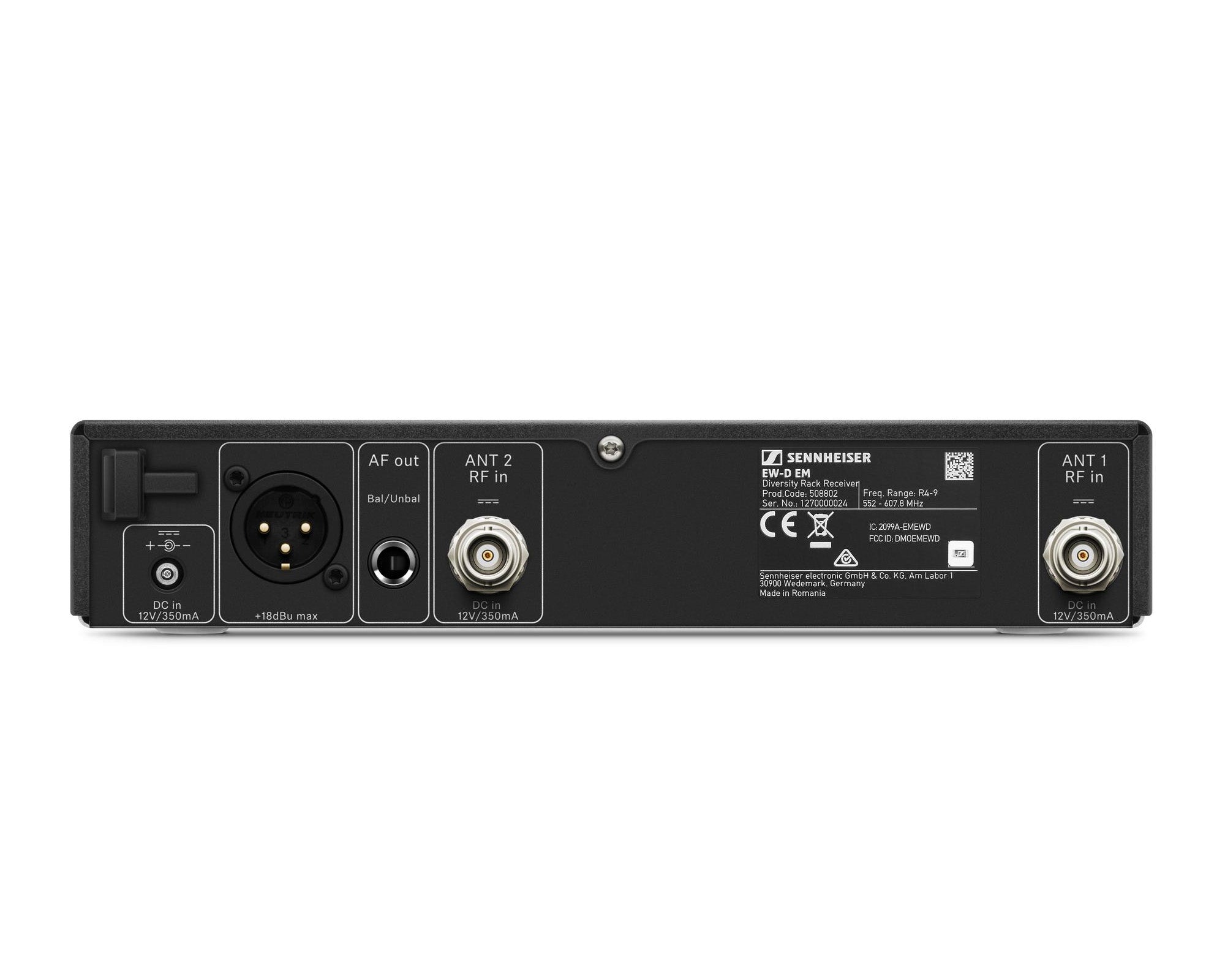

1/2 19″ rack receiver for use with Evolution Wireless Digital handheld and bodypack transmitters.Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Features

Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
Auto scan creates reliable connections with minimal time and effort
134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
2,240 selectable frequencies allow for fine tuning
Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Specs

Frequency ranges
- S1-7: 606.2 - 662 MHz
- U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
Input voltage: 11 - 13 V ‚éì
Input current: ‚â§ 300 mA
Transmit power (radiated): BLE: max. 10 mW EIRP
Audio output power: 18 dBu max.
HD, total harmonic distortion: ‚â§ -60 dB for 1 kHz @ -3 dBfs input level
Operating relative humidity: 5 - 95 % (non-condensing)
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Dimensions: 212 x 44 x 189 mm
Weight approx.: 1000 g (without antennas and power supply)
