Name: Sennheiser EW-DX SK Bodypack Transmitter 3.5mm Jack (U1/5) CH70
Brand: Sennheiser
SKU: 509391
Availability: InStock

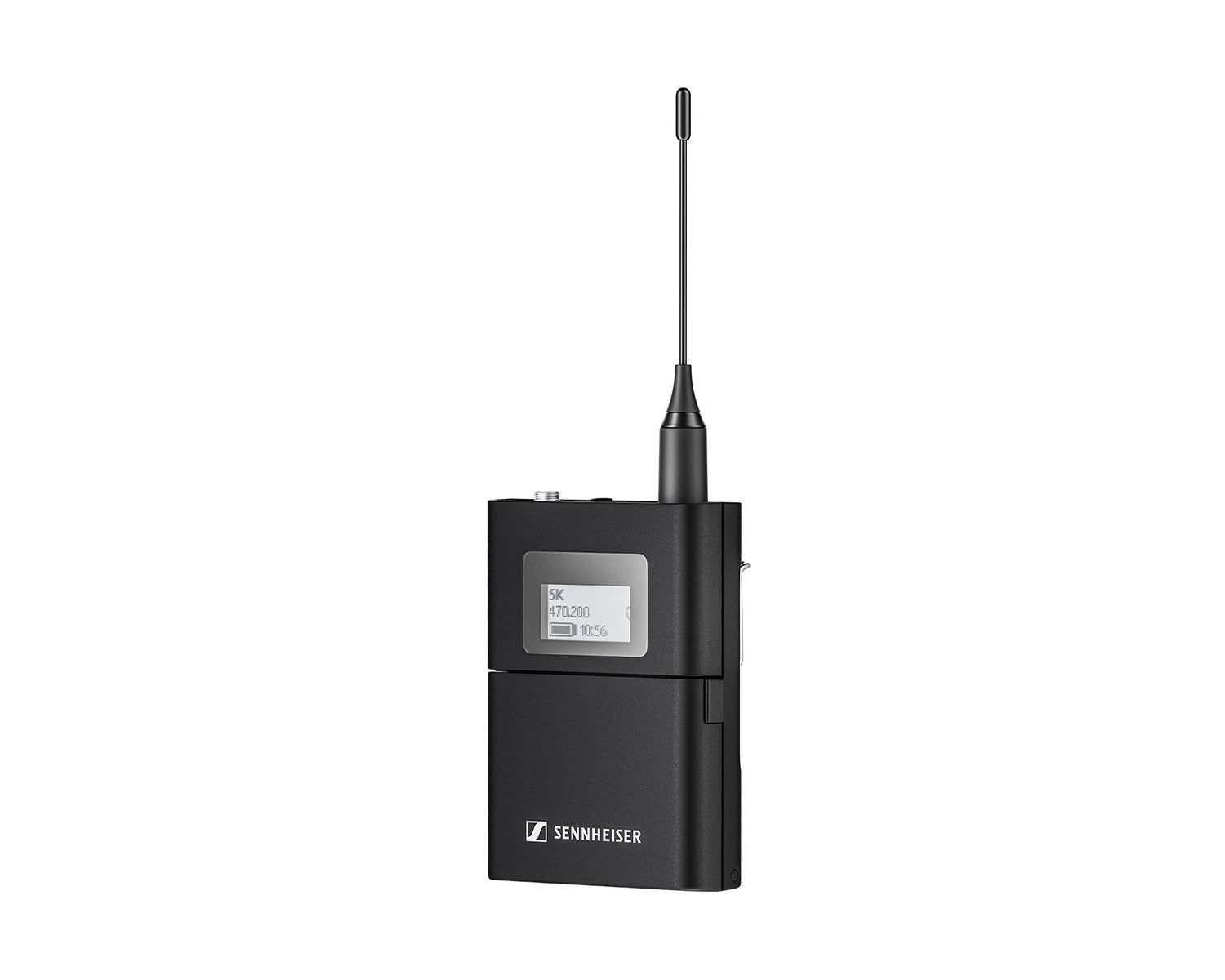

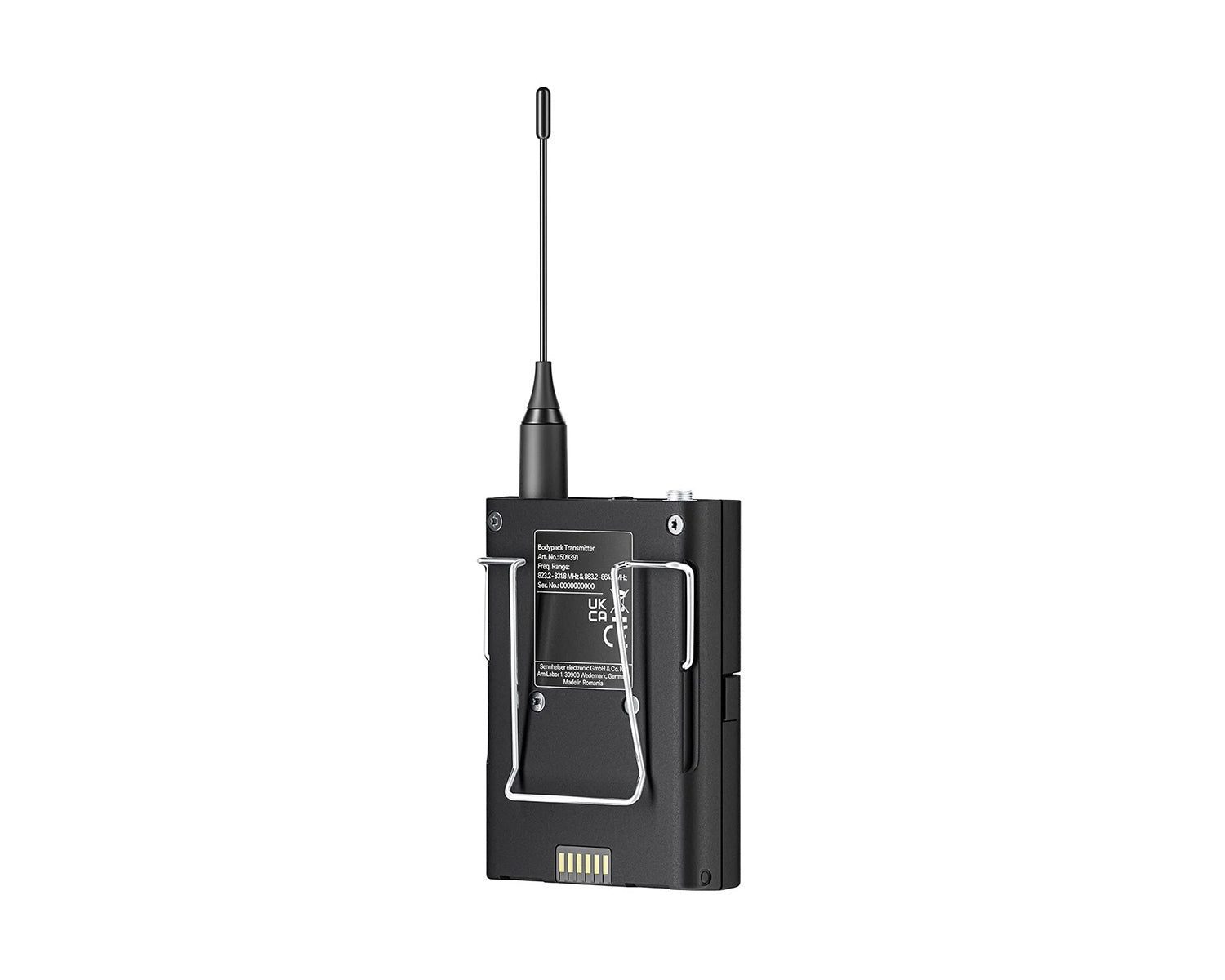

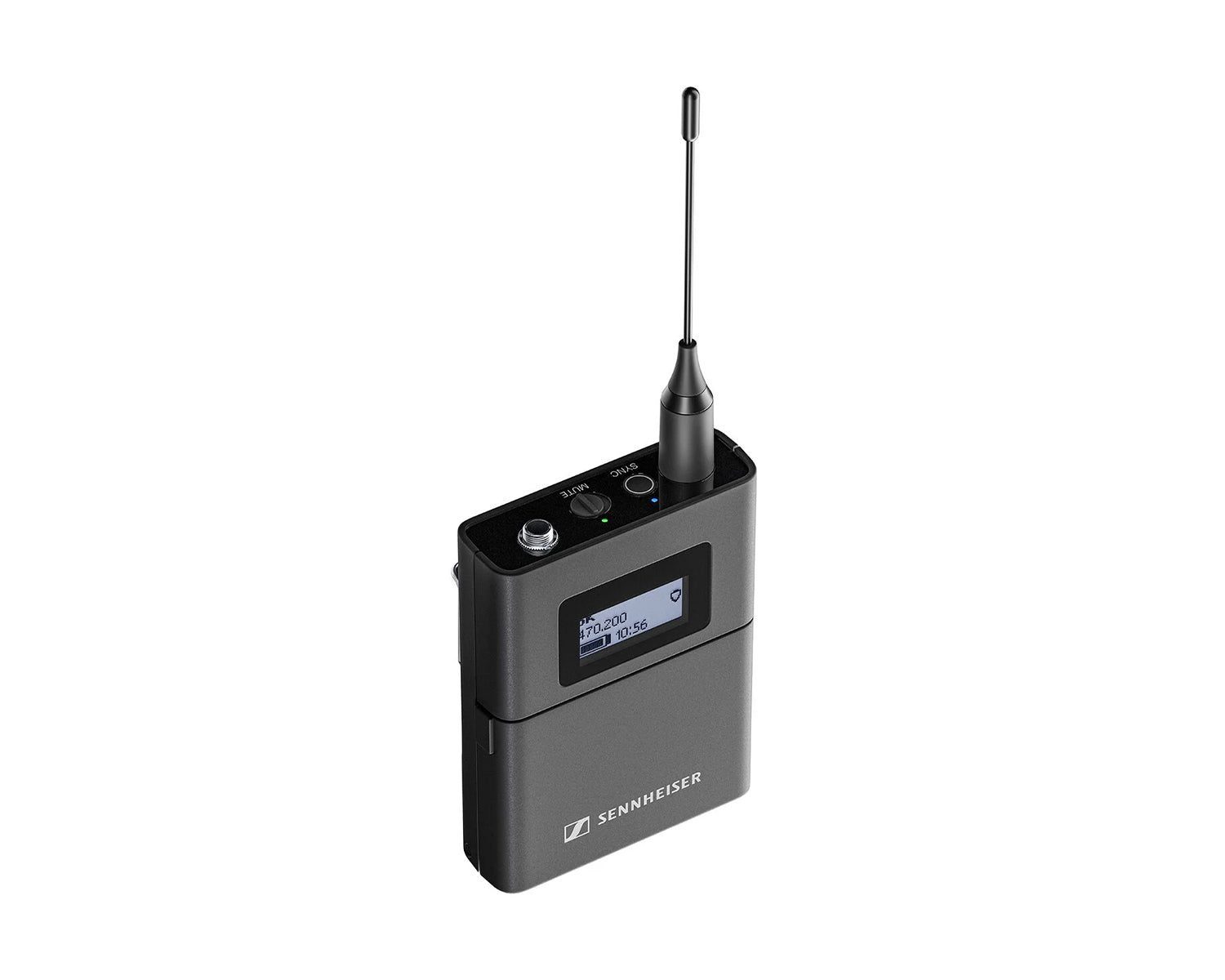

Sennheiser EW-DX SK Bodypack Transmitter 3.5mm Jack (U1/5) CH70

£414.81£345.68 Incl. VATExcl. VAT

Description

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. This bodypack transmitter is compatible with a wide range of Sennheiser headset microphones and clip-on/lavalier microphones.

Features

3,5 mm jack
10mW RF power with up to 100m/328ft working range
Charging contacts for in-device charging with CHG 70N
Persistent eInk display - parameters visible on screen even when device is not powered on
Programmable mute switch - customize the device depending on your professional needs

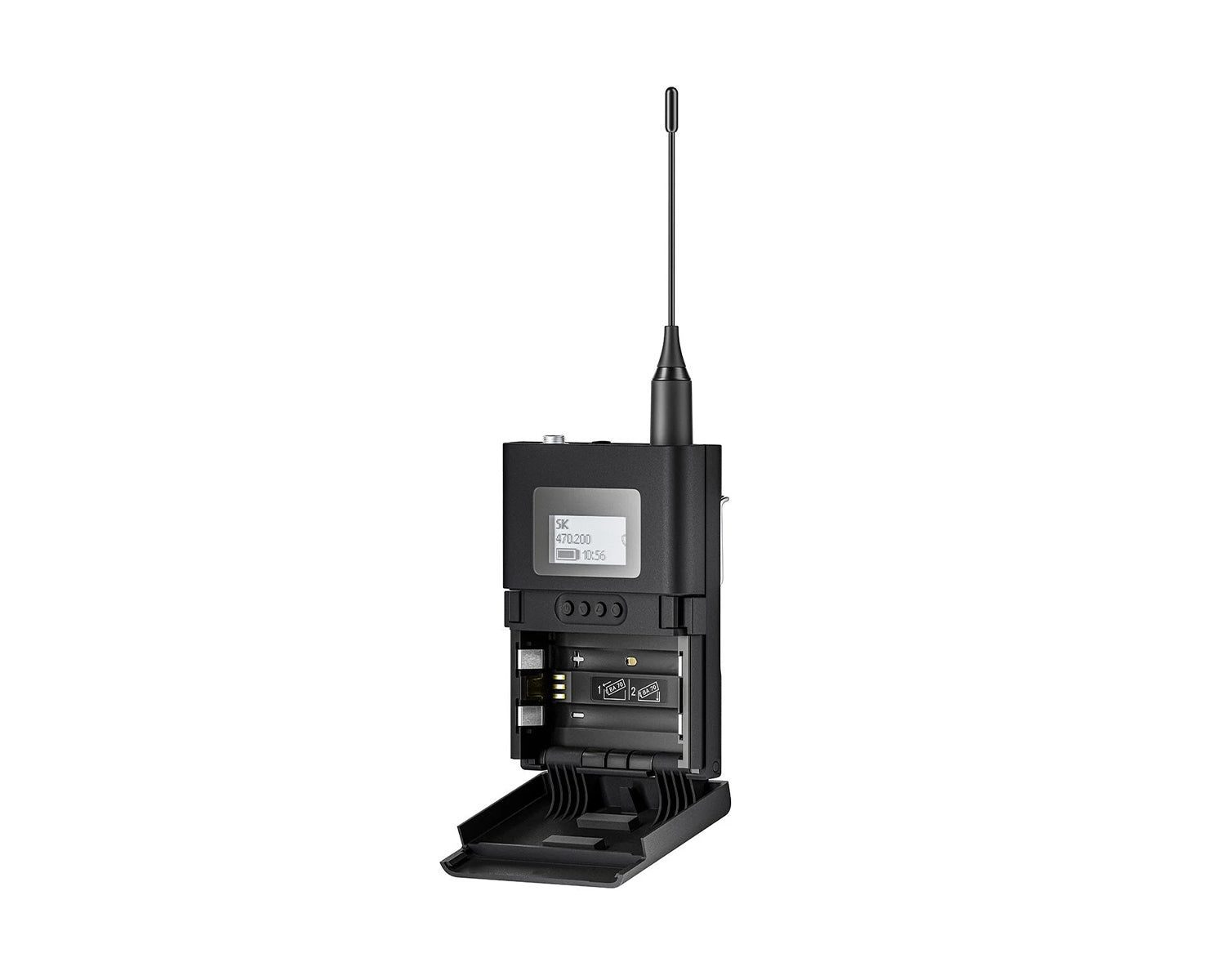

Extended runtime with lithium ion batteries - up to 12 hours operation time
Mic input trim control
Metal housing

Specs

Audio link frequency ranges:
- Q1-9: 470.2 - 550 MHz
- R1-9: 520 - 607.8 MHz
- S1-10: 606.2 - 693.8 MHz
- S2-10: 614.2 - 693.8 MHz
- S4-10: 630 - 693.8 MHz
- U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
- V3-4: 925.2 - 937.3 MHz
- V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
- X1-6: 1350.2 - 1398.8 MHz
- X9-18: 1435.2 - 1524.8 MHz
- Y1-3: 1785.2 - 1799.8 MHz
Bluetooth¬Æ Low Energy (BLE) frequency range: 2402 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB)
Audio THD:
- ‚â§ -60 dB for 1 kHz
- @ -3 dBfs input level
Dynamic range: 134 dB
System latency: 1.9 ms
Operating temperature: -10 ¬∞C - +55 ¬∞C (14 ¬∞F - 131 ¬∞F)
Relative humidity: 5 - 95 % (non-condensing)
Input voltage: 2.0 - 4.35 V
Input current: < 300 mA
Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth: 200 kHz
Transmit power (radiated):
Audio link: 10 mW ERP
(Range Y1-3: 12 mW ERP)
LD mode: 10 mW ERP
BLE: max. 10 mW EIRP
Dimensions (without antenna): 63.5 x 85 x 20 mm (2.5" x 3.35" x 0.79")
Weight (without batteries): approx. 115-120 g (0.26-0,27 - lbs)
