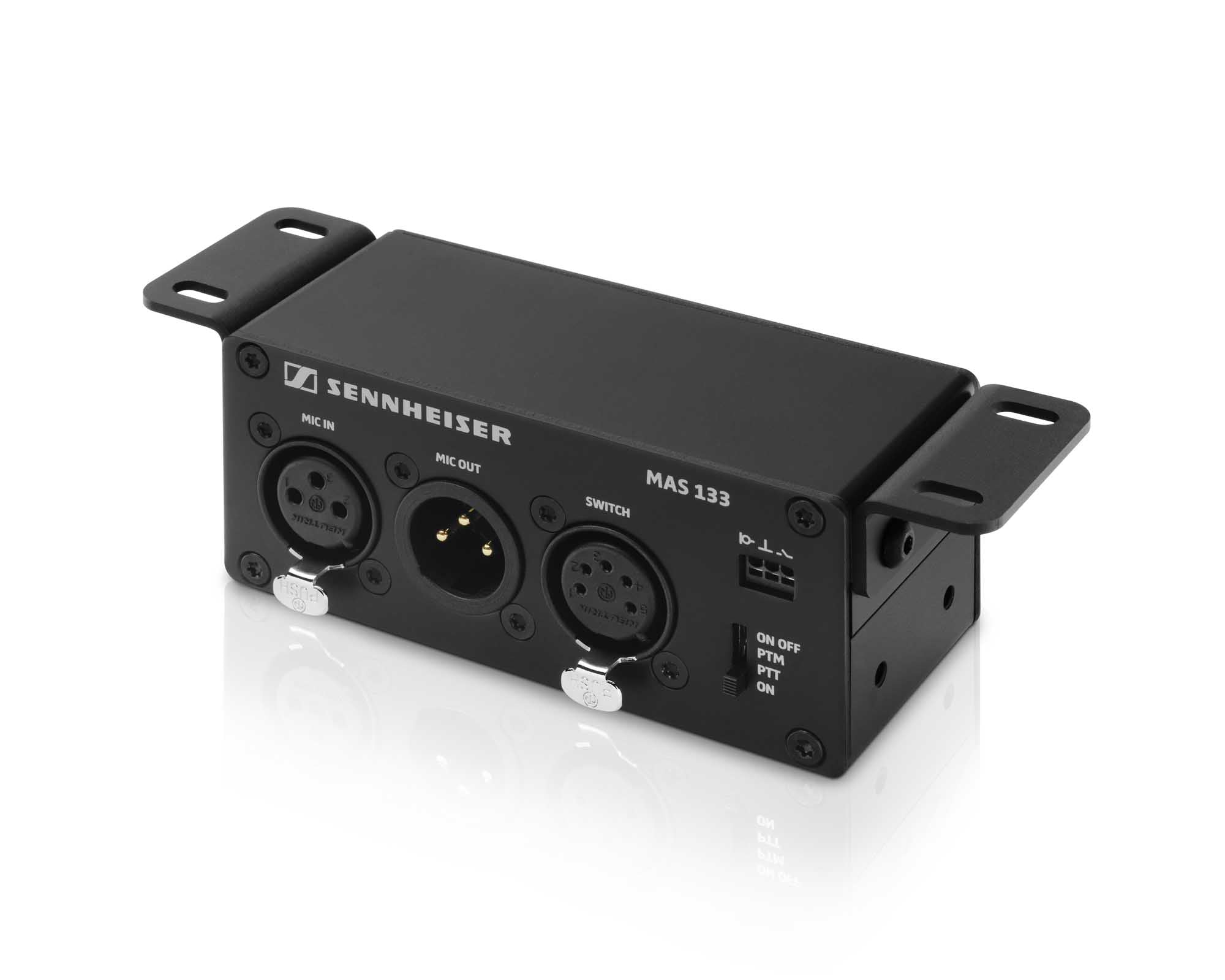

Sennheiser MAS133 Versatile XLR Inline Switch Box for Integrated Mics
£161.37£134.48 Incl. VATExcl. VAT
Description
The MAS 133 is a versatile XLR inline switch box for integrated microphone solutions. Attached between the mic and mixing console, it powers the MAS 1 microphone button. It is able to control any XLR-attached microphone using switchable microphone activation modes (PTT, PTM, toggle ON/off, permanent on). Furthermore, the MAS 133 features a TTL logic, enabling the user to trigger e.g. camera or media control systems for various purposes.
Features
- XLR Inline Switch Box
- Powers the MAS 1 microphone button
- Control any XLR-attached microphone
- 4 microphone modes
- Features a TTL logic
- Black finish
Specs
General
- Connector: Mic in: XLR-3F
- Connector: Mic out: XLR-3M Pin assignment: 1 = gnd, 2 = +, 3 = ‚àí
- Connector: Switch in: XLR-5F Steckerbelegung: 1 = gnd, 2 = Switch, 3 = LED rot −, 4 = LED grün −, 5 = LEDs + 12 V out
- Phantom powering: P 48
- Operating temperature: −10 °C - +50 °C
- Current consumption: 4.5 mA
- Output voltage: High level: > 2.4 V
- Output voltage: Low level: < 0.4 V
Physical & Dimensions
- Height: 44mm
- Width: 150mm
- Depth: 44mm
- Weight: 212g
