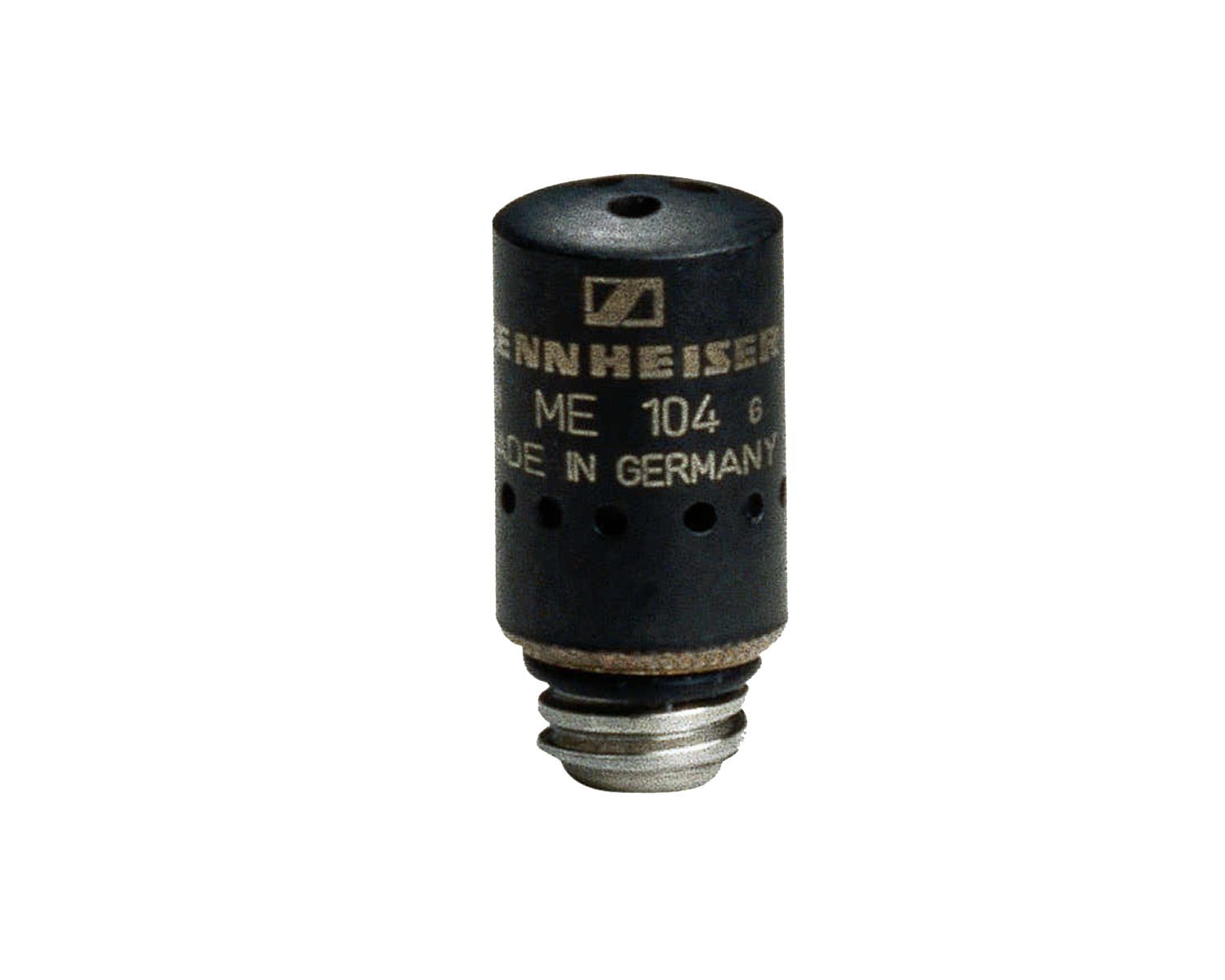

Sennheiser ME104-B Mini Cardioid Modular Lavalier Mic Capsule Black

• Excellent speech clarity
• Scratch-resistant matt finish
• Gently falling frequency response curve at low frequencies ensures good rejection of handling and wind noise
• Minimal inherent self-noise
• Omni-directional or cardioid microphone capsules, can be quickly interchanged
• Suitable for all areas of live work where a small and unobtrusive microphone is needed for vocal and speech applications
• Optionally available with right-angled plug (copper wire cable, extremely insensitive to handling noise) or with straight plug (steel wire cable, very resistant to tearing)

General

• Frequency response (Microphone): 100.....20000 Hz
• Pick-up pattern: Cardioid
• Sensitivity in free field, no load (1kHz): 8 mV/Pa +- 2,5 dB
• Nominal impedance: 1000 Œ©
• Min. terminating impedance: 4700 Œ©
• Equivalent noise level: 30 dB
• Equivalent noise level weighted as per CCIR 468-3: 38 dB
• Maximum sound pressure level (passive): 133dB (K = 1%)
• Current consumption: ca. 250 ¬µA

Physical

• Dimensions: d 6 x 12 mm
• Weight: 80 g
