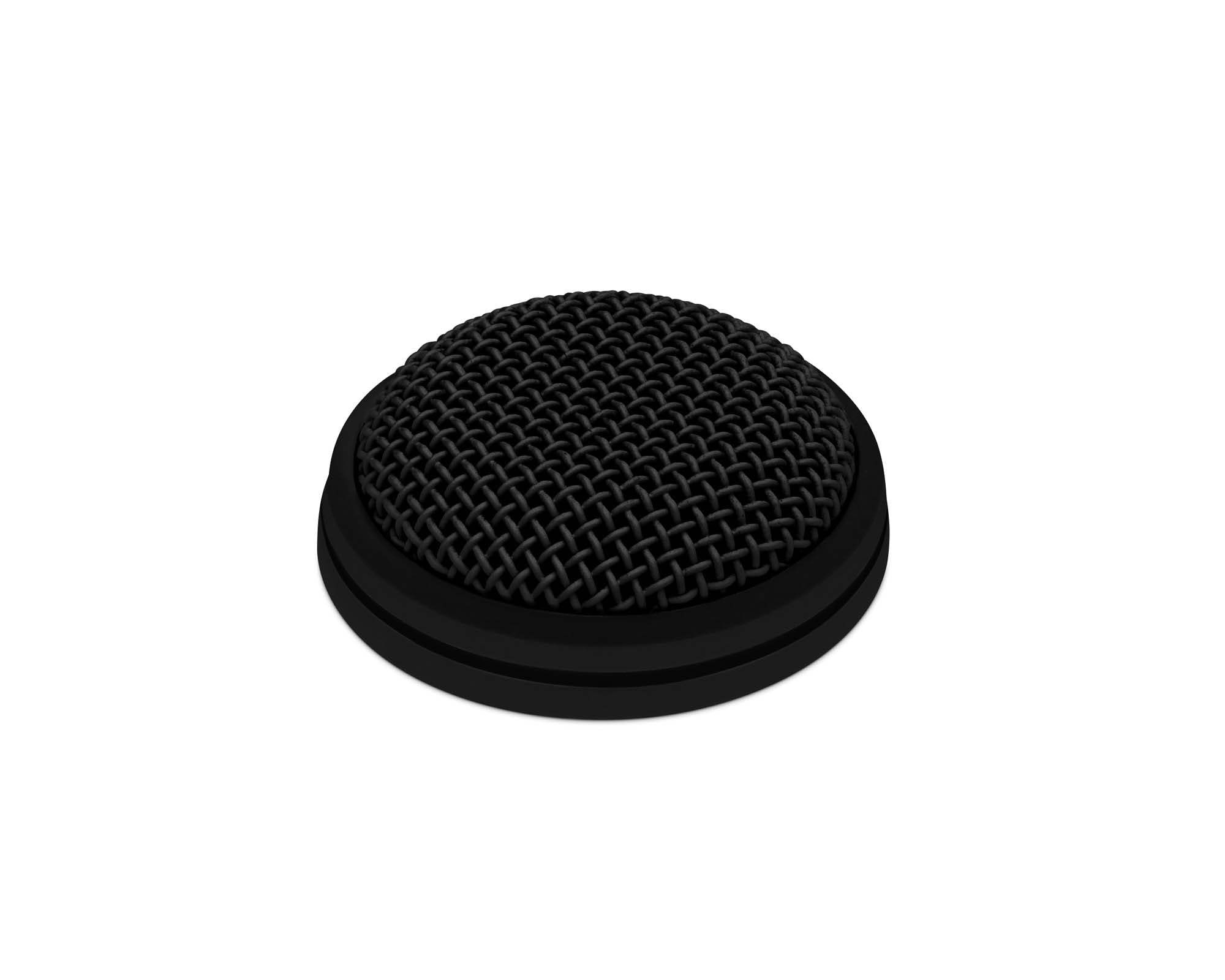

Name: Sennheiser MEB102B Omni Install Boundary layer Mic XLR3 BLACK
Brand: Sennheiser
SKU: 505600
Availability: InStock

Sennheiser MEB102B Omni Install Boundary layer Mic XLR3 BLACK

£192.06£160.05 Incl. VATExcl. VAT

SKU: 505600 Category: Condenser

Description

Compact and unobtrusively designed, the cardioid boundary layer microphone MEB 102 (omnidirectional) fits any style of interior and can be easily installed into surfaces such as tables or ceiling tiles. It features a proven Sennheiser microphone capsule for the best speech intelligibility, and is protected by a rugged housing.

Features

MEB102B Omni Install Boundary layer Mic
Sennheiser mic for best speech intelligibility
Unobtrusive, timeless design
Easy installation
Rugged housing
Black finish

Specs

General

Connector
- MEB 102: XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = ‚àí
- MEB 102-L: XLR-5, pin assignment: 1 = gnd, 2 = + (Mic +), 3 = ‚àí(Mic ‚àí), 4 = LED green (trigger signal), 5 = LED red (default)
Frequency response: 40 Hz ‚Äì 20 kHz
Max. sound pressure level: 125 dB
Transducer principle: pre-polarized condenser microphone
Pick-up pattern: omni-directional
Current consumption
- MEB 102: 3 mA
- MEB 102-L: 6mA
Phantom powering: P 24 - P 48
Operating temperature: 32 ¬∞to 104 ¬∞ F
Equivalent noise level: 21 dB (A)
Equivalent noise level weighted as per CCIR 468-3: 31 dB (CCIR)
Acoustics: Boundary Layer Microphone
Dynamic range: 104 dB (A)
Sensitivity: 16 mV/Pa
Thread: M 20
