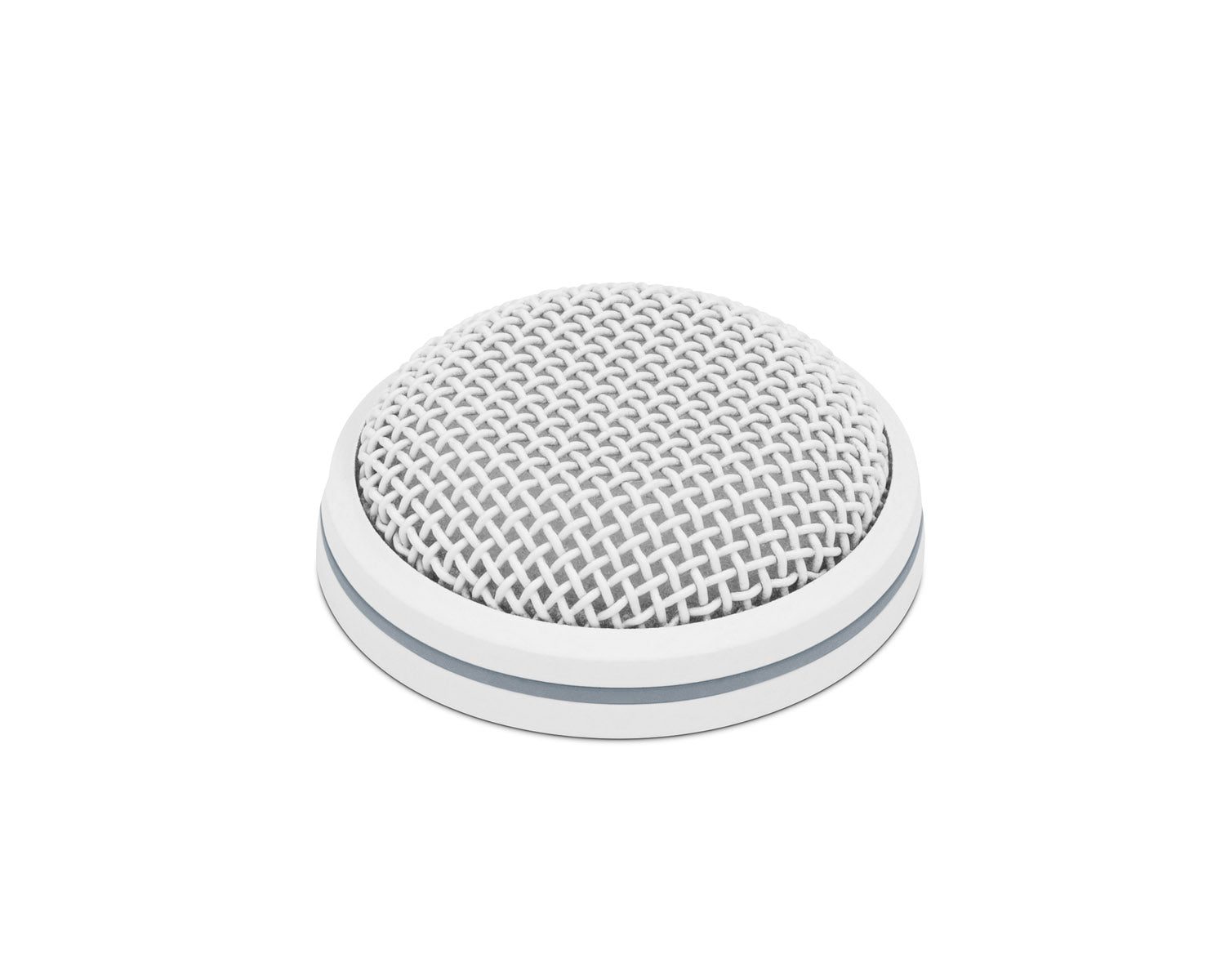

Sennheiser MEB102LW Omni Boundary Mic with LED Status XLR5 WHITE

• MEB102LW Omni Install Boundary layer Mic
• Sennheiser mic for best speech intelligibility
• Unobtrusive, timeless design
• Easy installation
• Rugged housing
• White finish

General

• Connector
  • MEB 102: XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = ‚àí
  • MEB 102-L: XLR-5, pin assignment: 1 = gnd, 2 = + (Mic +), 3 = ‚àí(Mic ‚àí), 4 = LED green (trigger signal), 5 = LED red (default)
• Frequency response: 40 Hz ‚Äì 20 kHz
• Max. sound pressure level: 125 dB
• Transducer principle: pre-polarized condenser microphone
• Pick-up pattern: omni-directional
• Current consumption
  • MEB 102: 3 mA
  • MEB 102-L: 6mA
• Nominal impedance: 200 Œ©
• Phantom powering: P 24 - P 48
• Operating temperature: 32 ¬∞to 104 ¬∞ F
• Equivalent noise level: 21 dB (A)
• Equivalent noise level weighted as per CCIR 468-3: 31 dB (CCIR)
• Acoustics: Boundary Layer Microphone
• Dynamic range: 104 dB (A)
• Sensitivity: 16 mV/Pa
• Thread: M 20

Physical & Dimensions

• Height: 83.26"
• Diameter: 1.12"
• Weight: 2.05oz
