Description

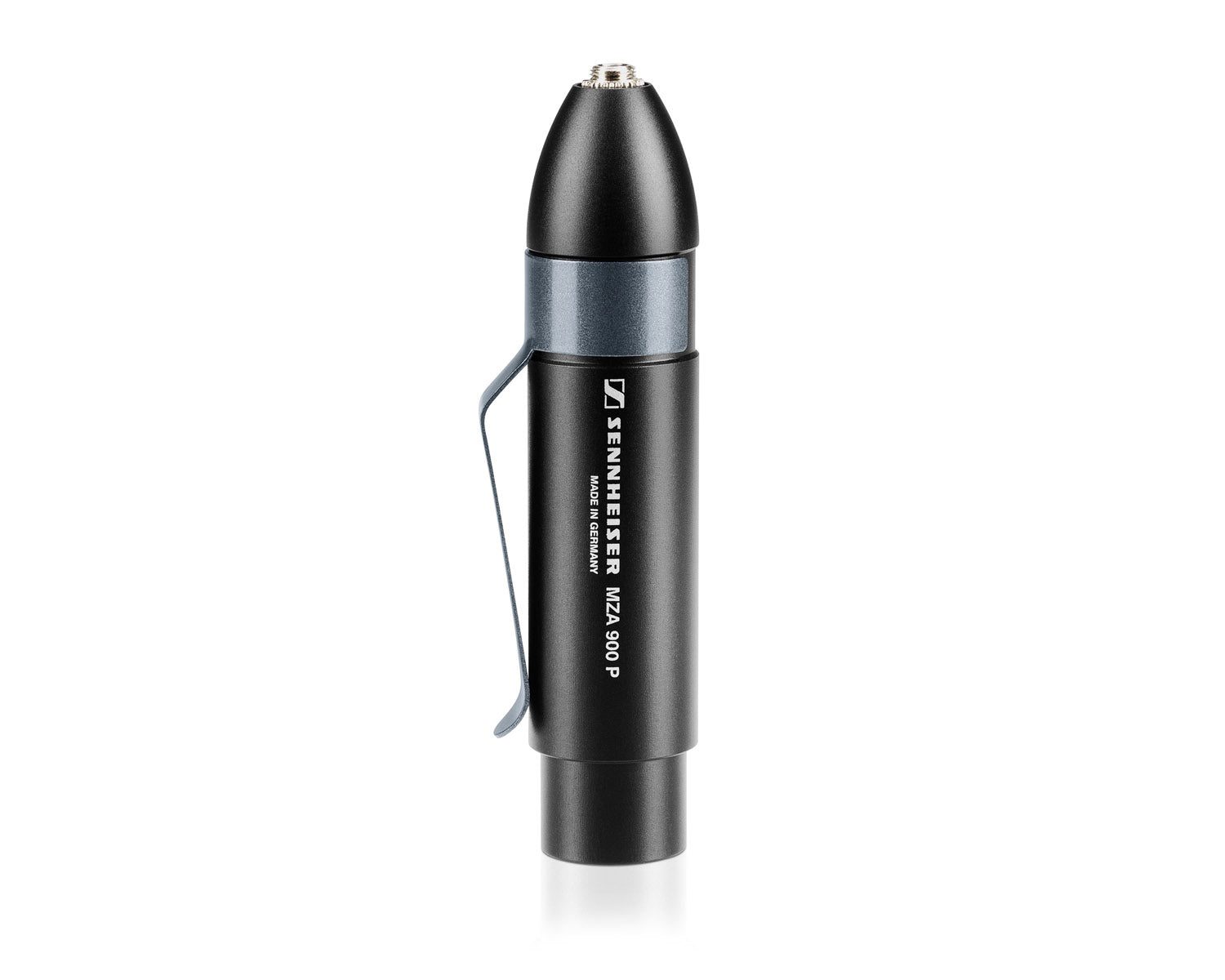

The MZA 900 P phantom power adaptor is used to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs with 10 – 52 V phantom powering (P12 – P48). The connected microphone is supplied via the adaptor.The adaptor is also a quick and flexible solution if a microphone is to be used for both wired and wireless applications. One and the same microphone can be used together with the MZA 900 P(-4) for wired applications (e.g. in the studio) or with a transmitter of the evolution series for wireless applications.The MZA 900 P can also be used as a cable tester for XLR microphone cables.
Features
- Robust metal chassis
- Switchable gain (0/-12dB)
- Switchable roll-off filter (125 Hz (-3 dB), 12 dB/oct)
- Two-colour control LED (phantom power, audio peak)
- Input 3,5mm stereo jack socket, lockable
- Output XLR-3M
Specs
General
- Gain:
- 0/-12 dB
- Output voltage:
-
- 1,8V (P48), 0,6V (P12) @ 0dB gain
- 20 - 20000 Hz (-1 dB)
- Phantom powering:
- P12 - P48, 10 - 52V, 2,6 - 2,8mA
- Output impedance:
- 100 Ω
- Frequency response: 20 - 20000 Hz (-1 dB)
- Nominal impedance: 100 Ω
- Min. terminating impedance: 5kΩ (P12 - P48) @ 0dB gain; 2kΩ (P12 - P48) @ -12dB gain
- Phantom powering: P12 - P48, 10 - 52V, 2,6 - 2,8mA
- Operating temperature: -20.....+60 °C
- Gain: 0/-12 dB
- Output voltage: 1,8V (P48), 0,6V (P12) @ 0dB gain
Physical & Dimensions
- Dimensions: 19/22 mm, L 100 mm
- Weight: 60 g
