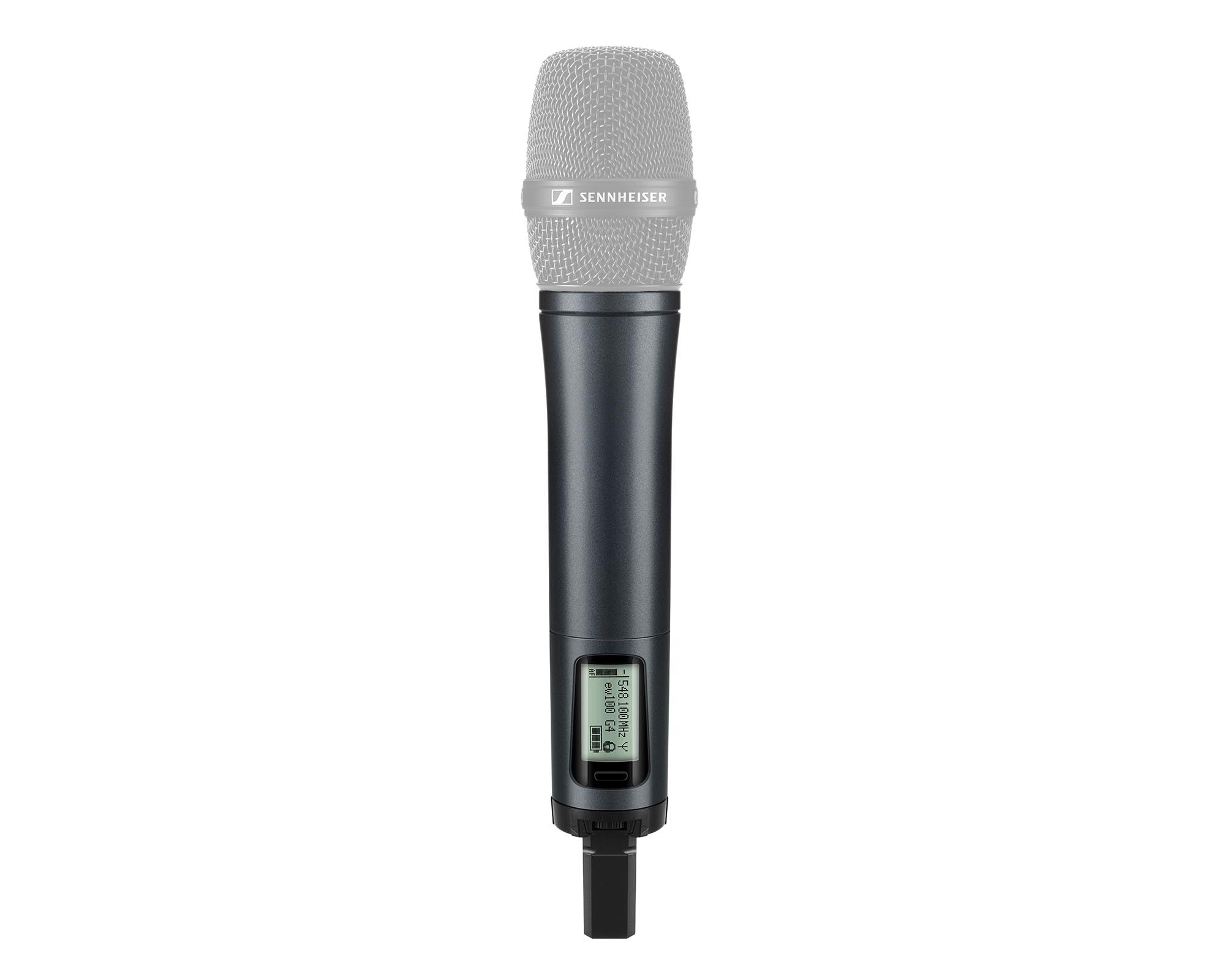

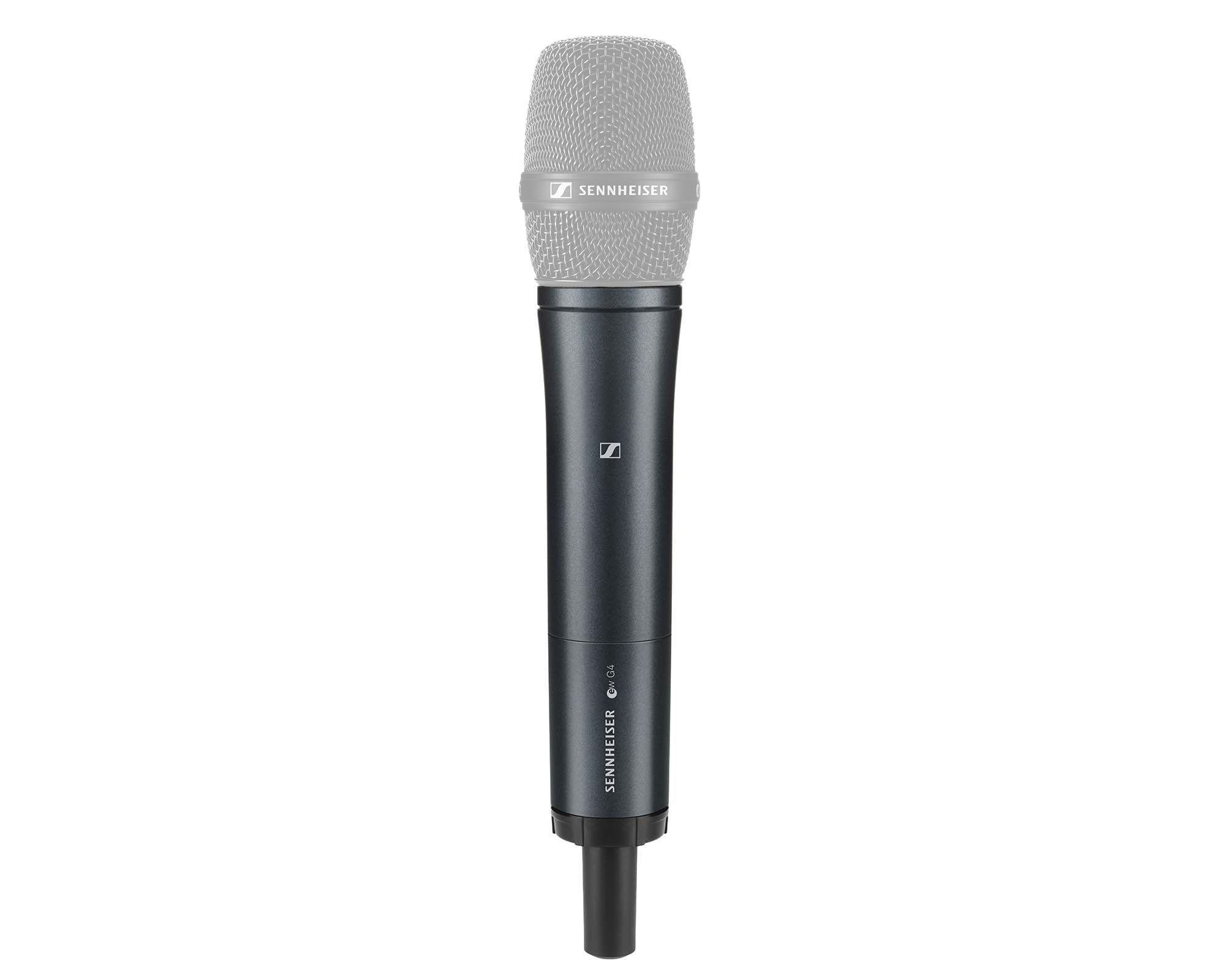

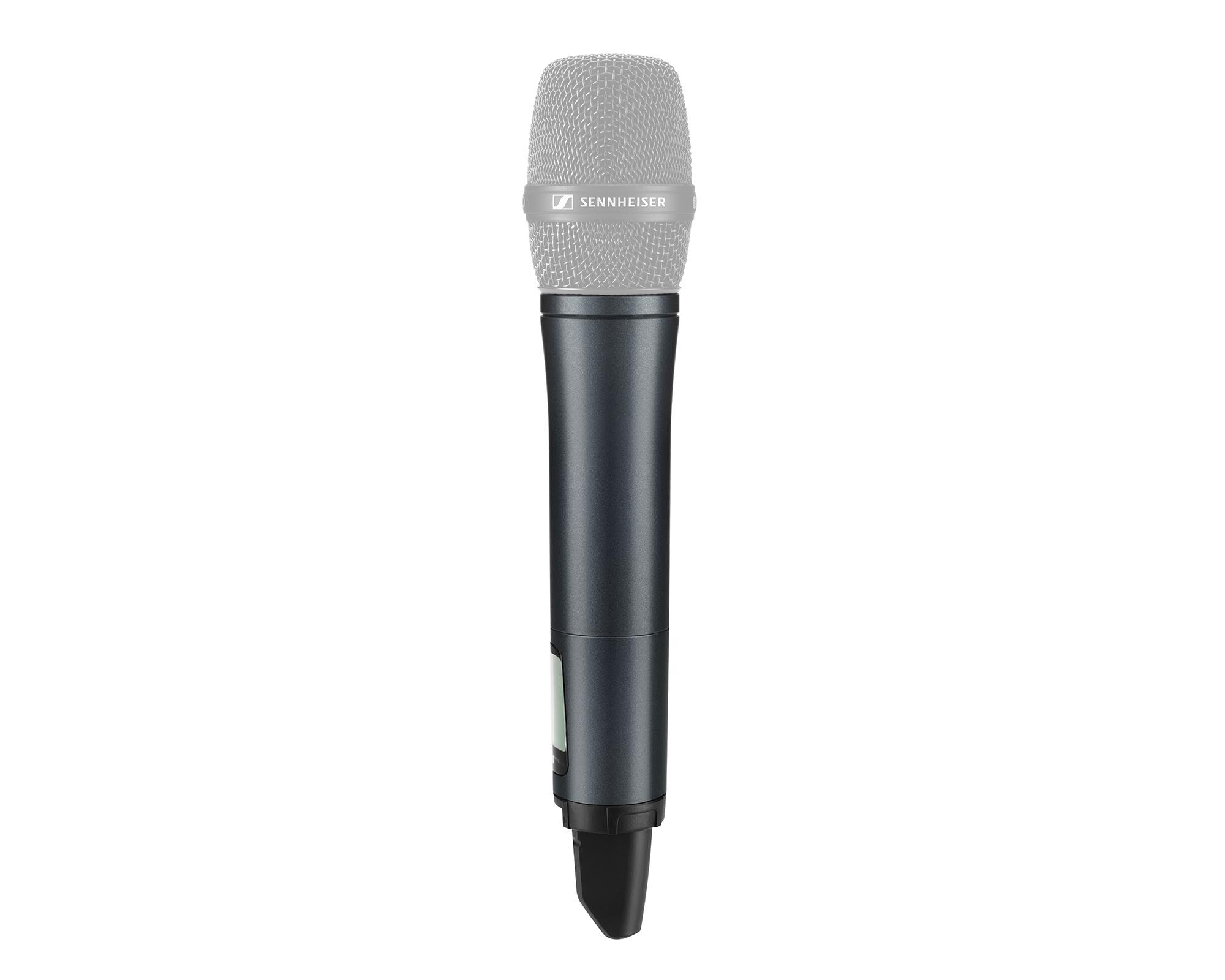

Name: Sennheiser SKM100 G4-E Handheld Transmitter NO CAPSULE (MMD/MME/MMK) CH70
Brand: Sennheiser
SKU: 509992
Availability: InStock

Sennheiser SKM100 G4-E Handheld Transmitter NO CAPSULE (MMD/MME/MMK) CH70

£246.51£205.42 Incl. VATExcl. VAT

Description

Powerful handheld transmitter with a lightweight aluminum housing for evolution wireless G4 100 Series systems. Integrated mute switch version is available on SKM100 G4-S models.*Microphone capsule not included with this item, please see other versions available on our trade website. To maximise your choice we make our best efforts to list handheld transmitters with and without their relevant capsules. If you can’t find the item you’re looking for, don’t hesitate to call us on 01525 850085.*

Features

SKM100 G4 Handheld Transmitter Excl Mic Capsule
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Fast frequency allocation for up to 12 receivers via new linking functionality
Up to 20 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 30 mW) depending on country regulations

Specs

General

Modulation: Wideband FM
Frequency ranges
- A1: 470 - 516 MHz
- A: 516 - 558 MHz
- AS: 520 - 558 MHz
- G: 566 - 608 MHz
- GB: 606 - 648 MHz
- B: 626 - 668 MHz
- C: 734 - 776 MHz
- D: 780 - 822 MHz
- E: 823 - 865 MHz
- JB: 806 - 810 MHz
- K+: 925 - 937.5 MHz
- 1G8: 1785 - 1800 MHz
Transmission frequencies
- Max. 1680 receiving frequencies, adjustable in 25 kHz steps
- 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
- 1 frequency bank with up to 12 programmable channels
Switching bandwidth: up to 42 MHz
Nominal/peak deviation: ¬±24 kHz / ¬±48 kHz
Frequency stability: ‚â§ ¬±15 ppm
Pilot tone squelch: Can be switched off
Compander system: Sennheiser HDX
AF frequency response: 80 ‚Äì 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation): ‚â• 110 dBA
Total harmonic distortion (THD): ‚â§ 0.9 %
Max. input voltage: 3 Veff
Input capacitance: Switchable
Setting range for input sensitivity: 48 dB, adjustable in 6 dB steps
Temperature range -10 ¬∞C to +55 ¬∞C
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage: 3 V battery / 2.4 V rechargeable battery
Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ‚â§ 25 ¬µA
Operating time: Typically 8 h
