Sennheiser SRIEM G4-GB Rack-Mount Transmitter for In-Ear System CH38

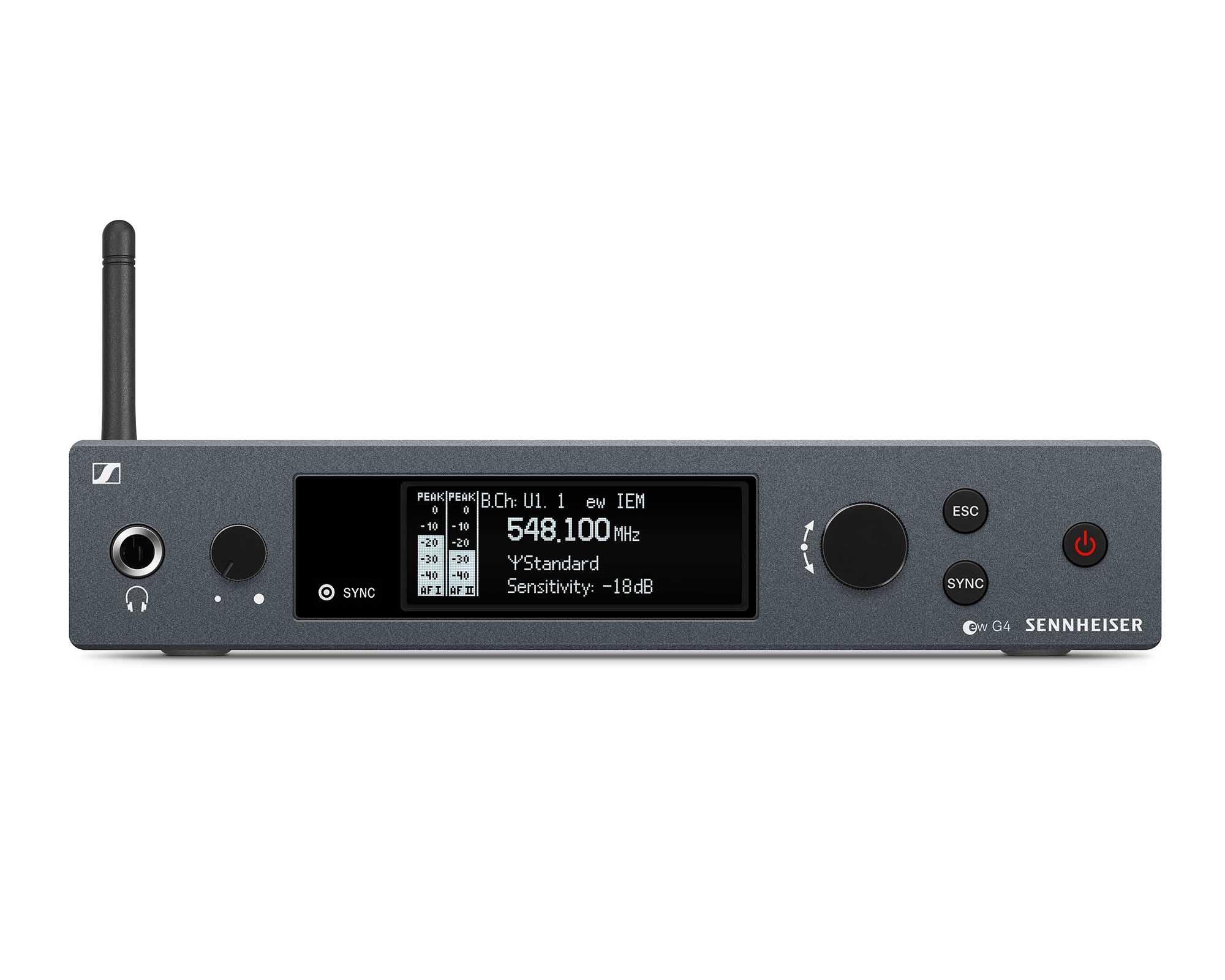

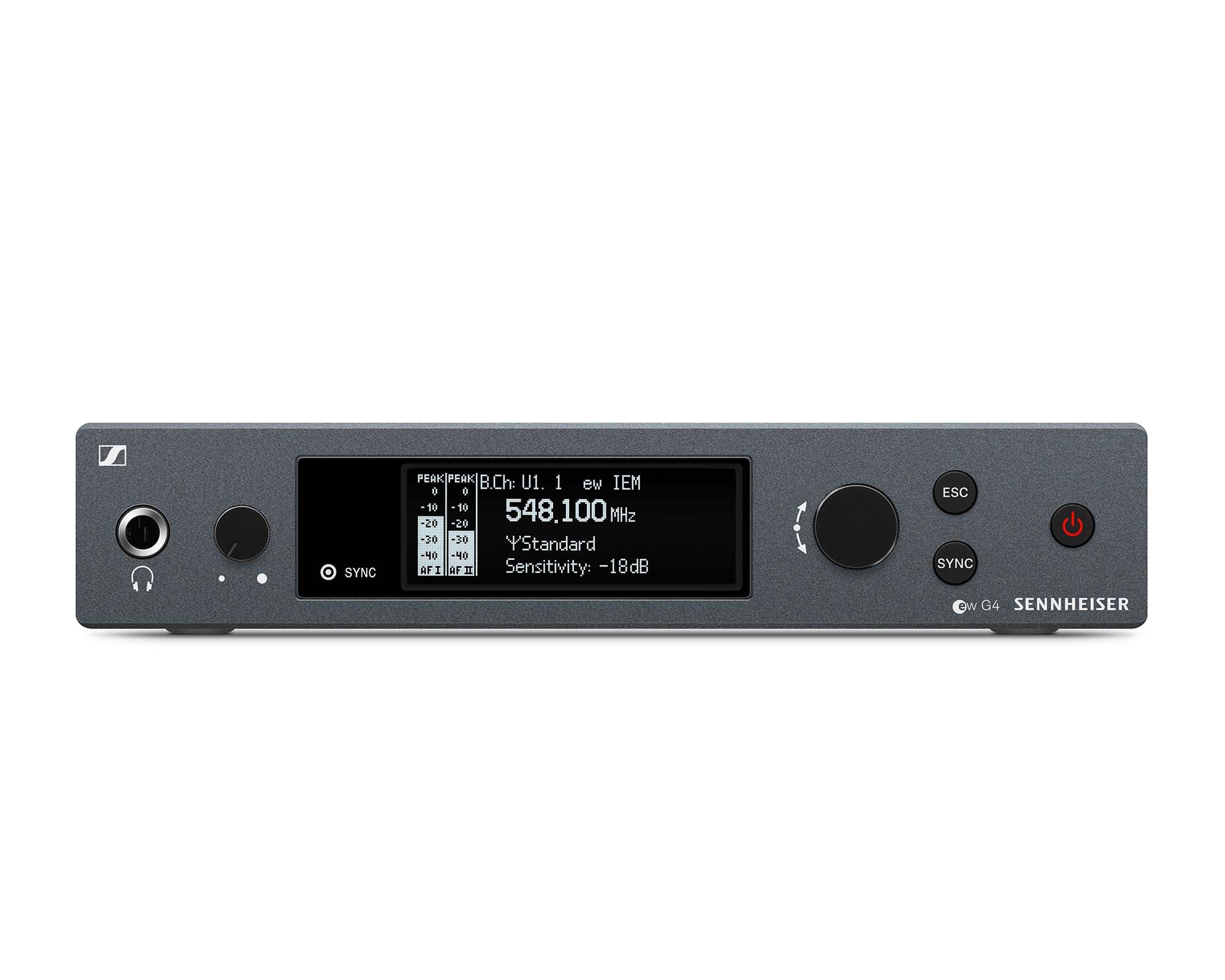

• Half-rack stereo transmitter in a full-metal housing with OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Compatible with Sennheiser WSM control software for flexible frequency allocation
• Up to 16 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

• Modulation: Wideband FM stereo (MPX pilot tone)
• Frequency ranges
  • A1: 470 - 516 MHz
  • A: 516 - 558 MHz
  • AS: 520 - 558 MHz
  • G: 566 - 608 MHz
  • GB: 606 - 648 MHz
  • B: 626 - 668 MHz
  • C: 734 - 776 MHz
  • D: 780 - 822 MHz
  • E: 823 - 865 MHz
• Receiving frequencies
  • Max. 1680 frequencies, adjustable in 25 kHz steps
  • 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation
  • 6 frequency banks with up to 16 programmable channels
• Switching bandwidth: up to 42 MHz
• Nominal/peak deviation: ¬±24 kHz / ¬±48 kHz
• MPX pilot tone (frequency/deviation): 19 kHz/¬±5 kHz
• Frequency stability: ¬±10 ppm
• Antenna output: BNC socket, 50 Œ©
• RF output power at 50 Œ© switchable:
  • Low: typ. 10 mW
  • Standard: typ. 30 mW
  • High: typ. 50 mW
• Compander system: Sennheiser HDX
• AF frequency response: 25 Hz to 15 kHz

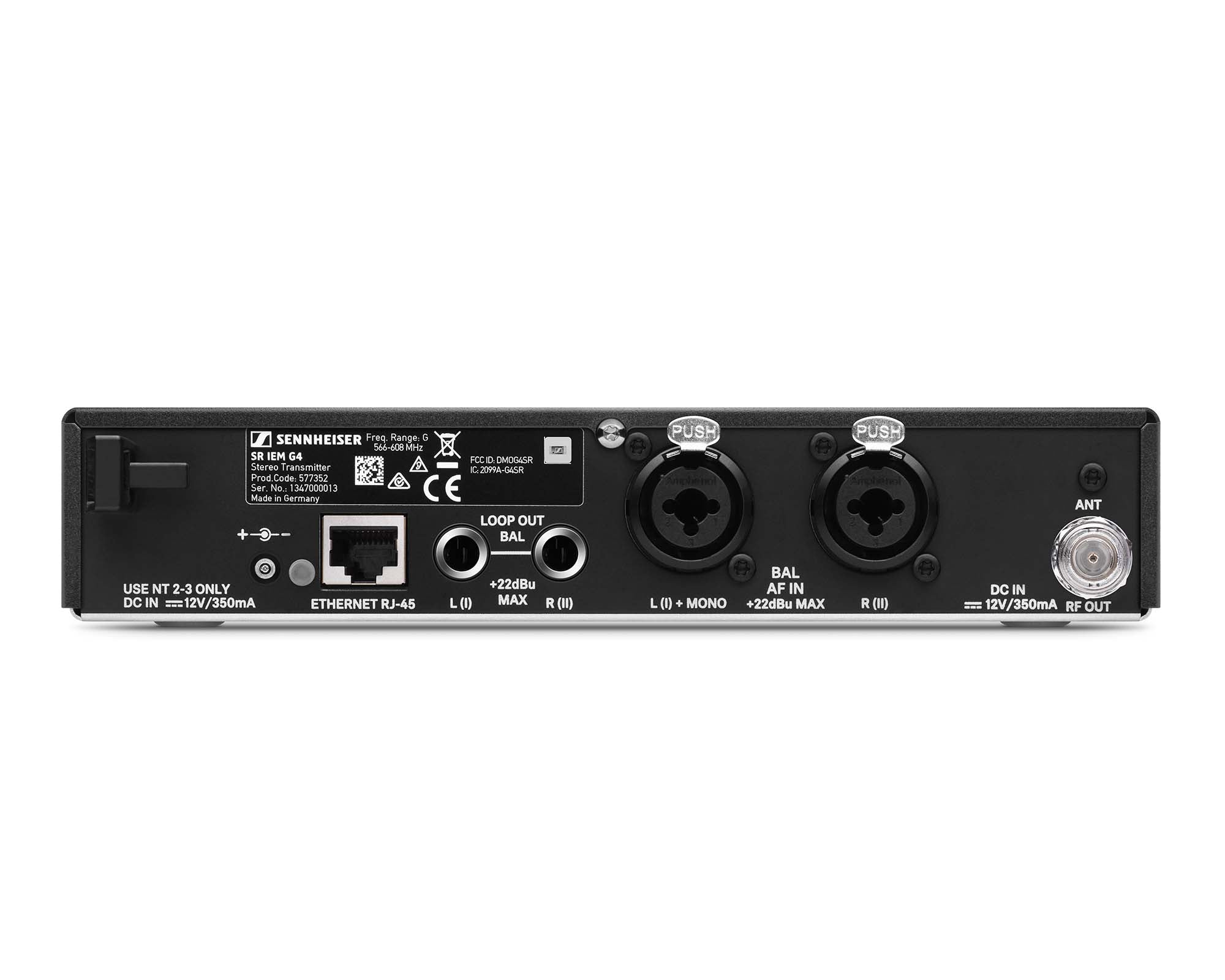

• AF input BAL AF IN L (I) + MONO/ BAL AF IN R (II): 2x XLR-3/¬º" (6.3 mm) jack combo socket, electronically balanced
• Max. input level: +22 dBu
• Total harmonic distortion (THD): <0.9 %
• Signal-to-noise ratio (at nominal load and peak deviation): >90 dB
• AF output LOOP OUT BAL L (I)/ LOOP OUT BAL R (II): ¬º" (6.3 mm) stereo jack socket, balanced
• Temperature range: -10 ¬∞C to +55 ¬∞C
• Power supply: 12 V DC
• Current consumption: max. 350 mA

Physical & Dimensions

• Height: 43mm
• Width: 212mm
• Depth: 202mm
• Weight: 980g
