Description

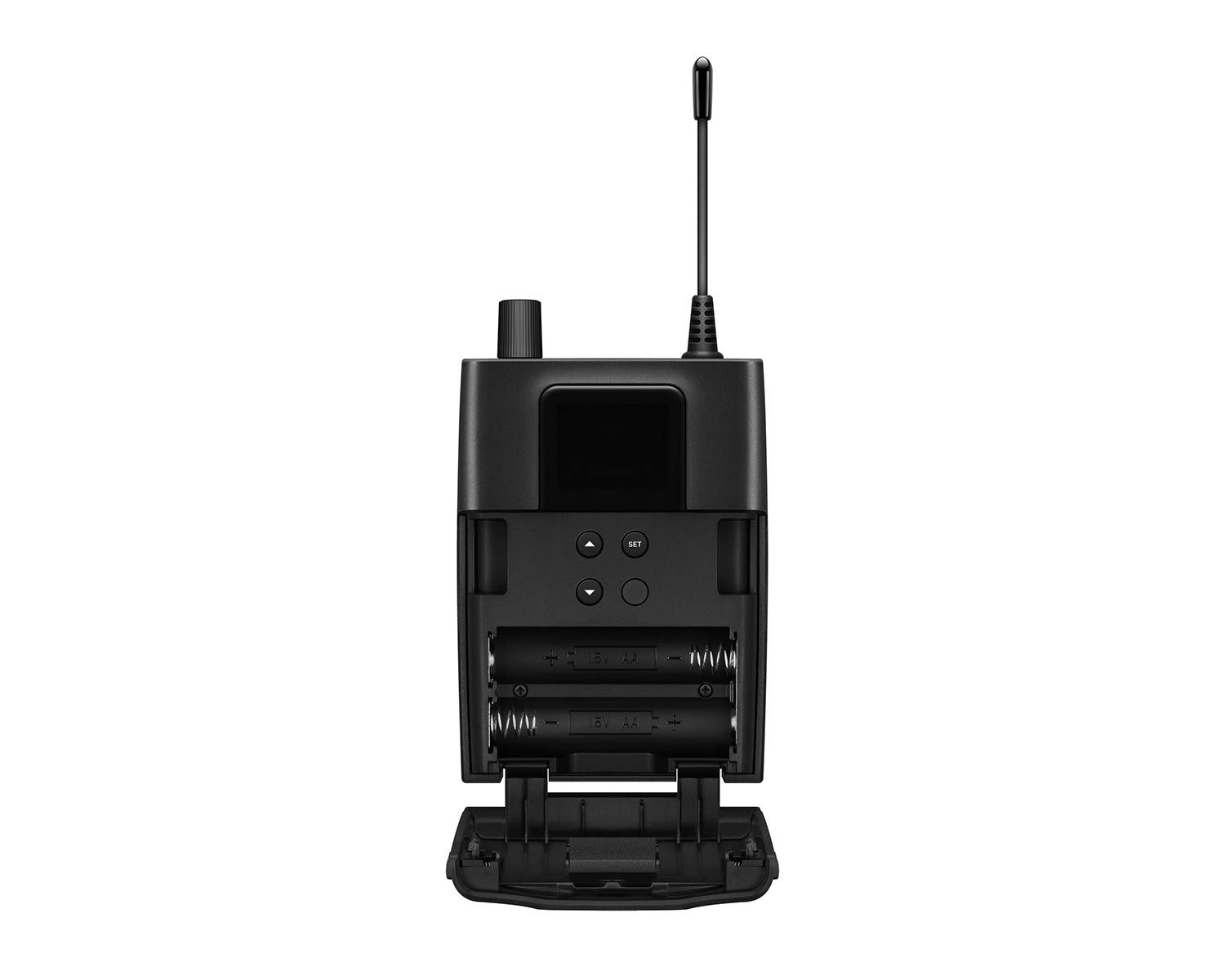

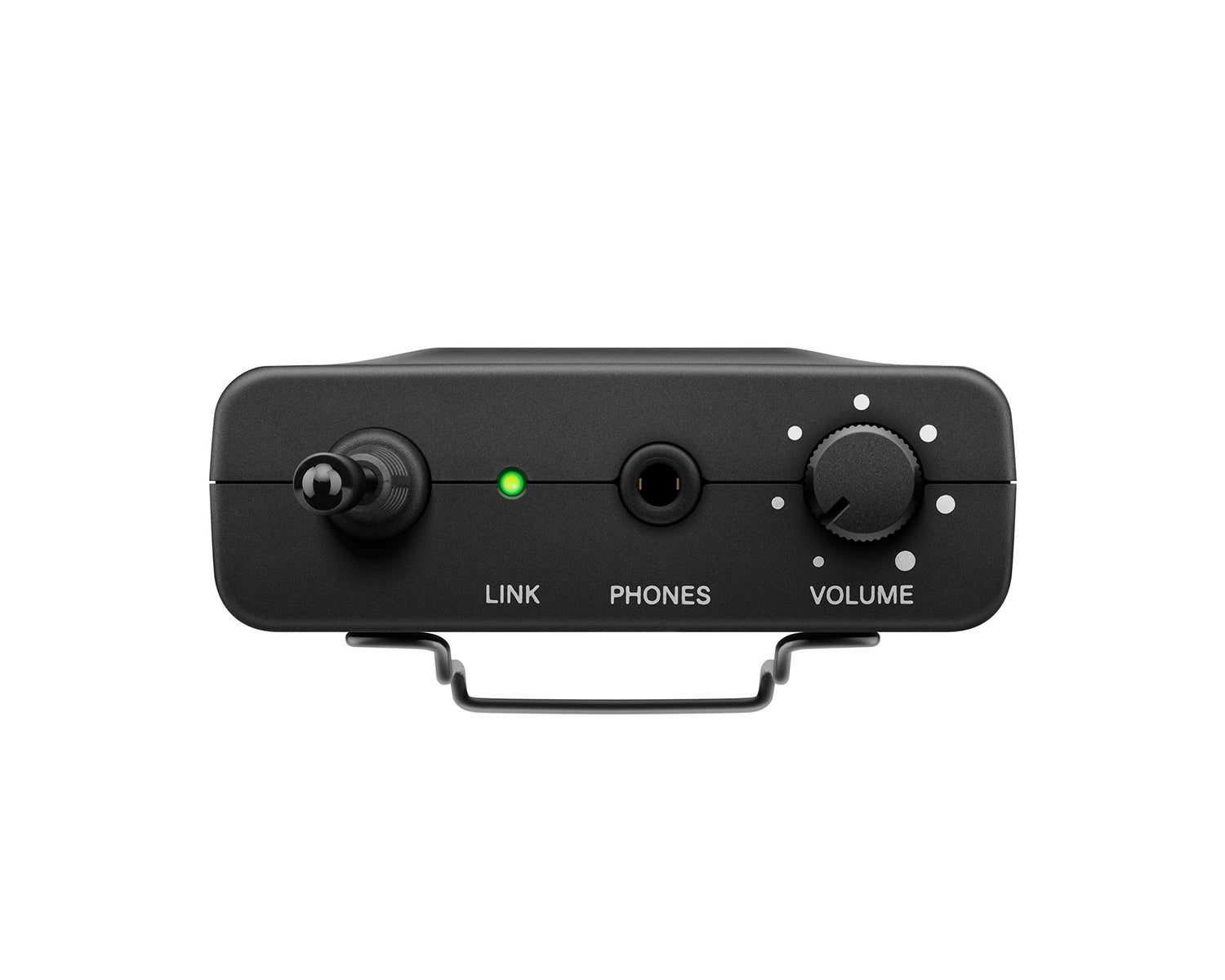

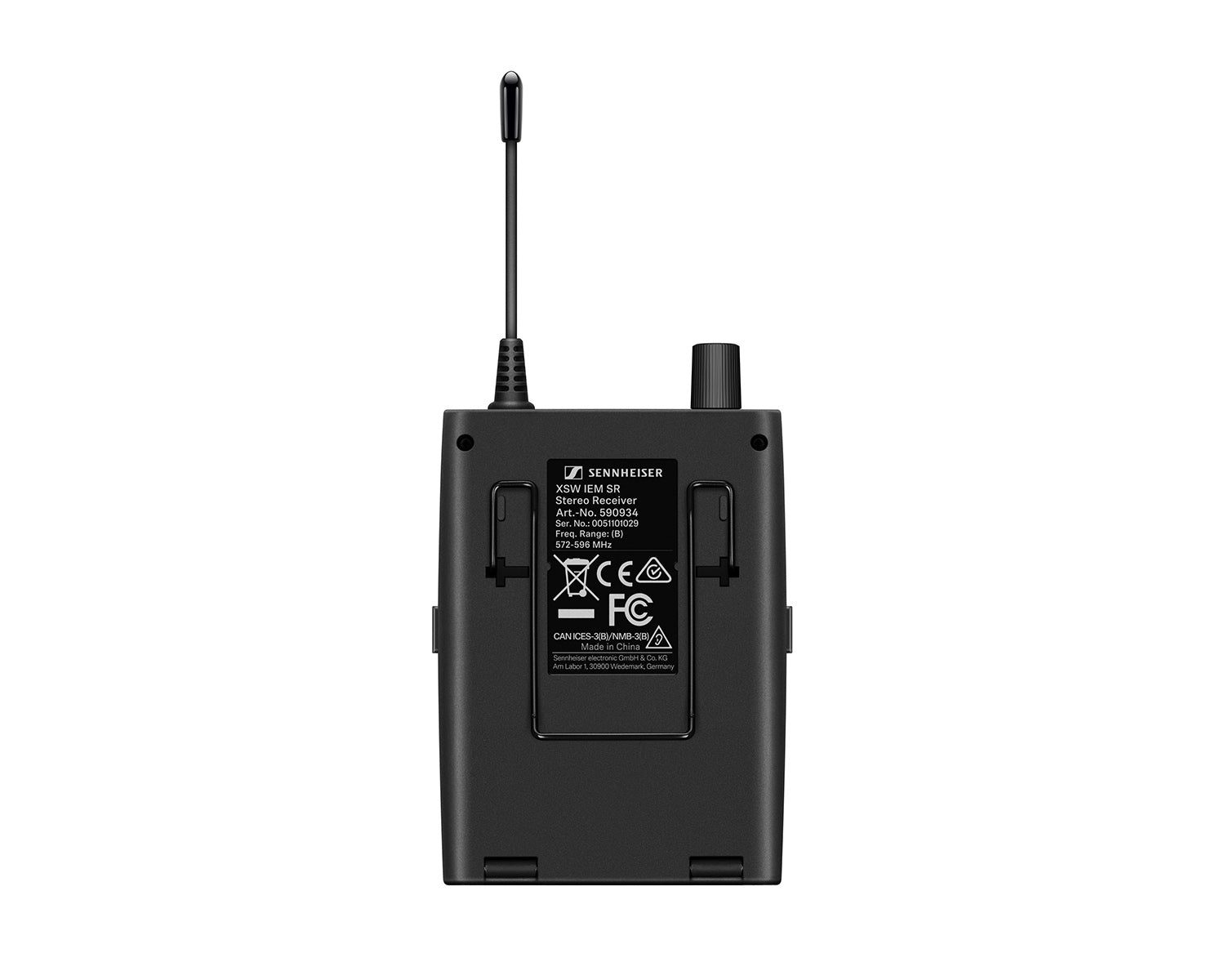

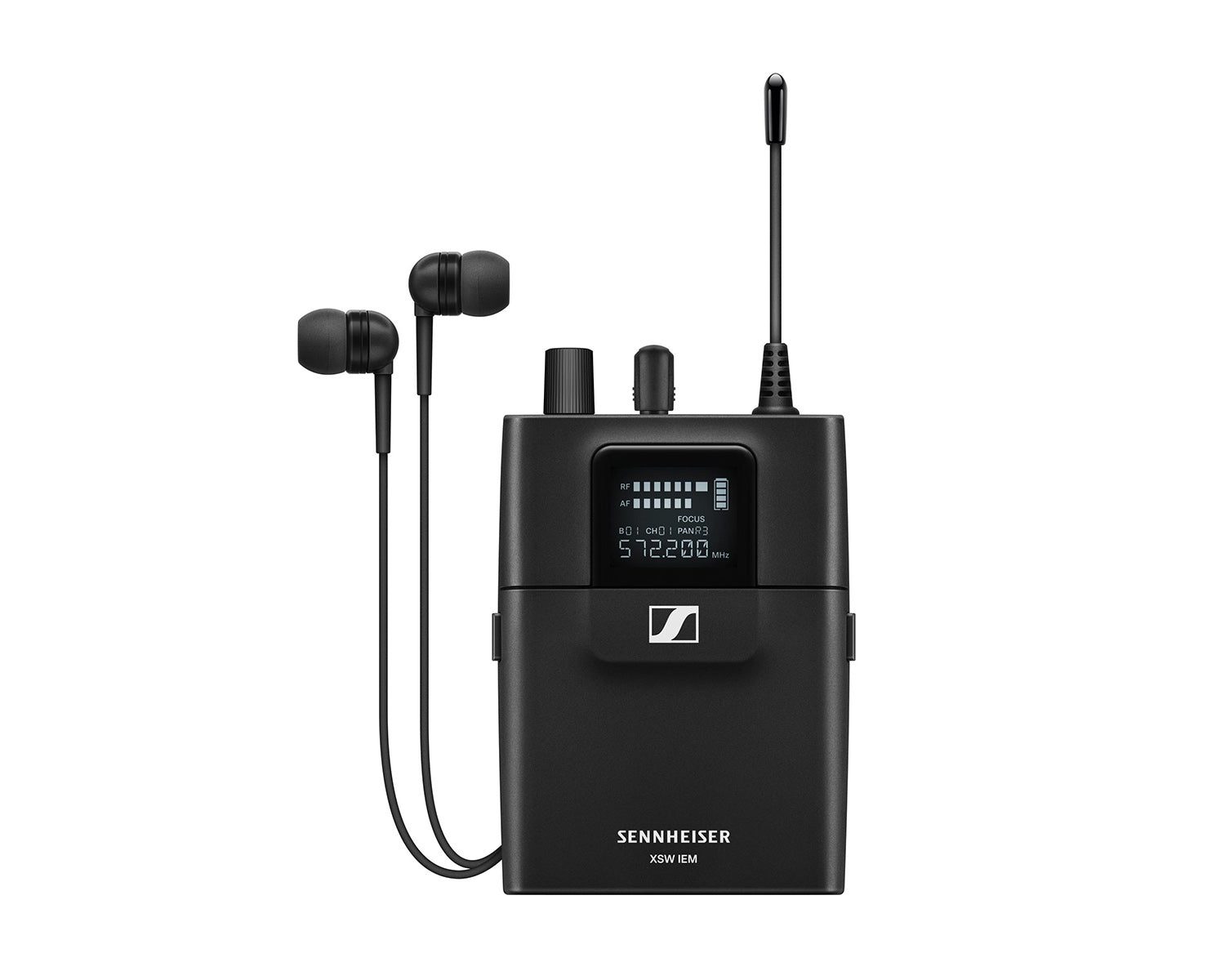

Lightweight in-ear monitoring bodypack – part of the XS Wireless IEM series. With XS Wireless IEM, you can easily link additional receivers to one transmitter – connecting more band members to a new level of detail. The lightweight bodypack remains unnoticed once clipped on your clothing or belt.You can plug in the included IE 4 headphones or upgrade to the IE PRO series with the 3.5 mm output. The status LED shows battery and link status at a glance – while the front panel allows for individual fine-tuning, from balance to focus modes to EQ to Limiter, so you can design your individual mix.
Features
- Band E - 823.2 – 831.8 MHz (Channel 38 'Duplex Gap')
- UHF bodypack receiver to expand existing XS Wireless IEM setups
- Lightweight bodypack with rear clamp and stage-proof control panel

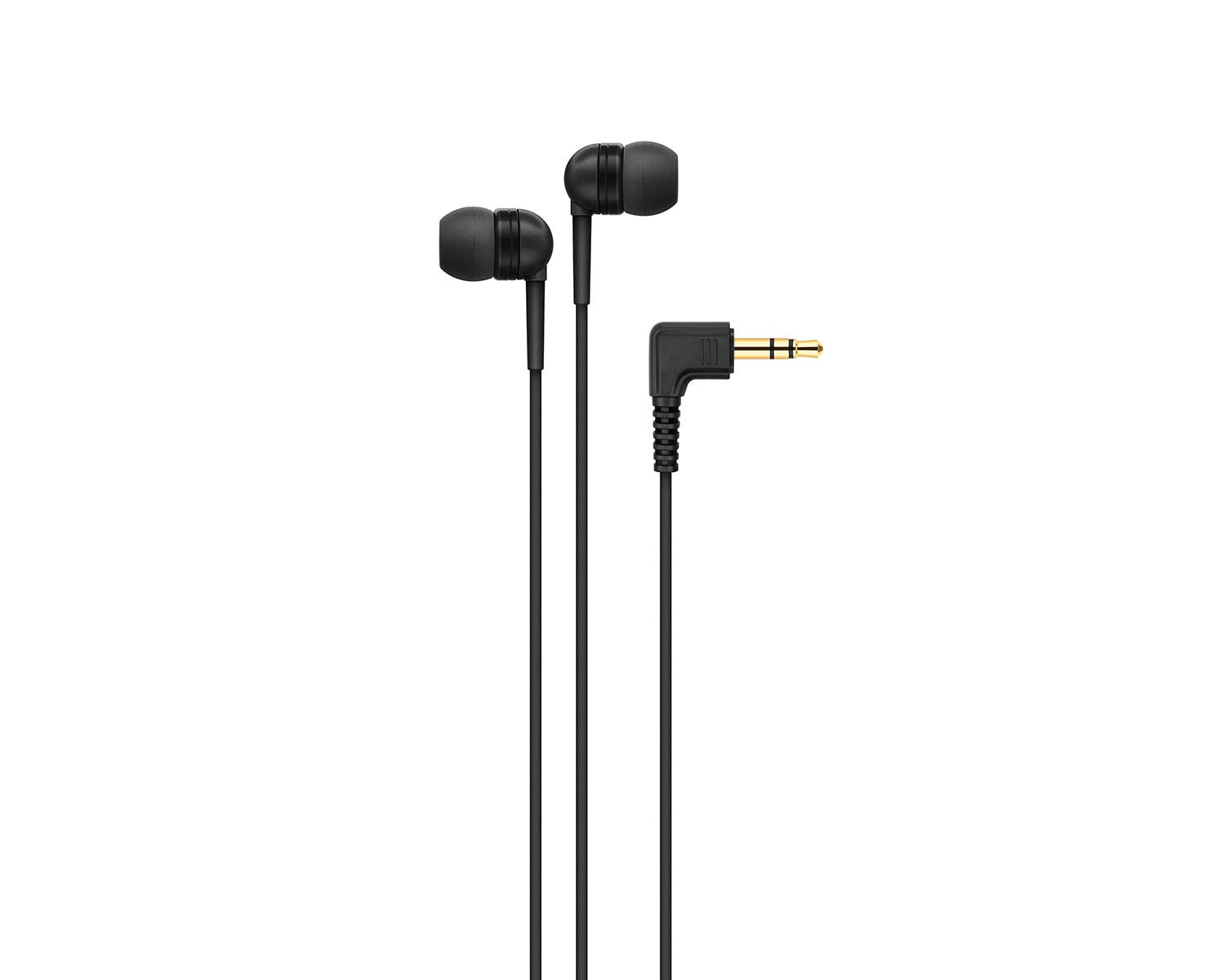

- Standard 3.5 mm jack plug for supplied IE 4 headphones or optional in-ear sets
- Backlit front panel and status LED for battery and link status
- Menu access to receiver sound settings like focus modes, volume control, limiter, and EQ
- Pan control for individual balance of the input channels
- Operates with 2x AA primary cells or rechargeable batteries
Specs
- RF characteristics
- Modulation: Wideband FM
- Frequency ranges
- A: 476 - 500 MHz
- B: 572 - 596 MHz
- C: 662 - 686 MHz
- E: 823.2 - 831.8 MHz
- K: 925.2 - 937.3 MHz
- Switching bandwidth: up to 24 MHz
- Nominal/peak deviation: ±15 kHz / ±24 kHz
- Squelch: 10 µV, fixed
- AF characteristics
- Signal-to-noise ratio (1 mV, peak deviation): ‚â•88 dB
- Total harmonic distortion (THD): ≤ 1 %
- AF output level at 3.5 mm: 2 x 1,25 Veff at 16 Ω
- High Boost (EQ): +10 dB at 13 kHz
- Limiter: -10 dB
- AF frequency response: 45 Hz to 15 kHz
- Cross talk (50 Hz - 10 kHz): typically 45 dB
- Overall device
- Temperature range: 0 °C to +40 °C
- Power supply: 2 AA batteries, 1.5 V
- Nominal voltage: 3 V battery
- Operating time: Approx. 6 hrs (depending on volume level)
- Dimensions: Approx. 95 x 70 x 26 mm
- Weight (incl. batteries): Approx. 110 g
