Sennheiser XSW IEM SR Transmitter for In-Ear System 823.2–831.8 MH (Band E)
£341.55£284.63 Incl. VATExcl. VAT
Description
Single half-rack stereo UHF transmitter, rugged metal housing – part of the XS Wireless IEM series. The XS Wireless IEM transmitter features metal housing designed for durability and can be used as part of a rack-mounted system or stand-alone.The clear, backlit menu allows for easy setups even on dark stages. The XLR combo inputs provide flexible cabling options – you can connect anything with a XLR or 6.3 mm (1/4 inch) plug. You can preview your in-ear mix locally with the headphone output on the front. Setting up gain, mono or stereo options, input sensitivity, or frequency channels takes just a matter of seconds thanks to the clear, simple menu.
Features
- Band E - 823.2 – 831.8 MHz (Channel 38 'Duplex Gap')
- Single-stereo UHF transmitter for XS Wireless IEM systems
- Rugged metal housing in a standard half-rack size

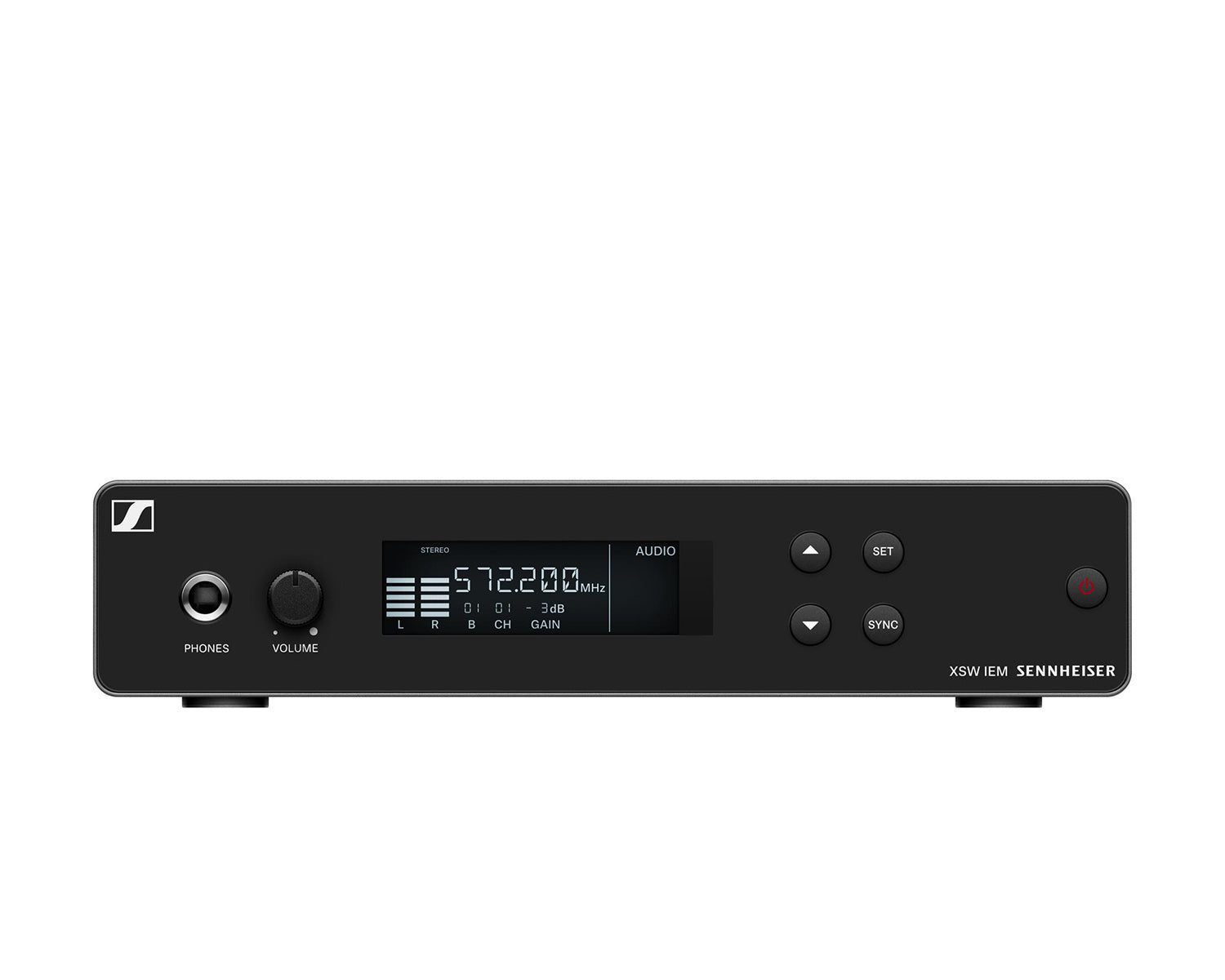

- Backlit front panel to access all key settings

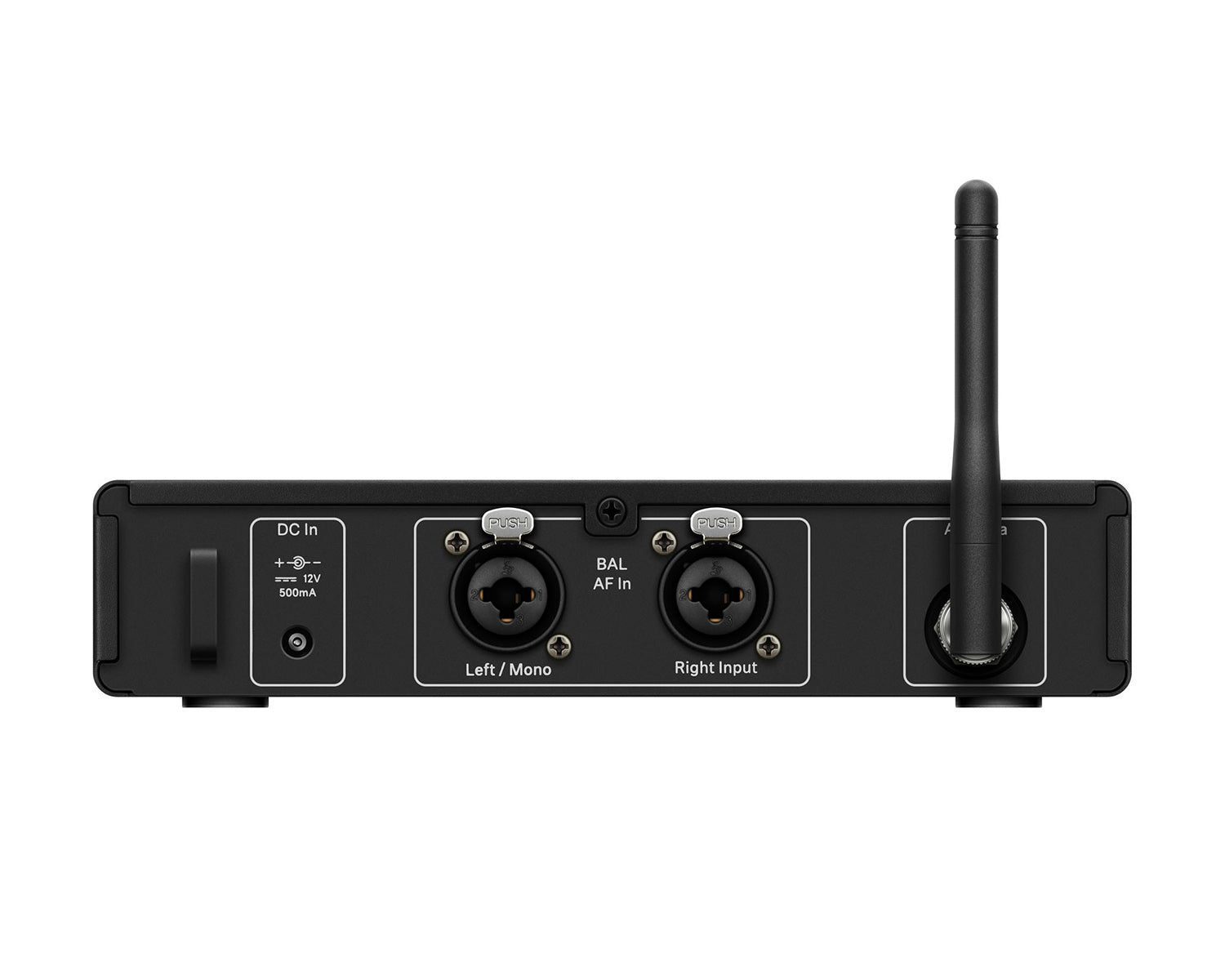

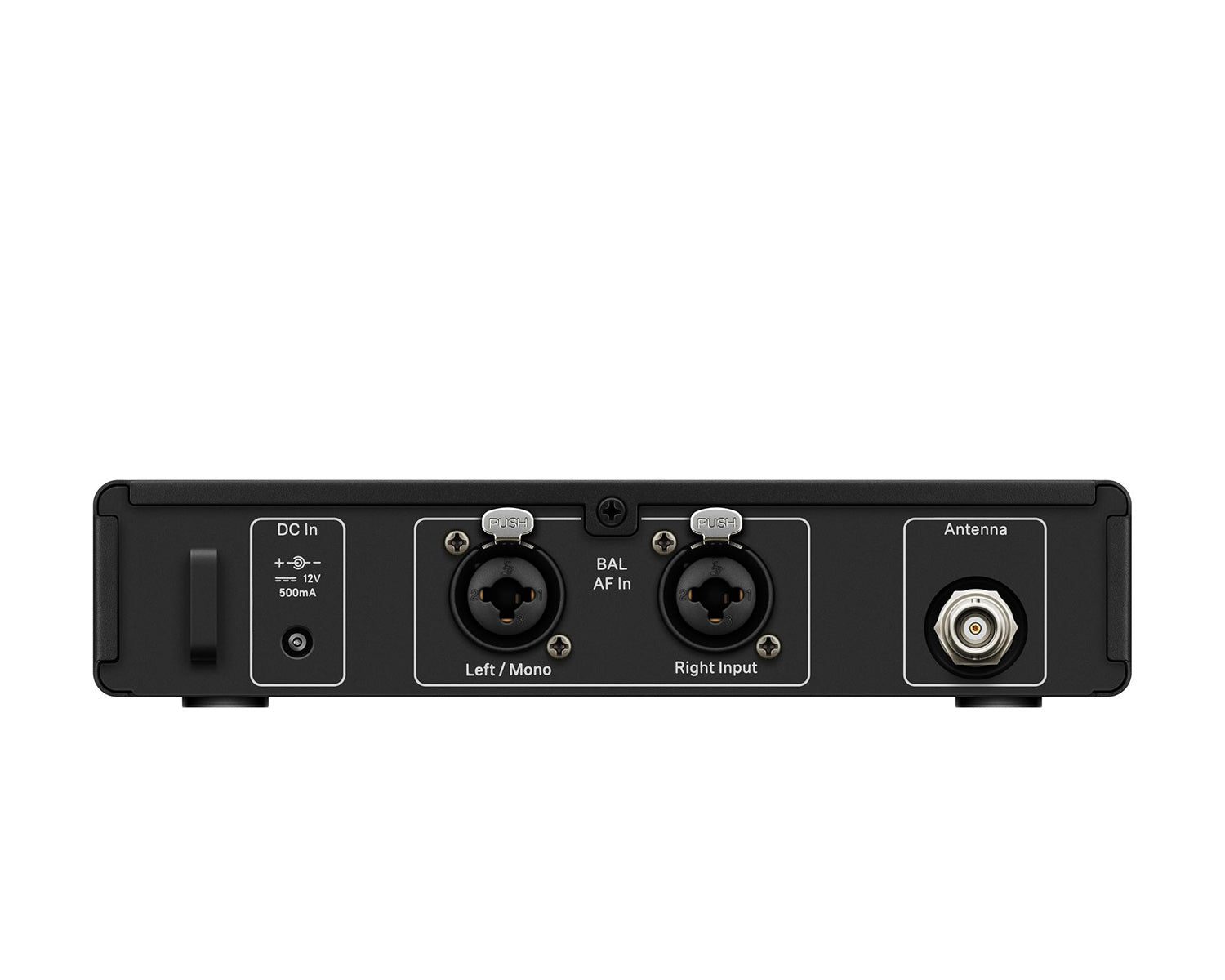

- 2x XLR and 6.3 mm (1/4 inch) TRS combo inputs
- Additional headphone output (6.3 mm / ¼ inch) on front
- Removeable BNC antenna for optimal positioning options
- 8 frequency banks with 12 precalculated channels each
Specs
- RF characteristics
- Modulation: FM stereo
- Frequency ranges (max. RF output power)
- A: 476 - 500 MHz (30 mW)
- B: 572 - 596 MHz (30 mW)
- C: 662 - 686 MHz (30 mW)
- E: 823.2 - 831.8 MHz (30 mW)
- K: 925.2 - 937.3 MHz (10 mW)
- Switching bandwidth: up to 24 MHz
- Nominal/peak deviation: ±15 kHz / ±24 kHz
- Antenna output: BNC socket, 50 Ω
- AF characteristics
- AF frequency response: 45 Hz to 15 kHz
- AF input BAL AF IN L (I) + MONO/ BAL AF IN R (II): 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
- Total harmonic distortion (THD): <0.9 %
- Signal-to-noise ratio (at nominal load and peak deviation): ‚â•88 dB
- Overall device
- Temperature range: 0 °C to +40 °C
- Input rating: +12 V DC
- Current consumption: Approx. 400mA (depending on volume level)
- Dimensions: Approx. 200 x 128 x 42 mm
- Weight: Approx. 700 g
