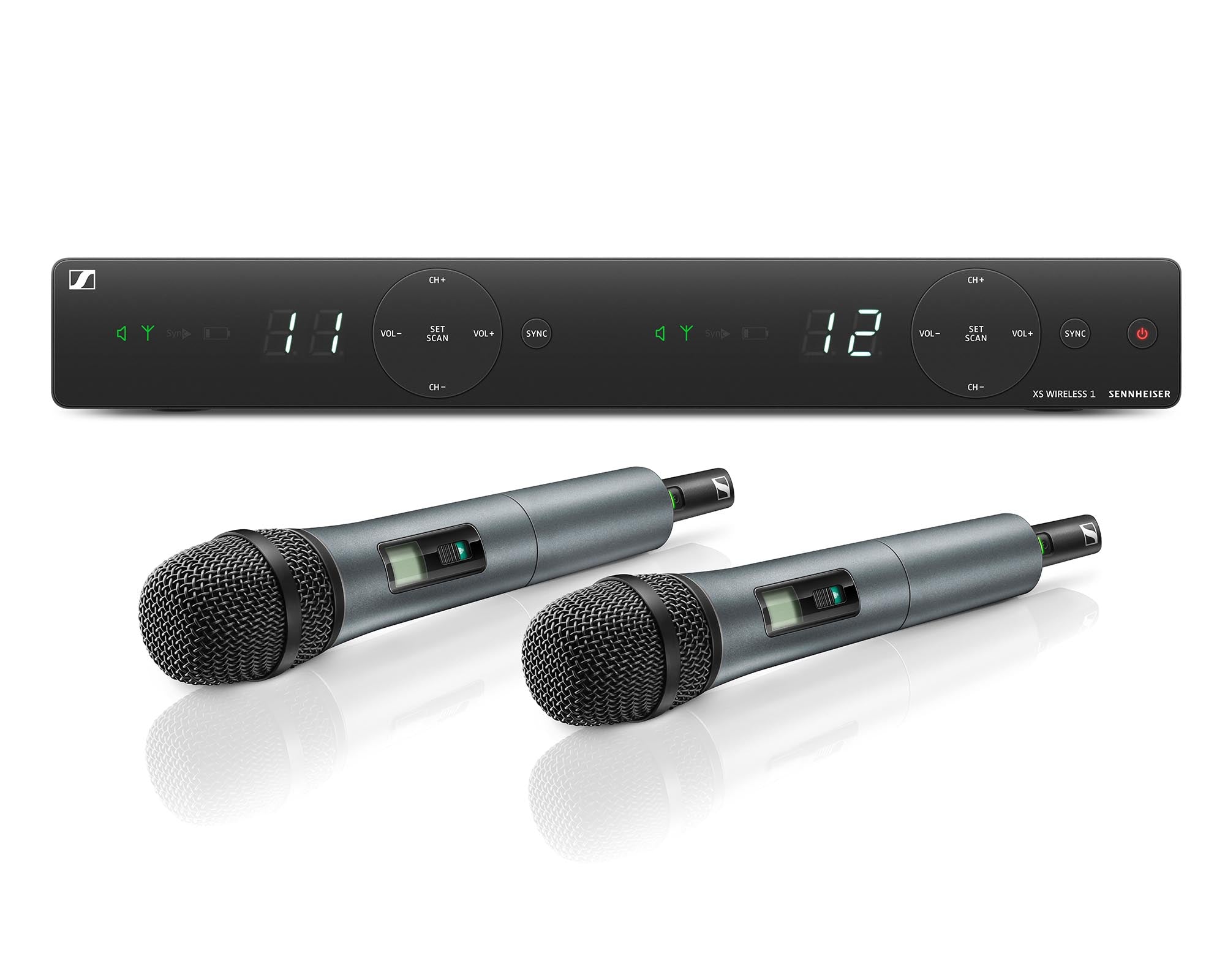

Sennheiser XSW1-835 E DUAL H/H System with E835 Cardioid Transmitters CH70

• Excellent live sound featuring Sennheiser renowned evolution microphone capsules
• Antenna-switching 2-channel diversity reception
• Integrated antennas
• Automatic frequency management and synchronisation via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

System

• Frequency range:
  • 548-572 MHz
  • 614‚Äì638 MHz
  • 766-790 MHz
  • 794-804 MHz
  • 821-832 / 863-865 MHz
  • 606-630 MHz
  • 925-937.5 MHz
• Frequency response
  • 766-790 MHz
  • 794-804 MHz
  • 821-832 / 863-865 MHz
  • 925-937.5 MHz
• Connector: XLR-3
• Frequency response: 55 - 16,000 Hz
• THD, total harmonic distortion: ‚⧠0.9%
• Transducer principle: Dynamic
• Pick-up pattern: Cardioid
• Nominal impedance: 300 Œ© (at 1 kHz)
• Min. terminating impedance: 1 kŒ©
• Storage temperature: ‚Äì20¬∞C to +70¬∞C
• Operating temperature: 0¬∞C to +40¬∞C
• Signal-to-noise ratio: ‚â• 103 dBA
• Switching bandwidth: Up to 24 MHz
• Modulation: Wideband FM
• Frequency: 80 factory presets (8 banks of 10 channels each)
• Sensitivity: 1.8 mV/Pa (free field, no load at 1 kHz)
• Synchronisation Transmitter: 2.4 GHz, low power OQPSK (only active during synchronisation)
• Temperature Range: 0 ¬∞C ... +40 ¬∞C (+32 ¬∞F ... +104 ¬∞F)

Physical & Dimensions

• Dimensions √ò 48 x L 180 mm
• Weight: 330 g (0.73 lbs)

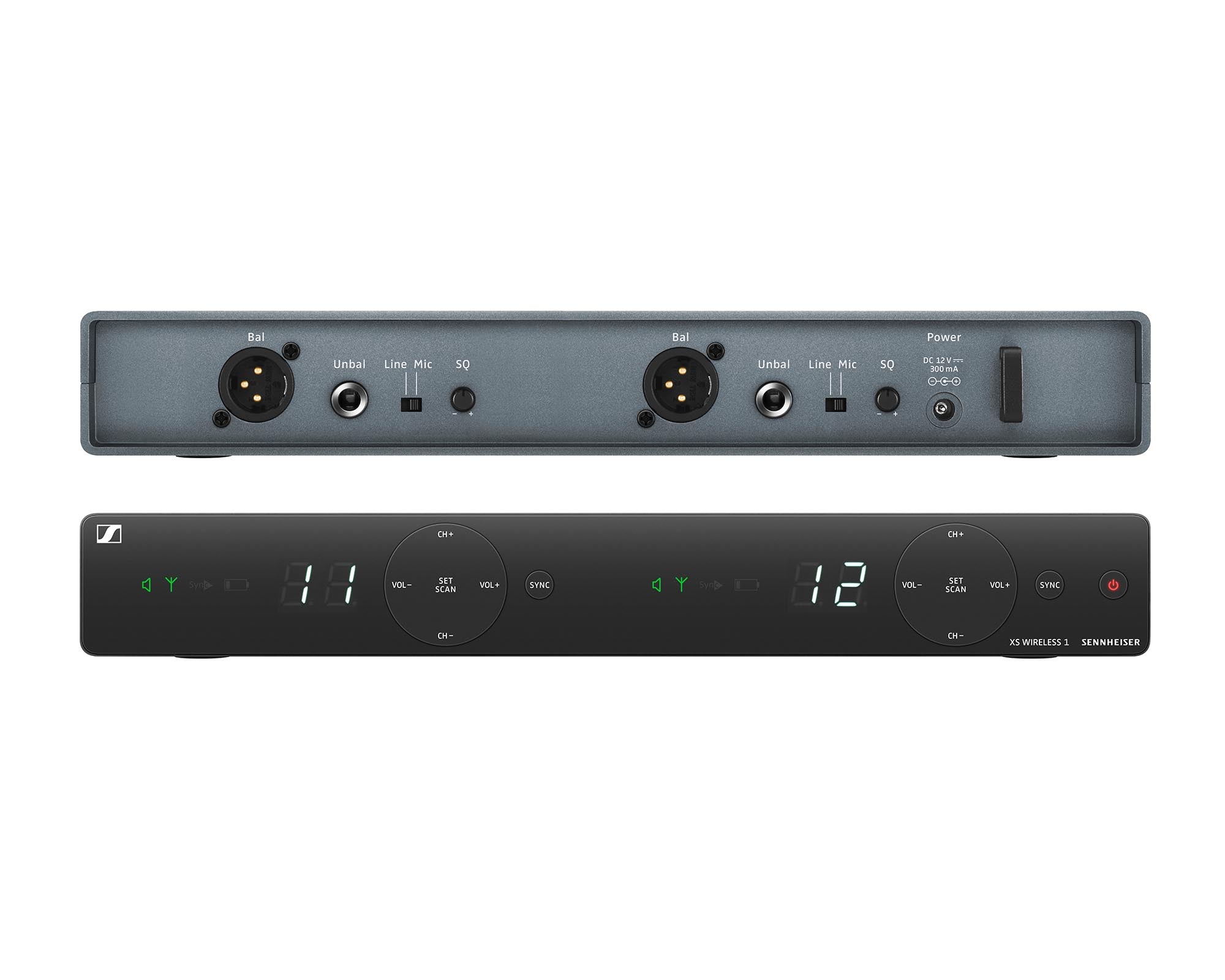

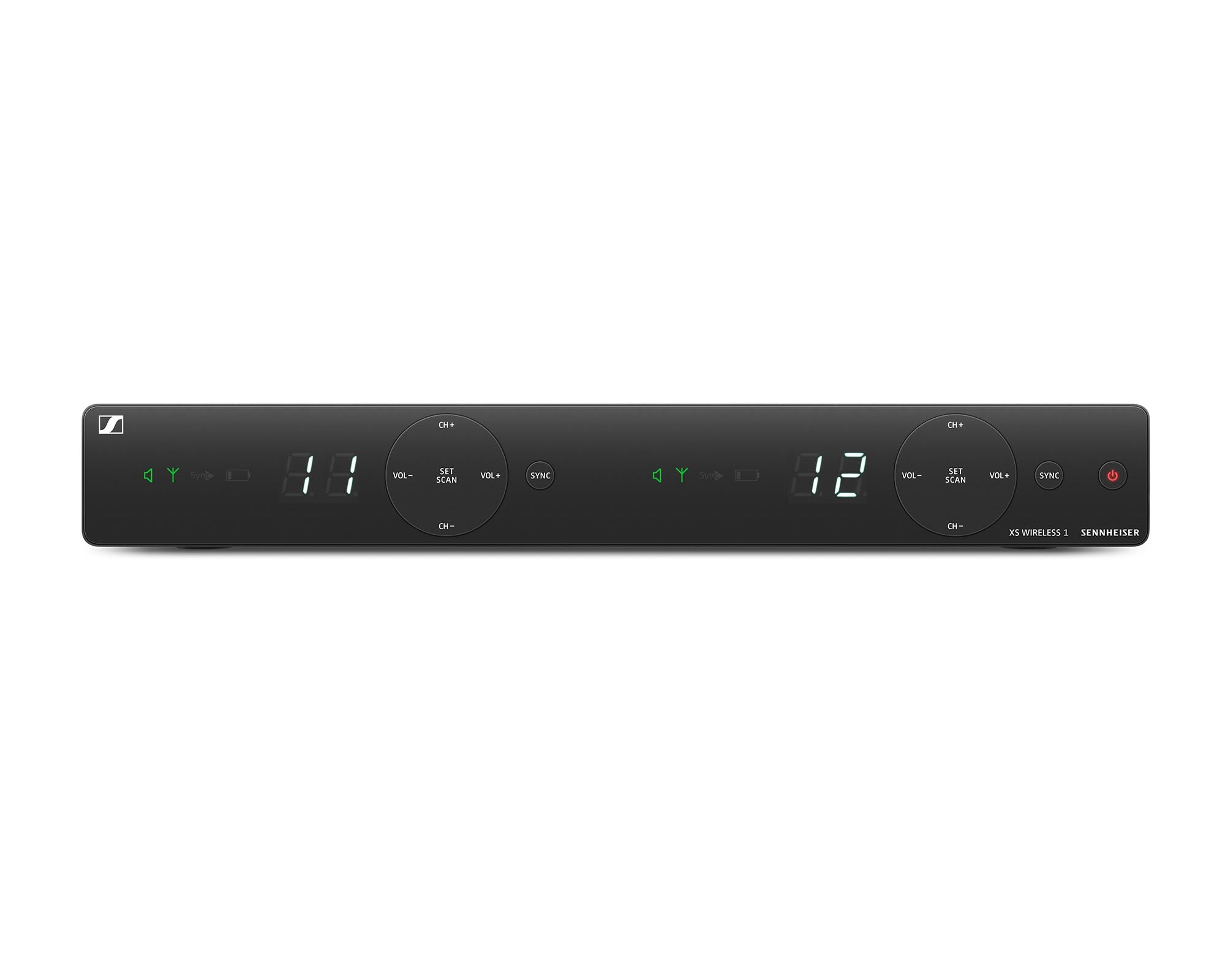

Product Specifications - EM-XSW 1 Dual

General

• Power supply: 12 V DC nom. / 300 mA
• Output voltage: (at peak deviation, 1 kHz AF) 1/4‚Äú (6.3 mm) socket (unbalanced): +6 dBu
• Housing: Rugged ABS housing
• Sensitivity: < 3 ŒºV at 52 dB(A) rms S/N (at peak deviation)
• Squelch: Adjustable from 3 dBŒºV to 28 dBŒºV
• AF frequency response: 50 to 16,000 Hz (‚Äì3 dB)
• Audio adjustment range: 45 dB, adjustable in 5 dB steps
• Line / Mic level: 20 dB, switchable
• Receiver Principle: Double superheterodyne
• Diversity principle: Antenna switching diversity via internal antennas

Physical & Dimensions

• Dimensions: Approx. 320 x 126.5 x 42 mm
• Weight: Approx. 620 g

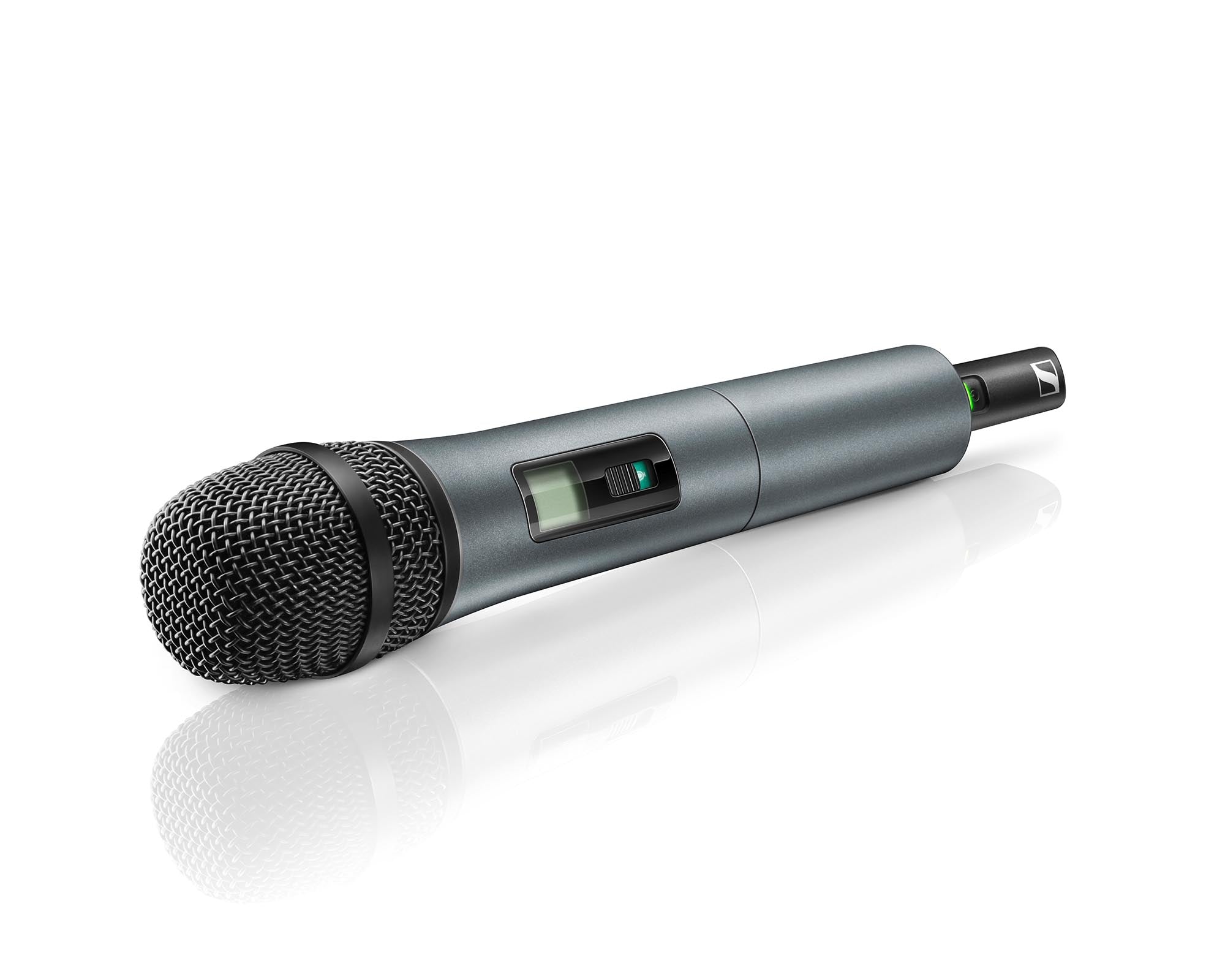

Product Specifications - SKM 825-XSW / SKM 835-XSW

General

• Microphone: Dynamic
• Pick-up pattern: Cardioid
• RF output power: 10 mW
• Operating time: Approx. 10 hrs
• Power supply: 2 AA size batteries, 1.5 V
• Housing: Rugged ABS housing
• Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
• Input sensitivity: 1.5 mV / Pa
• AF frequency response: 80-16,000 Hz

Physical & Dimensions

• Dimensions: Approx. 260 x 50 mm
• Weight: Approx. 245 g
