Sennheiser XSW2-ME3 E Headworn System with ME3 Cardioid Headmic CH70

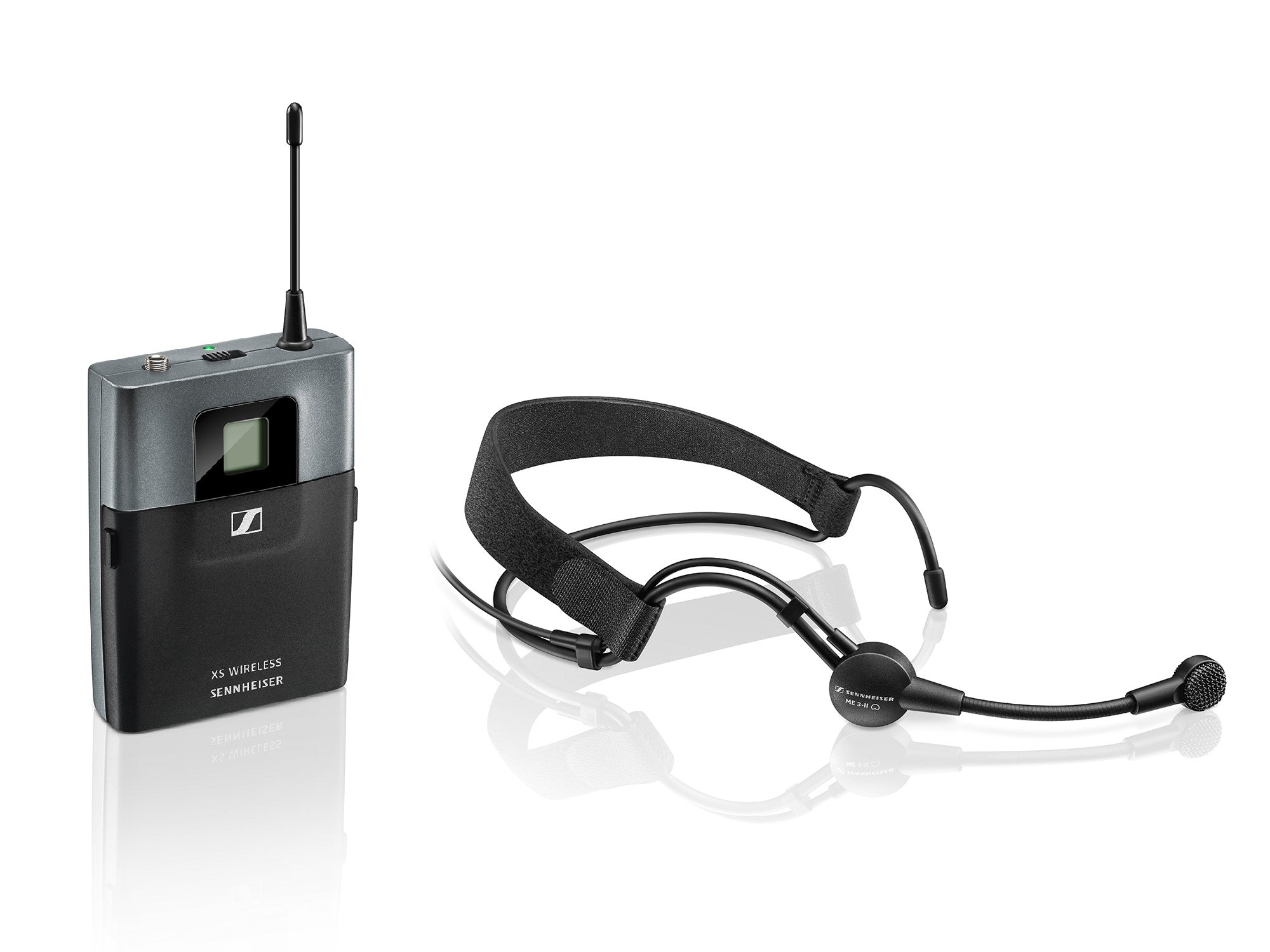

• Lightweight headmic for hands-free operation and compact bodypack transmitter

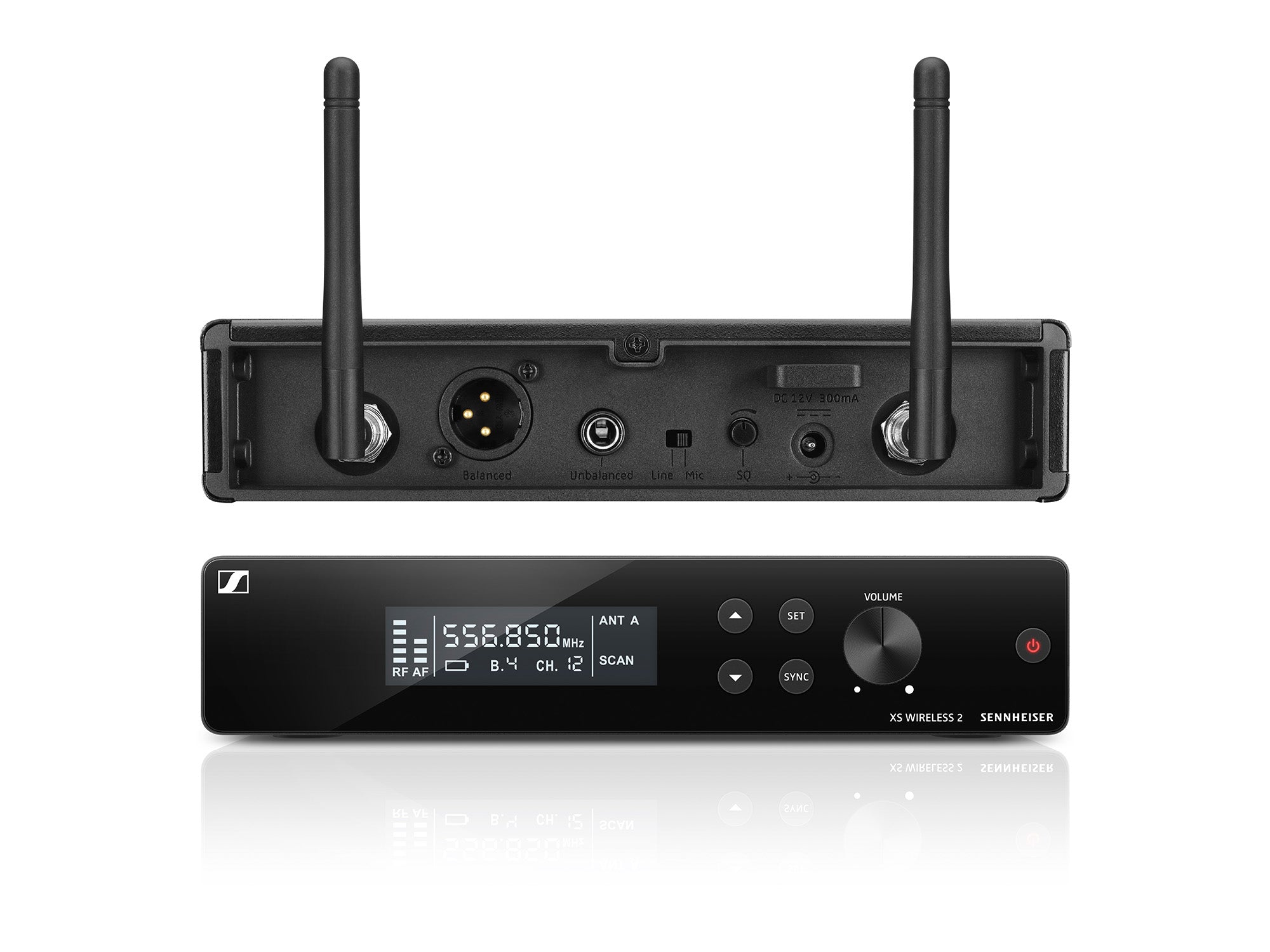

• True diversity receiver with metal housing
• External antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Fully tunable over a wide range of UHF frequencies
• Rackmount kit included
• Up to 12 compatible channels

General

• Microphone: condenser
• Frequency response: 50 to 16,000 Hz (‚Äì3 dB)
• THD, total harmonic distortion: ‚⧠0.9%
• Pick-up pattern: cardioid
• Signal-to-noise ratio: ‚â• 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Modulation: wideband FM
• Output voltage: 1/4‚Äú (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Diversity reception: True Diversity
• Frequency: 8 frequency banks, each with up to 12 factory-preset channels
• Frequency range
  • A: 548-572 MHz
  • GB: 606-630 MHz
  • B: 614-638 MHz
  • C: 766-790 MHz
  • D: 794-806 MHz
  • E: 821-832 MHz, 863-865 MHz
  • K: 925-937.5 MHz
• Sensitivity: < 3 ŒºV at 52 dB(A)rms S/N
• Squelch: switchable from 3 dBŒºV to 28 dBŒºV (via Pilot Tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range: 40 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range
  • Operation: 0¬∞C to +40¬∞C
  • Storage: ‚Äì20¬∞C to +70¬∞C
• Receiver Principle: double superheterodyne

Receivers

• Dimensions: approx. 200 x 42 x 127 mm
• Weight: approx. 680g
• Power supply: 12 V DC nom. / 300 mA
• Housing: Metal
• AF frequency response: 50 to 16,000 Hz (‚Äì3 dB)

Transmitter

• Dimensions: approx. 71 x 96 x 28 mm
• Weight: approx. 95g
• Operating time: approx. 10 hrs
• Power supply: 2 AA size batteries, 1.5 V
• Housing: robust ABS
• AF frequency response: 50 to 16,000 Hz
