Name: Shure BLX14/MX53 Wireless Presenter Headset System BLX4/MX153 K3E
Brand: Shure
SKU: BLX14UK/MX53-K3E
Availability: InStock

Description

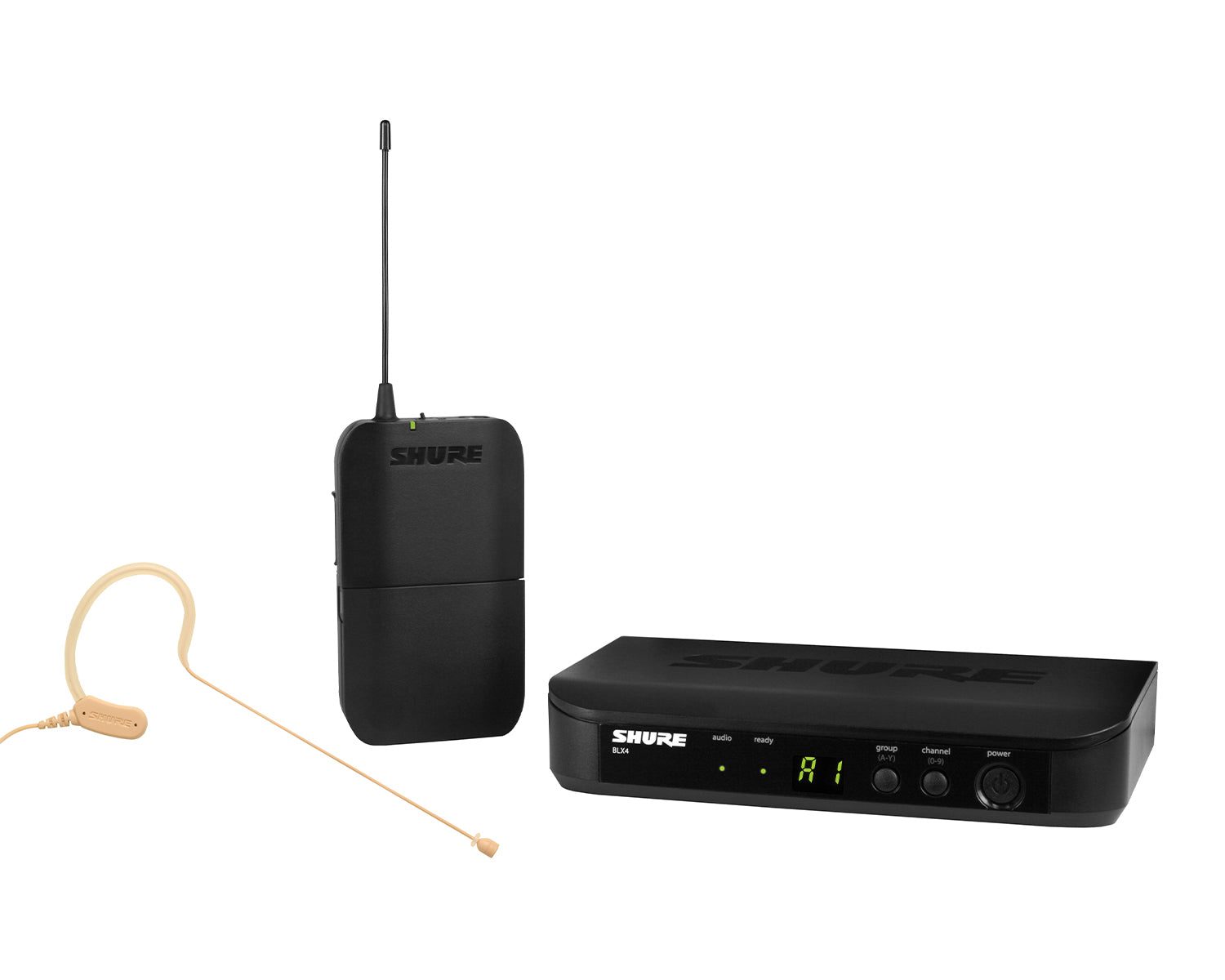

The Shure BLX14/MX53 Wireless Presenter System combines professional-quality sound with simple setup and up to 14 hours battery life for legendary audio performance right out of the box. The system includes BLX4 tabletop single-channel receiver, MX153 subminiature earset microphone with BLX1 bodypack transmitter, lavalier clip, power supply, 2 AA batteries, windscreens, and user guide.

Features

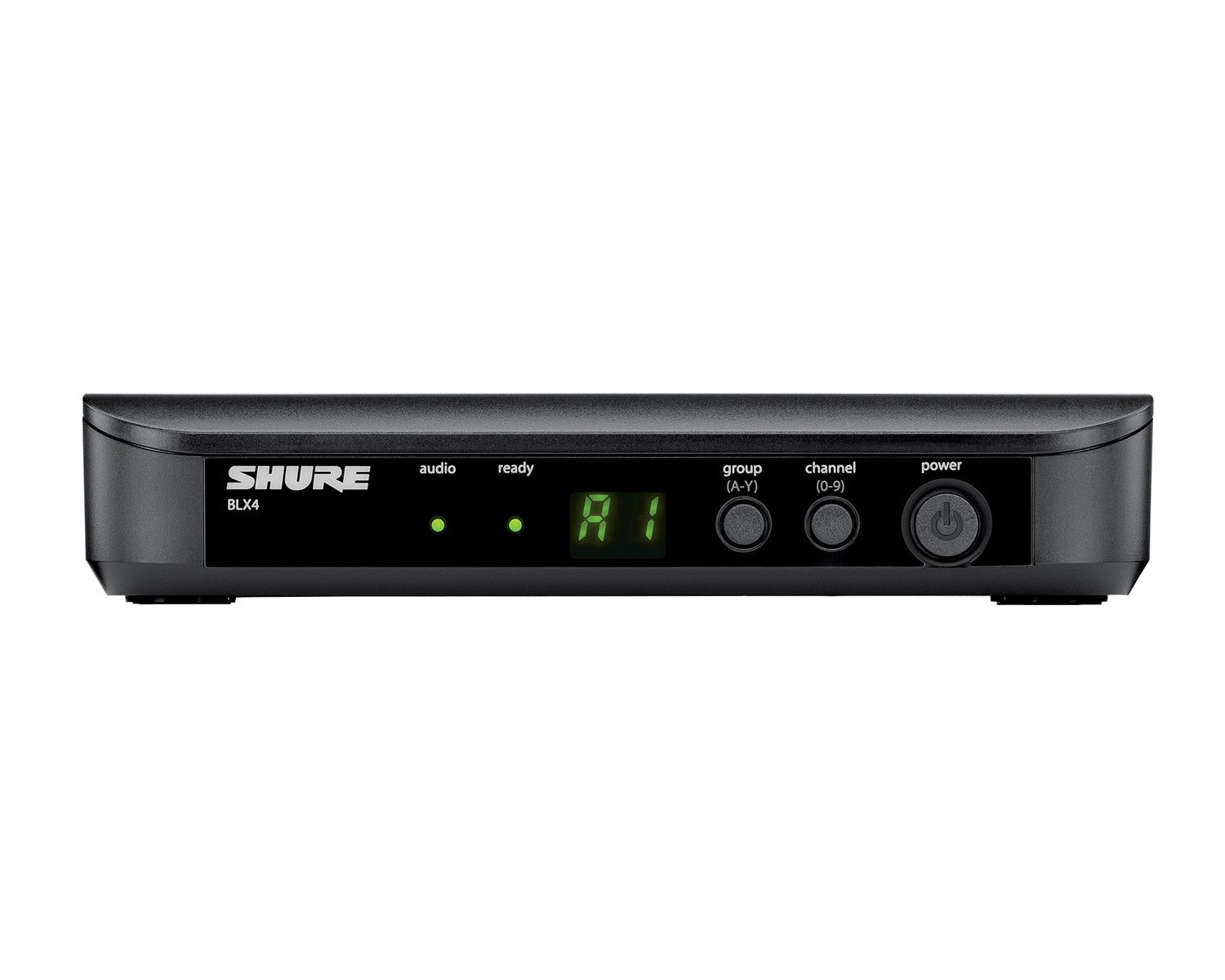

BLX4 Receiver Features

Up to 12 compatible systems (region dependent)
Microprocessor-controlled internal antenna diversity
One touch QuickScan locates the best open frequency
¬º" and XLR audio outputs
Two colour audio status indicator LED
Green: Normal audio levels
Red: Excessive audio levels (overload/clipping)
Not rack-mountable

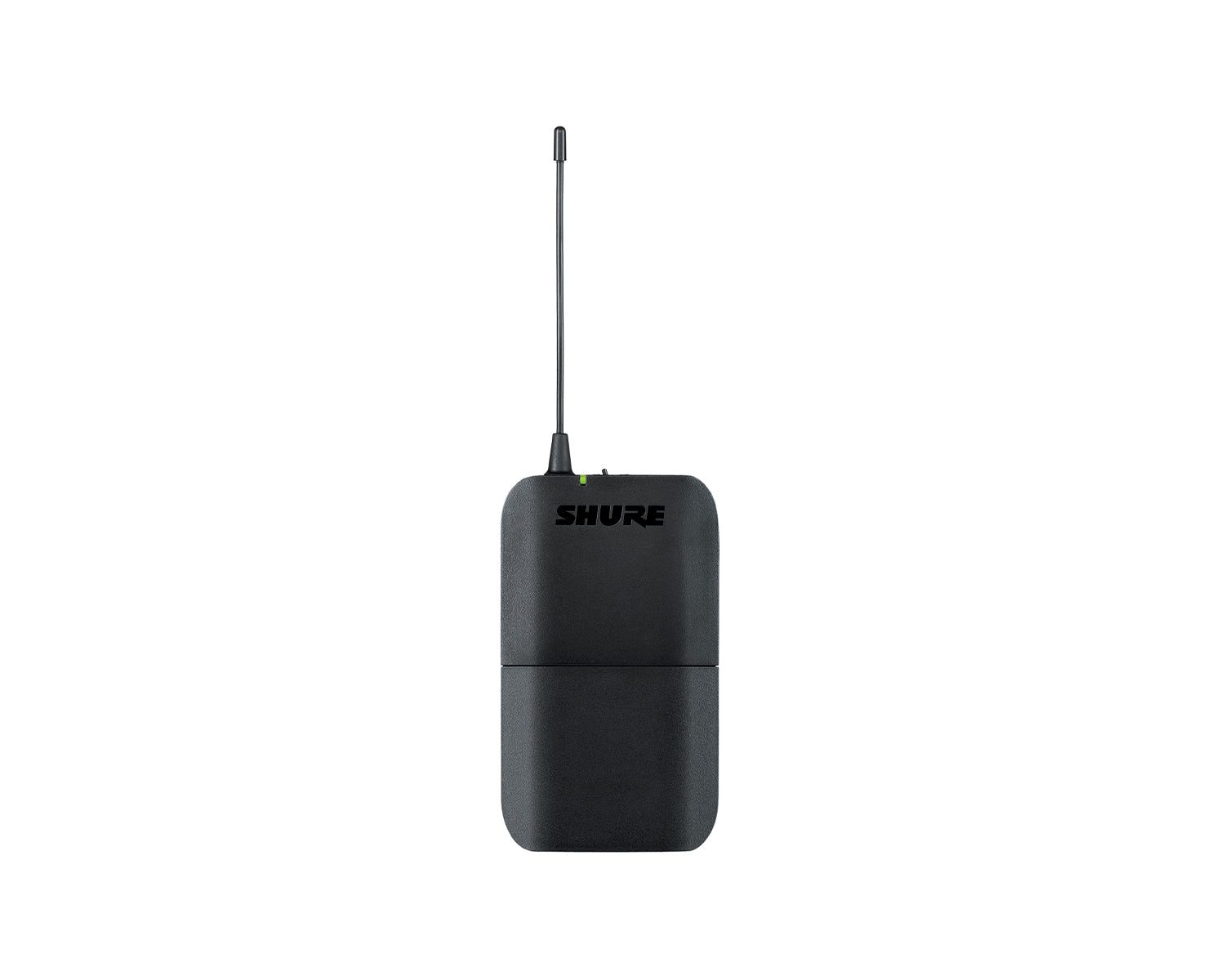

BLX1 Bodypack Features

For use as part of BLX and BLX-R Analogue Wireless Systems
Power and battery status LED
Adjustable gain control
Quick and easy frequency matching

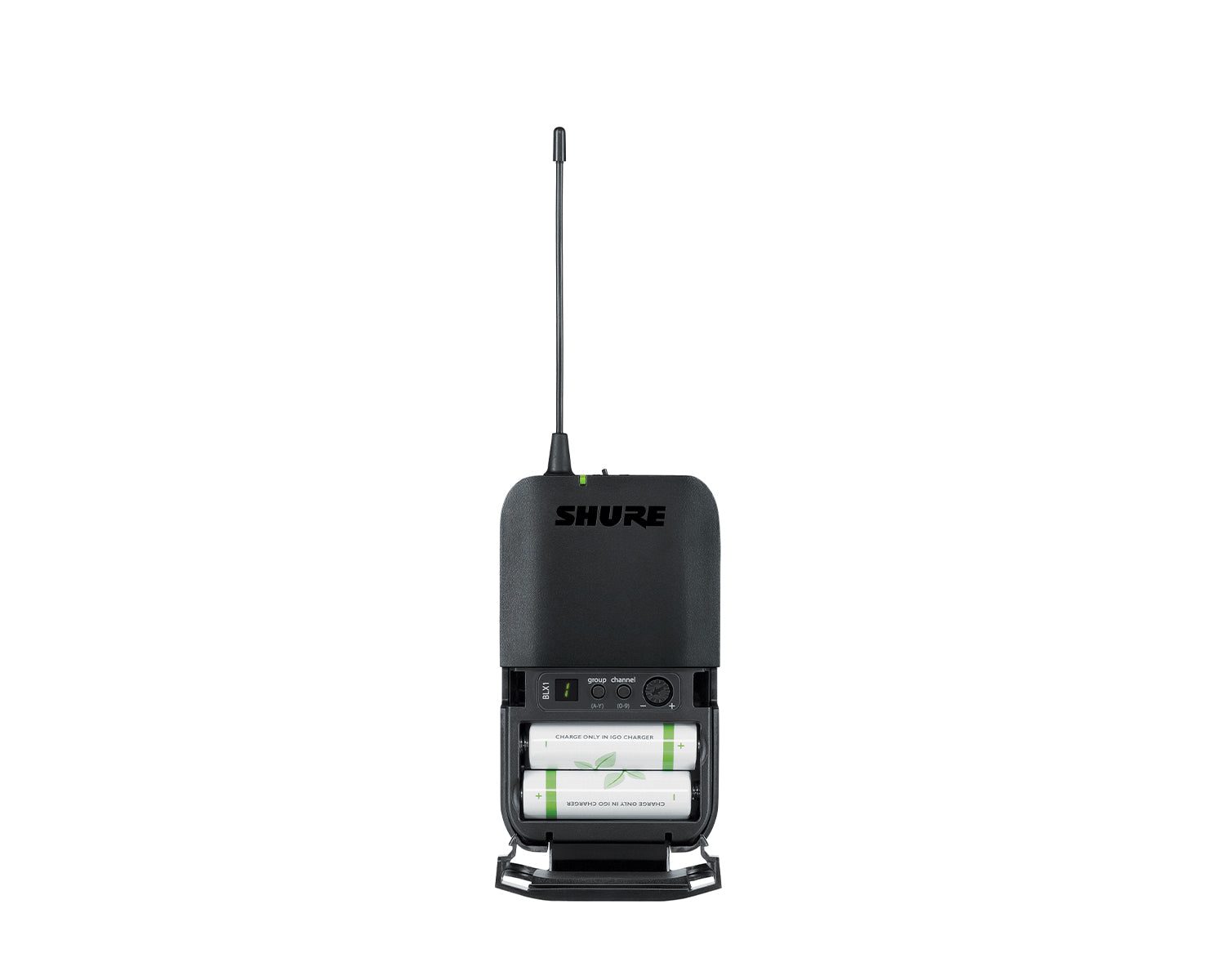

AA batteries provide up to 14 hours of continuous use
100 m (300 ft.) operating range (line of sight)

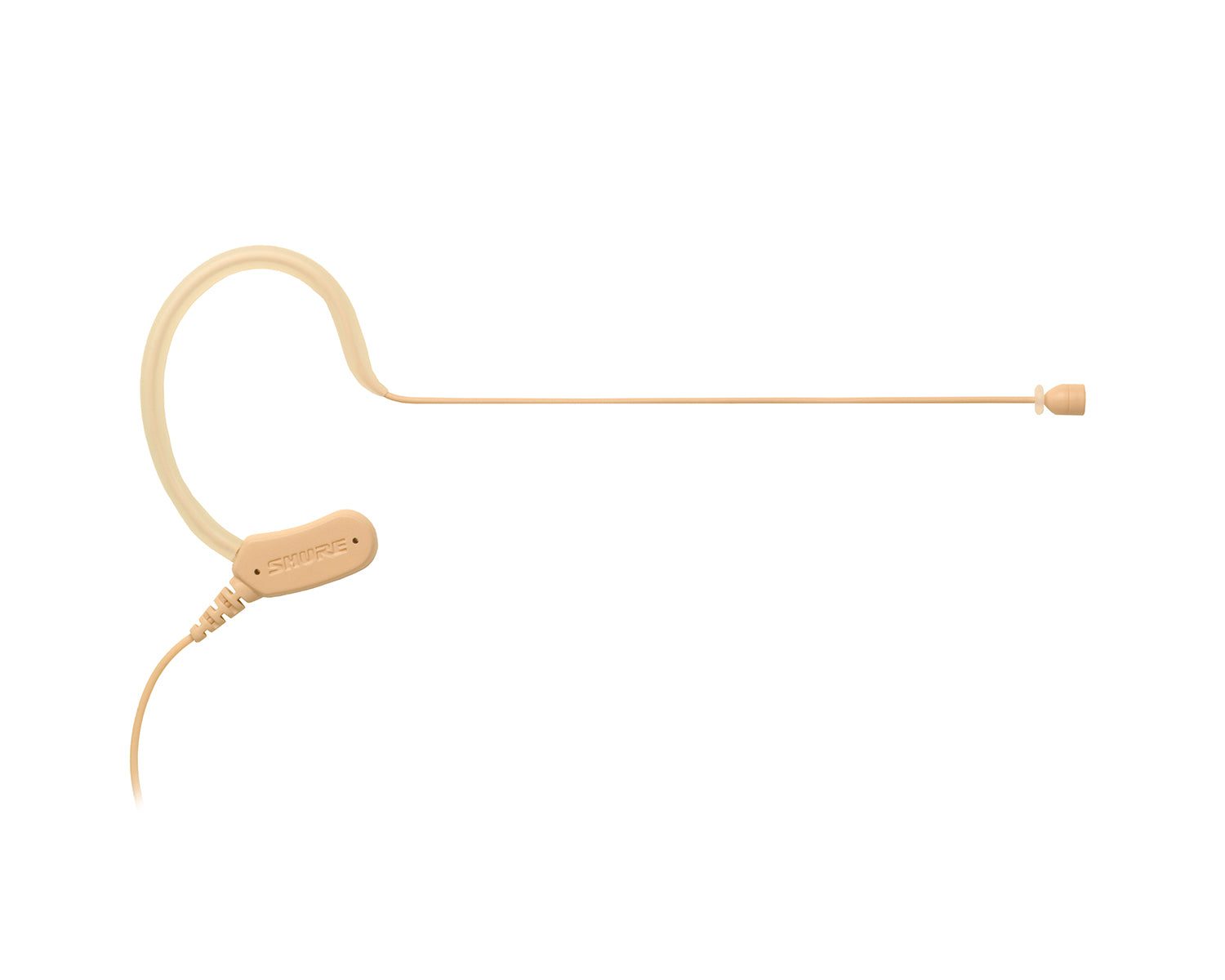

MX153 Earset Features

Subminiature, omnidirectional cartridge offers superior speech clarity and enhanced plosive protection with no proximity effect
Terminated with TQG/TA4F connector for direct connectivity to Shure wireless bodypack transmitters
Ultra-lightweight, comfortable, flexible design is stable and easy to place over either ear
CommShield¬Æ Technology guards against interference from cellular RF devices and digital bodypack transmitters
Reinforced, attached soft flex cable
Matte tan finish
Includes protective storage pouch, 3 windscreens, and collar clip

Specs

System Specifications

Working Range: 91 m (300 ft) Line of Sight Note: Actual range depends on RF signal absorption, reflection and interference.
Audio Frequency Response: 50 to 15,000 Hz Note: Dependent on microphone type
Total Harmonic Distortion: Ref. ¬±33 kHz deviation with 1 kHz tone 0.5%, typical
Dynamic Range: 100 dB, A-weighted, typical
Operating Temperature: -18¬∞C (0¬∞F) to 57¬∞C (135¬∞F)
Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

BLX4 Receiver Specifications

Audio Output Level Ref. ¬±33 kHz deviation with 1 kHz tone:
- XLR connector: ‚Äì27 dBV (into 100 kŒ© load)
- 6.35 mm (1/4") connector: ‚Äì13 dBV (into 100 kŒ© load)
RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
Weight: 8.5 oz. (241 g)
Housing: Molded ABS
Power Requirements: 12‚Äì15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

BLX1 Bodypack Specifications

Audio Input Level
- max: -16 dBV maximum
- min (0 dB): +10 dBV maximum
Gain Adjustment Range: 26 dB
RF Transmitter Output: 10 mW, typical (varies by region)
Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight: 2.6 oz. (75 g), without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)

MX153 Earset Specifications

Transducer Type: Electret Condenser
Polar Pattern: Omnidirectional
Frequency Response: 20 to 20,000 Hz
Output Impedance: N/A
Sensitivity open circuit voltage, @ 1 kHz, typical: -41 dBV/Pa [1] (9 mV/Pa)
Maximum SPL: 1 kHz at 1% THD
Signal-To-Noise Ratio: 60 dB
Dynamic Range @ 1 kHz:
Self Noise equivalent SPL, A-weighted, typical: 34 dB
Common Mode Rejection: 20 to 20,000 Hz
Operating Temperature Range: -18¬∞C (0¬∞F) to 57¬∞C (135¬∞F)
Polarity: Positive pressure on diaphragm produces negative voltage on pin 3 with respect to pin 1.
Power Requirements: +1‚Äì5 V DC (500 ¬µA max.)
Weight: 19.76 g
