Shure BLX14R Wireless Rackmount Guitar System BLX4R/WA302 K3E
£431.64£359.70 Incl. VATExcl. VAT
Description

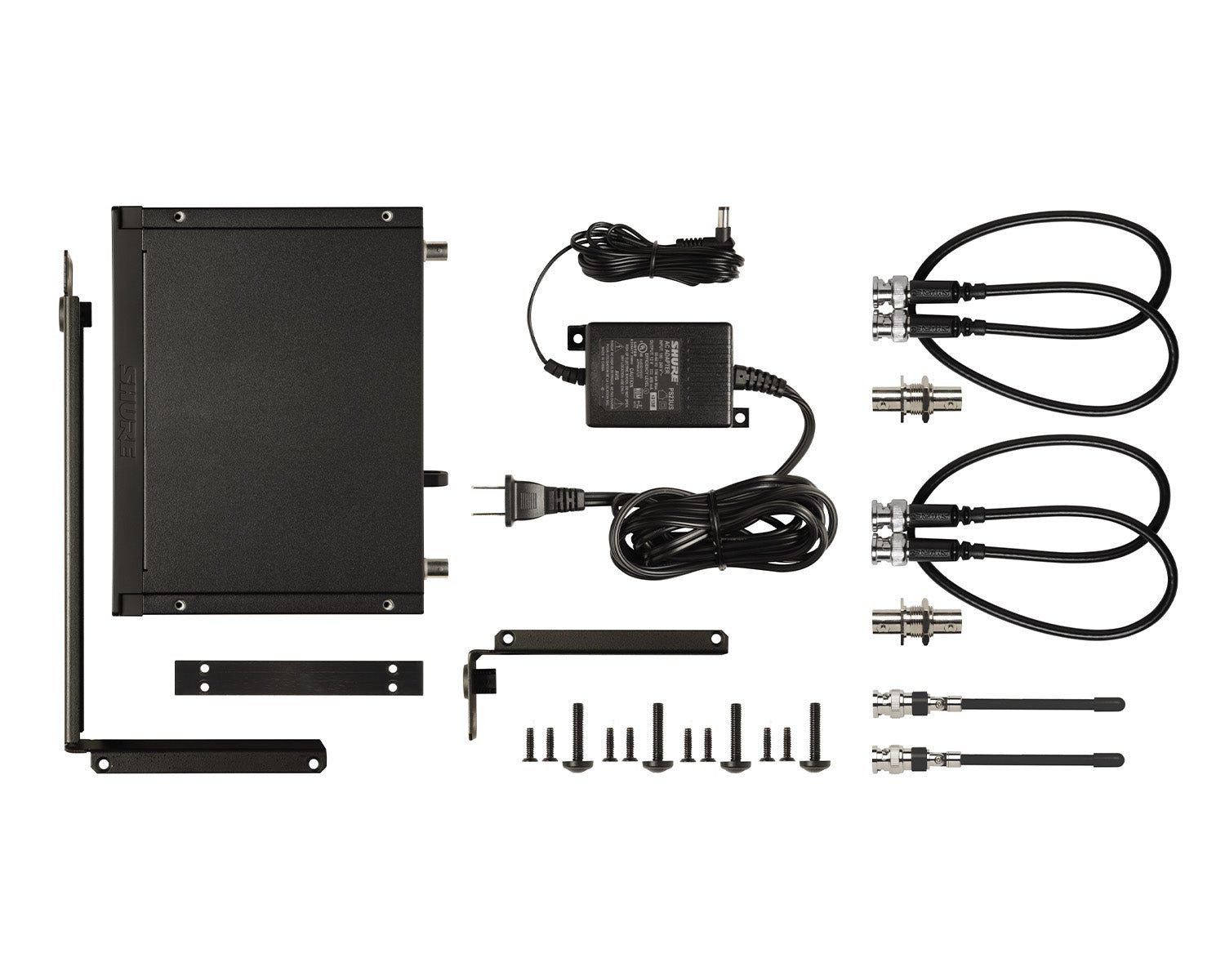

The Shure BLX14R Wireless Rack-mount Guitar System combines professional-quality sound with simple setup and up to 14 hours battery life for legendary audio performance right out of the box. The system includes BLX4R half-rack single-channel receiver, BLX1 bodypack transmitter with WA302 instrument cable, power supply, 2 AA batteries, windscreens, rackmount kit, 2 1/4 wave antennas, zipper bag, and user guide.
Features

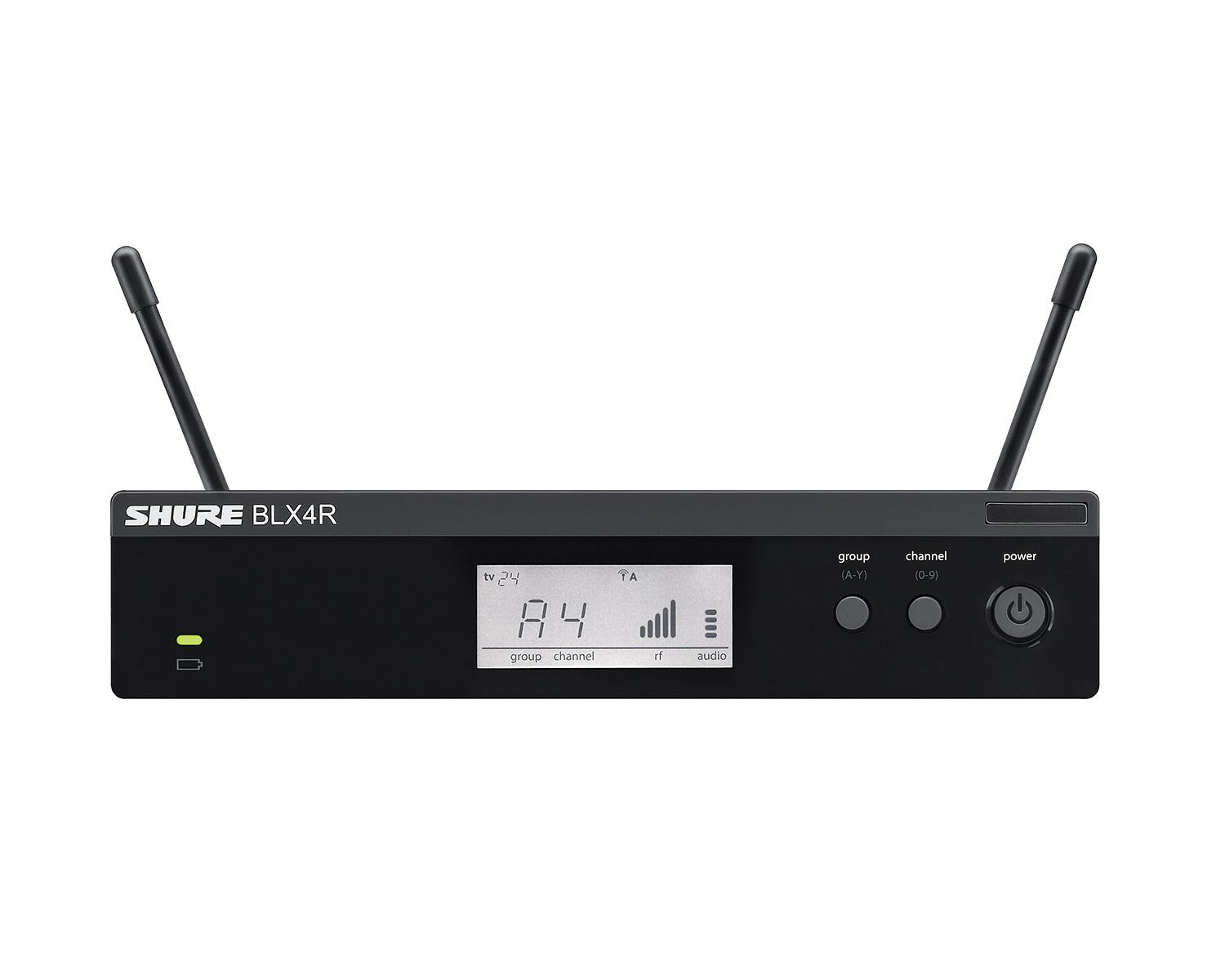

BLX4R Receiver Features
- One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
- Up to 12 compatible systems per frequency band (region-dependent)
- XLR and ¼” output connectors
- Two-colour audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping)
- Adjustable output level
- Removable antennas for quick antenna distribution
- LC Display with detailed RF and audio metering

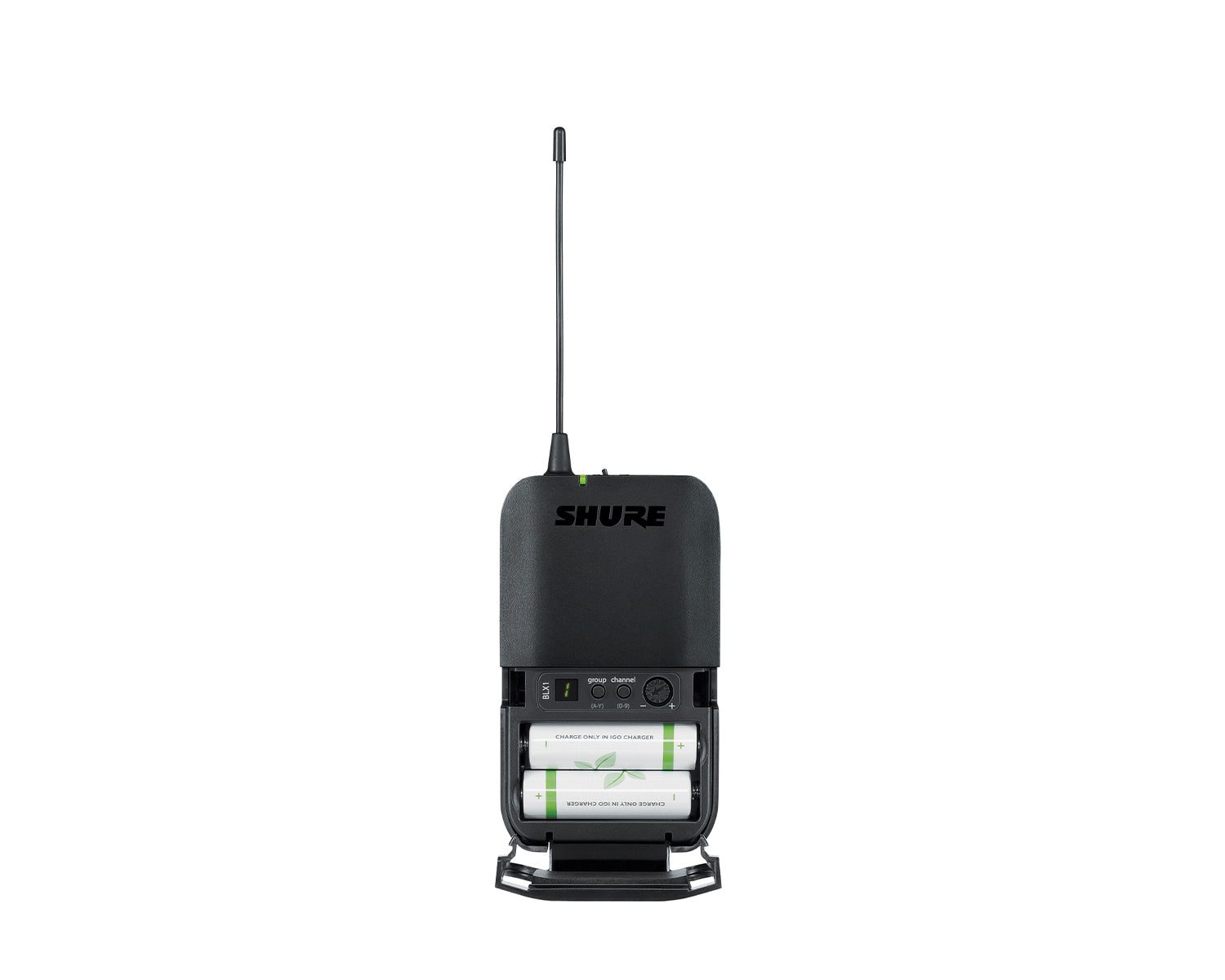

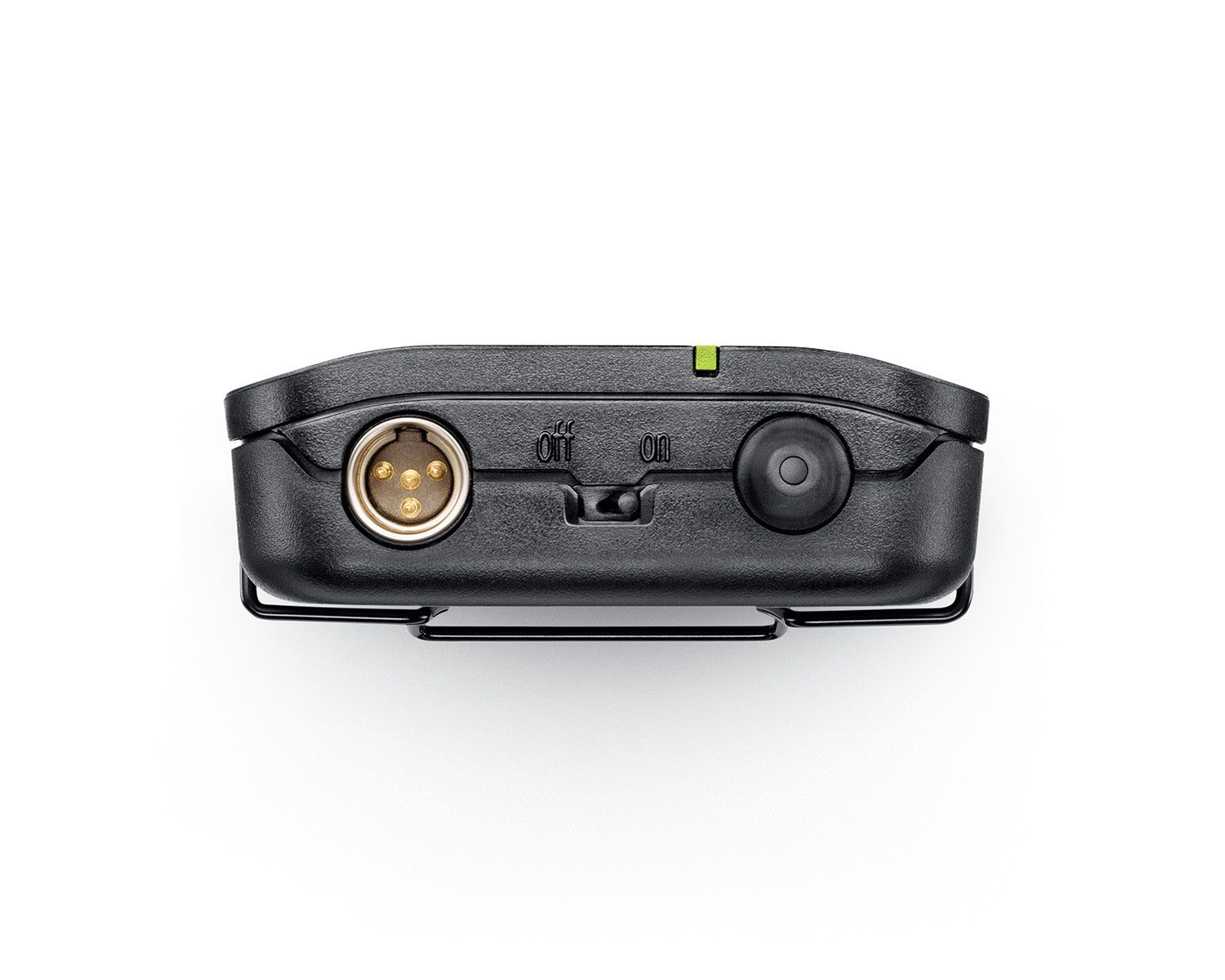

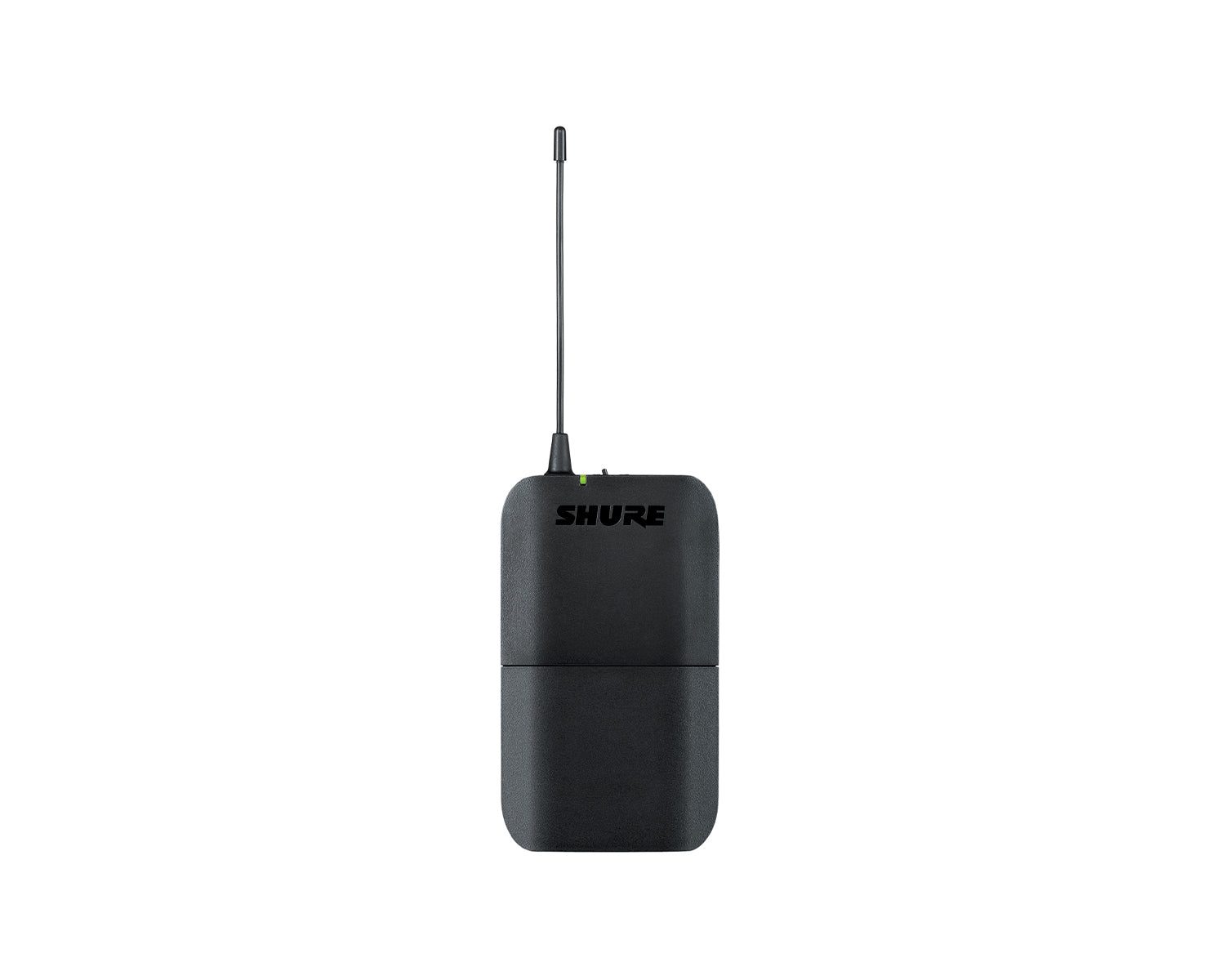

BLX1 Bodypack Features
- For use as part of BLX and BLX-R Analogue Wireless Systems
- Power and battery status LED
- Adjustable gain control
- Quick and easy frequency matching
- AA batteries provide up to 14 hours of continuous use
- 100 m (300 ft.) operating range (line of sight)

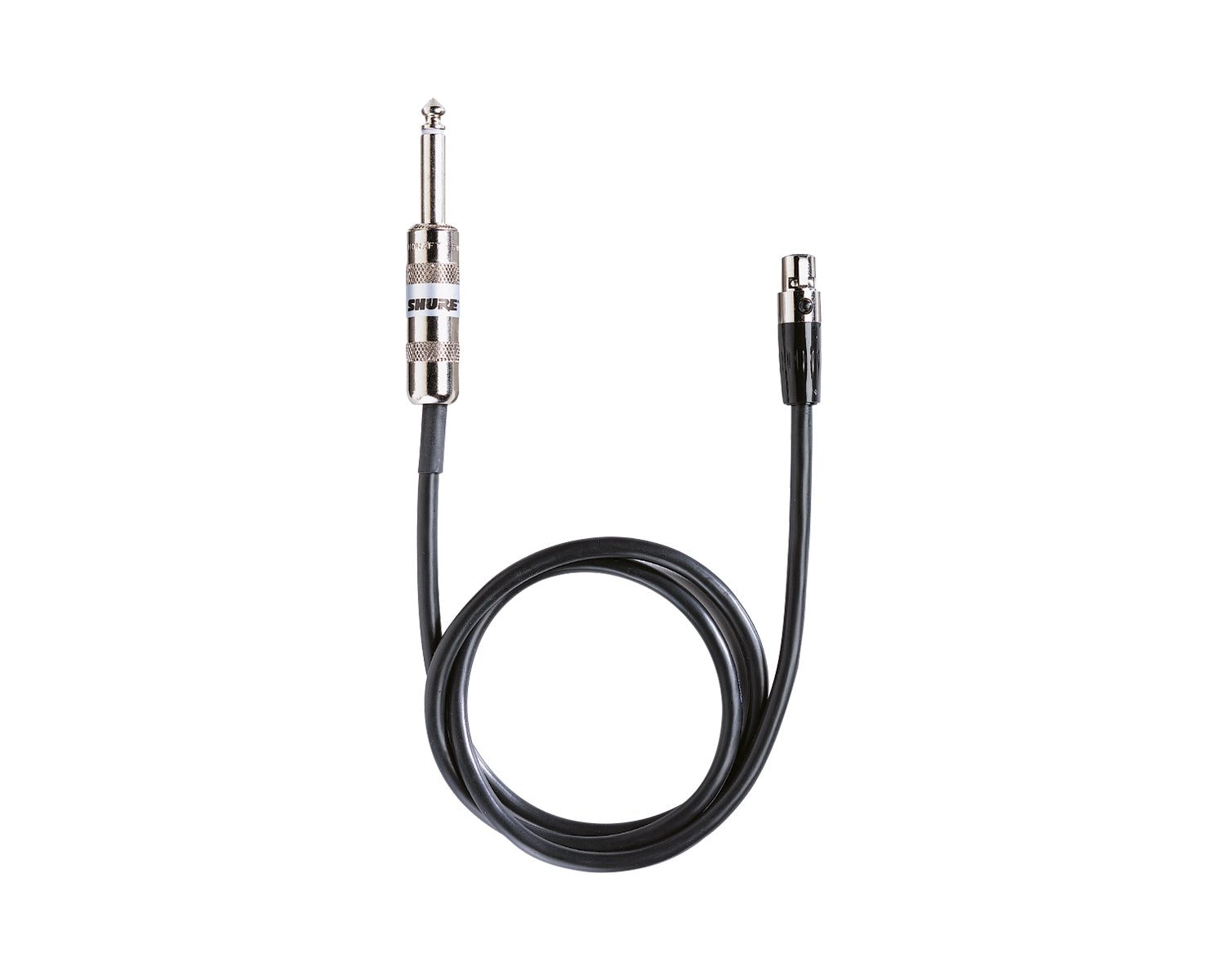

WA302 Cable Features
- 2.5 ft (75cm)
- 4-pin mini connector (TA4F) to 1/4-inch connector
Specs
System Specifications
- Working Range: 91 m (300 ft) Line of Sight Note: Actual range depends on RF signal absorption, reflection and interference.
- Audio Frequency Response: 50 to 15,000 Hz Note: Dependent on microphone type
- Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
- Dynamic Range: 100 dB, A-weighted, typical
- Operating Temperature: -18°C (0°F) to 57°C (135°F)
- Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
BLX4R Specifications
- Output Impedance
- XLR connector: 200 Ω
- 6.35 mm (1/4") connector: 50 Ω
- Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
- XLR connector: –20.5 dBV (into 100 kΩ load)
- 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
- RF Sensitivity: -105 dBm for 12 dB SINAD, typical
- Image Rejection: >50 dB, typical
- Dimensions: 1.65 in. X 7.80 in.X 6.42 in. (42 mm X 198 mm X 163 mm) H x W x D
- Weight without antennas: 2.2 lbs (998 g)
- Housing: Molded ABS, steel
- Power Requirements: 12–15 V DC @ 260 mA, supplied by external power supply (tip positive)
BLX1 Bodypack Specifications
- Audio Input Level
- max: -16 dBV maximum
- min (0 dB): +10 dBV maximum
- Gain Adjustment Range: 26 dB
- Input Impedance: 1 MΩ
- RF Transmitter Output: 10 mW, typical (varies by region)
- Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
- Weight: 2.6 oz. (75 g), without batteries
- Housing: Molded ABS
- Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
- Battery Life: up to 14 hours (alkaline)
