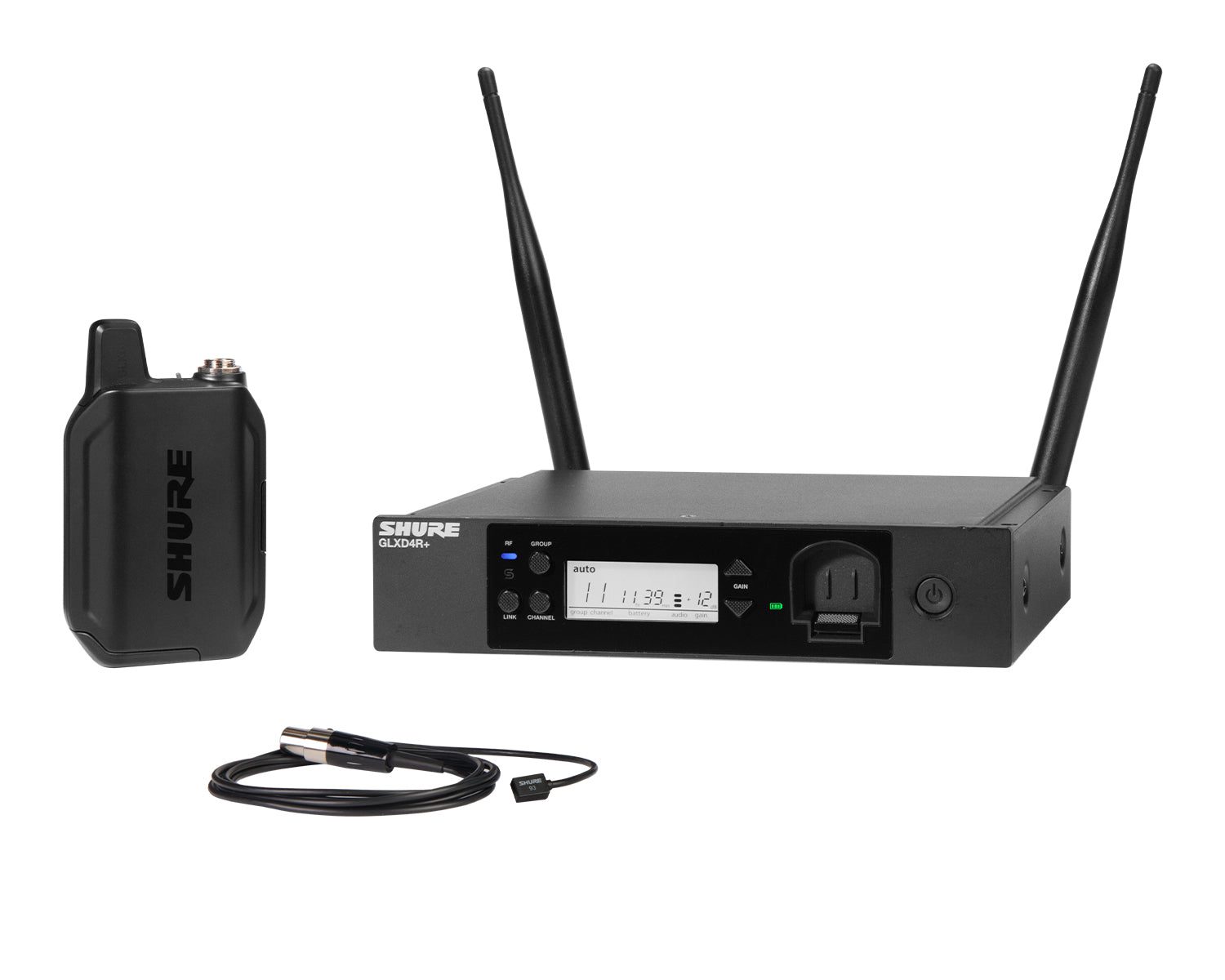

Name: Shure GLXD14R+/93 Wireless Lavalier Rackmount System GLXD1+/WL93 Z4
Brand: Shure
SKU: GLXD14R+UK/93-Z4
Availability: InStock

Description

The GLX-D+ Dual Band Wireless Rack System features the miniature wearable WL93 lavalier microphone for spoken word applications and the GLXD4R+ half-rack receiver. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

Features

System Features

Exceptional digital audio clarity
Compatible with multiple legendary microphone options
Automatically moves away from interference without audio interruption
Operates in 2.4 and 5.8 GHz spectrum
Rechargeable battery delivers up to 12 hours of runtime
Rock-solid RF performance for multiple system installations
License-free frequency range

GLXD4R+ Receiver Features

Rackmount Receiver
Half-Rack Size
Built-in Battery Charger Bay
Detachable Antennas

GLXD1+ Bodypack Features

Rugged Metal Construction
Included Rechargeable Battery Delivers up to 12 Hours of Runtime
Compatible with instrument cable, and a variety of headset and lavalier microphone options
Range: up to 100 feet (30 meters)

WL93 Lavalier Features

Subminiature lavalier design; ideal size for theatre, television broadcasting, video, film, and sound reinforcement
Small, inconspicuous mounting hardware
Full, clear sound comparable to larger microphones
Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
Controlled low-frequency rolloff reduces low-frequency clothing and room noise
Low distortion, wide dynamic range
Uniform omnidirectional polar pattern

Specs

System Specifications

Transmit Mode: Shure proprietary digital
RF Output Power: 10 mW E.I.R.P. maximum
Ambient Temperature Range:
- Charging: 0¬∞C (32¬∞F) to 40¬∞C (104¬∞F)
- Operating: 0¬∞C (32¬∞F) to 45¬∞C (113¬∞F)
Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.
Audio Frequency Response: 20 Hz ‚Äì 20 kHz
Dynamic Range: 122 dB, A-weighted
RF Sensitivity: -88 dBm, typical
Total Harmonic Distortion: 0.2%, typical
Battery Life: Up to 11.5 hours
Channel Count:
- Up to 4 typical, 8 optimal
- 2.4 GHz only: Up to 4 typical, 5 optimal

GLXD4R+ Receiver Specifications

Power Requirements: 14.5 V ‚Äì 17 V, 600 mA (efficiency level VI power supply)
Antenna Type: Dual-band ¬Ω Wave Sleeve Dipole
Dimensions: 7.7 x 6.4 x 1.6 in. (196.8 x 162.97 x 41.8 mm), without antenna
Weight: 30.5 oz (866 g)
Housing: Steel
Spurious Rejection: > 35 dB, typical
Gain Adjustment Range: -18 to 42 dB, 1 dB increments
Phantom Power Protection: Yes
Audio Output:
Configuration
- XLR Output: Balanced
- 6.35 mm (1/4") output: Impedance balanced
Full Scale Output
- 6.35 mm (1/4"): +12 dBV
- XLR: LINE setting = +18 dBV, MIC setting = -12 dBV
Mic/Line Switch: 30 dB pad
Pin Assignments
- XLR Output: 1=ground, 2=hot, 3=cold
- 6.35 mm (1/4") connector: Tip=audio, Ring=no audio, Sleeve=ground
Receiver Antenna Input:
Maximum Input Level: -20 dBm

GLXD1+ Bodypack Specifications

Antenna Type: Dual-band Internal Monopole
Dimensions: 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D)
Weight: 5.4 oz (153.1 g), without battery
Housing: Aluminium alloy, ABS plastic
Connector: 4-pin male mini connector (TA4M)
Maximum Input Level: +8.4 dBV (7.5 Vp-p)
Configuration: Unbalanced
Pin Assignments
- 1: Ground (cable shield)
- 2: + 5 V bias
- 3: Audio
- 4: Tied through active load to ground (on instrument adapter cable, pin 4 floats

WL93 Lavalier Specifications

Type: Condenser (electret bias)
Frequency Response: 50 to 20,000 Hz
Polar Pattern: Omnidirectional , uniform with frequency
Sensitivity: open circuit voltage: ‚àí38 dBV/Pa(13 mV)
Clipping Level at 1 kHz: 0.25 V at 120 dB
Maximum SPL: 120 dB
Dynamic Range (Maximum SPL, A-weighted): 102 dB
Self Noise: 18 dB typical , A-Weighted
Signal-to-Noise Ratio: 76 dB at 94 dB SPL (IEC 651)
Polarity: Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground)
Power Requirements: 2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4);Current Drain 40 ¬µA typical
Environmental Conditions:
- Operating Temperature: ‚àí18 to 57¬∞C (0 to 135¬∞F)
- Storage Temperature: ‚àí29 to 74¬∞C (‚àí20 to 165¬∞F))
Cable: 1.27 m (4.17 ft), attached , two-conductor , shielded , terminated by miniature Connector Type TA4F
Housing: Microphone: Black ABS thermoplastic case with stainless-steel-mesh grille
Weight: Microphone: 16 g (0.57 oz.)
