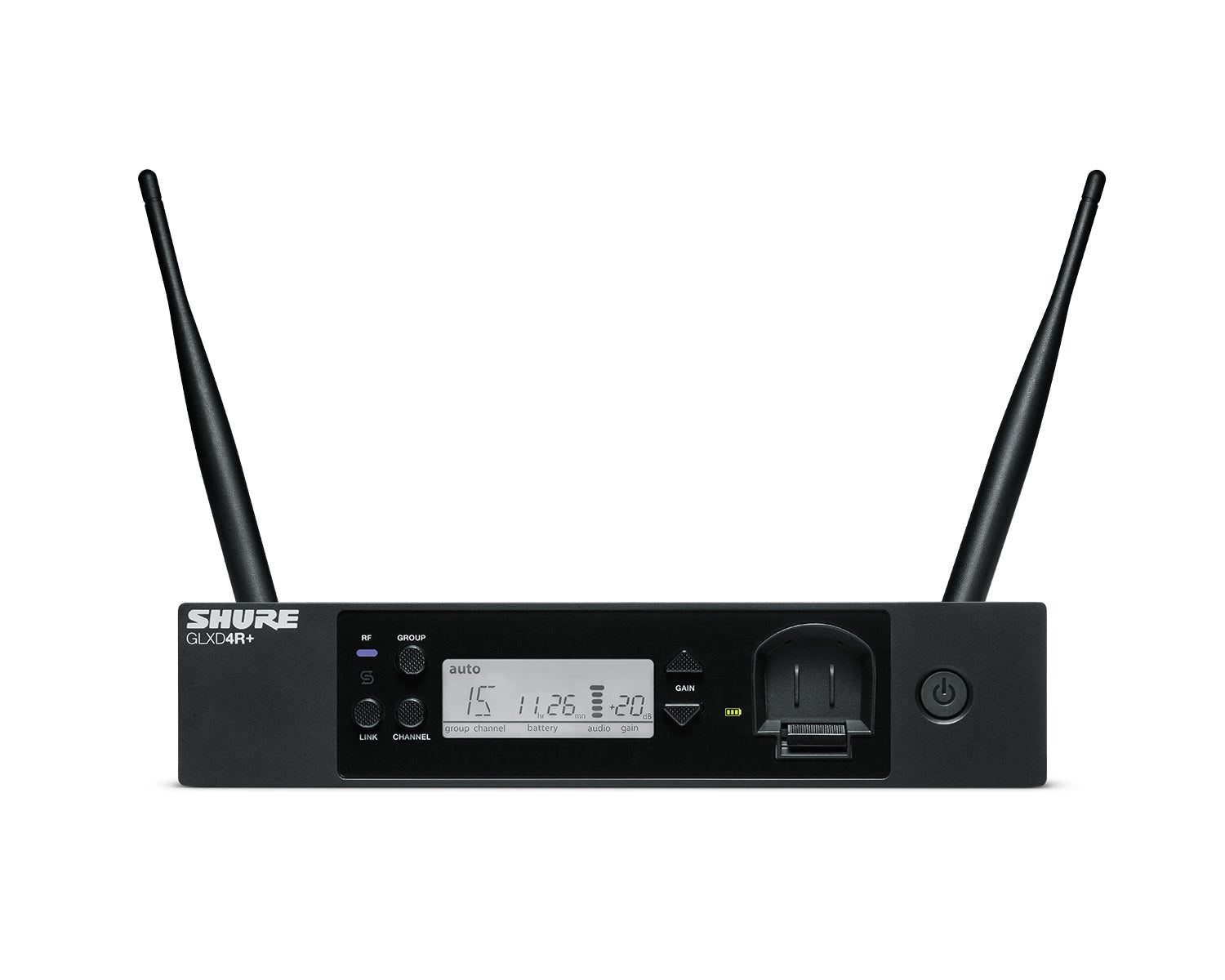

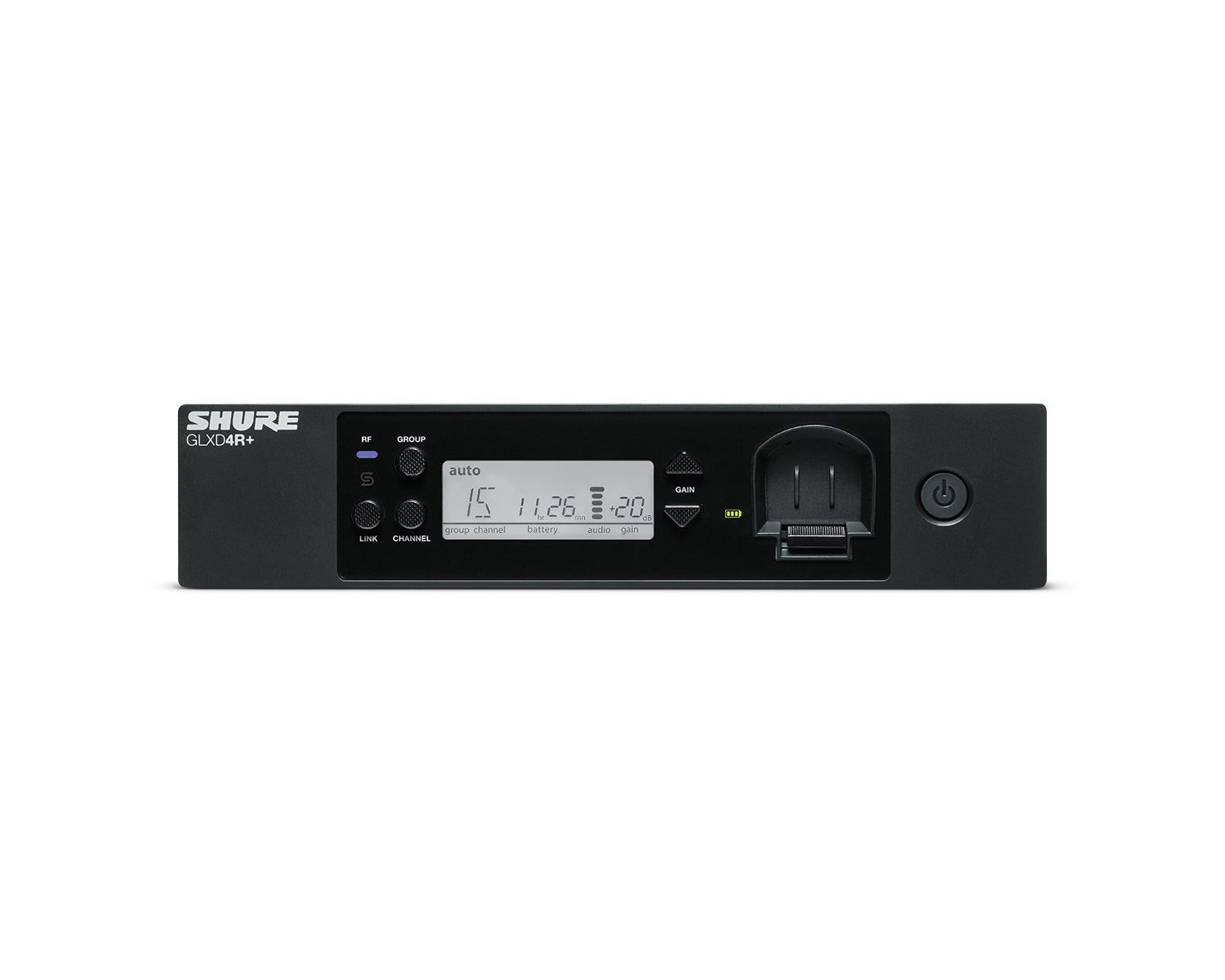

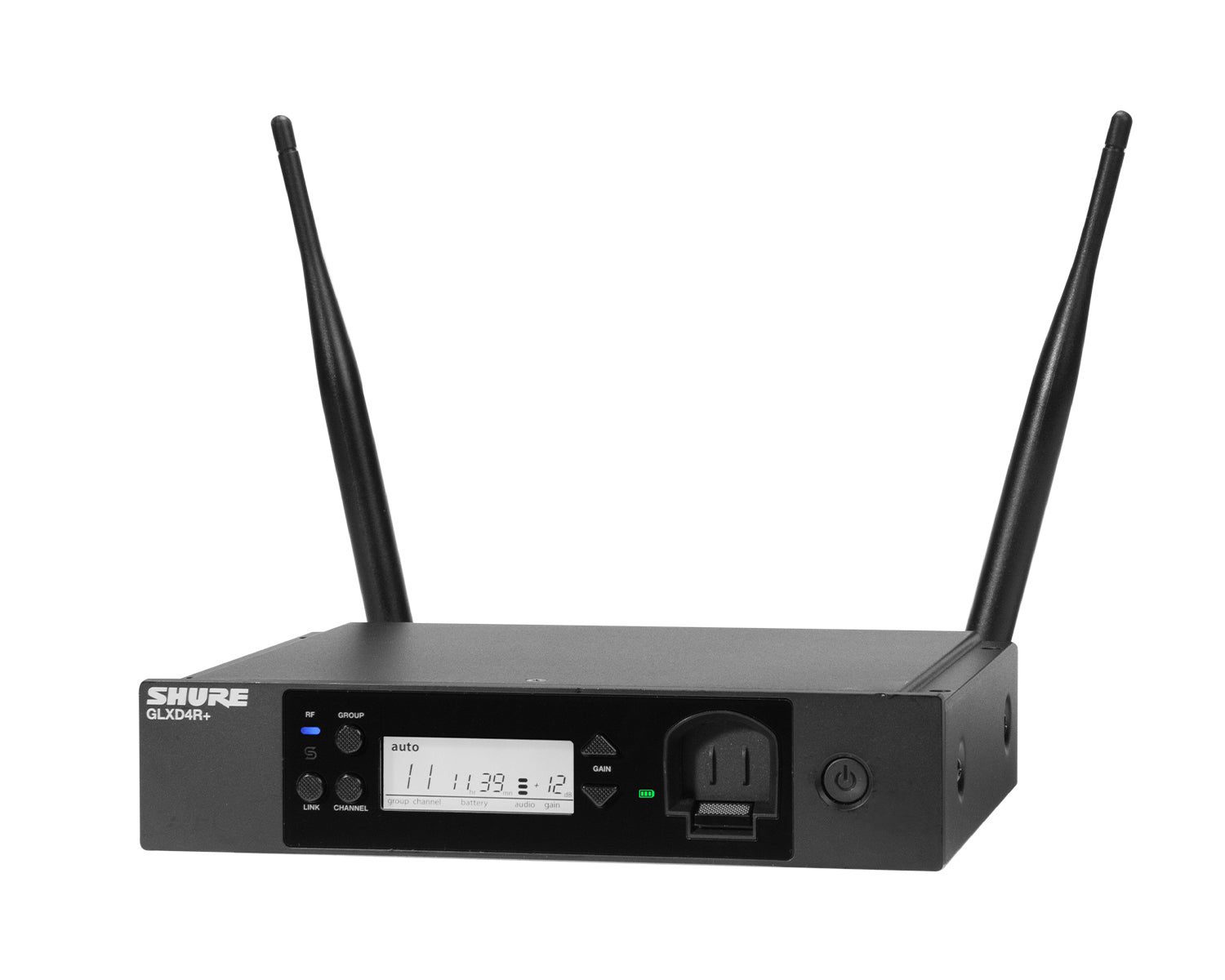

Shure GLXD4R+ Digital Wireless Dual Band Half-Rack Receiver Z4
£391.65£326.38 Incl. VATExcl. VAT
The GLXD4+ Dual Band Rack Receiver delivers exceptional digital audio clarity. In combination with the new GLXD+ Dual Band Frequency Manager provides seamless operation with advanced RF performance for up to 16 simultaneous channels. Go wireless without complication.GLX-D+ Dual Band Digital Wireless offers confidence without complexity. Dual-band operation in 2.4 and 5.8 GHz more than doubles the available bandwidth to avoid interference without audio interruption. The receiver is compatible with a selection of lavalier, headset, and vocal microphones. The included lithium-ion battery offers up to 12 hours of runtime, and can be charged directly on the receiver or via USB-C. Rack-mount receivers can be combined with the GLX-D+ Frequency Manager and directional antennas (both sold separately) for installations where a larger number of channels are needed.
- Z4 Band: 2.4 & 5.8 GHz
- For use as part of GLXD+ Wireless Systems
- Rackmount Receiver
- Detachable Antennas
- Built-in Battery Charger Bay
- Automatically moves away from interference without audio interruption
- Exceptional digital audio clarity
- Compatible with multiple legendary microphone options
- Operates in 2.4 and 5.8 GHz spectrum
- Rechargeable battery delivers up to 12 hours of runtime
- Rock-solid RF performance for multiple system installations
- License-free frequency range
- Power Requirements: 14.5 V – 17 V, 600 mA (efficiency level VI power supply)
- Antenna Type: Dual-band ¬Ω Wave Sleeve Dipole
- Dimensions: 7.7 x 6.4 x 1.6 in. (196.8 x 162.97 x 41.8 mm), without antenna
- Weight: 30.5 oz (866 g)
- Housing: Steel
- Spurious Rejection: > 35 dB, typical
- Gain Adjustment Range: -18 to 42 dB, 1 dB increments
- Phantom Power Protection: Yes
- Audio Output:
- Configuration
- XLR Output: Balanced
- 6.35 mm (1/4") output: Impedance balanced
- Impedance
- XLR Output: 100 Ω
- 6.35 mm (1/4") output: 100 Ω (50 Ω, Unbalanced)
- Full Scale Output
- 6.35 mm (1/4"): +12 dBV
- XLR: LINE setting = +18 dBV, MIC setting = -12 dBV
- Mic/Line Switch: 30 dB pad
- Pin Assignments
- XLR Output: 1=ground, 2=hot, 3=cold
- 6.35 mm (1/4") connector: Tip=audio, Ring=no audio, Sleeve=ground
- Receiver Antenna Input:
- Impedance: 50 Ω
- Maximum Input Level: -20 dBm
