Description

Expanding on the success and innovation of the KSM9, the KSM9HS offers a new set of polar patterns (hypercardioid and subcardioid) to provide the flexibility needed to achieve optimal results in any environment. The hypercardioid pattern delivers excellent gain before feedback and a focused low-end frequency response, while the subcardioid pattern produces an open, natural sound and further reduces the proximity effect. As a premium vocal microphone, the KSM9HS captures vocal subtlety with extraordinary detail to deliver clear articulation, functional flexibility and precise vocal reproduction for live performance. Transformerless, Class A preamplifier circuitry and dual, gold-layered diaphragms capture a transparent sound, revealing every nuance and subtlety in a vocal performance. The KSM9HS uses an advanced suspension shock mount to virtually eliminate handling noise, even in the most demanding live environments.

Features
  • Dual 3/4" gold layered, low mass Mylar¬Æ diaphragms provide superior frequency response.

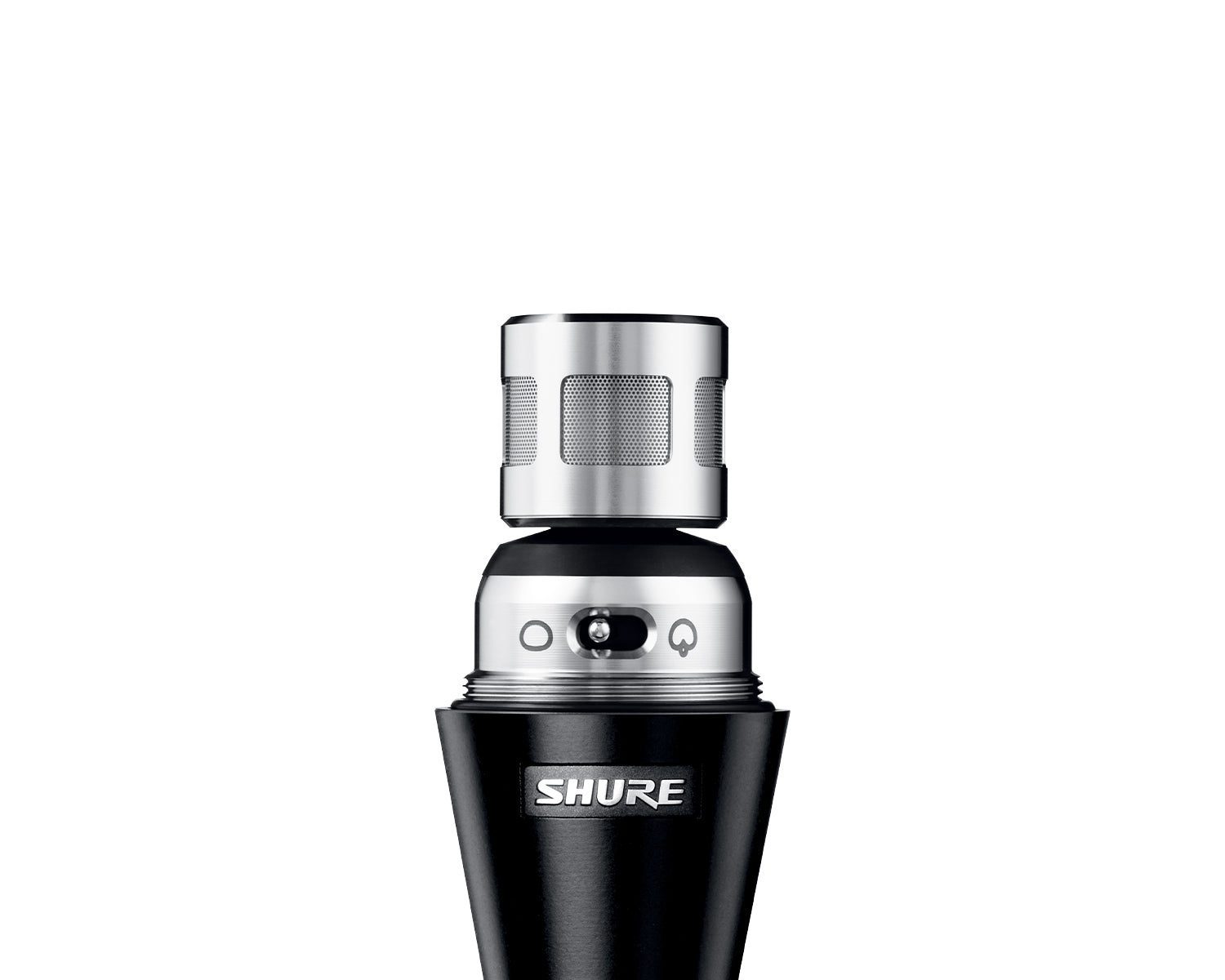

  • Dual polar patterns (Hypercardioid and subcardioid) for even greater flexibility in demanding performance applications.
  • Class A, discrete, transformerless preamplifier provides transparent, extremely fast transient response with no crossover distortion and minimal harmonic and intermodulation distortion.
  • Advanced suspension shock mount system that isolates cartridge from handling and stand noise.
  • Premium electronic components, including gold-plated internal and external connectors.
  • Three-stage grille reduces ‚Äúpop‚Äù and breath noise.
Specs
  • Type: Electret Condenser
  • Polar Pattern: Hypercardioid, Subcardioid (selectable)
  • Frequency Response: 50 to 20,000 Hz
  • Output Impedance: 145 Œ©
  • Sensitivity open circuit voltage, @ 1 kHz, typical:
  • Hypercardioid: ‚àí50.5 dBV/Pa[1] (2.99 mV)
  • Subcardioid: ‚àí53.0 dBV/Pa[1] (2.24 mV)
  • Maximum SPL 1 kHz at 1% THD:
    • 2500 Œ© load
    • Hypercardioid: 150.8 dB SPL
    • Subcardioid: 153.0 dB SPL
    • 1000 Œ© load
    • Hypercardioid: 150.9 dB SPL
    • Subcardioid: 153.1 dB SPL
  • Signal-to-Noise Ratio:
    • Hypercardioid: 73.3 dB
    • Subcardioid: 71.3 dB
  • Dynamic Range @ 1 kHz:
    • 2500 Œ© load
    • Hypercardioid: 130.8 dB
    • Subcardioid: 131.3 dB
    • 1000 Œ© load
    • Hypercardioid: 130.1 dB
    • Subcardioid: 130.6 dB
  • Clipping Level 20 Hz to 20 kHz, 1% THD:
    • 2500 Œ© load: 7.0 dBV
    • 1000 Œ© load: 6.4 dBV
  • Self Noise equivalent SPL, A-weighted, typical:
    • Hypercardioid: 20.7 dB SPL-A
    • Subcardioid: 22.7 dB SPL-A
  • Common Mode Rejection 20 to 80,000 Hz: ‚â•60 dB
  • Connector: Three-pin professional audio (XLR), male, balanced
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Power Requirements: 11 to 52 V DC phantom power (IEC-61938) 5.4 mA, typical
  • Weight: 300 g (10.6 oz.)
