Shure MX405/S Microflex 5" Supercardioid Gooseneck Microphone + Preamp
£325.88£391.06 Excl. VATIncl. VAT
Shure MX405R/N Microflex 5" Gooseneck No Capsule Microphone Ring/Preamp
£260.71£312.85 Excl. VATIncl. VAT

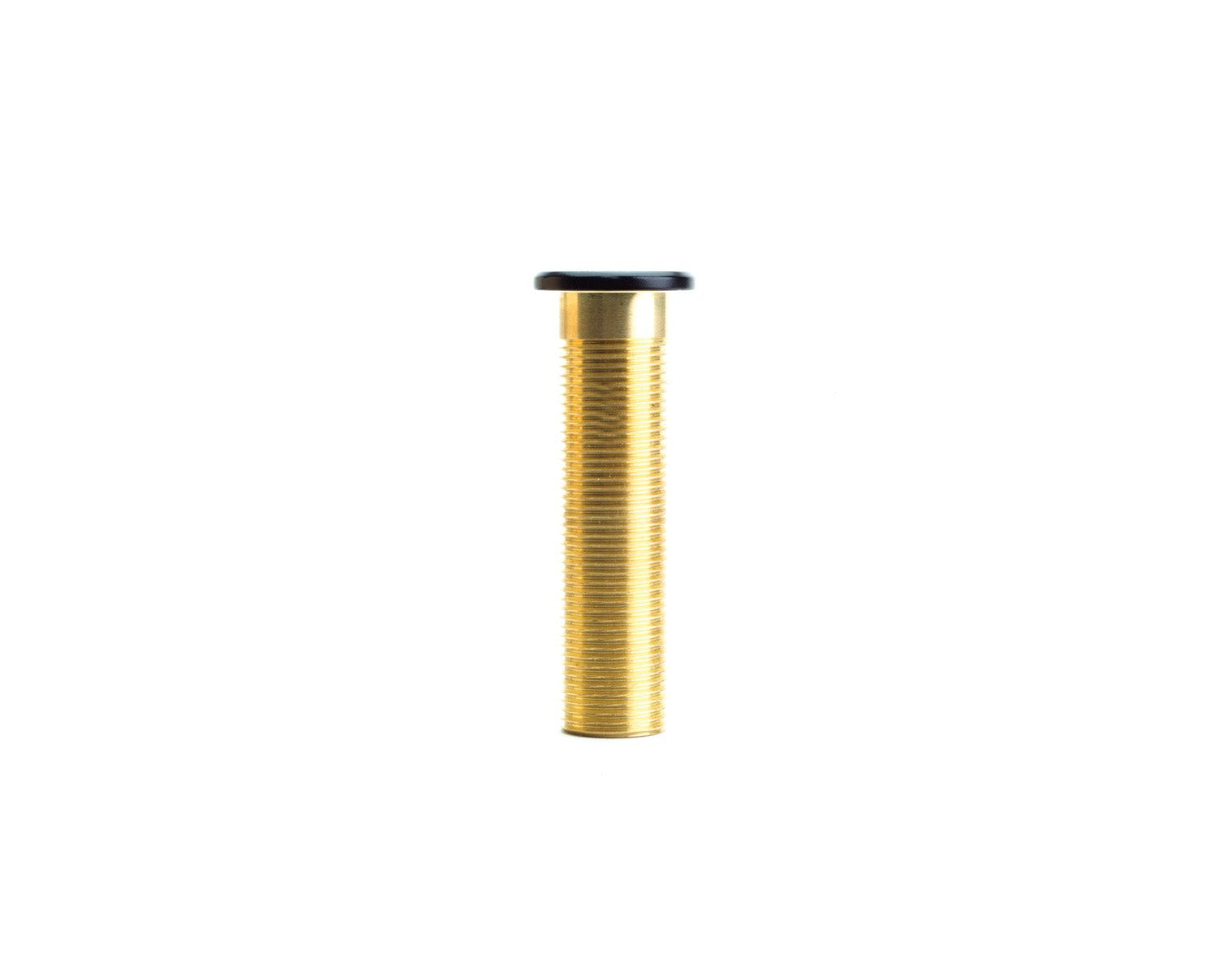

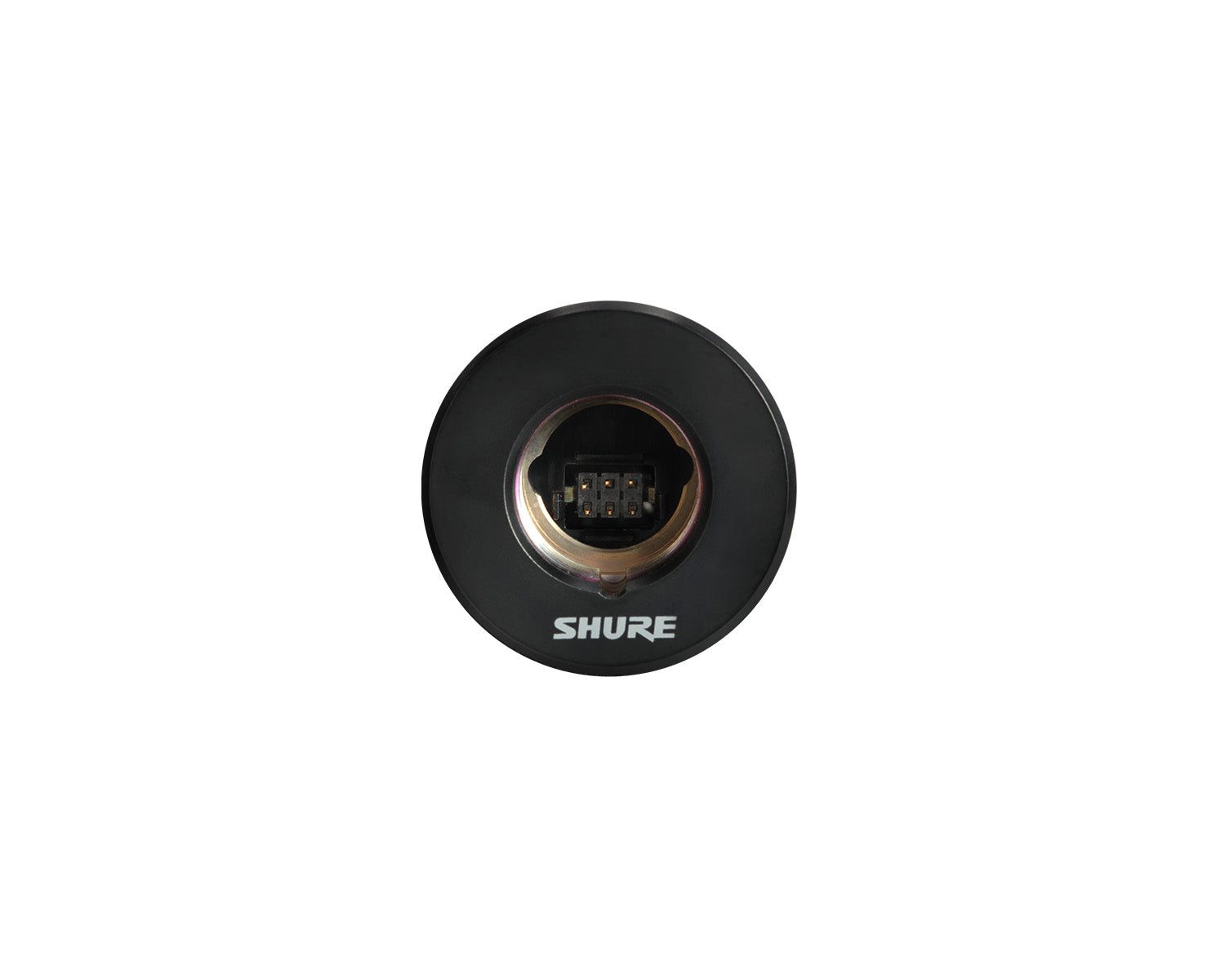

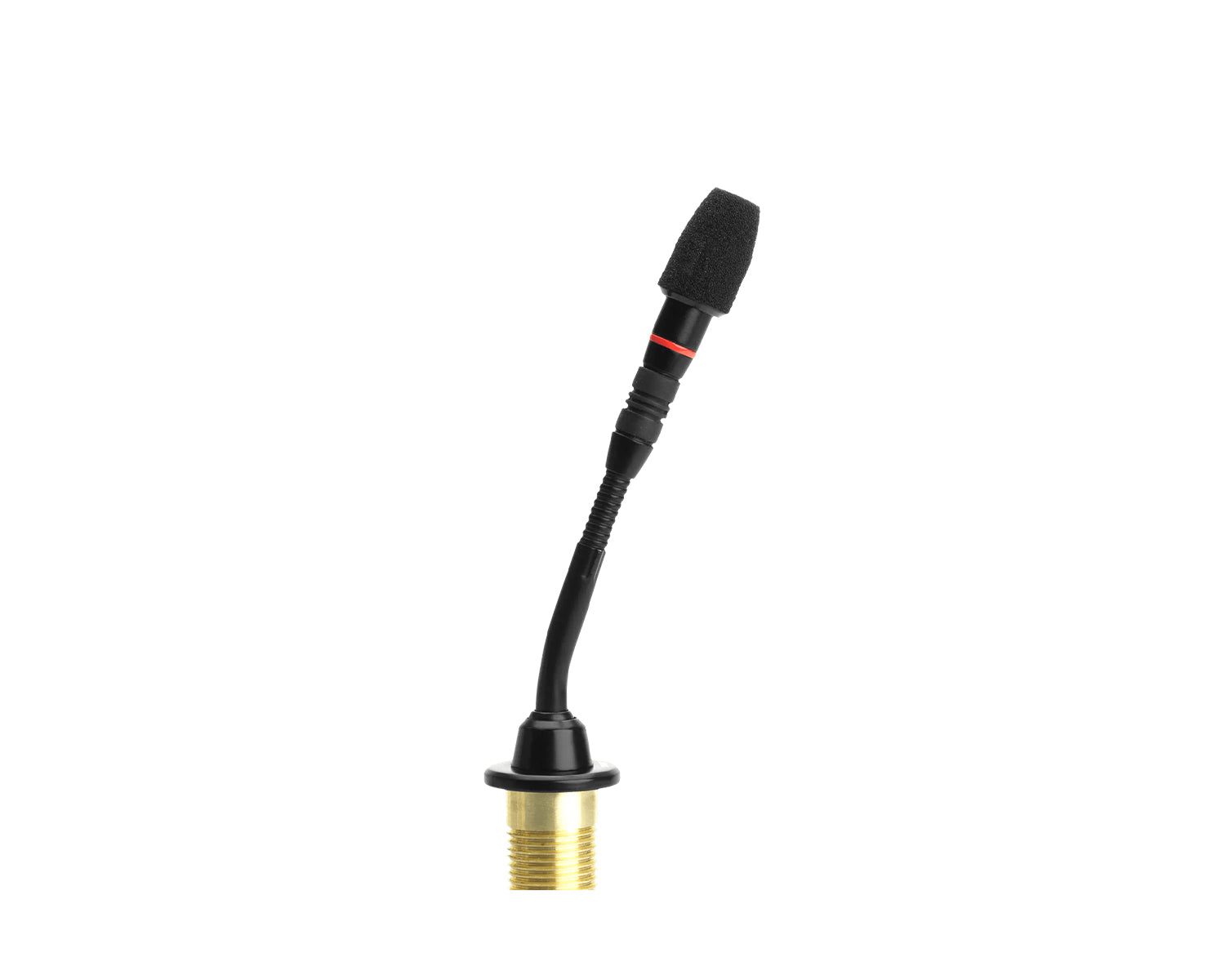

Shure MX405R/S Microflex 5″ Supercardioid Gooseneck Mic/Ring/Preamp
£325.88£391.06 Excl. VATIncl. VAT
Description
The MX405 is a gooseneck microphone with a Bi-Colour LED or red light ring status display. It has a 12.7 cm / 5 inch gooseneck and is suitable for boardrooms and other sites where aesthetics are important.
Features
- Gooseneck length: 5 inch / 12.7 cm
- Low profile, aesthetic design
- Wide dynamic range and smooth frequency response
- RF filtering with CommShield‚Ñ¢ technology
- Red light ring on gooseneck top
- Supercardioid Capsule
Specs
- Type: Condenser (electret bias)
- Frequency Response: 50–17000 Hz
- Polar Pattern (at 1 kHz): Supercardioid
- Output Impedance: EIA Rated at 150 Ω (170 Ω actual)
- Output Configuration: Active Balanced
- Sensitivity (at 1 kHz , open circuit voltage): Supercardioid: –34 dBV/Pa (21 mV)
- Maximum SPL (1 kHz at 1% THD, 1 kW load): Supercardioid: 120 dB
- Equivalent Output Noise (A-weighted): Supercardioid: 27 dB SPL
- Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): Supercardioid: 68 dB
- Dynamic Range (1 kΩ load at 1 kHz): 93 dB
- Common Mode Rejection (10 Hz to 100 kHz): 45 dB minimum
- Preamplifier Output Clipping Level (1% THD): -8 dBV (0.4 V)
- Polarity: 3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
- Weight: MX405: 0.054 kg (0.119 lbs)
- Logic Connections:
- LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
- LOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ).
- Mute Switch Attenuation: -50 dB minimum
- Environmental Conditions:
- Operating Temperature: -18–57 °C (0–135 °F)
- Storage Temperature: -29–74 °C (-20–165 °F)
- Relative Humidity: 0–95%
- Power Requirements: 48–52 Vdc phantom, 8.0 mA
