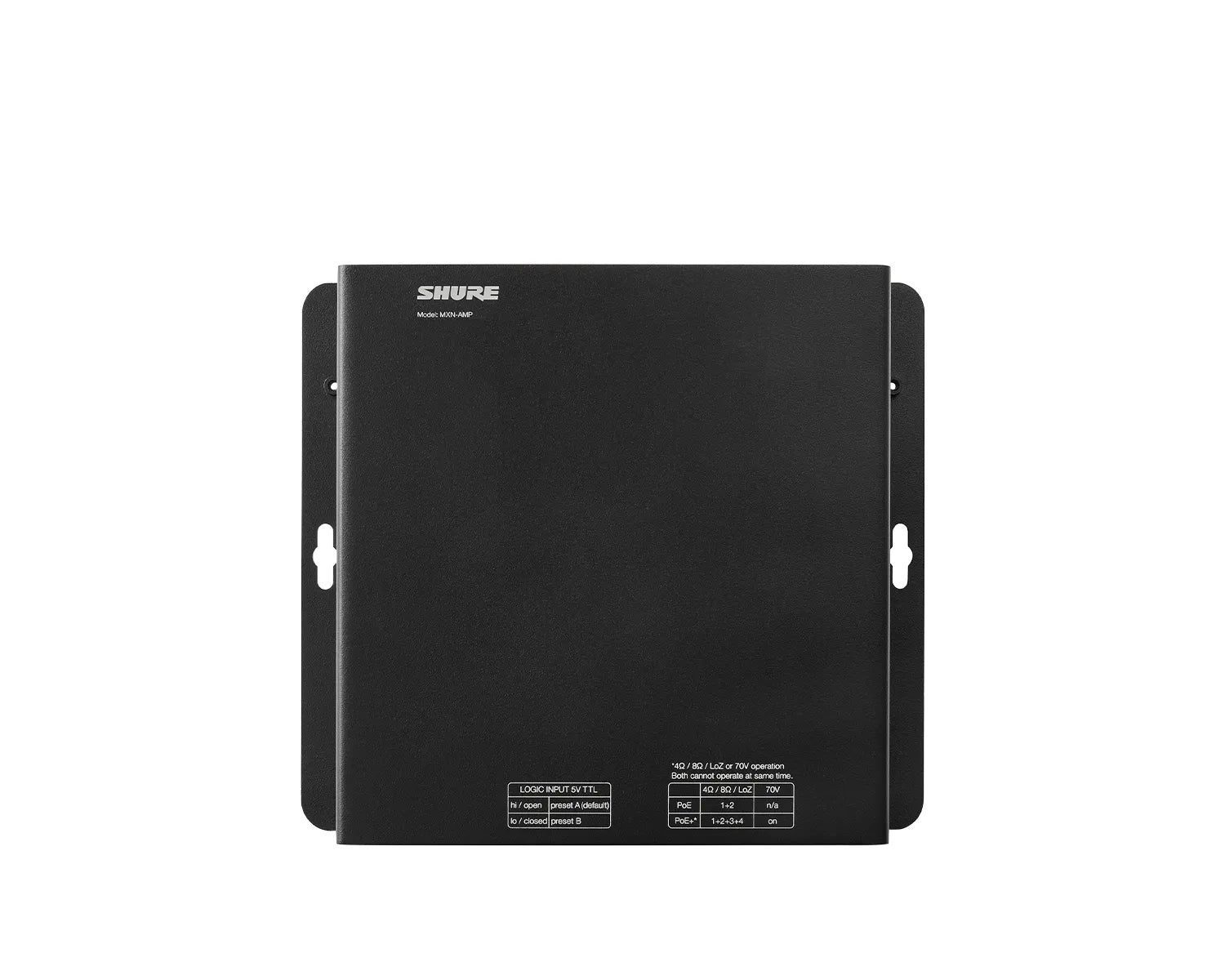

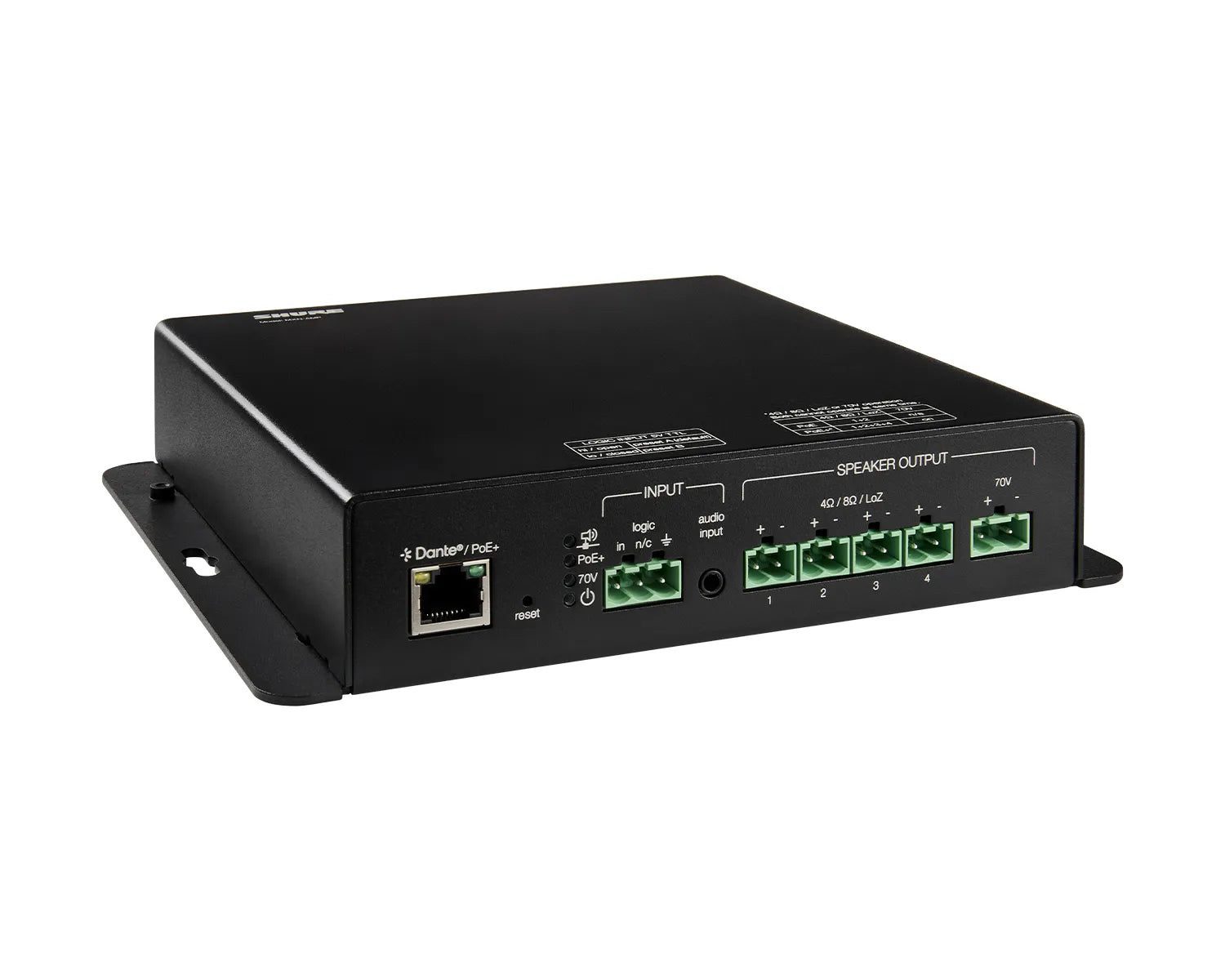

Name: Shure MXN-AMP PoE+ Powered 4-Channel Amplifier Dante
Brand: Shure
SKU: MXN-AMP
Availability: InStock

Shure MXN-AMP PoE+ Powered 4-Channel Amplifier Dante

£547.48£456.23 Incl. VATExcl. VAT

SKU: MXN-AMP Category: Install

Description

A multichannel PoE+-powered amplifier is designed for speech and program audio reproduction in meeting rooms. The Microflex¬Æ MXN-AMP Conferencing amplifier is designed for conferencing with clear, intelligible audio. When used with Microflex Ecosystem microphones, DSP, and loudspeakers, they deliver room-filling sound, quick installation in a variety of room types, and the efficiency of a single-source solution.

Features

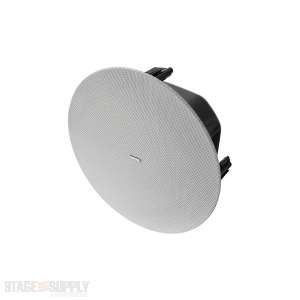

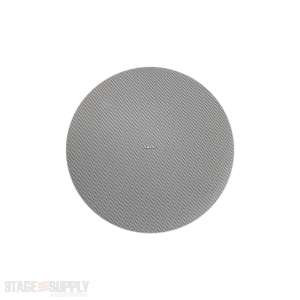

It can power up to 4 MXP loudspeakers in 8-ohm mode or up to 8 MXP-5/MXP-6 loudspeakers in 70V mode
Rated at 14.5 watts of combined output power
Four Dante inputs and four Dante outputs
Unbalanced stereo analogue audio input
Logic input (switches between presets 1 and 2 as defined in web UI)
Onboard Shure DSP utilities include EQ, delay, limiter, and signal/tone generator
Presets for all MXP-series loudspeakers ensure optimal audio performance. Custom presets can be defined in the MXN-AMP control software
Rack mountable with an optional CRT-1 rack tray
It can also be wall or ceiling-mounted
UL 2043 plenum rated
Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data
Shure Audio Encryption protects audio content between the room's MXN-AMP and other Shure Microflex¬Æ Ecosystem devices
Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams

Specs

Power Input: Power over Ethernet (PoE) or PoE+ over RJ45 (48 V = 25.5 W MAX)
Weight: 2.43 Ibs (1.1kg)
Product Dimensions: 7.95 x 7.01 x 1.57 in. (202 x 178 x 40 mm) L x W x H
Amplifier Class: D

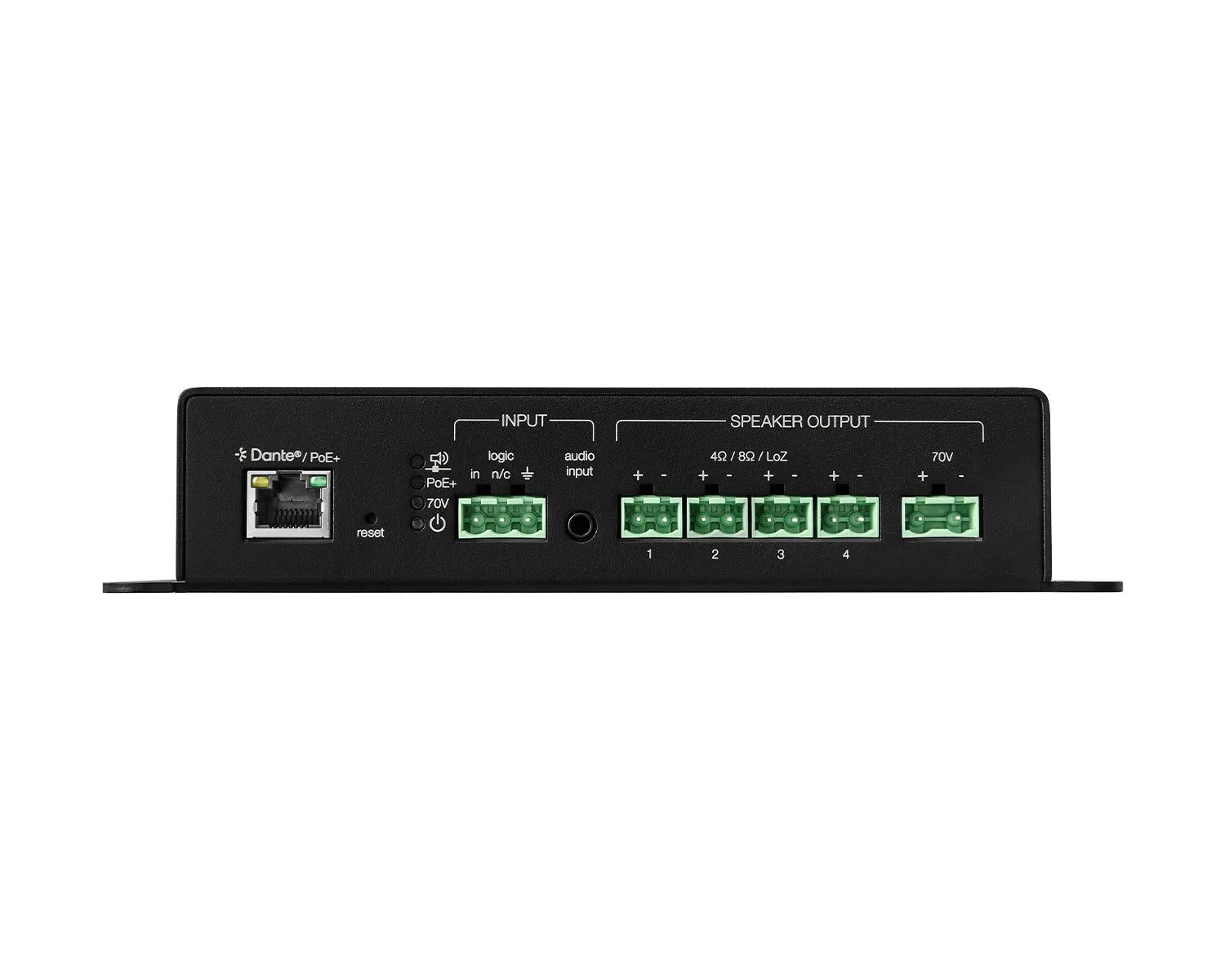

Audio Inputs: 4 Dante in, 1 3.5 mm TRS connector with two audio line level inputs
Control Input: 1 logic in
Audio Outputs: 4 Dante output channels, 4 LoZ loudspeaker outputs, 1 70V loudspeaker output
Frequency Response: 20 Hz to 20 kHz
Sample Rate: 48 kHz
Bit Depth: 24
Latency: 2.2 ms typical, 2.5 ms max (add 1 ms for Dante)
Signal-To-Noise Ratio: 110 dB max
Output Level/Total Harmonic Distortion (THD) at 1 kHz: THD less than 0.05% (0.01% typical)
Power Consumption
- PoE: 12.95 W max
- PoE+: 25.5 W max
Power Requirements: PoE (Class 0) or PoE+ (Class 4)
Output Power per Channel
- LoZ Mode: 3.25 W
- 70V Mode: 14.5 W
Operating Temperature Range: -7 to 40¬∞C (19.4 to 104¬∞F)
Storage Temperature Range: -29 to 74¬∞C (-20 to 165¬∞F)
Plenum Rating: Suitable for use in air plenums per NEC section 300.22(c) and/or IMC section 602.
Cable Requirements: Cat 5e or higher (shielded cable recommended)

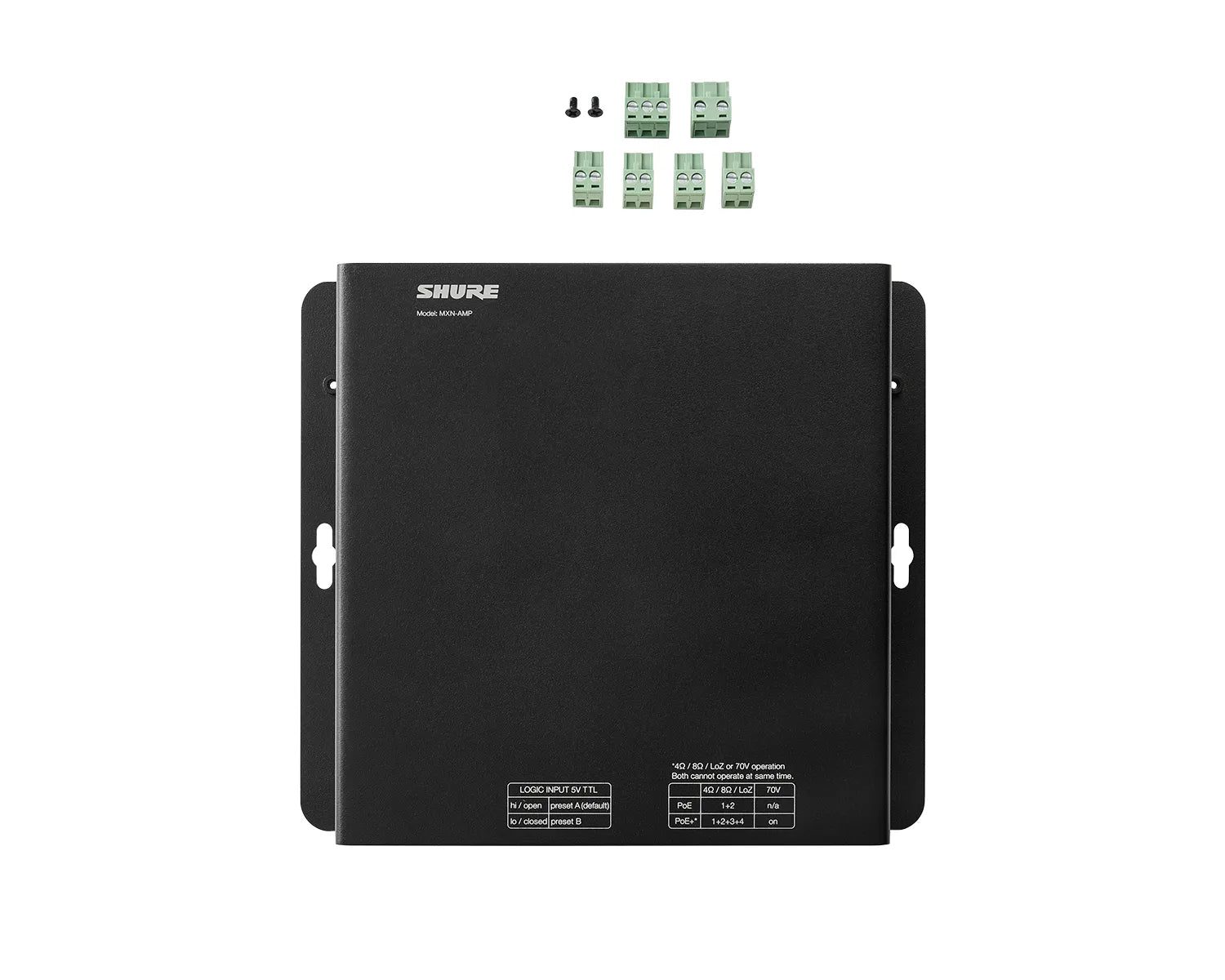

Block Connector Type
- Logic Input: 3-pin connector, 0.2 in. (5.08mm) pitch, Dinkle 2ESDV-03P
- LoZ Output: 2-pin connector, 0.2 in. (5.08mm) pitch, Dinkle 2ESDV-02P
- 70V Output: 2-pin connector, 0.295 in. (7.5mm) pitch, Dinkle 7ESDV-02P
Control Software: Shure Designer
