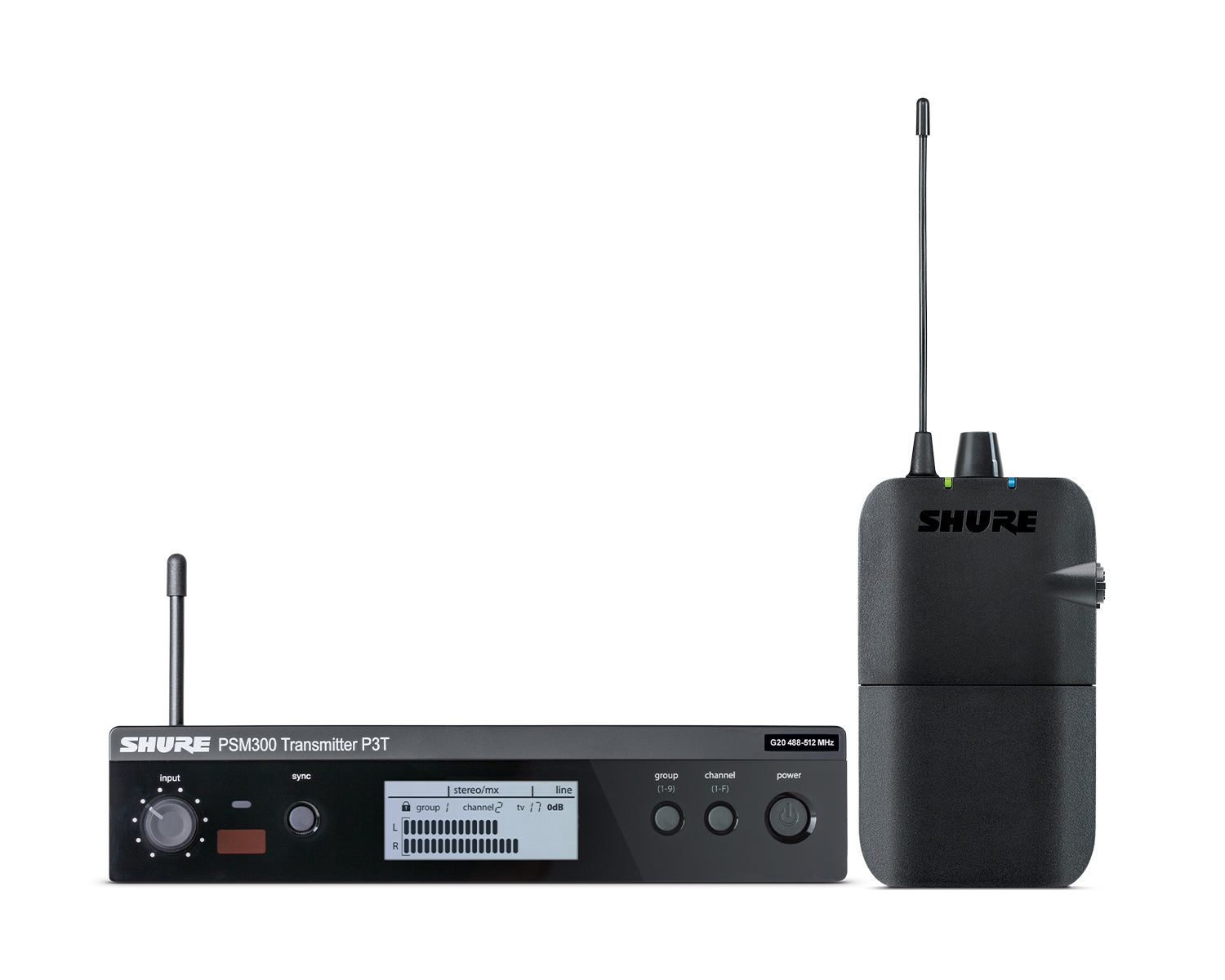

Shure P3TR PSM300 Wireless IEM Set with P3R Bodypack K3E
£784.47£653.73 Incl. VATExcl. VAT
P3TR Wireless Personal Monitor System Set includes: P3R Wireless Bodypack Receiver & P3T PSM®300 Wireless Transmitter.P3T PSM®300 Wireless TransmitterThe P3T is a wireless transmitter for use with the PSM300 Personal Monitor System. Dependable wireless transmission and 24-bit digital audio deliver a superior personal monitoring mix for every performance. Send 2 channels of audio to a bodypack receiver up to 90 meters away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts. The rugged, half rack transmitter features easy front-panel controls including one-touch sync and input level knob to enable quick setup and easy operation. Rear-panel balanced inputs and loop outputs provide versatile connectivity to audio sources and other P3T units.P3R Wireless Bodypack ReceiverThe P3R is a wireless stereo bodypack receiver for use with the PSM300 Personal Monitor System. With 24-bit digital audio clarity and up to 90 meters of range , the P3R offers reliable wireless freedom that covers every corner of the stage. Simply connect a set of earphones and adjust the controls to create a wireless personal mix. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Use MixMode® technology to customize the mono blend from two channels of audio, or select stereo mode and adjust the left/right balance as desired. One-touch frequency scan and automatic frequency selection enables quick setup and connection to a P3T transmitter via IR sync.
P3T PSM®300 Wireless Transmitter Features
- Single channel, half-rack transmitter with included rack mount kit
- Sends a stereo or mono mix wirelessly to performers onstage
- Rock-solid wireless connection to PSM300 receivers over a 90 meter range
- One-touch IR sync instantly links transmitter to receiver
- Up to 30 mW output power (region dependent)
- Up to 24 MHz tuning range (region dependent)
- ¼” (6.3 mm) TRS balanced inputs and loop outputs
- High-contrast LCD screen with left/right audio output meters
- Detachable ¼ wave antenna
- Selectable line/aux level

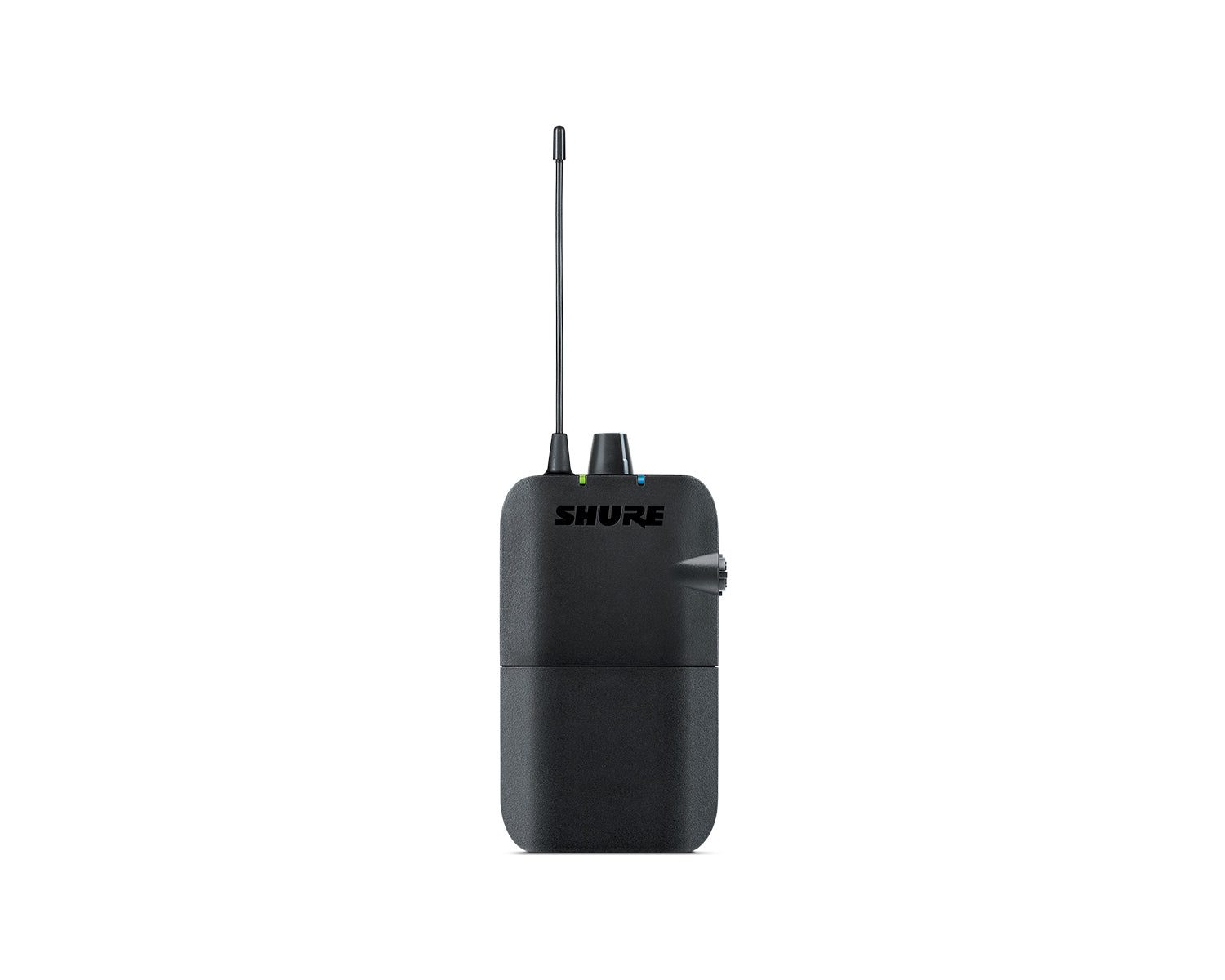

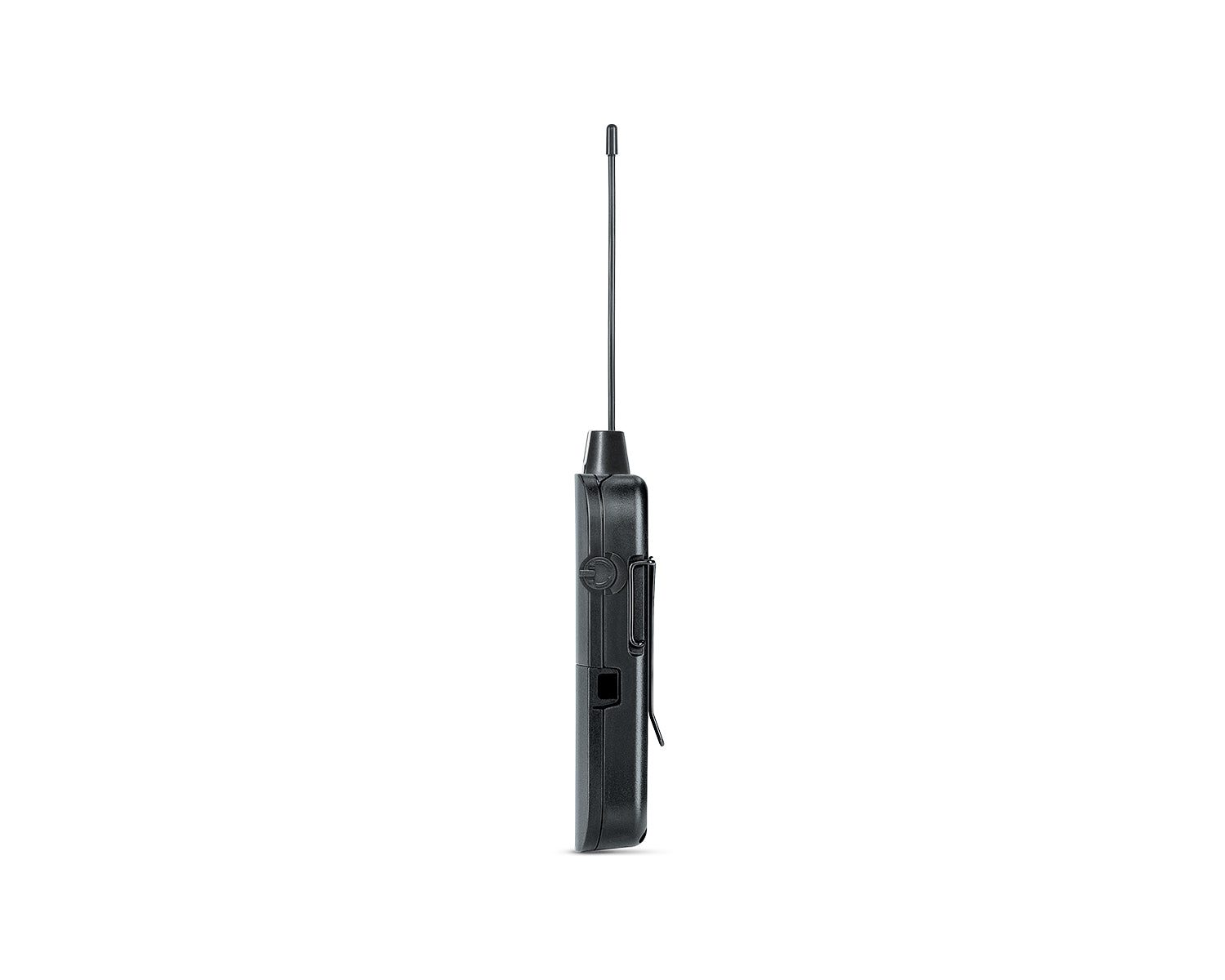

P3R Wireless Bodypack Receiver Features
- Slim, lightweight, durable form factor
- Frequency scan and IR sync quickly finds and assigns a clean channel
- MixMode® technology enables adjustment of two independent monitoring mix levels
- Stereo mode enables adjustment of left/right balance
- Easy to adjust volume knob and mix control
- 2 AA batteries provide up to 7 hours of continuous operation
- Power save mode preserves battery life when earphones are not connected
- Power and battery status LED
P3T PSM®300 Wireless Transmitter Specifications
- RF Output Power: 10, 20, 30 mW Note: varies by region
- RF Output Impedance: 50 Ω (typical)
- Net Weight: 783 g (27.6oz.)
- Dimensions: 43 √ó 198 √ó 172 mm (1.7 √ó 7.8 √ó 6.8 in.), H √ó W √ó D
- Power Requirements: 12–15 V DC, 260 mA maximum
- Audio Input
- Connector Type: 6.35 mm (1/4") TRS
- Polarity: Tip positive with respect to ring
- Configuration: Electronically balanced
- Impedance: 40 kΩ (actual)
- Nominal Input Level: Switchable, +4 dBu, -10 dBV
- Maximum Input Level:
- +4 dBu: +22 dBu
- -10 dBV: +12.2 dBu
- Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground
- Phantom Power Protection: Up to 60 V DC
- Audio Output
- Connector Types: 6.35 mm (1/4") TRS
- Configuration: Electronically balanced
- Impedance: Connected directly to inputs
P3R Wireless Bodypack Receiver Specifications
- Active RF Sensitivity (at 20 dB SINAD): 2.2 μV
- Image Rejection: >90 dB
- Adjacent Channel Rejection: >60 dB
- Intermodulation Attenuation: >50 dB
- Blocking: >60 dB
- Audio Output Power 1 kHz @ <1% distortion, peak power, @32 Ω: 80 mW (per output)
- Minimum Load Impedance: 16 Ω
- Headphone output: 3.5 mm (1.8") stereo
- Net Weight: 98 g (3.5 oz.) (without batteries)
- Dimension: 110 √ó 64 √ó 21 mm H √ó W √ó D
- Battery Life (continuous use): 5–7 hours, AA batteries
