Description

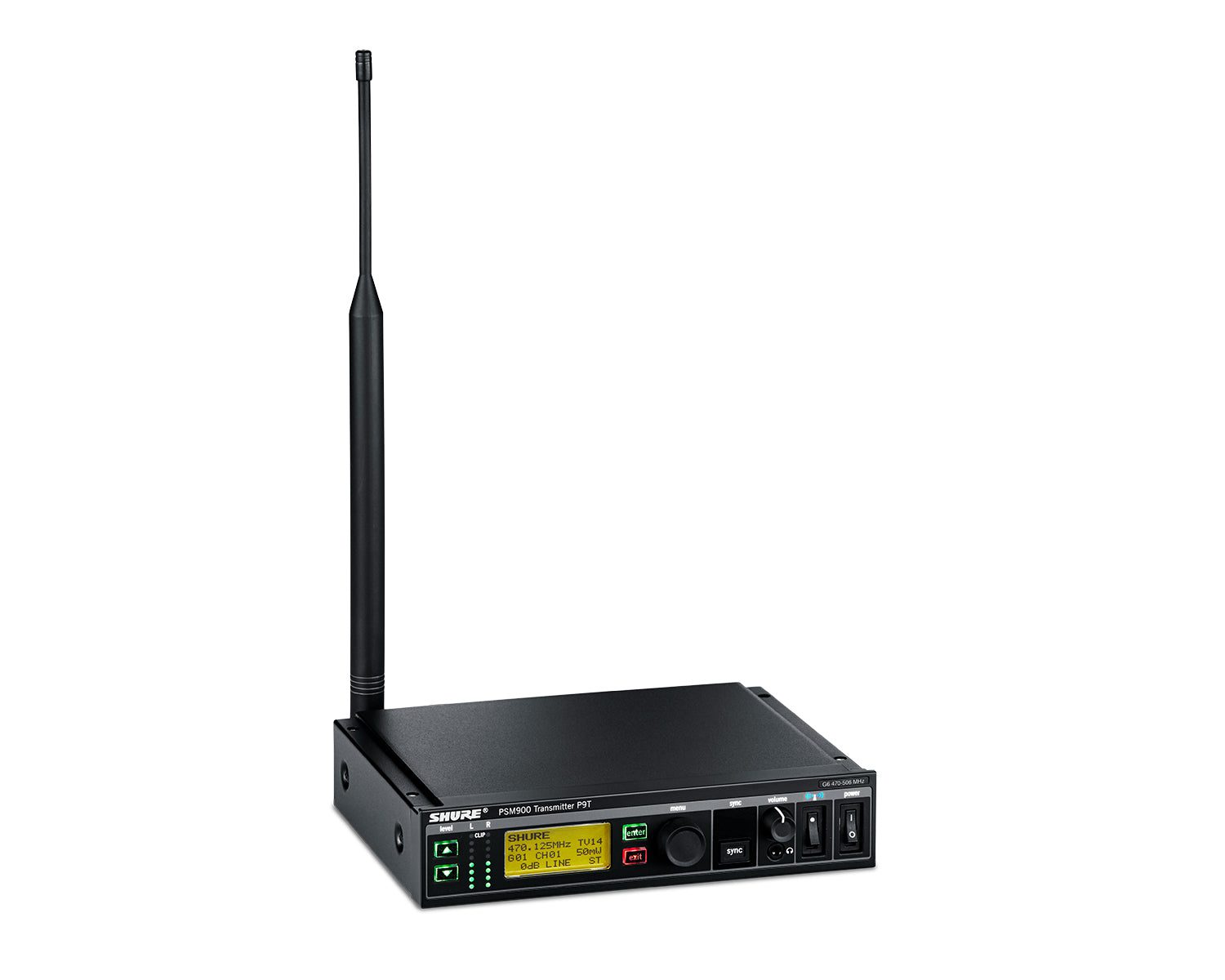

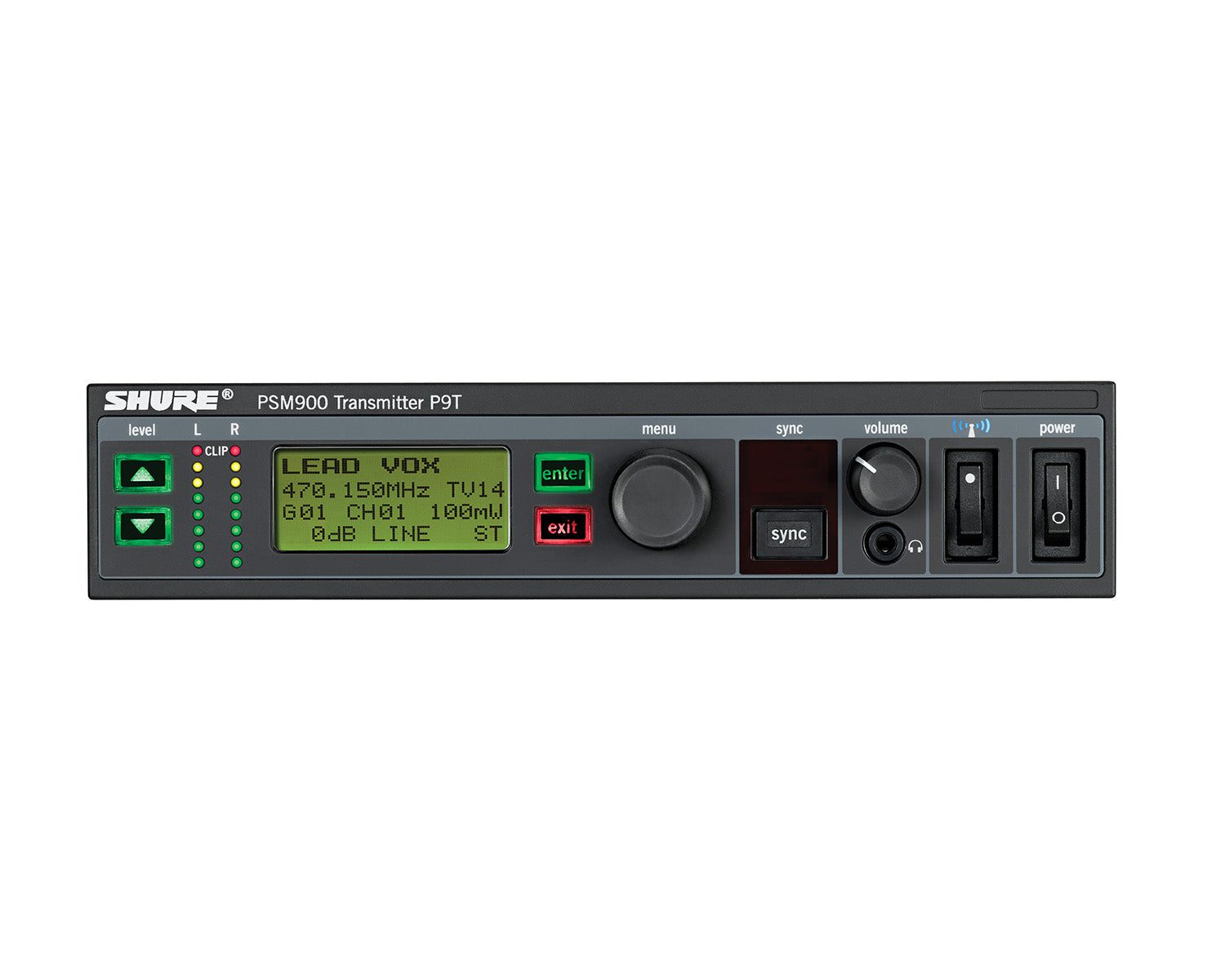

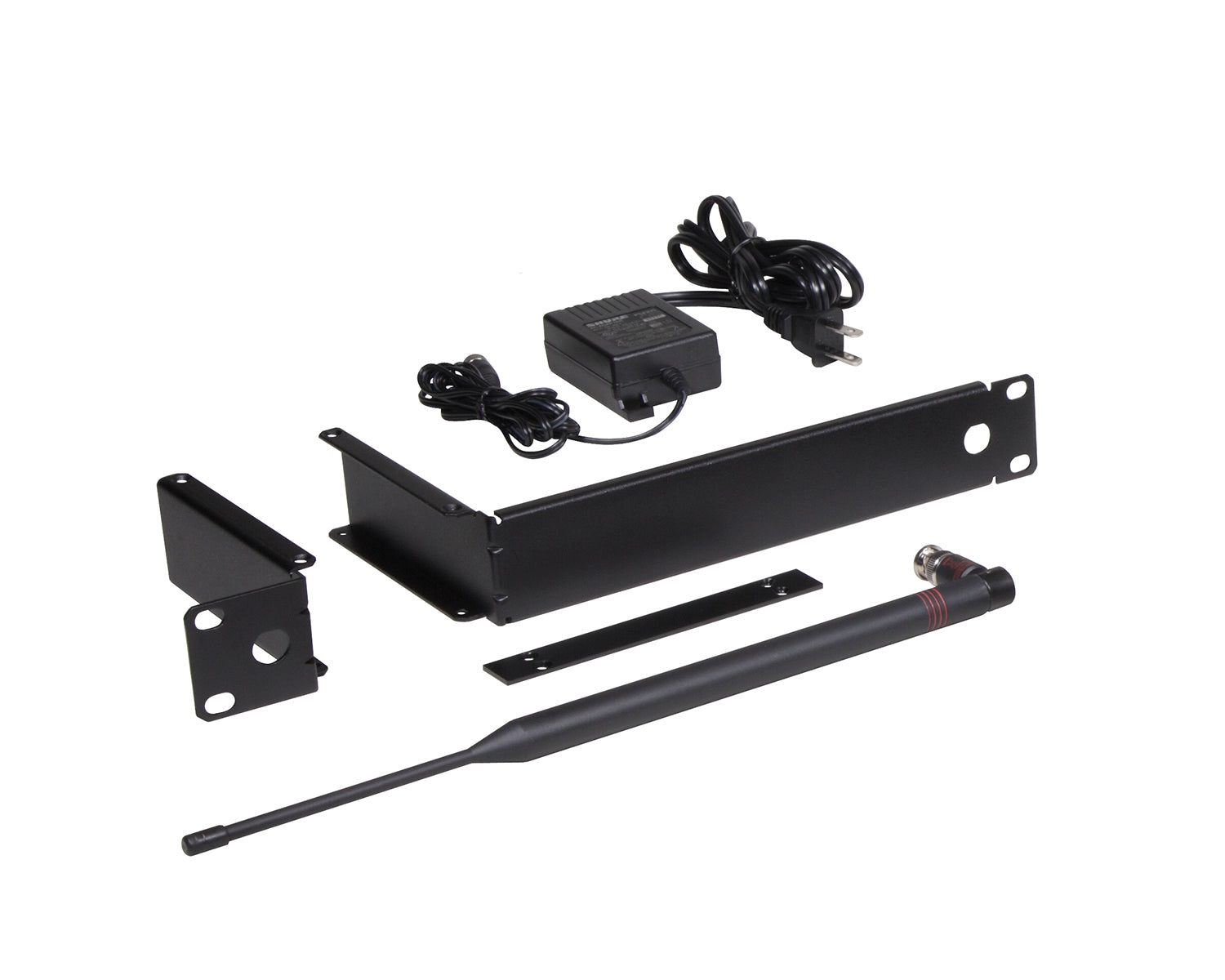

Shure’s P9T is a half-rack, wireless transmitter used in conjunction with the P9RA+ Bodypack receiver as part of the PSM¬Æ 900 Wireless Personal Monitor System. The P9T Wireless Transmitter combines state-of-the-art technology with an ideal set of features for professional monitoring applications of any kind, including IEM and IFB applications. Connections include balanced 1/4″ and XLR, loop out, and headphone out. Includes rack-mounting kit, front or back mountable antennas, and power supply.
Features
- K1E Band: 596-632 MHz
- Robust metal chassis
- RF Mute Switch allows system setup without causing RF interference
- Allows up to 20 compatible channels per frequency range
- Exceptional transmitter linearity vastly reduces frequency intermodulation
- Includes rackmount kit
Specs
- RF Output Power: Selectable: 10, 50, 100 mW (regionally dependent)
- RF Output Impedance: 50 Ω (typical)
- Net Weight: 850 g
- Dimensions: 197 mm x 166 mm x 42 mm (7.75in X 6.55in X 1.65in)
- Power Requirement : 415 mA typical @ 120VAC (with RF on 100 mW power mode, no audio)
Audio Input
- Connector Type: Combination XLR and 6.35 mm (1/4”) TRS
- Polarity: XLR: Non-inverting (pin 2 positive with respect to pin 3) 6.35 mm (1/4”) TRS: Tip positive with respect to ring
- Configuration: Electronically balanced
- Impedance: 70.2 kΩ (actual)
- Nominal Input Level: Switchable: +4 dBu, –10 dBV
- Maximum Input Level:
- +4 dBu: +23.3 dBu
- –10 dBV: +12.5 dBu
- Pin Assignments
- XLR: 1=ground, 2=hot, 3=cold
- 6.35 mm (1/4”) TRS: Tip=hot, Ring=cold, Sleeve=ground
- Phantom Power Protection: up to 60 V DC
Audio Output
- Connector Type: 6.35 mm (1/4”) TRS
- Configuration: Electronically balanced
- Impedance: Connected directly to inputs
