Name: Shure PA411 Wideband Antenna Combiner up to 4 x PSM300 Transmitters
Brand: Shure
SKU: PA411-UK
Availability: InStock

Shure PA411 Wideband Antenna Combiner up to 4 x PSM300 Transmitters

£613.51£511.26 Incl. VATExcl. VAT

SKU: PA411-UK Category: Accessories

Description

The PA411 Antenna Combiner distributes DC power and RF signal for up to four Shure PSM¬Æ300 transmitters. The compact half-rack system significantly reduces the amount of antennas and power supplies needed when using multiple systems.

Features

Wideband 470-865 MHz frequency range
Main RF output connects to standard ¬º wave PSM antenna
RF LED Indicators display signal present, signal overload per input

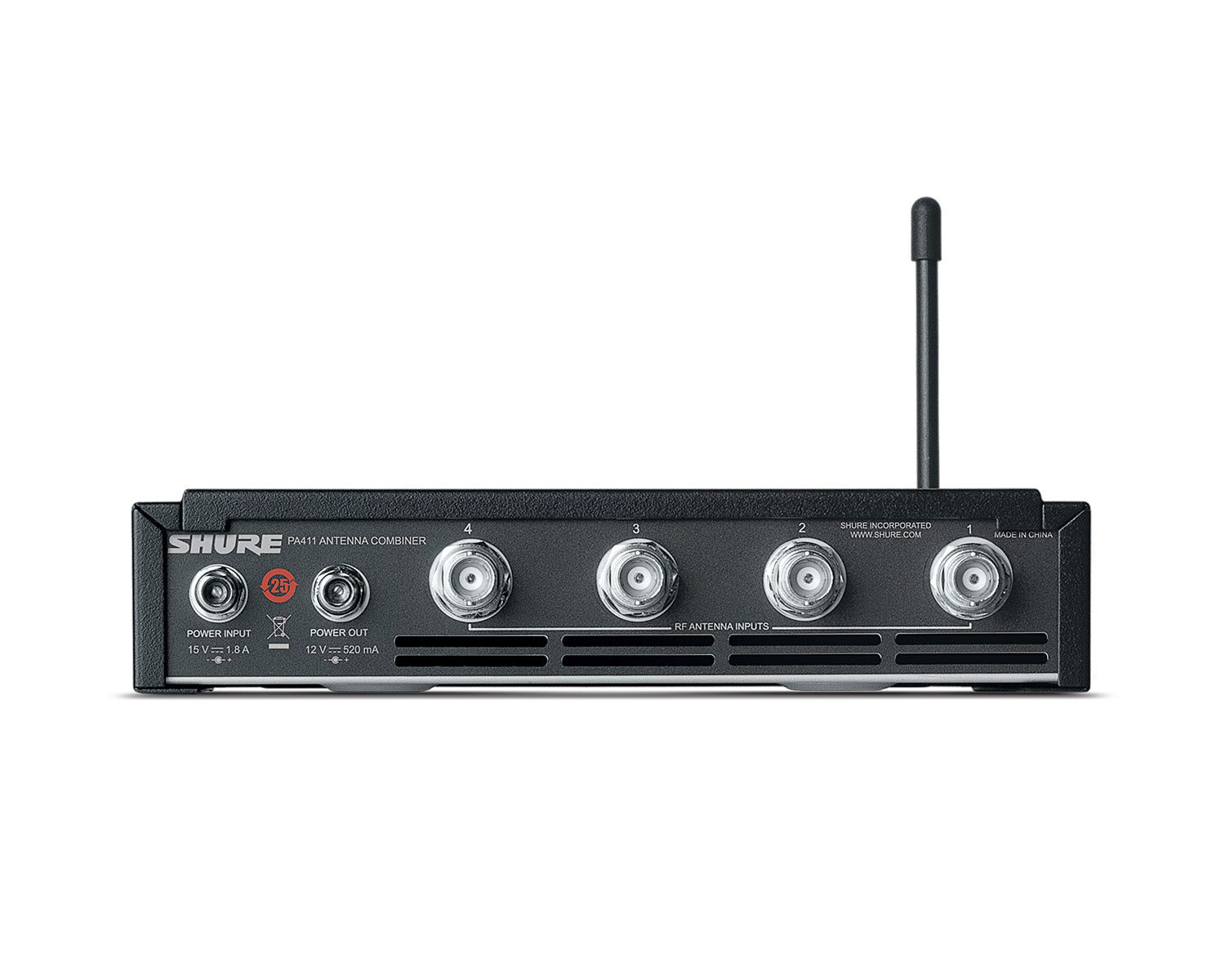

Power output distributes DC power to PSM transmitters (accessory power cable required)
Distributes DC power and RF signal for up to 4 PSM300 transmitters

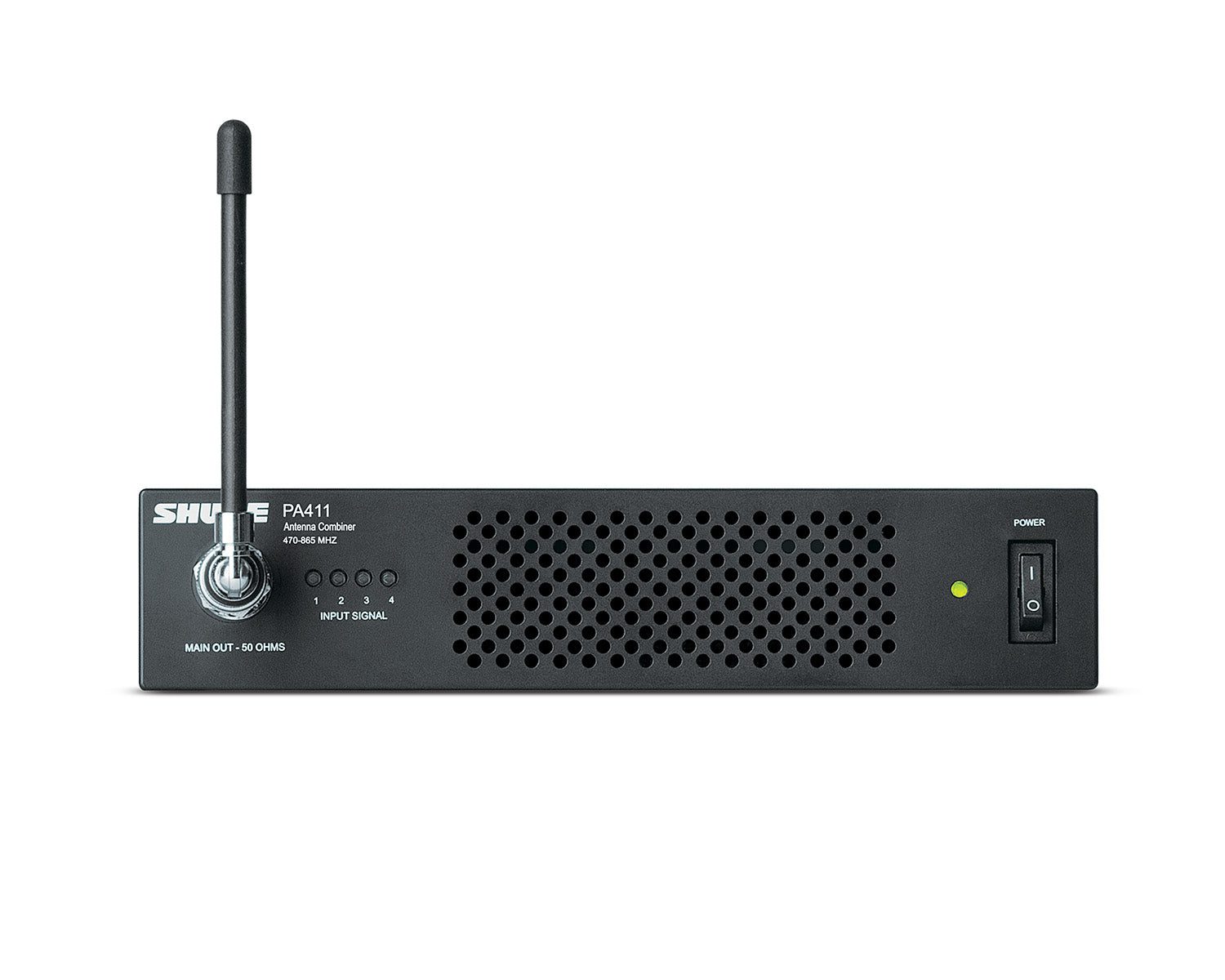

Front panel power switch

Specs

Power Requirements: 15 VDC
DC Output: 12 VDC (√ó4)
Output Current Combined total from all DC outputs: 1.4 A, maximum
Operating Temperature Range: -18 ¬∞C to 63 ¬∞C
Dimensions: 42 √ó 177 √ó 198 mm H √ó W √ó D
Net Weight: 1.62 kg (3.6 lbs)
RF Input
- Connector Type: BNC
- RF Frequency Range: 470 to 865 MHz
- Maximum Input Level: 20 dBm Per Channel
- Input Port Isolation: 50 dB, typical
- RF Input Power Operating Range Per Channel: 4.5 to 15 dBm
- LED Indicator Minimum Detection Threshold: 3 dBm ¬± 1 dB
- RF Overload LED Threshold: 17.5 dBm ¬± 1 dB
- Impedance: 50 Œ©
RF Output
- RF Frequency Range: 470 to 865 MHz
- Output Intercept Point (OIP3): 48 dBm, typical
- Connector Type: BNC
- Impedance: 50 Œ©
- Reverse Isolation Output to Input: 40 dB, typical
- Gain Input to any Output Port: -5 to 0 dB
