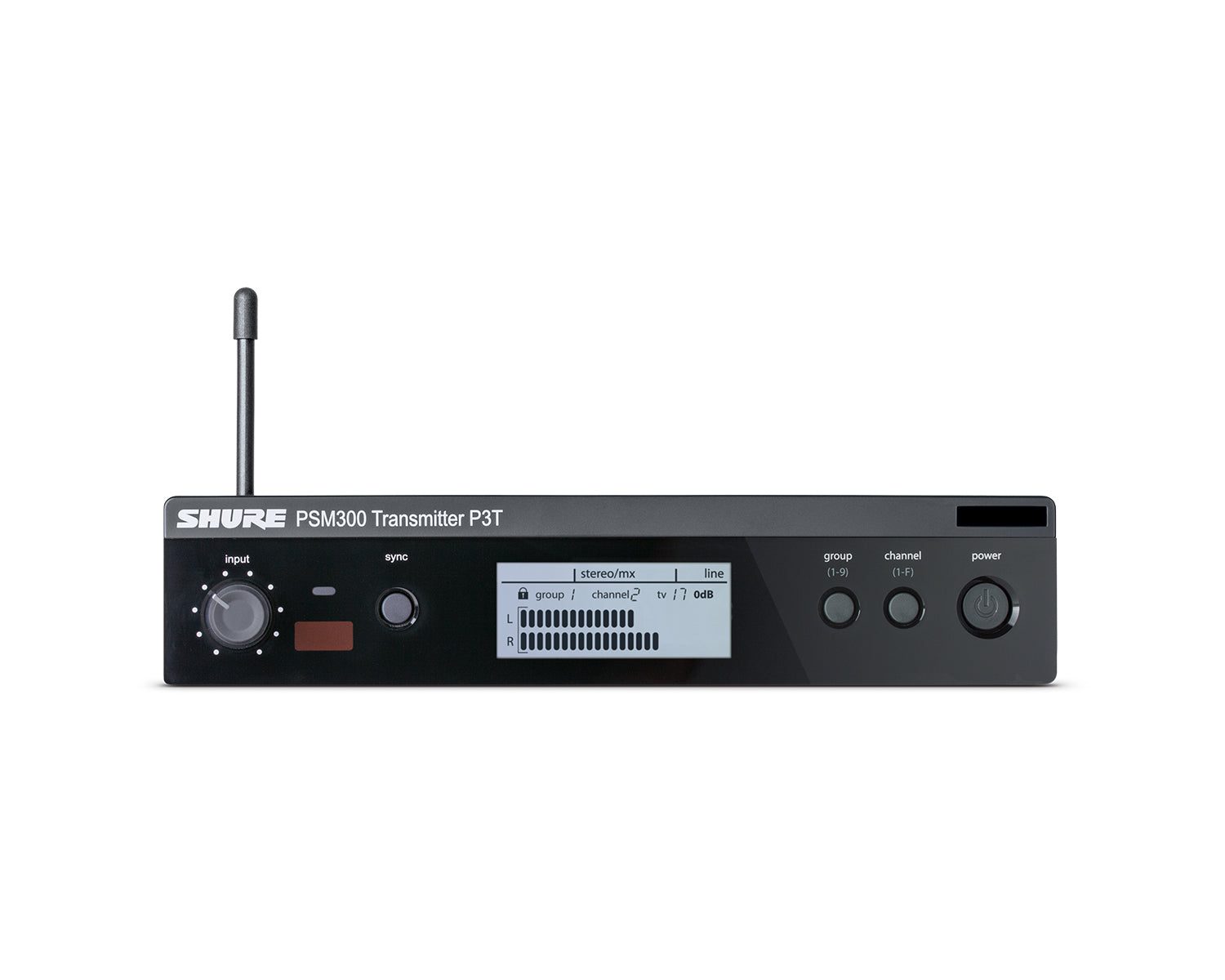

Shure PSM 300 P3T Wireless 2-Channel Half-Rack IEM Transmitter K3E

• Single channel, half-rack transmitter with included rack mount kit
• Sends a stereo or mono mix wirelessly to performers onstage
• Rock-solid wireless connection to PSM300 receivers over a 90 meter range
• One-touch IR sync instantly links transmitter to receiver
• Up to 30 mW output power (region dependent)
• Up to 24 MHz tuning range (region dependent)
• ¬º‚Äù (6.3 mm) TRS balanced inputs and loop outputs
• High-contrast LCD screen with left/right audio output meters
• Detachable ¬º wave antenna
• Selectable line/aux level

• RF Output Power: 10, 20, 30 mW Note: varies by region
• RF Output Impedance: 50 Œ© (typical)
• Net Weight: 783 g (27.6oz.)
• Dimensions: 43 √ó 198 √ó 172 mm (1.7 √ó 7.8 √ó 6.8 in.), H √ó W √ó D
• Power Requirements: 12‚Äì15 V DC, 260 mA maximum

Audio Input

• Connector Type: 6.35 mm (1/4") TRS
• Polarity: Tip positive with respect to ring
• Configuration: Electronically balanced
• Impedance: 40 kŒ© (actual)
• Nominal Input Level: Switchable, +4 dBu, -10 dBV
• Maximum Input Level:
• +4 dBu: +22 dBu
• -10 dBV: +12.2 dBu
• Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground
• Phantom Power Protection: Up to 60 V DC

Audio Output

• Connector Types: 6.35 mm (1/4") TRS
• Configuration: Electronically balanced
• Impedance: Connected directly to inputs
