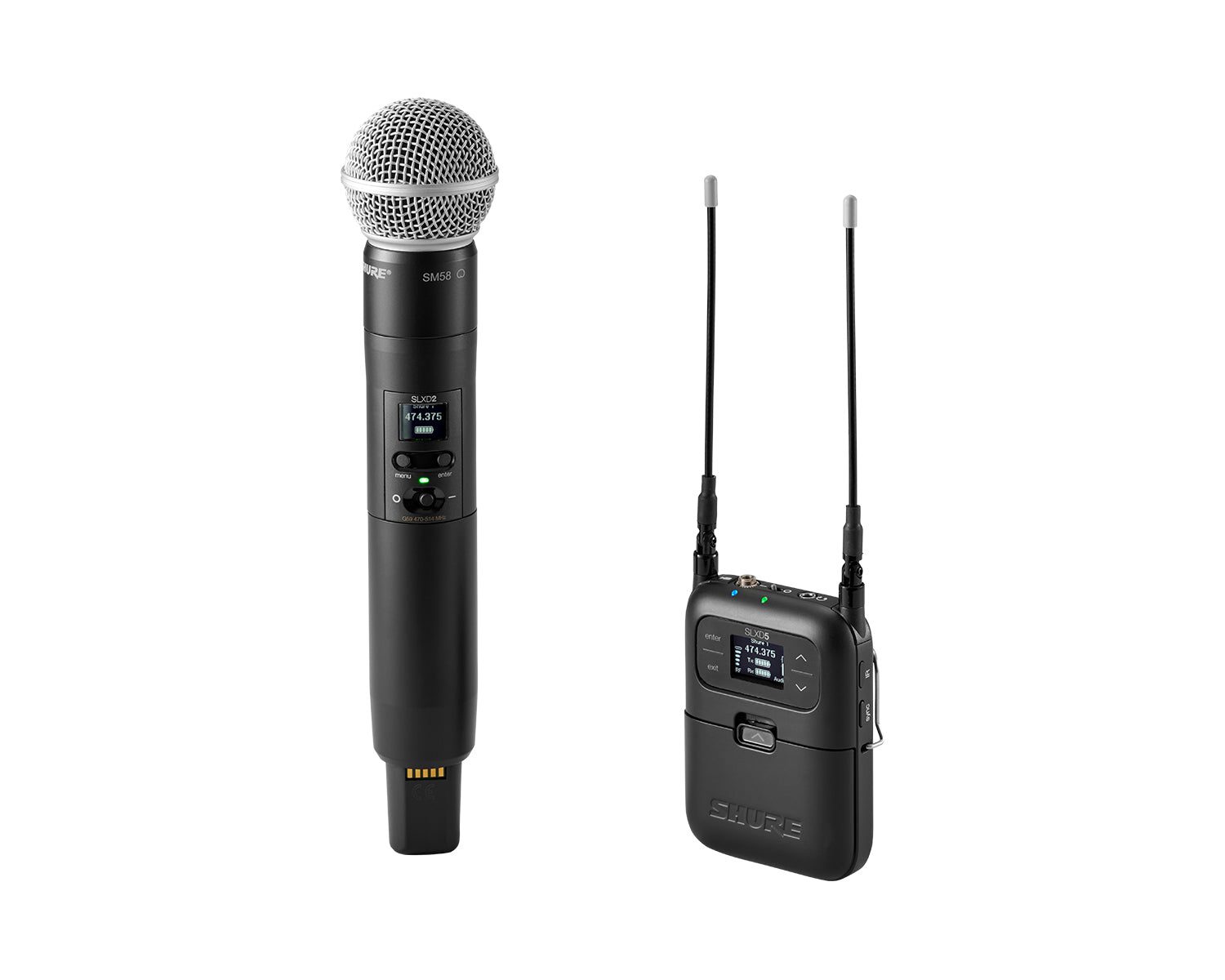

Shure SLXD25/SM58 Wireless Portable HH System SLXD5/SLXD2/SM58 K59

• Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
• Dual 1/8‚Äù outputs including a headphone monitor out and switchable line/mic output
• Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
• Bright OLED display screen for key system function readouts and remaining battery life on transmitter and receiver
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over scan and IR sync
• Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
• Charging contacts for use with optional SBC203 docking charger
• TQG connectivity offers a variety of microphone options
• Rugged metal construction portable receiver design
• Ergonomic, durable plastic construction bodypack transmitter

System Specifications

• RF
  • RF Carrier Frequency Range: K59 (606 - 650MHz)
  • Working Range: 100 m (328 ft)
  • RF Tuning Step Size:
    • JB Band: 125 kHz
    • All Other Bands: 25 kHz
    • Varies by region.
  • Image Rejection: >70 dB typical
  • RF Sensitivity: ‚àí97 dBm at 10-5 BER
• Audio
  • Latency: 3.2 ms
  • High-Pass/Low Cut Filter: 150 Hz, ‚Äì12 dB/octave Note: factory default is for the HPF to be off
  • Audio Frequency Response: 20 Hz‚Äì20 kHz (+1, ‚àí2 dB)
  • Audio Dynamic Range, A-weighted, 20 Hz‚Äì20 kHz, typical: 118 dB @1% THD
  • Total Harmonic Distortion: <0.02%
  • System Audio Polarity:
    • XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    • TRS: Postive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
  • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
• Temperature Range
  • Operating Temperature Range: 0 ¬∞F to 122 ¬∞F (‚àí18 ¬∞C to 50 ¬∞C)
  • Storage Temperature Range: ‚àí20 ¬∞F to 165 ¬∞F (‚àí29 ¬∞C to 74 ¬∞C)

SLXD5 Portable Receiver Specifications

• Dimensions (H √ó W √ó D): 4.21 √ó 2.68 √ó 1.0 in (107 √ó 68 √ó 25.3 mm)
• Weight: 1.8 lb (182 g)
• Housing: Aluminium
• Power Requirements
• Battery: Rechargeable Li-Ion or
• 1.5 V AA batteries
• Power Supply: SBC-DC-903 Battery
• Eliminator, or 5 VDC via USB-C
• RF Input
  • Spurious Rejection: >75 dB Typical
  • Impedance: 50 Œ©
  • Phantom Power Protection: Yes
  • Antenna Type: 1/4 Wave Whip
• Audio Output
  • Audio Frequency Response: 20 Hz ‚Äì 20 kHz (+1, -3 dB)
  • Connector Type: 1/8" (3.5 mm), √ó2
  • Configuration:
  • Balanced (Mono): Tip=audio +, Ring=audio ‚Äì, Sleeve=ground
  • Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
  • Impedance (Camera):
    • Balanced (Mono) Line: 450 Œ©
    • Balanced (Mono) Mic: 240 Œ©
    • Dual Mono Line: 400 Œ©
    • Dual Mono Mic: 200 Œ©
  • Full Scale Output:
  • Camera (Balanced Line): 15 dBV
  • Headphone: 13 mW @ 64 Œ© Load

SLXD2 Handheld Specifications

• Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
• Dimensions: 1.46 √ó 6.93 in (37.1 √ó 176 mm)
• Weight: 5.2 oz. (147 g)
• Housing: Aluminium
• Audio Input
  • Configuration: Unbalanced
  • Maximum Input Level 8.2 dBV (2.57 Vrms, 7.27 Vpp) Note: Dependent on Microphone Type
• RF Output
  • Antenna Type: Integrated Single-Band Helical
  • Occupied Bandwidth: <200 kHz
  • Modulation Type: Shure Proprietary Digital
  • Power: 1 mW/10 mW
