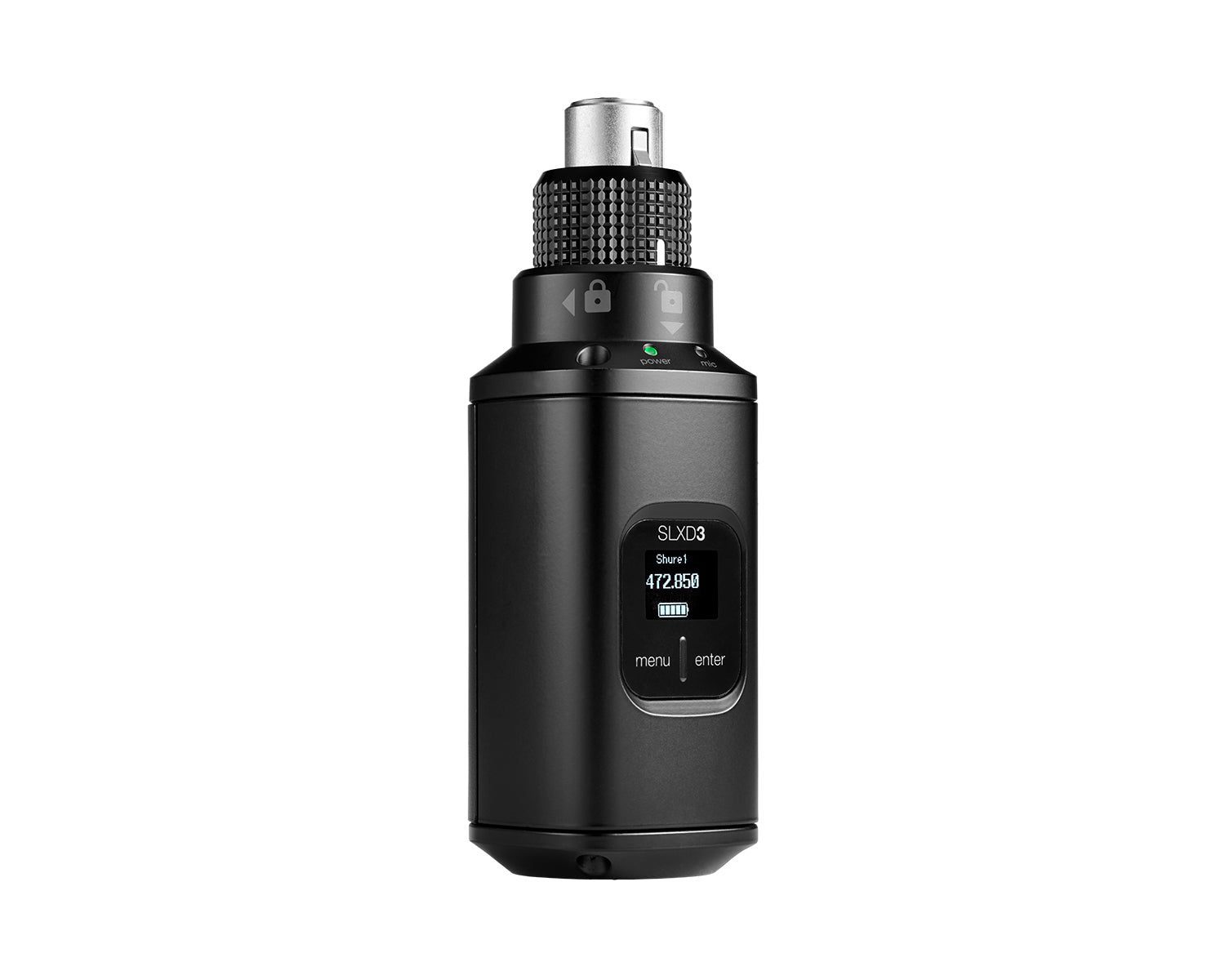

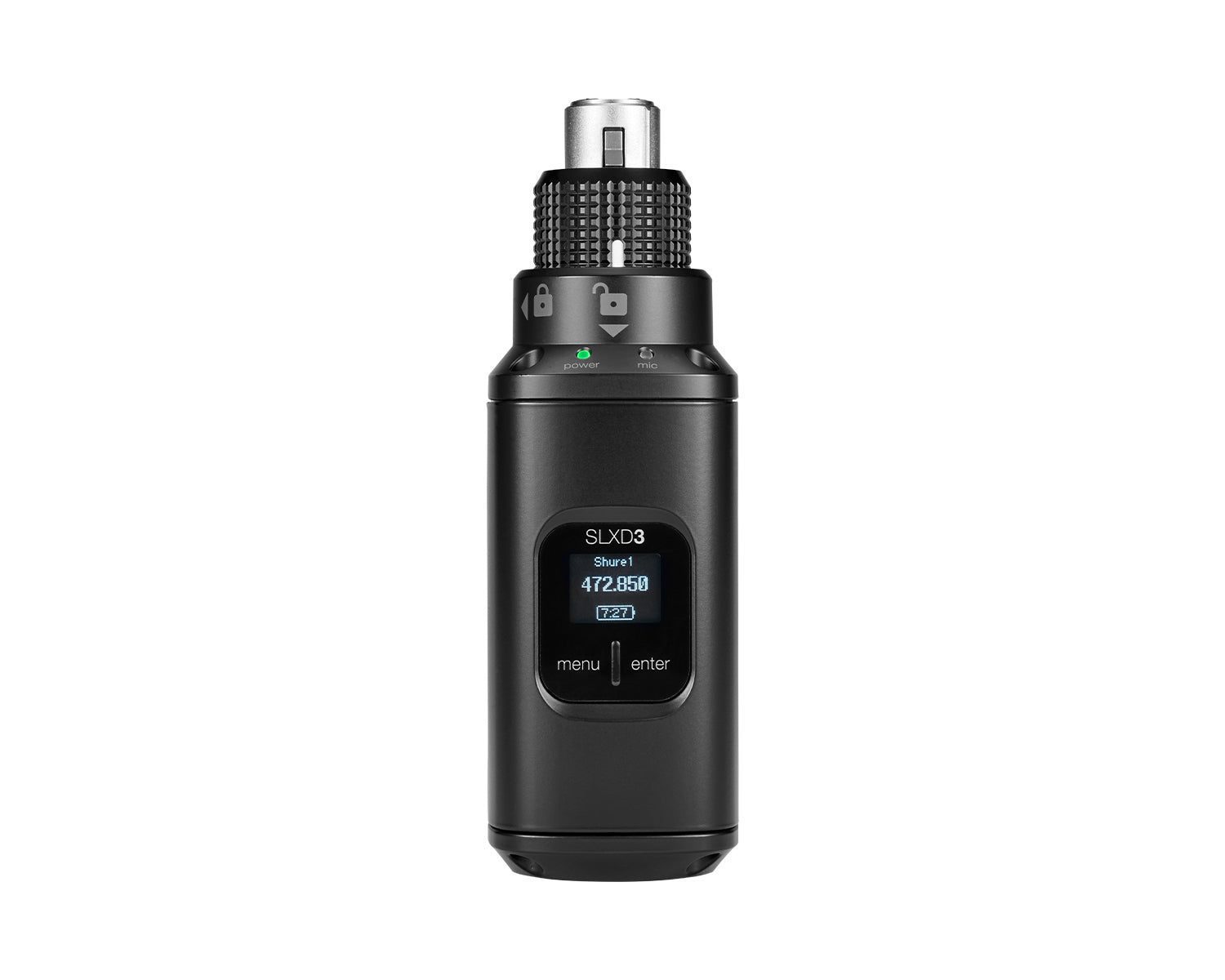

Shure SLXD3 XLR Plug-On Digital Wireless Transmitter K59 CH38
£319.96£266.63 Incl. VATExcl. VAT
SLXD3 Plug-On Digital Wireless Transmitter converts any XLR source, including dynamic and condenser microphones, for use as an SLX-D wireless transmitter. Featuring a patented locking ring for a secure, wobble-free connection, the SLXD3 sends 24-bit digital audio from any XLR source to an SLXD4 or SLXD5 Digital Wireless receiver via a rock-solid RF connection. Use IR Sync to pair transmitters easily and quickly with your choice of SLX-D wireless receiver. A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD3 plug-on transmitter, a pair of AA alkaline batteries and a leather protective sleeve with an integrated belt clip.
- Convert any XLR source for use within SLX-D wireless systems
- Provides +12–48 VDC phantom power for use with condenser microphones
- Patented locking mechanism for secure, wobble-free connection
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- Switchable 1/10/30 mW power levels (region- and band-dependent)
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- Rugged metal construction
System Specifications
-
RF
- RF Carrier Frequency Range: K59 (606 - 650MHz)
- Working Range: 100 m (328 ft)
- RF Tuning Step Size:
- JB Band: 125 kHz
- All Other Bands: 25 kHz
- Varies by region.
- Image Rejection: >70 dB typical
- RF Sensitivity: ‚àí97 dBm at 10-5 BER
-
Audio
- Latency: 3.2 ms
- High-Pass/Low Cut Filter: 150 Hz, –12 dB/octave Note: factory default is for the HPF to be off
- Audio Frequency Response: 20 Hz–20 kHz (+1, −2 dB)
- Audio Dynamic Range, A-weighted, 20 Hz–20 kHz, typical: 118 dB @1% THD
- Total Harmonic Distortion: <0.02%
- System Audio Polarity:
- XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
- TRS: Postive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
- Mic Offset Range: 0 to 21 dB (in 3 dB steps)
-
Temperature Range
- Operating Temperature Range: 0 °F to 122 °F (−18 °C to 50 °C)
- Storage Temperature Range: −20 °F to 165 °F (−29 °C to 74 °C)
SLXD 3 Specifications
- Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
- Dimensions: 4.9 √ó 1.6 √ó 1.6 in (126 √ó 41 √ó 41 mm)
- Weight: 7.0 oz. (200 g)
- Housing: Aluminium, Zinc Alloy, PC/ABS
-
Audio Input
- Configuration: XLR
- Maximum Input Level 1 kHz @ 1% THD
- Pad -12 dB: 20.5 dBV
- 0 dB: 8.5 dBV
- Boost +12 dB: -3.5 dBV Note: Dependent on Microphone Type
- Phantom Power:
- +48 V (7 mA maximum)
- +12 V (15 mA maximum)
-
RF Output
- Antenna Type: Dipole
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure Propietary Digital
- Power: 1 mW/10 mW/30 mW (Varies by region)
- Specific Absorption Rate (SAR): <0.17 W/kg
