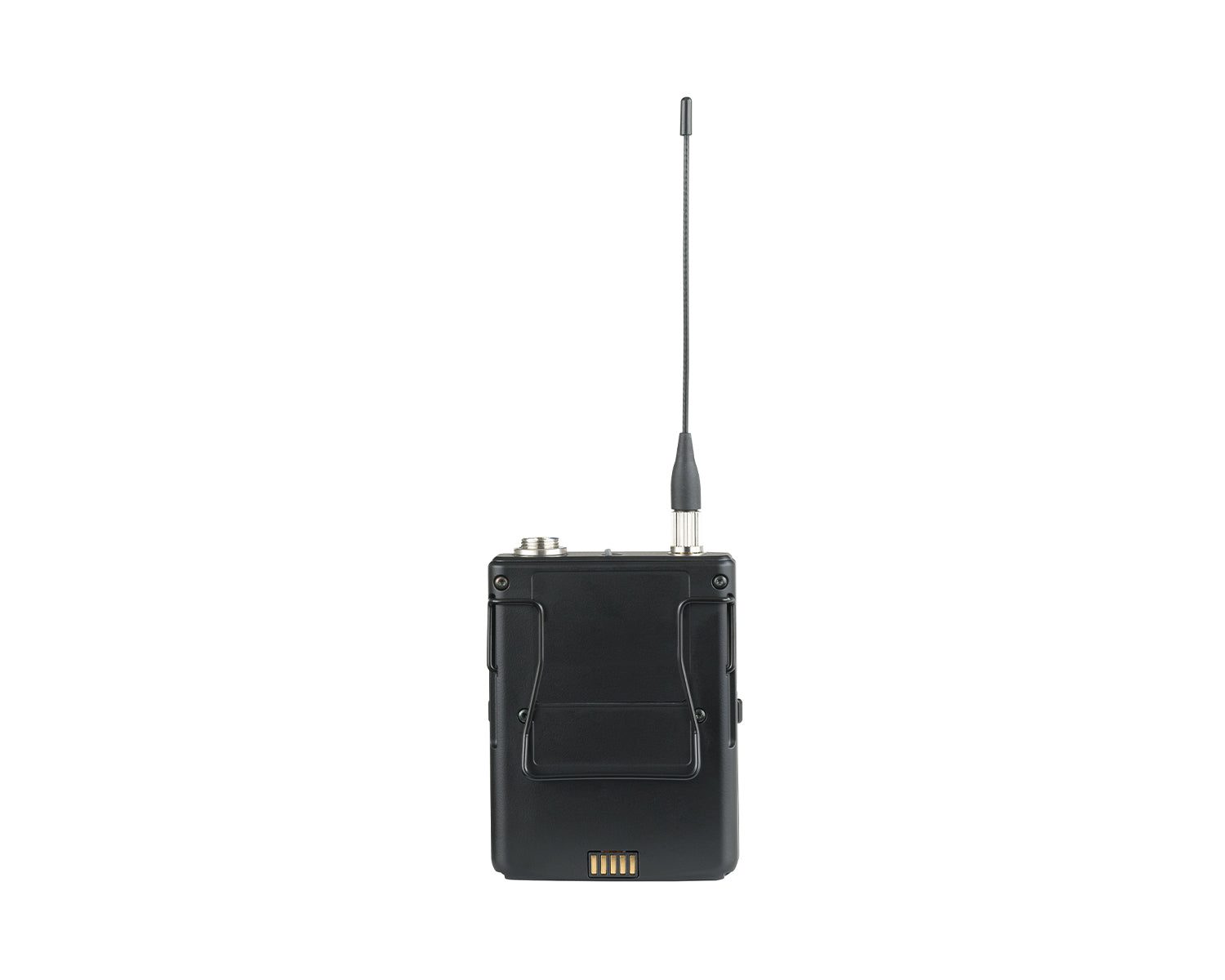

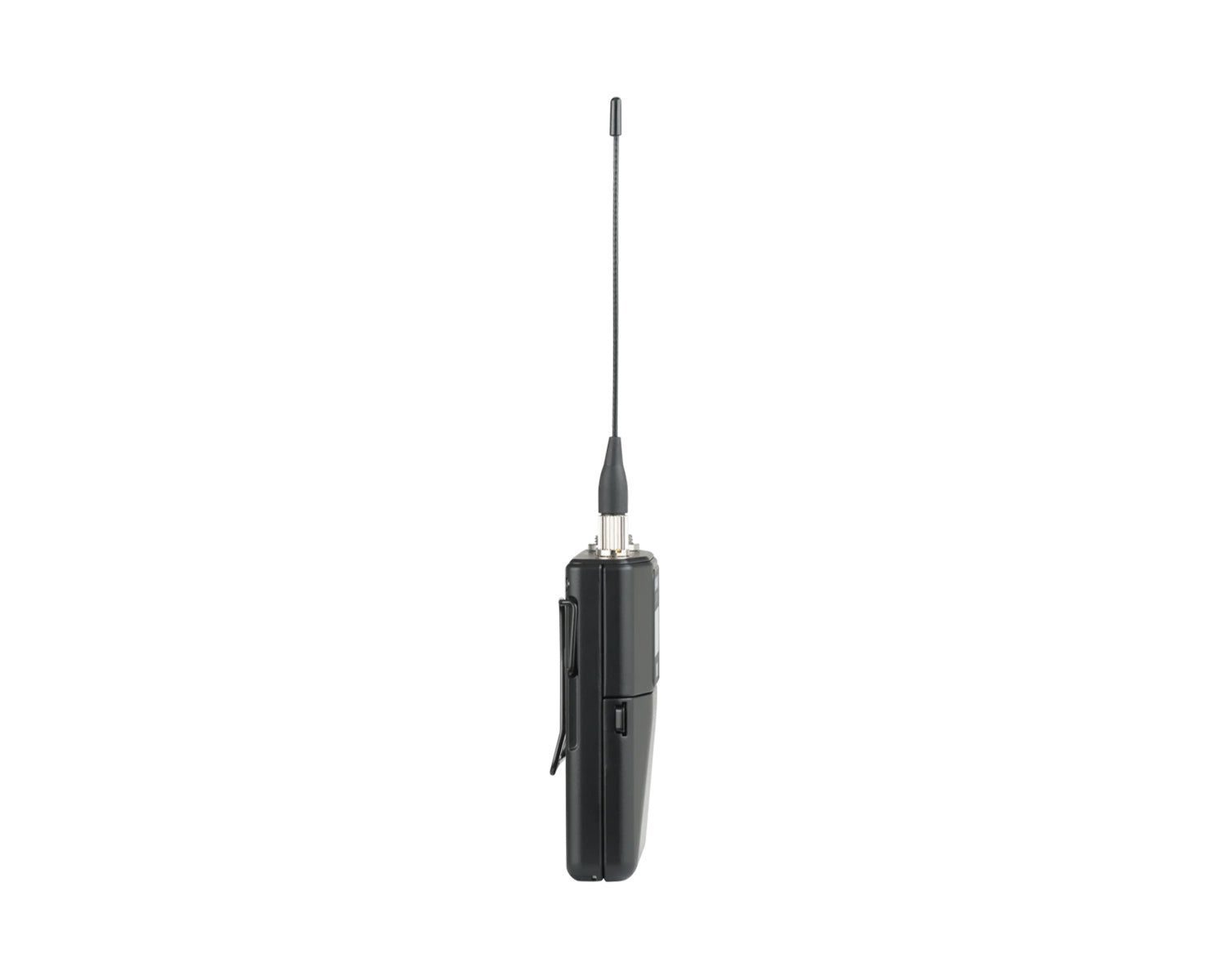

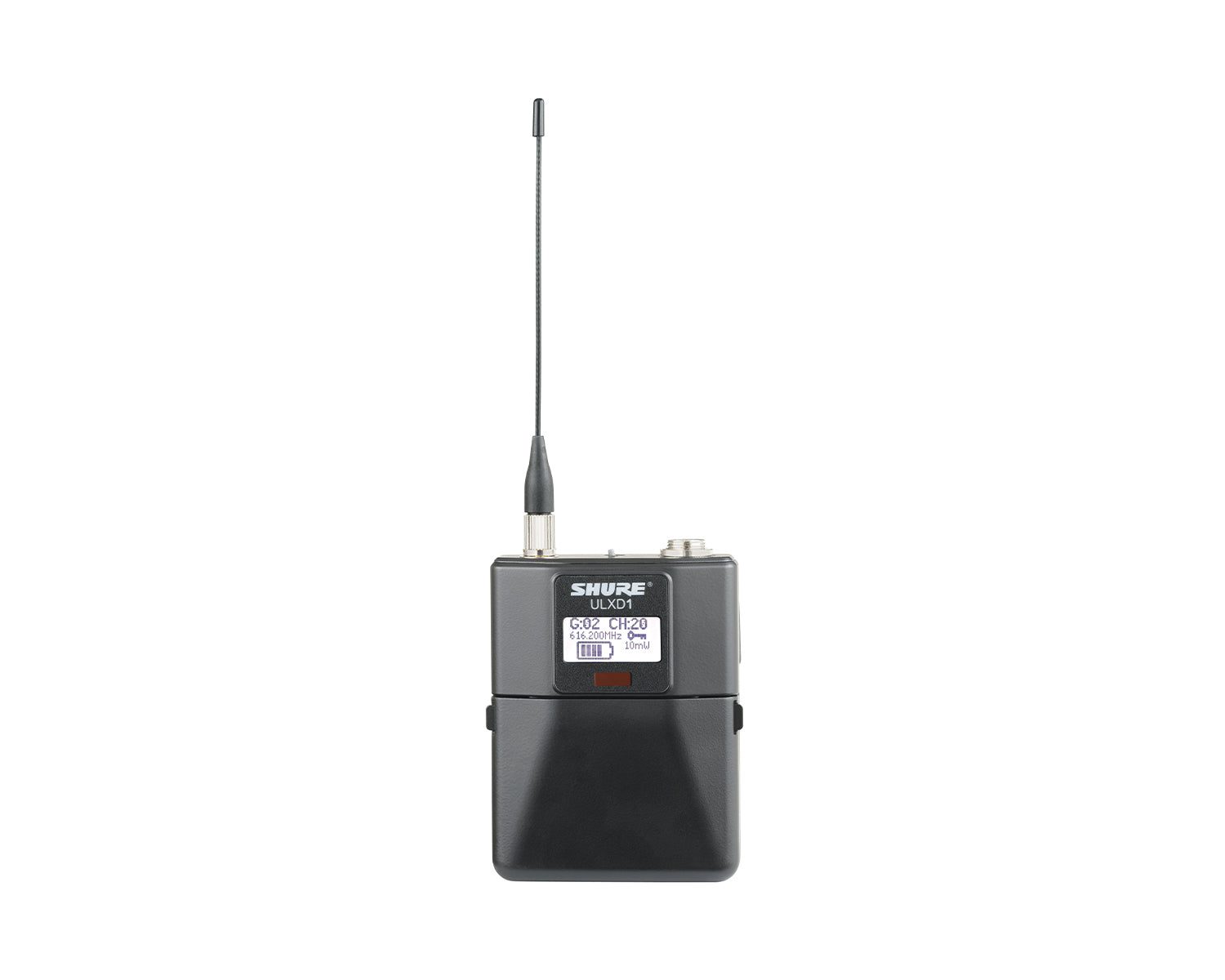

Shure ULXD1 Wireless Bodypack Transmitter LEMO3 K51 CH38

• AES 256-bit encryption for applications for which secure transmission is needed
• Proprietary Shure Gain Ranging optimizes the system‚Äôs dynamic range for any input source, eliminating the need for transmitter gain adjustments
• Optional Shure SB900 Lithium-Ion rechargeable battery provides up to 12 hours of battery life, precision metering, and zero memory effect
• External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Detachable ¬º wave antenna
• Frequency and power lockout

System Specifications

• RF Carrier Frequency Range: 606-670 MHz
• Working Range: 100 m ( 330 ft)
• Note: Actual range depends on RF signal absorption, reflection and interference. Note: Actual range depends on RF signal absorption, reflection and interference.
• RF Tuning Step Size: 25 kHz, varies by region
• Image Rejection: >70 dB, typical
• RF Sensitivity: ‚àí98 dBm at 10 BER
• Latency: <2.9 ms
• Audio Dynamic Range A-weighted, typical, System Gain @ +10:
  • XLR Analog Output: >120 dB
  • Dante Digital Output: 130 dB
• Total Harmonic Distortion ‚àí12 dBFS input, System Gain @ +10: <0.1%
• System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
• Operating Temperature Range: -18¬∞C (0¬∞F) to 50¬∞C (122¬∞F) Note: Battery characteristics may limit this range.
• Storage Temperature Range: -29¬∞C (-20¬∞F) to 74¬∞C (165¬∞F) Note: Battery characteristics may limit this range.
• Receiver Output Level
• Receiver Output Gain
  • 1/4" TRS: +18 dB
  • XLR (line setting): +24 dB
  • XLR (mic setting): -6 dB This setting matches a typical wired SM58 audio signal level

ULXD1 Specifications

• Mic Offset Range: 0 to 21 dB (in 3 dB steps)
• Audio Frequency Response: 20 ‚Äì 20 kHz (¬±1 dB)
• Battery Type: Shure SB900B Rechargeable Li¬≠Ion or LR6 AA batteries 1.5 V
• Battery Runtime @ 10 mW:
  • Shure SB900B: >8 hours
  • alkaline: 9 hours
• Dimensions: 86 mm x 66 mm x 23 mm (3.4 in. x 2.6 in. x 0.9 in.) H x W x D
• Weight: 142 g (5.0 oz.), without batteries
• Housing: Cast aluminium
• Audio Input
  • Connector: LEMO3
  • Configuration: Unbalanced
  • Impedance: 1 MŒ©
  • Maximum Input Level: 1 kHz at 1% THD
  • Pad Off: 8.5 dBV ( 7.5 Vpp)
  • Pad On: 20.5 dBV ( 30 Vpp)
  • Preamplifier Equivalent Input Noise (EIN): System Gain Setting ‚â• +20¬≠120 dBV, A¬≠weighted, typical
• RF Output
  • Connector: SMA
  • Antenna Type: 1/4 wave
  • Impedance: 50 Œ©
  • Occupied Bandwidth: <200 kHz
  • Modulation Type: Shure proprietary digital
  • Power: 1 mW, 10 mW, 20 mW See Frequency Range and Output Power table, varies by region
