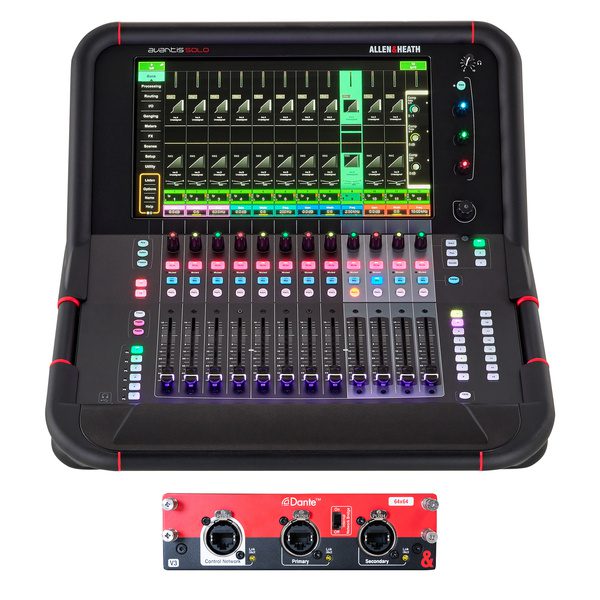

Allen & Heath Avantis Solo & 64 Channel Dante Card Bundle
£7,622.01£6,351.68 Incl. VATExcl. VAT
The Allen & Heath Avantis Solo is a compact 64-channel digital mixer featuring 96kHz XCVI FPGA processing, a 15.6″ Full HD touchscreen, and a flexible 42-bus architecture. With ultra-low 0.7ms latency, DEEP processing capabilities, and extensive I/O options, including 6 XLR inputs/outputs and dual I/O ports for Dante, Waves, and more, the Avantis Solo delivers exceptional audio quality and intuitive control for live sound, broadcast, and installations.
Includes a 64 Channel Dante Card
Designed to help integrate dLive and Avantis into a wide range of live, install and broadcast scenarios, the Dante 64√ó64 audio networking card offers low latency, high channel count connectivity to Dante networks and devices using standard networking cabling and hardware.
With 64 channels of bidirectional audio at 96kHz, the Dante 64√ó64 card is suitable for high channel digital splits between systems, for instance FOH and MON, whilst offering simultaneous multitrack recording via Dante Virtual Soundcard (available separately), with no compromise in audio quality.
- XCVI FPGA core
- 96kHz sample rate
- Variable bit depth
- 96bit accumulator
- Class leading, ultra-low latency (0.7ms)
- 15.6” Full HD capacitive touchscreen with gesture control
- Innovative compact design with super-tough, lightweight full-metal chassis
- 64 Input Channels with full processing (LPF/HPF, Gate, PEQ, Comp, Delay)
- Configurable 42 bus architecture with full processing (PEQ, GEQ, Comp, Delay) on Mix Outputs.
- DEEP Processing Ready
- 72 fader strips (12 faders, 6 layers) with optional dedicated master section
- SLink EtherCON connection for remote audio using gigaACE, GX, DX, ME and dSnake protocols.
- 6 Local Mic/Line Inputs (XLR)
- 6 Local Line Outputs (XLR)
- 1 Stereo AES Input (XLR)
- 1 Stereo AES Outputs (XLR)
- 2 I/O Ports, both capable of 128x128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE
- 8 Mute Groups
- 16 DCA Groups with DCA Spill
- 12 Stereo FX with dedicated FX Returns
- 18 Assignable SoftKeys
- 3 Assignable Custom Rotaries
- Comprehensive metering with multipoint peak detection
- Integrated Fader Illumination
- Built-in signal generator, RTA and spectrogram
- AMM (Automatic Mic Mixer) up to 64 channels across 1,2 or 4 zones
- Quick copy/paste/reset for parameters
- User Permissions to restrict operator access
- 500 Scene memories per show
- Channel Safes, Global and per Scene Recall Filters
- Onboard Stereo Recording & Playback
- USB transfer of Scenes, Libraries, Shows, Audio Files.
- MIDI Control Driver for MIDI control via TCP/IP
- Wireless remote mixing apps for iPad
- BNC Word Clock connector (input or output)
- ¼” TRS and 3.5mm Headphone outs with dedicated analogue volume control
System
- Measured balanced XLR In to XLR Out, 22-40kHz, minimum Gain, Pad out
- Dynamic Range: 109dB
- System Signal to Noise: -92dB
- Frequency Response: 20Hz - 30kHz (+0/-0.8dB)
- THD+N (analogue in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
- Headroom: +18dB
- Internal operating Level: 0dBu
- dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
- Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
- Meter Peak indication: -3dBFS (+19dBu at XLR out)
- Sampling Rate: 96kHz
- Operating Temperature Range: 0 deg C to 40 deg C
- Mains Power: 100-240V AC, 50-60Hz, 150W max
- Audio recording: Stereo .WAV files, 24bit 96kHz
- Audio playback:
- 16/24bit, 44.1/48/96kHz
- MP3 files
- FLAC files
Inputs
- Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
- Mic/Line Preamp: Fully recallable
- Input Sensitivity: -60 to +15dBu
- Analogue Gain: +5 to +60dB, 1dB steps
- Pad: -20dB Active PAD
- Maximum Input Level: +30dBu (PAD in)
- Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
- Mic EIN: -127dB with 150Ω source
- Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at +24V
- Digital Inputs:
- AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
- SRC range 24 bit, 32k - 192kHz, with bypass option
Outputs
- Analogue XLR Outputs: Balanced, Relay protected
- Output Impedance: <75Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise:
- -95dBu (muted, 22-22kHz)
- -90dBu (muted, 0-80kHz)
- Digital Outputs:
- AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
- 96kHz sampling rate, globally switchable to 48kHz, 44.1kHz
Physical & Dimensions
- Width x Depth x Height: 546 x 627 x 269 mm
- Weight: 17.5kg
