Allen & Heath Avantis Solo 64 Channel Digital Mixer

SKU: AVANTIS-S/240X
-3%
Allen & Heath Avantis Solo 64 Channel Digital Mixer
Allen & Heath Avantis Solo 64 Channel Digital Mixer
Allen & Heath Avantis Solo 64 Channel Digital Mixer
Allen & Heath Avantis Solo 64 Channel Digital Mixer
Allen & Heath Avantis Solo 64 Channel Digital Mixer
Allen & Heath Avantis Solo 64 Channel Digital Mixer
Click to enlarge

    £6,950.00 inc VAT
    £5,791.67 ex VATWas £7,199.00 inc VAT. Save £249.00

    Usually delivered in 2–3 working days
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    3 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp
    Compare the Range
    Allen & Heath Avantis Solo 64 Channel Digital Mixer
    Allen & Heath Avantis Solo 64 Channel Digital Mixer
    £6,950.00 inc VAT
    £5,791.67 ex VATWas £7,199.00 inc VAT. Save £249.00
    Viewing Now

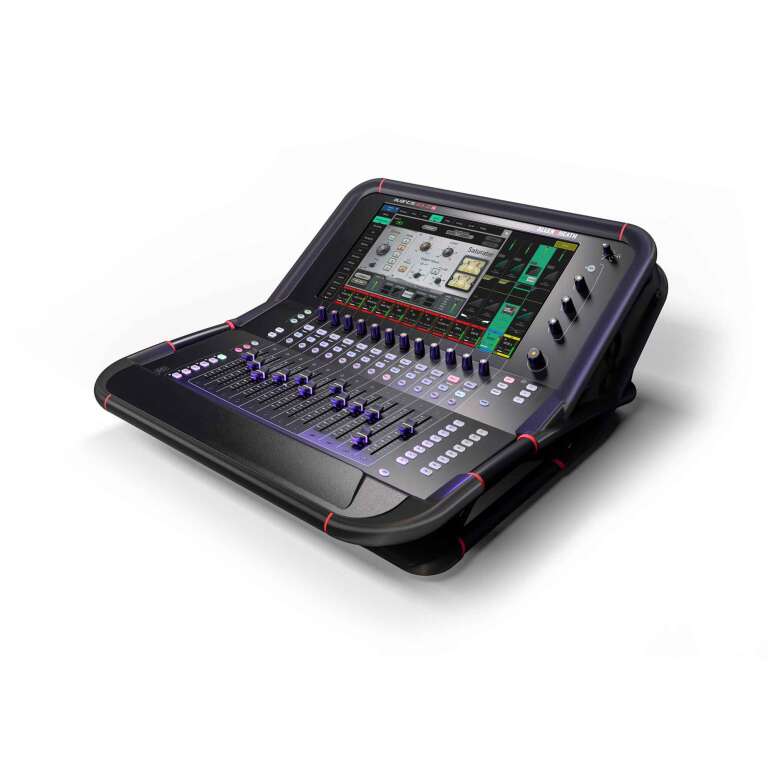

    Allen & Heath Avantis Solo Ultra 96 Channel Mixing Console
    Allen & Heath Avantis Solo Ultra 96 Channel Mixing Console
    £8,850.00 inc VAT
    £7,375.00 ex VAT
    View →

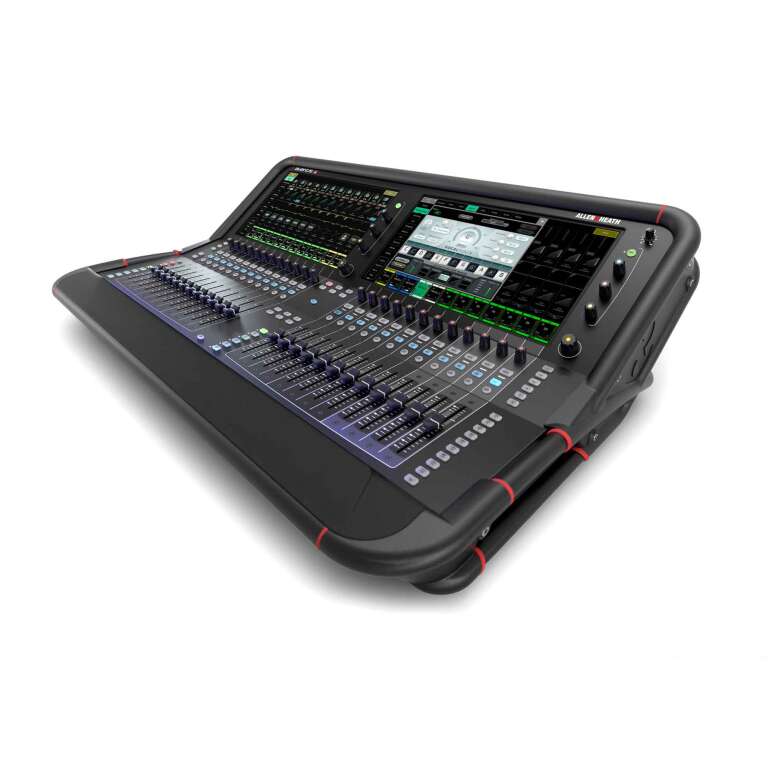

    Allen & Heath Avantis Ultra 96 Channel Mixing Console
    Allen & Heath Avantis Ultra 96 Channel Mixing Console
    £12,650.00 inc VAT
    £10,541.67 ex VAT
    View →

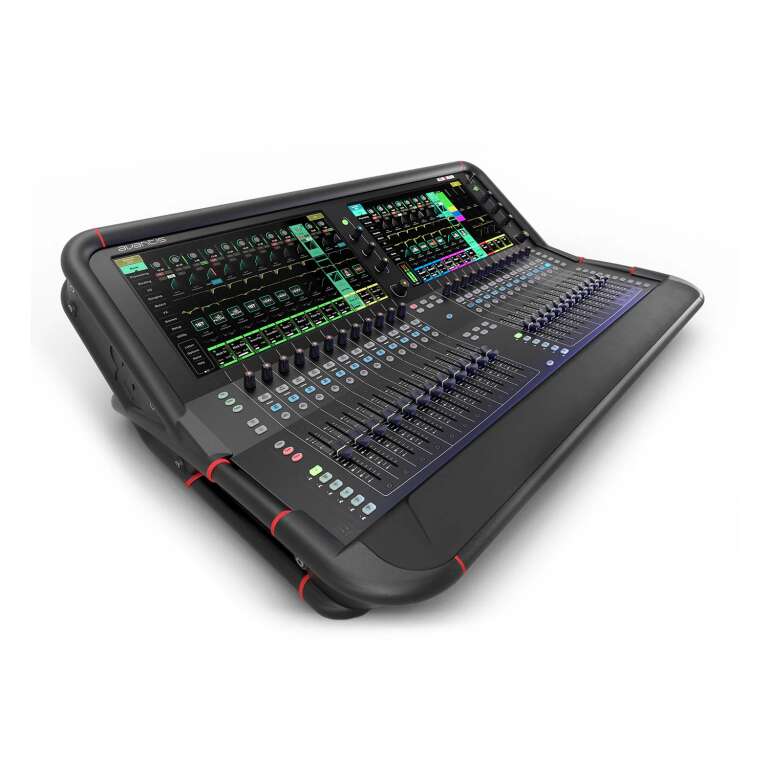

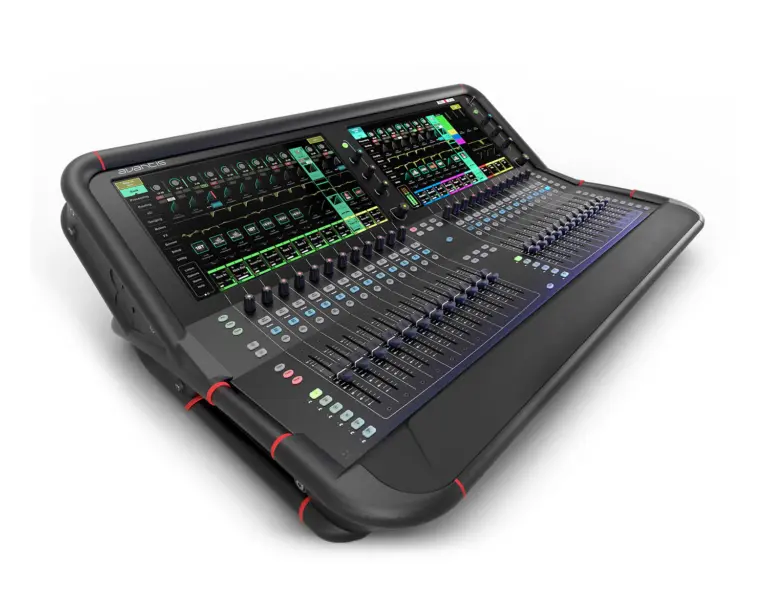

    Allen & Heath Avantis 240X Digital Mixer
    Allen & Heath Avantis 240X Digital Mixer
    £11,199.00 inc VAT
    £9,332.50 ex VAT
    View →

    About this Product

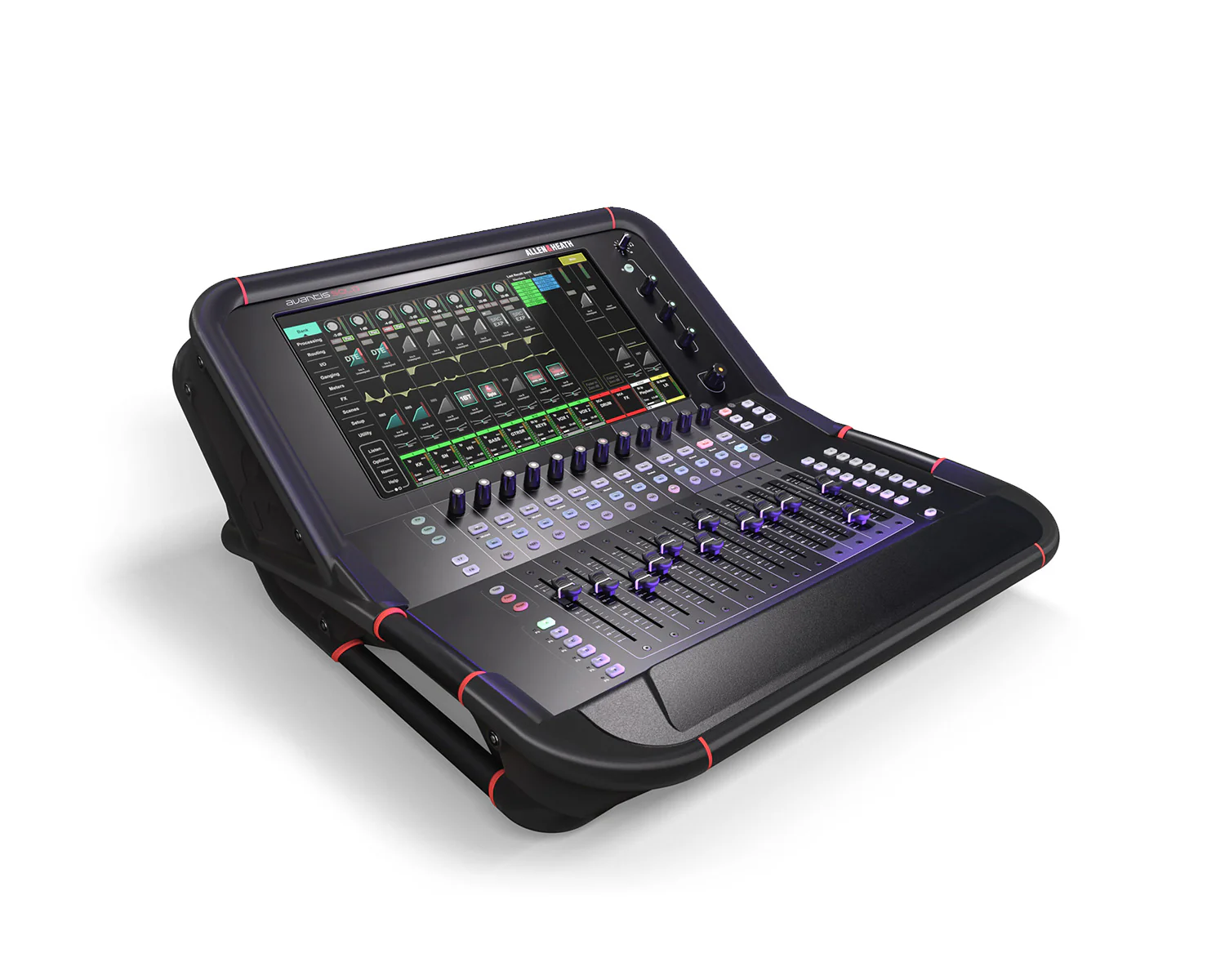

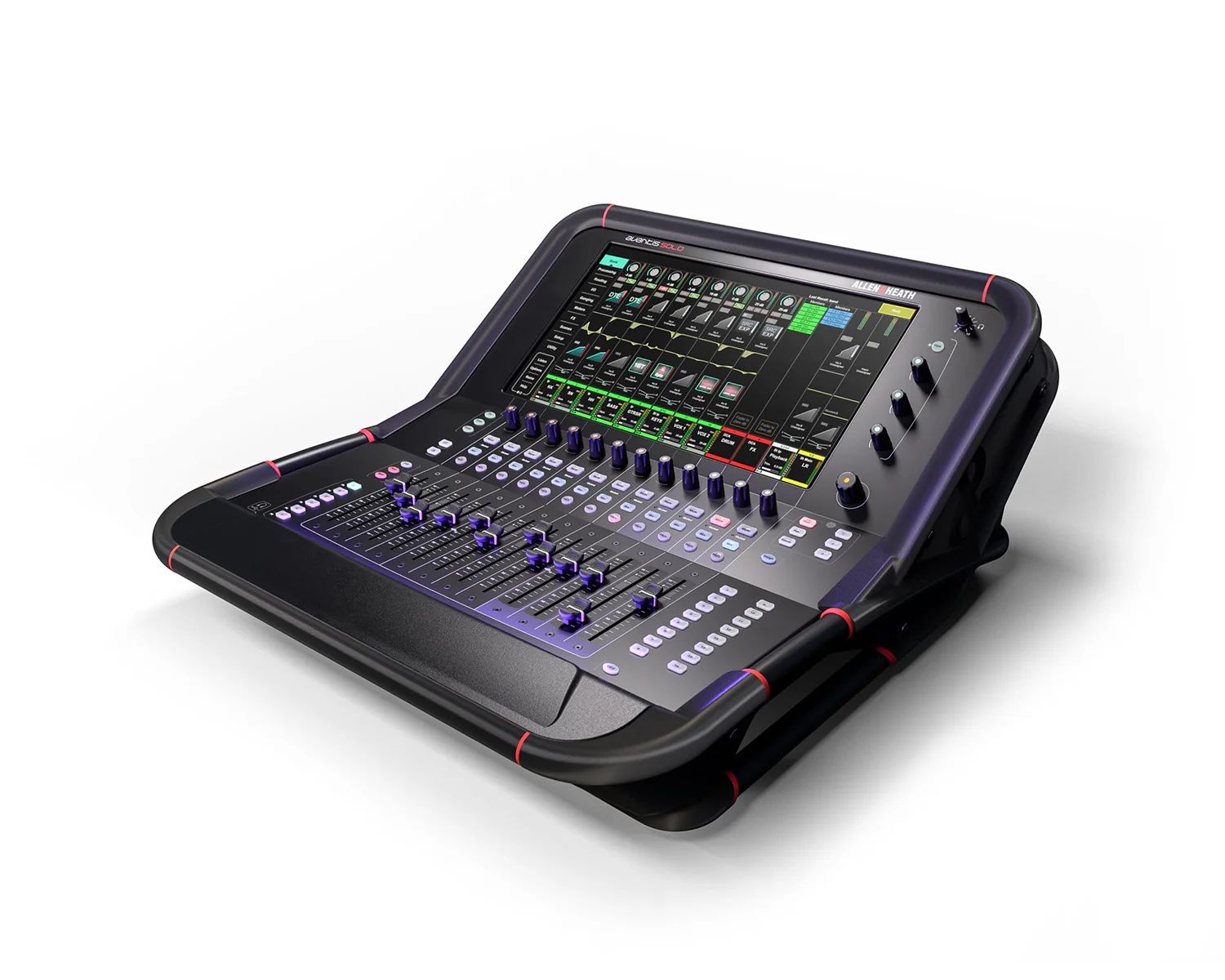

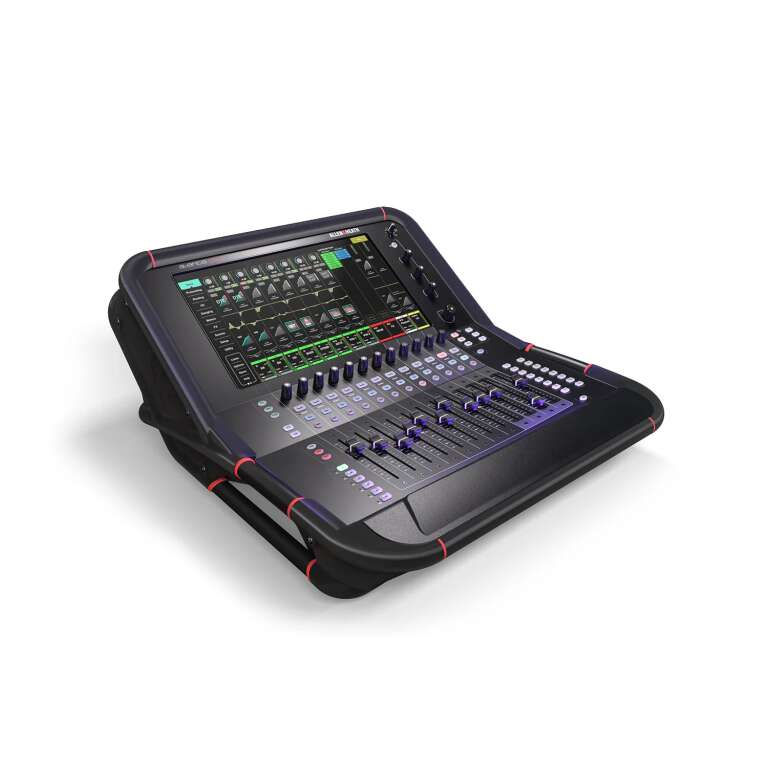

    The Allen & Heath Avantis Solo is the compact 12 fader version of the Avantis console, built on the same 96kHz XCVI core with 64 input channels, 42 mix buses and a 15.6 inch full HD touchscreen. Aimed at engineers who want full Avantis processing on a smaller surface for theatre, broadcast, houses of worship and corporate AV.

    Key Features
    ✓64 input channels and 42 configurable mix buses
    ✓12 motorised 100mm faders across multiple layers
    ✓Single 15.6 inch full HD capacitive touchscreen
    ✓96kHz XCVI engine, 0.7ms latency
    ✓12 RackExtra FX slots with dedicated stereo returns
    ✓6 XLR mic/line inputs and 6 XLR outputs onboard
    ✓Stereo AES3 in and out
    ✓Two gigaACE network ports for redundant connection to remote I/O
    ✓Option card slot for Dante, Waves SoundGrid, MADI and more
    ✓Compatible with the dPack upgrade voucher
    Specifications
    Input channels 64
    Mix buses 42 configurable
    Faders 12 motorised
    Touchscreen 15.6 inch full HD capacitive
    Sample rate 96kHz, 24 bit
    Latency 0.7ms
    Local I/O 6 XLR in, 6 XLR out, stereo AES in/out
    Networking 2 x gigaACE, option card slot
    Power 100-240V AC mains
    Part number AVANTIS-S/240X

    More Information

    • XCVI FPGA core
      • 96kHz sample rate
      • Variable bit depth
      • 96bit accumulator
      • Class leading, ultra-low latency (0.7ms)
    • 15.6" Full HD capacitive touchscreen with gesture control

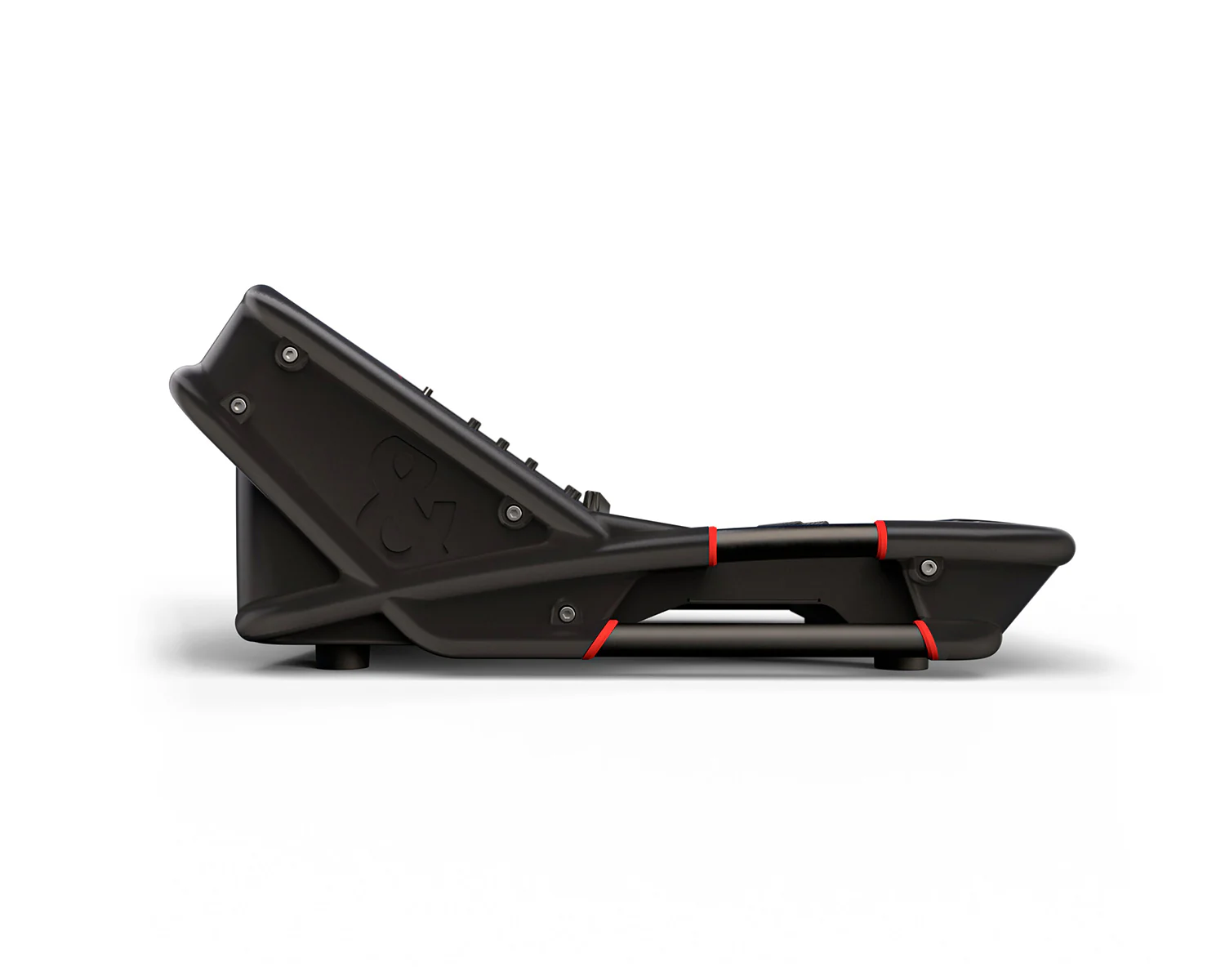

    • Innovative compact design with super-tough, lightweight full-metal chassis
    • 64 Input Channels with full processing (LPF/HPF, Gate, PEQ, Comp, Delay)
    • Configurable 42 bus architecture with full processing (PEQ, GEQ, Comp, Delay) on Mix Outputs.
    • DEEP Processing Ready
    • 72 fader strips (12 faders, 6 layers) with optional dedicated master section

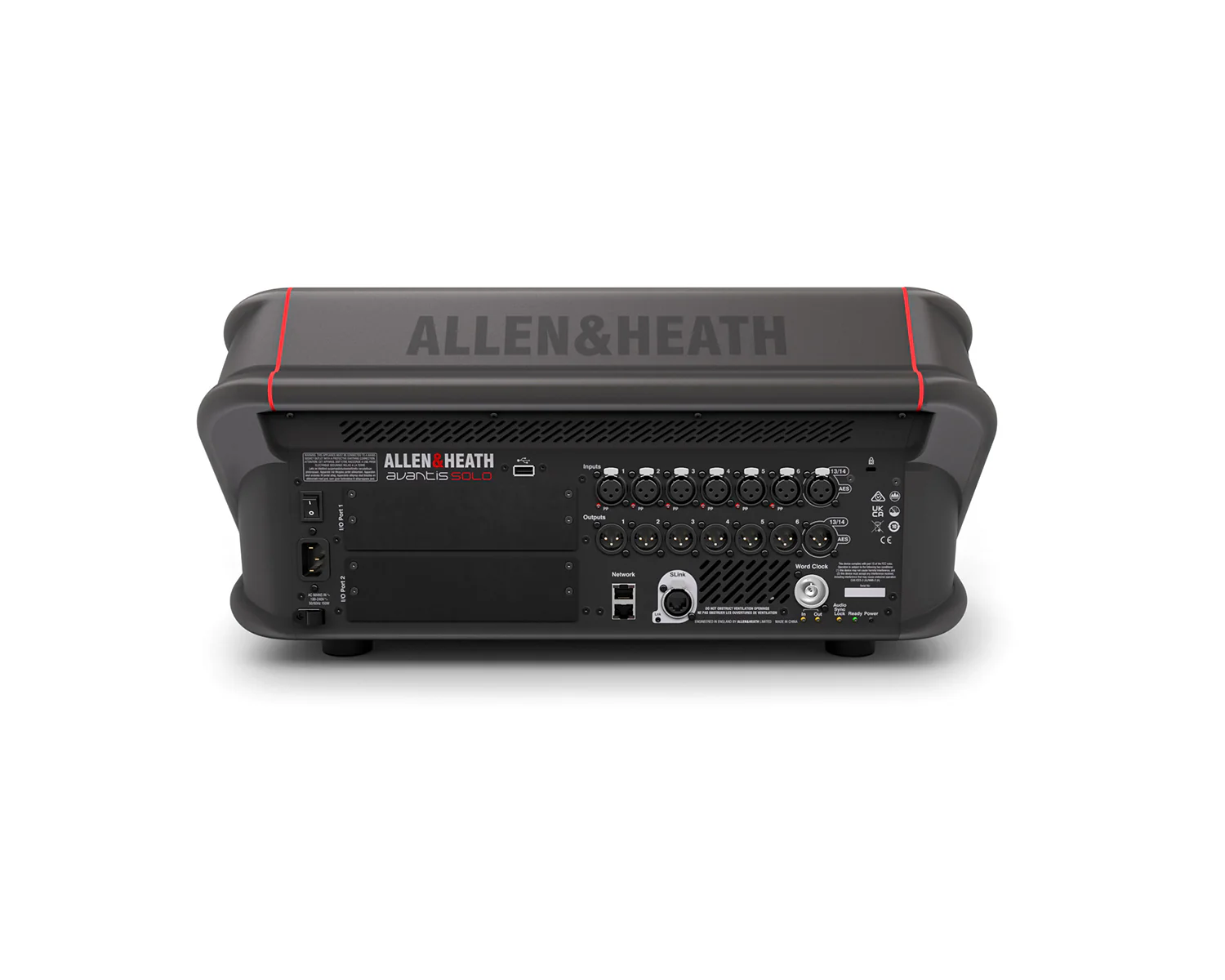

    • SLink EtherCON connection for remote audio using gigaACE, GX, DX, ME and dSnake protocols.
    • 6 Local Mic/Line Inputs (XLR)
    • 6 Local Line Outputs (XLR)
    • 1 Stereo AES Input (XLR)
    • 1 Stereo AES Outputs (XLR)
    • 2 I/O Ports, both capable of 128x128 operation at 96kHz - for optional cards inc. Dante, MADI and gigaACE
    • 8 Mute Groups
    • 16 DCA Groups with DCA Spill
    • 12 Stereo FX with dedicated FX Returns
    • 18 Assignable SoftKeys
    • 3 Assignable Custom Rotaries
    • Comprehensive metering with multipoint peak detection
    • Integrated Fader Illumination
    • Built-in signal generator, RTA and spectrogram
    • AMM (Automatic Mic Mixer) up to 64 channels across 1,2 or 4 zones
    • Quick copy/paste/reset for parameters
    • User Permissions to restrict operator access
    • 500 Scene memories per show
    • Channel Safes, Global and per Scene Recall Filters
    • Onboard Stereo Recording & Playback
    • USB transfer of Scenes, Libraries, Shows, Audio Files.
    • MIDI Control Driver for MIDI control via TCP/IP
    • Wireless remote mixing apps for iPad
    • BNC Word Clock connector (input or output)
    • ¼" TRS and 3.5mm Headphone outs with dedicated analogue volume control
