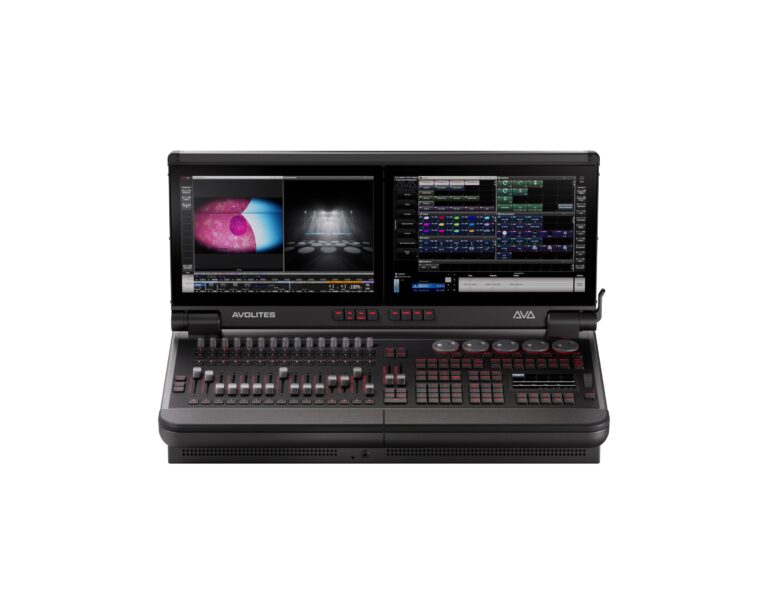

Name: Avolites Diamond 7 D7-215 Lighting Console Bundle with Cover + Pelicase
Brand: Avolites
SKU: Bundle72
Availability: InStock

Description

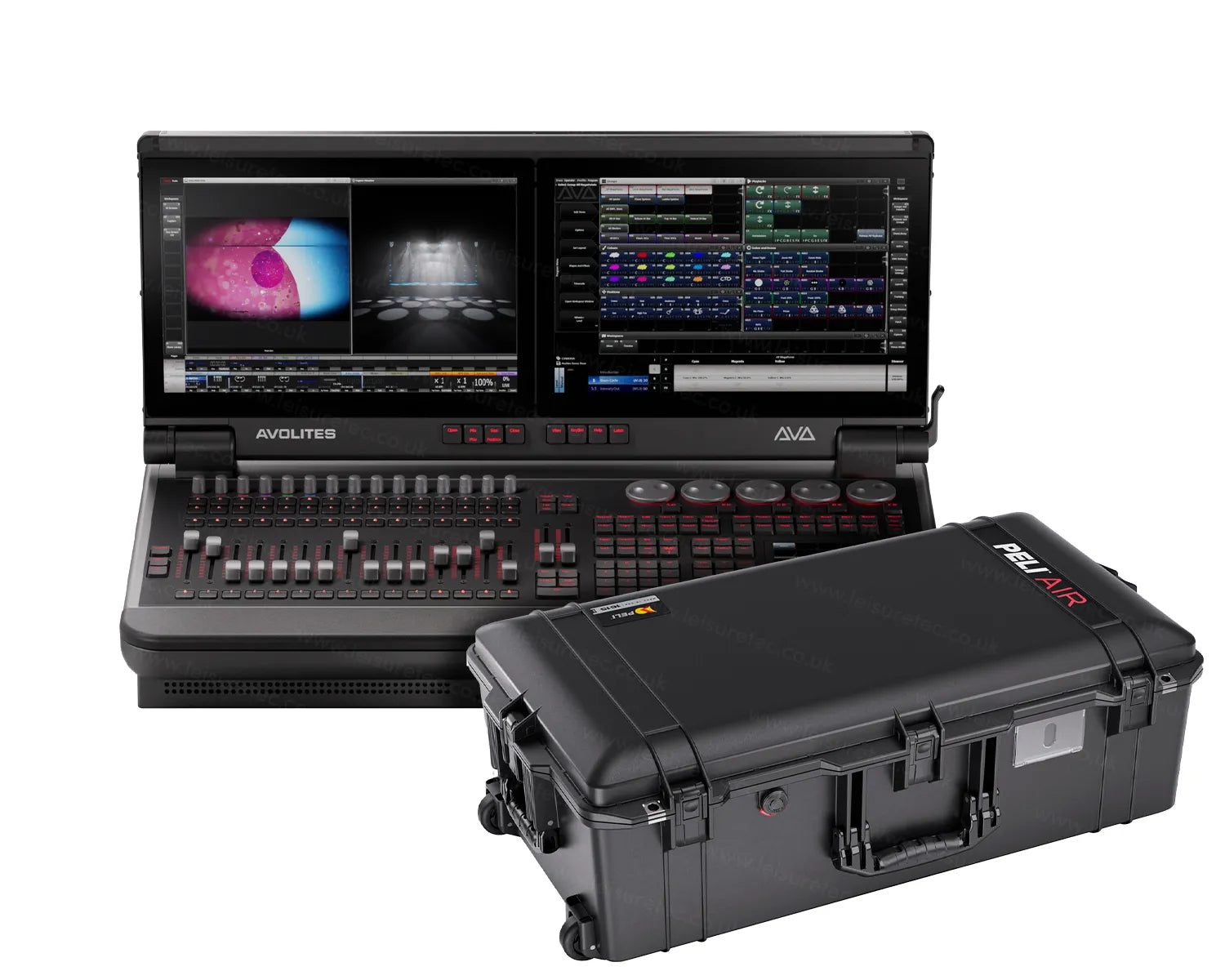

Featuring a new clam shell screen panel and locking mechanism. The new D7 console control surface follows the Diamond 9 design language. The D7-215 fits into a standard Peli-Air case and is under European aircraft hold weight limit. The Peli-Air Case 1615 is one of the largest Air cases. It’s lightweight but still Peli tough, and features a retractable handle and wheels. As always, this case is covered by the Peli Lifetime Guarantee. The 1615 won ‘Best Roller/Hardcase’ in the Pro Moviemaker Gear of the Year 2018 Awards, recognising it as one of the best pieces of kit within in the filmmaking industry.

Features

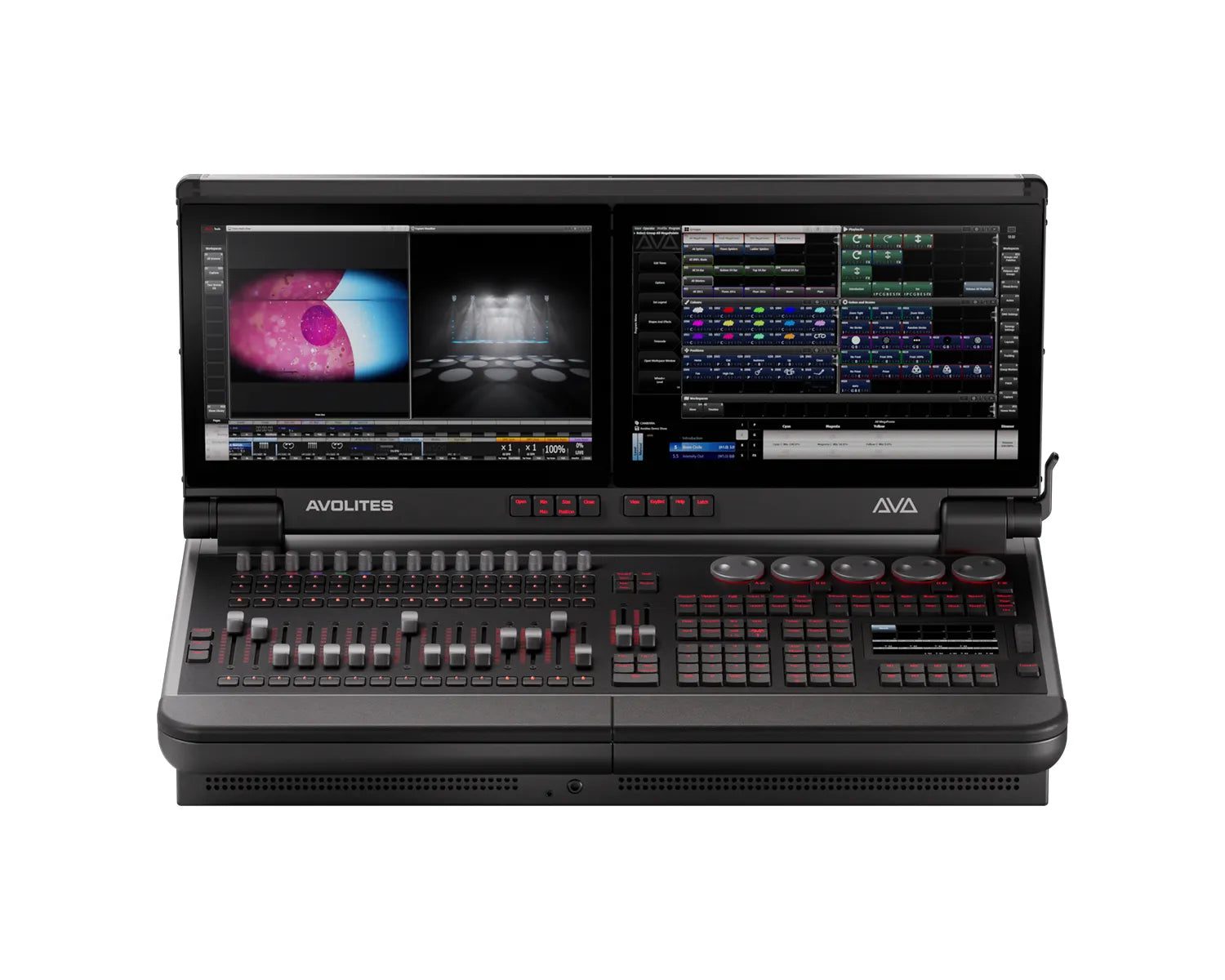

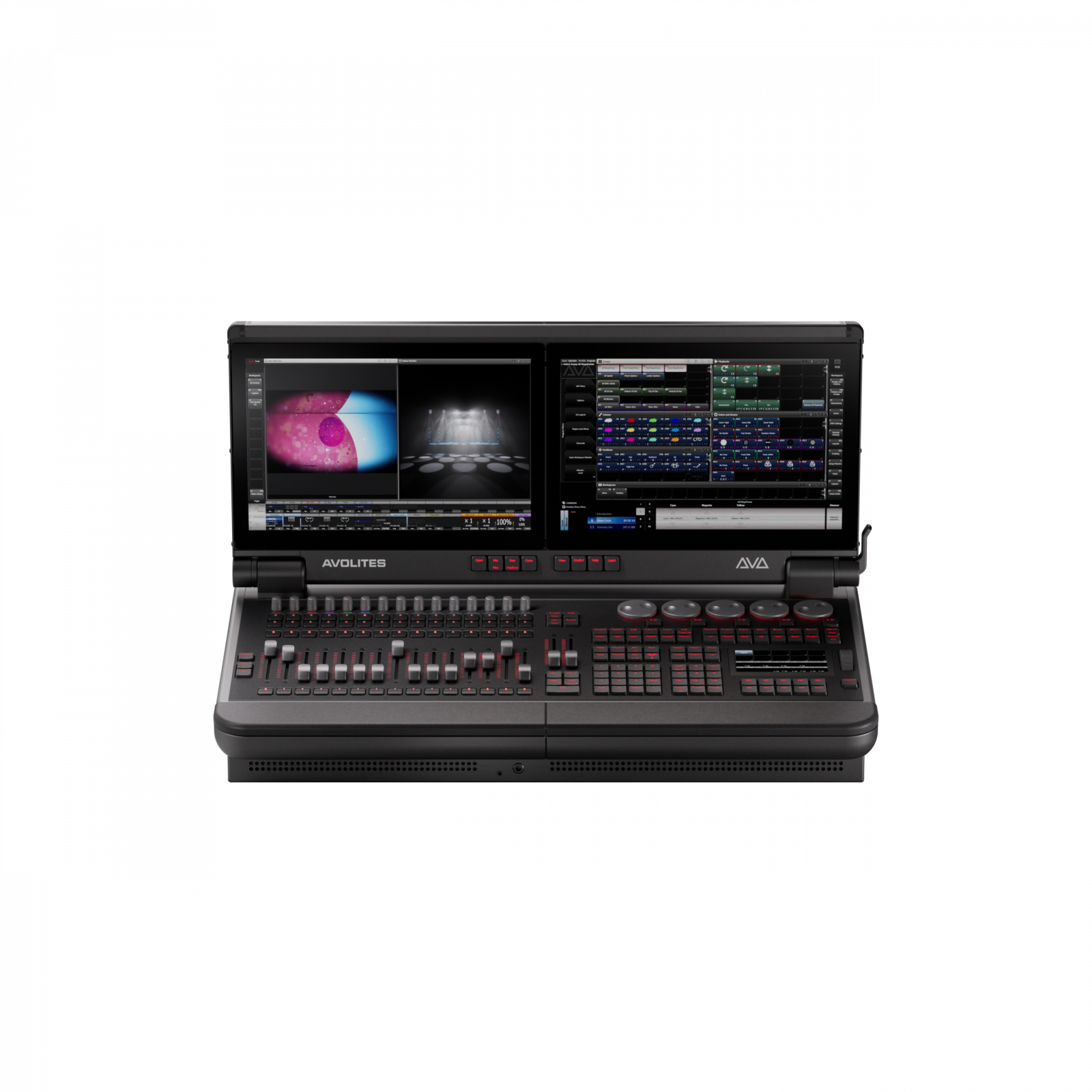

D7-215 Features

15 motorised touch-sensitive faders, with designer fader cap
Dual, motorised, touch-sensitive, master cue-list and sequence faders with 9 control buttons
Single RGB LED Halo indicator alongside each fader
15 Ultra high resolution touch sensitive playback encoders with push function
Halo RGB indicator for each playback
60 C&K playback function buttons with positive haptics for timing designer key cap
Paging for playback section
2 x 14‚Äù 850 nits 1920 x 1200 capacitive touch main screens with adjustable brightness
1 x 4.3‚Äù 850 nits 800x480 capacitive touch macro and workspace screen with adjustable brightness
10 backlit Macro / Executor key & 10 soft Macro buttons with legend on Macro screen
Programming buttons all RGB backlit, short travel Cherry¬Æ MX Low Profile switches
5 custom RGB backlit attribute encoders Dedicated level wheel and onscreen level indication
Full custom backlit QWERTY keyboard in drawer
Supports two additional external DisplayPort 1920*1080 touchscreens
All aluminium construction to reduce weight

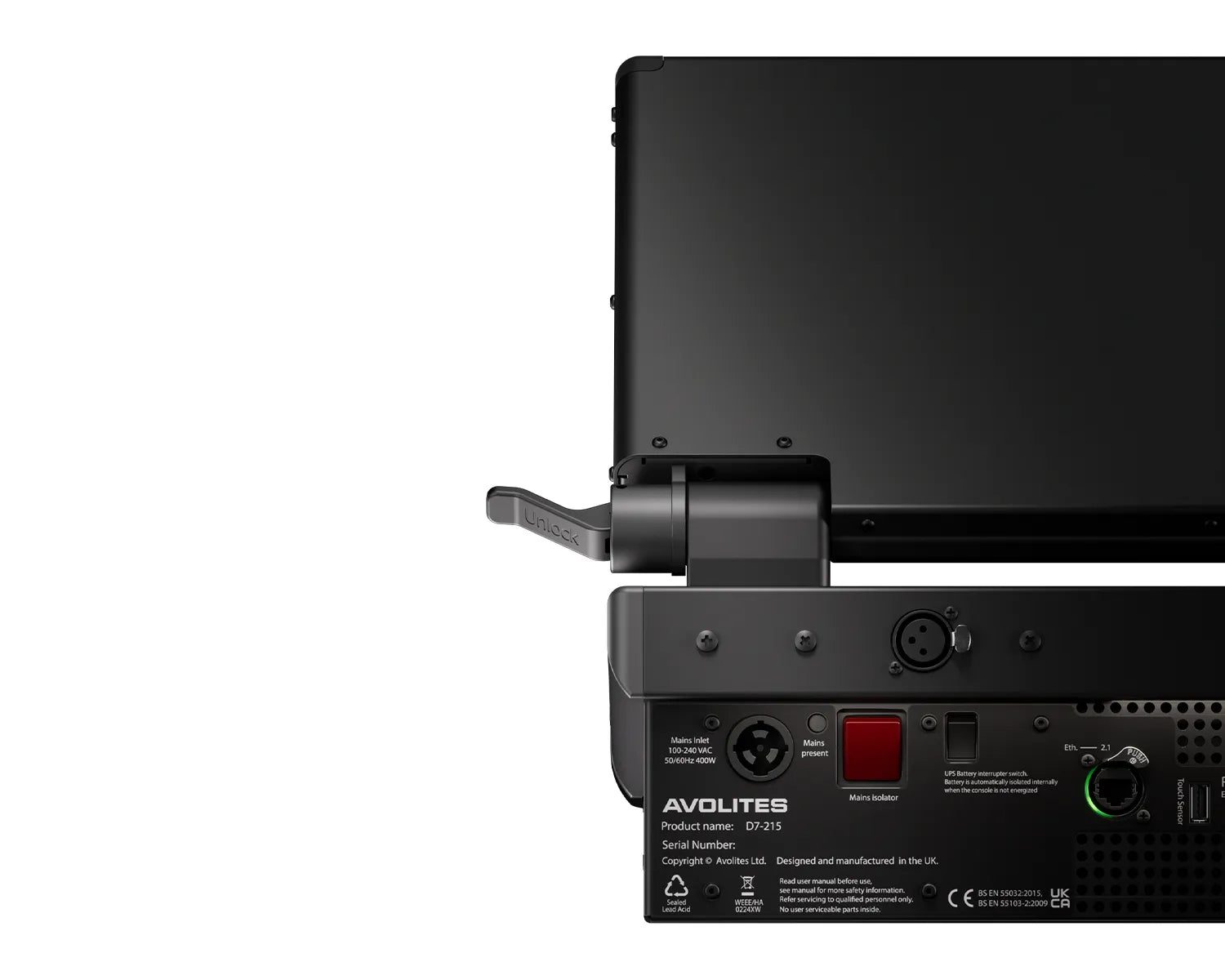

Clam shell LCD panel design to reduce transport size, with positive locking mechanism, adjustable screen panel articulation in 6 degrees steps from ‚Äì 90 to 155 degrees from vertical
Comfortable armrest
Exclusively manufactured button caps, fader caps, encoder knobs, encoder wheels and level wheel
All screens flush-mounted

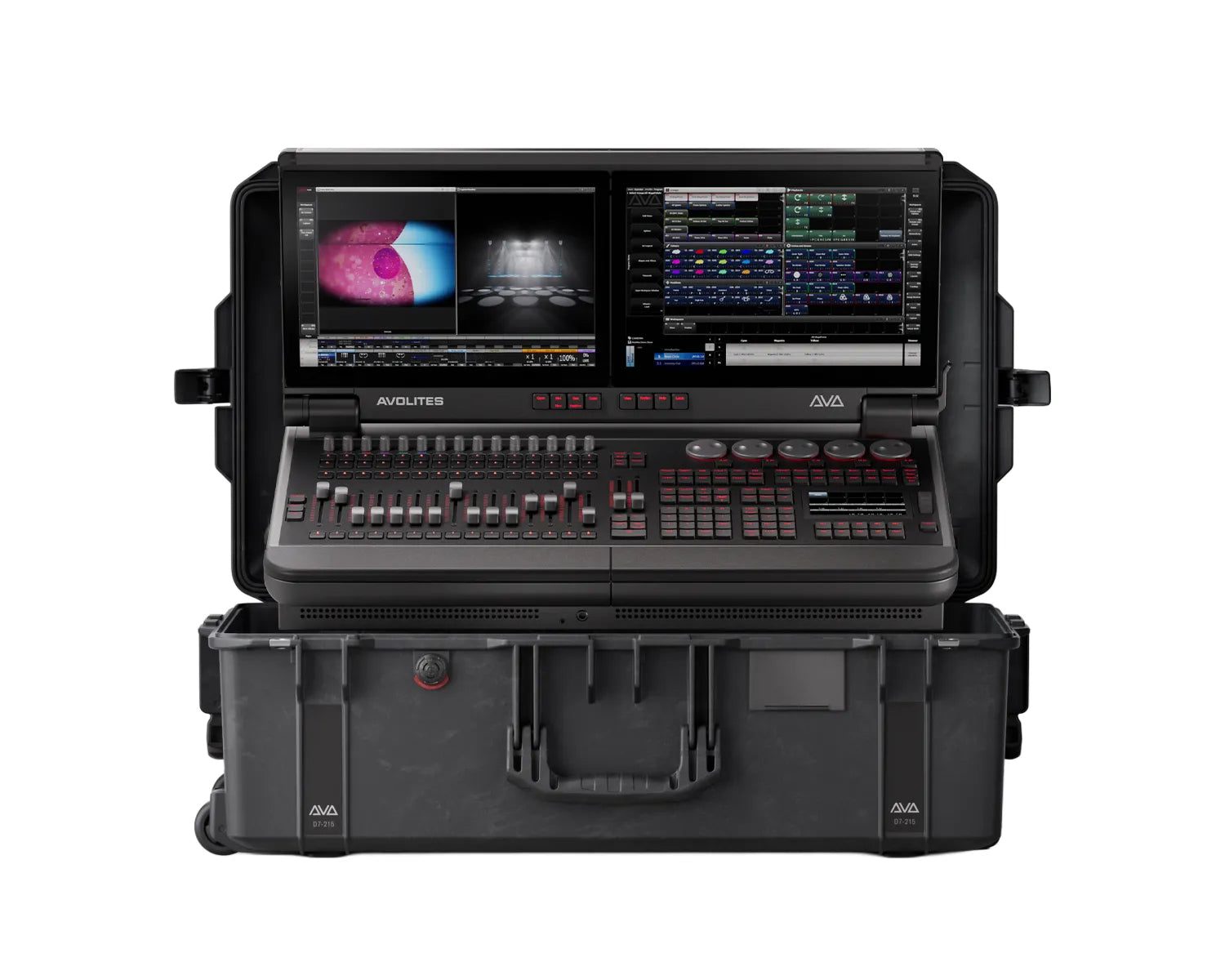

Can be transported in a custom Peli Air 1615 case, allowing for most airlines checked in luggage use

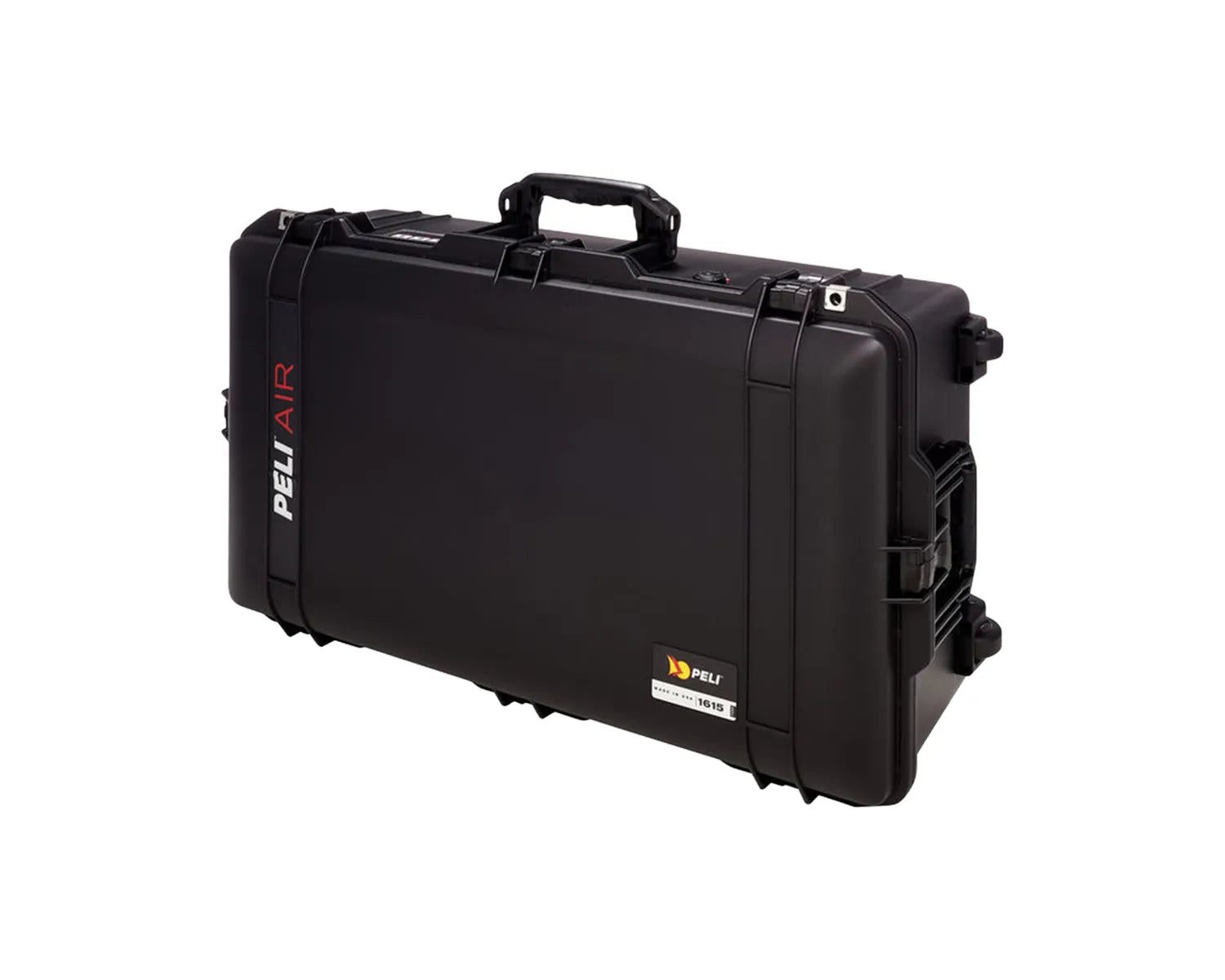

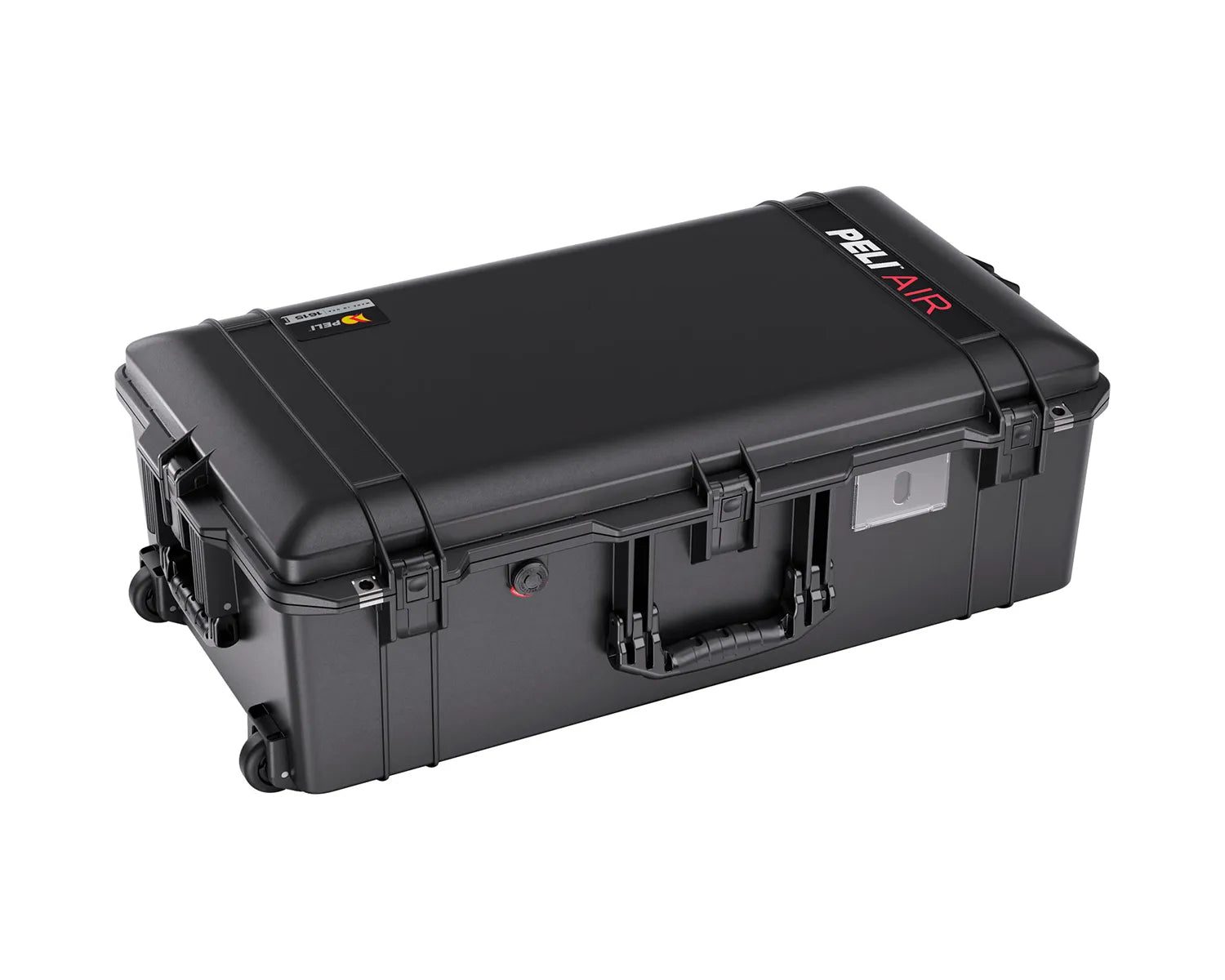

Peli-Air Case 1615 Features

Avolites branded
Airline check in size
Automatic pressure equalisation valve
Conic Curve lid shape
Easy-open latches
HPX¬≤ super-lightweight resin
Removable card holder
Retractable handle
Rubber overmoulded handles
Rubber 'O-ring' seal
Wheels
Stainless steel padlock hasps
IP67 rated protection

Specs

Software

Platform: Avolites Titan
DMX Channels per Device: 16,384
DMX Channels per System: 32,768
Max Fixtures: 32,000
Keyframe Effect Engine: Custom effects with any number of keyframes
Pixel Mapping: Video via synergy, pixel animations from Titan
Playback Control: User defined using multiple faders, encoders and buttons
External Control: Web API, SMPTE, MIDI, DMX, s-ACN, GPIO
Titan Net: Multi-User & DMX Expansion
Output Formats: ArtNet, s-ACN, DMX512

Hardware

Processing: Custom processing hardware and cooling to get the best processing performance and cooling with the addition of features including industry-standard XLR connectors for networking and protected outlets
Unit Dimensions (WxDxH):
- 680 x 450 x 240 mm (Screens up)
- 680 x 450 x 150 mm (Screens down)
Power Consumption: Max 270W
Voltage: 110 ‚Äì 240 AC, 50 ‚Äì 60 Hz
Operation Environment: Operating Temp. 0 ‚Äì 40 C / 32 - 104 F Max Humidity 95% Relative non-condensing
Heat Output: Max 922 BTU/HR
Internal UPS: Up to 5 separate 4 ‚Äì minute periods, fully software integrated

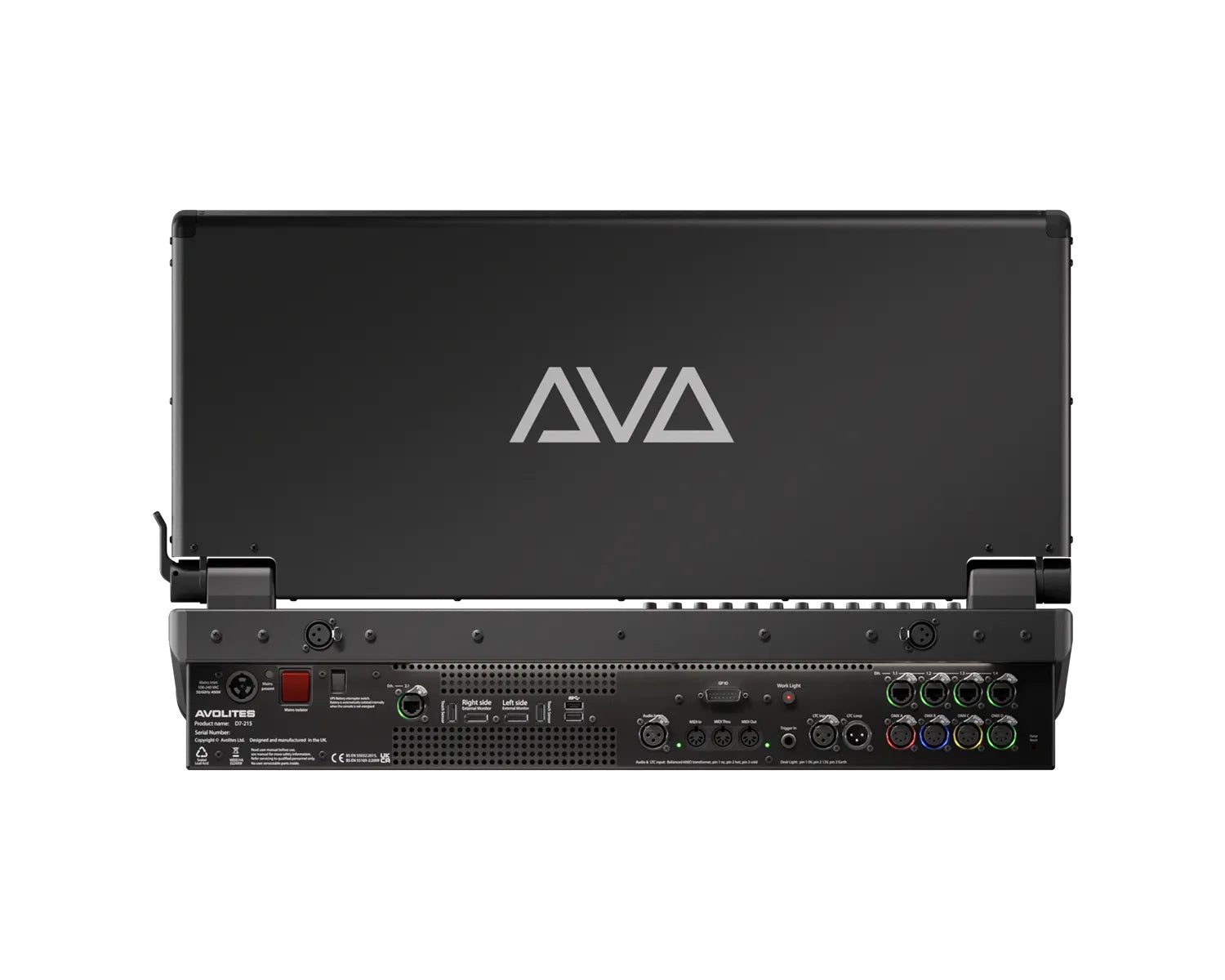

Connectivity

DMX 512: 8 X Neutrik 5-Pin XLR, optically and galvanically isolated with halo assignment indicators
Network:
- 4 x Neutrik XLR on the primary port, internally switched & managed
- 1x Neutrik XLR secondary network port
Data/Peripherals:
- 1 X USB 3.0 Right hand side handle
- 2 X U SB 3.0 Back panel
- 2 X USB 2.0 Assigned for external touch screens
External Display: 2 X Display port up to 1920*1080
SMPTE: 1 X 3-P in LTC timecode in and loop out XLR with transformer isolation
Trigger Inputs:
- GPIO 4 IN/4 OUT, Isolated, and dry contacts on 15 Pin D Sub Connector
- ¬º‚Äù Jack for foot switch
- Audio input for 7 x Band Triggers, via 3-Pin XLR with transform isolation
MIDI:
- IN, THRU, OUT ON 5-PIN DIN with signal and enabled indicators
- USB MIDI Supported
Rear Work Light:
- White LED strip with red LED button to aid quick location
- 2 X 3 Pin XLR desk light sockets
Mains Power: Neutrik True1¬Æ
